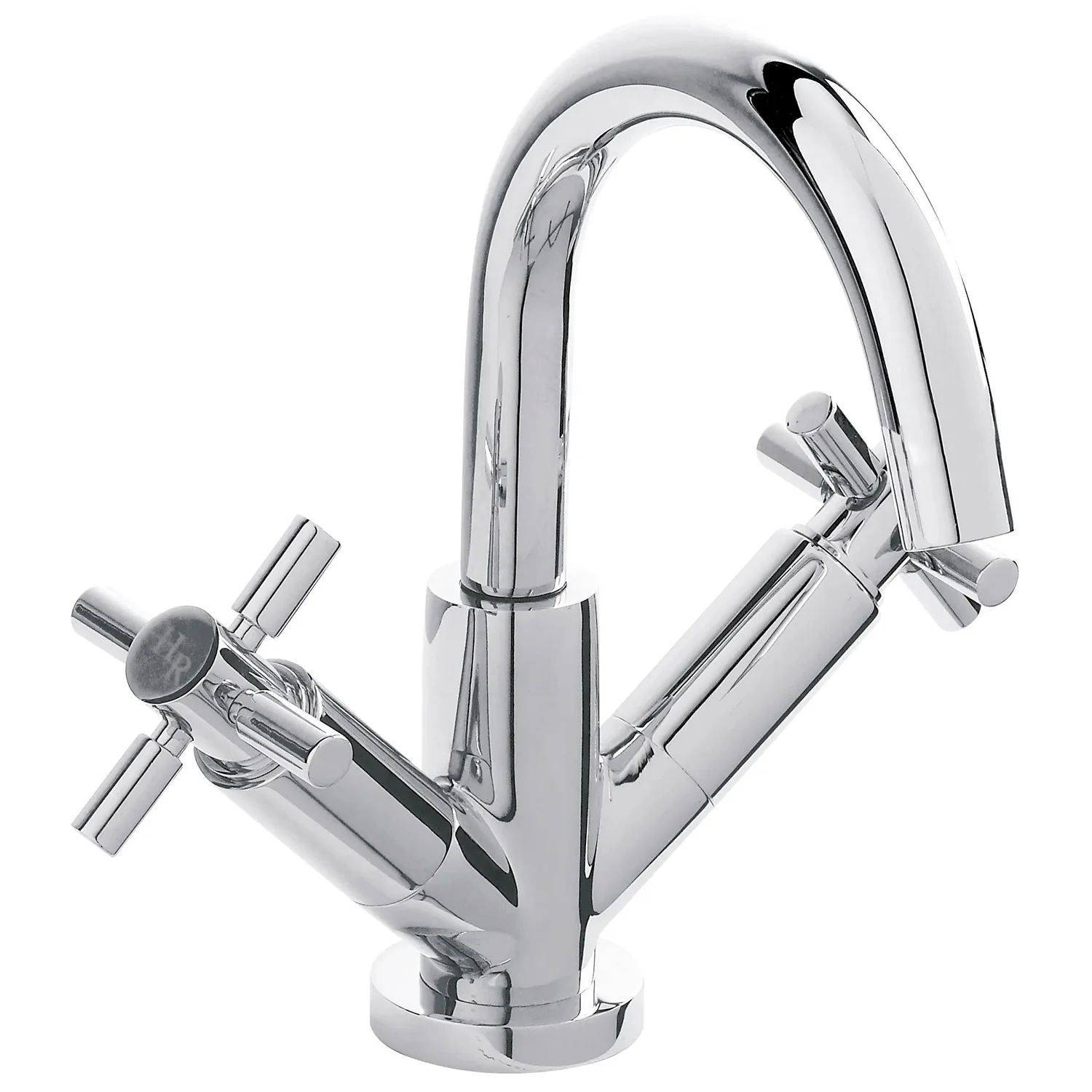

Hudson Reed Tec Mono Basin Mixer Tap With Waste

Hudson Reed Tec TEL315 Details

If you are looking for a uniquely designed tap, that will draw envious glances from the onlookers, then you must install the Mono Basin Mixer Tap from Hudson Reed. The deck mounted installation, with dual lever operation, has a graceful central spout and a tubular profile, enabling it to match most modern basin units.

Made from fine quality materials, it meets BS5412 and EN200 standards. It is ideal for low-pressure water systems and is compatible with all plumbing systems. The chrome finish gives it exclusivity and comes to you with a 20-year guarantee against all manufacturing defects. Pair this tap with designer bathroom accessories available at QS Supplies, to give your bathroom a complete look.

Key Features

✔Choice of different finishes: Chrome, Matt Black and Brushed Brass
✔Manufactured using solid brass material
✔Supplied with a swivel spout
✔Ceramic disc technology for smooth operation
✔Twenty years guarantee from Hudson Reed against manufacturing defects

Available in different variants: Lever Handle and Crosshead Handle
Size [mm]: 175mm x 217mm [Depth x Height]
Size [cm]: 17.5cm x 21.7cm [Depth x Height]
Waste included
The centre of the inlet to the centre of the outlet: 134mm (13.4cm)
Suitable for low water pressure systems
Requires a minimum of 0.1 bar water pressure to operate
Width: 230mm (23cm) - [crosshead handles]
Width: 260mm (26cm) - [lever handles]
WRAS approved product
Suitable for deck-mounted installation
Pipe size: 15mm (1.5cm) (1/2inch BSP)
Deck plate and Tap tails included
Refer to the technical drawing for detailed technical dimensions
Please refer to PDFs of Customer data sheets and Fitting instructions from the Additional Info Section
Basin shown in the image is not included

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Handle Position
: Left And Right
⤷ Tap Body Shape
: Round
⤷ Range
: Tec
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 20 Years
⤷ Material
: Solid Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Swivel
⤷ Valve Included
: Yes

⤷ Valve/Cartridge Type
: Ceramic Disc
⤷ Base To Spout
: 141
⤷ Spout Reach
: 134
⤷ Overall Height
: 217
⤷ Width
: 260
⤷ Minimum Operating Pressure (Bar)
: 0.1
⤷ Waste Type
: Push Button
⤷ Flow Rates (l/min)
: 0.1 bar - 3 | 0.5 bar - 16 | 1 bar - 22 | 2 bar - 31 | 3 bar - 38
⤷ Handle Style
: Crosshead
⤷ Waste Included
: Yes
⤷ Barcode
: 5055146167945
⤷ Product Type
: Basin Mixer Tap

Additional Info & Downloads

Download the Customer Data Sheet Pdf File Download the Fitting Instruction Pdf File

Technical Images

Hudson Reed Tec Mono Basin Mixer Tap With Waste

£73.84

RRP: ~~£222.00~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

6 Features Included In This Product Explained

Push Button Basin Waste

It is the perfect choice for many sink designs because of its ease of use and efficiency. The sink drain gets blocked by simply pushing the central button, allowing the water to fill in the sink. Once you are done, the water can be drained by releasing the same.

Swivel-Spout

The respective apparatus is engineered to move sideways or at certain angles, which helps the spout cover a greater area than would be possible in a fixed position.

Quarter Turn

Operating these taps is almost effortless; it can be turned on and off by rotating the lever at 90 degrees. These taps have such low friction that they are perfect for people with arthritis, weak grip, the elderly and the young.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Monobloc Tap

A Monobloc/Mono tap has a single control lever that adjusts the mix of hot and cold water supplies and the flow rate. A mixer tap has two separate controls for hot and cold water. Both work equally well, and your choice will come down to aesthetics and how many tap holes your sink has. Monobloc taps are a neater solution and more modern in appearance.

Reviews & Ratings

By: Brian From : RUARDEAN Overall Rating: Date: November 10, 2021 Beautiful, elegant tap

The delivery and communication from the company were excellent. The tap was very simple to fit and the ability to swivel the spout is a godsend when cleaning the basin. The quarter-turn ceramic valves make adjusting the flow of water very easy. The only downside was that the tap didn't come with flexible connections but that was easily resolved with a trip to a local shop.

Helpful?

1 of 1 People have found this Review useful

Quality:

Style

Value for Money

By: Declan From : Northampton Overall Rating: Date: July 16, 2024 Great Tap

Bought this tap for a new downstairs cloakroom had previously bought one for a new bathroom and knew what a great tap this was. Stylish easy to use with just half a turn and the spout moves making it easier to use when children are around or you want to splash your face. I would give it five stars every time.

Helpful?

Quality:

Style

Value for Money

By: Harrison From : LEEDS Overall Rating: Date: November 23, 2021 Good, but unexpected operation

The tap seems high quality and looks good, but both taps are turned on by rotating them towards you, as of they were levers. Taps with knobs usually turn on anti-clockwise, so this tap is not intuitive and people keep turning it up when they mean to turn it off

Helpful?

Quality:

Style

Value for Money

By: Pennie From : Kent Overall Rating: Date: February 8, 2017 Super taps -good service

Really pleased with both the taps, which seem super quality and the service. Considerably cheaper than elsewhere.

Images Uploaded by the users:

Helpful?

Quality:

Style

Value for Money

By: John From : HIGH WYCOMBE Overall Rating: Date: October 14, 2018 Good quality tap, good service

Great tap, as you'd expect from Hudson Reed. Also, fast efficient delivery from QS. Recommended.

Helpful?

Quality:

Style

Value for Money

By: John From : Blandford Forum Overall Rating: Date: July 15, 2024 Hudson reed basin tap

Happy with this, I couldn’t find it cheaper anywhere else.

Helpful?

Quality:

Style

Value for Money

Questions & Answers

Submit Your Questions 2 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Paul Asked :
How do you access the cartridge to replace them if necessary? Once the tap handle has been removed via the screw, does the long chrome shroud have to be unscrewed?

Answered By QS Team
