Heritage Dawlish Dual Control Chrome Concealed Thermostatic Shower Valve

Heritage Dawlish SDC04 Details

This traditionally designed, innovative, Dawlish Thermostatic Shower Valve is presented by Heritage. The dual-control valve is made from prime-quality material to provide years of superb performance. The chrome-finish creation features automatic shut-off in the event of hot or cold water supply failure, thus reducing the risk of scalding.

It is suitable for both low and high-water pressure systems and is recommended to work under a minimum of 0.2 bar pressure. This WRAS-approved shower valve is the perfect fit for your corner entry shower enclosure. A 5-year guarantee is offered against manufacturing defects by the manufacturer on this product.

Available in 2 variations - valve only, valve with twin integral shut-off valve
Comes in chrome plated finish
Recessed installation
Valve/Cartridge Type: 3/4 inch ceramic disc valve - 1/4 turn
Inlet Connection: 15mm compression
Outlet Connection: G 1/2 inch
Performance Flow to provide a drenching experience
The smallest recessed valve on the market will fit into a 35mm cavity space
Suitable for both medium and high water pressure systems
Water pressure Recommended for smooth working: minimum 0.2 bar - maximum 5.0 bar
For complete size details, please refer to the technical drawing
Please download the Fitting Instruction and Data Sheet PDF file from the Additional Info section below
Specifications For Shower Valve Only:
Dual control
Size [mm]: 165mm x 255mm [Width x Height]
Size [cm]: 16.5cm x 25.5cm [Width x Height]
Specifications For Shower Valve With Twin Integral shut-off valve:
3 control
Size [mm]: 165mm x 355mm [Width x Height]
Size [cm]: 16.5cm x 35.5cm [Width x Height]
WRAS approved

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Theme
: Traditional
⤷ Installation Type
: Wall Mounted
⤷ Inlet Centres
: 150
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Handle Style
: Crosshead
⤷ Depth
: 135
⤷ Temperature Control
: Thermostatic

⤷ Backplate Width
: 165
⤷ Backplate Height
: 255
⤷ Number of Handles
: 2
⤷ Outlet Connection
: G 1/2 inch
⤷ Orientation
: Portrait
⤷ Plumbing Option
: Concealed
⤷ Maximum Operating Pressure (Bar)
: 5
⤷ Cartridge Included
: Yes
⤷ Cartridge Type
: Ceramic Disc

Additional Info & Downloads

Download the Fitting Instructions - SDC04 Pdf File Download the Fitting Instructions - SDC05 Pdf File Download the Product Data Sheet - Valve Only Pdf File Download the Product Data Sheet - Valve With Twin Integral Shut-off Valve Pdf File

Heritage Dawlish Dual Control Chrome Concealed Thermostatic Shower Valve

£294.20

RRP: ~~£496.00~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

4 Features Included In This Product Explained

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Optional: WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Bar Pressure

Bar is a unit of pressure, which is accepted for use with SI by The International Bureau of Weights and Measures. The bar is used as it is almost equal in value as the standard atmosphere which is 1.01325 bar.

Reviews & Ratings

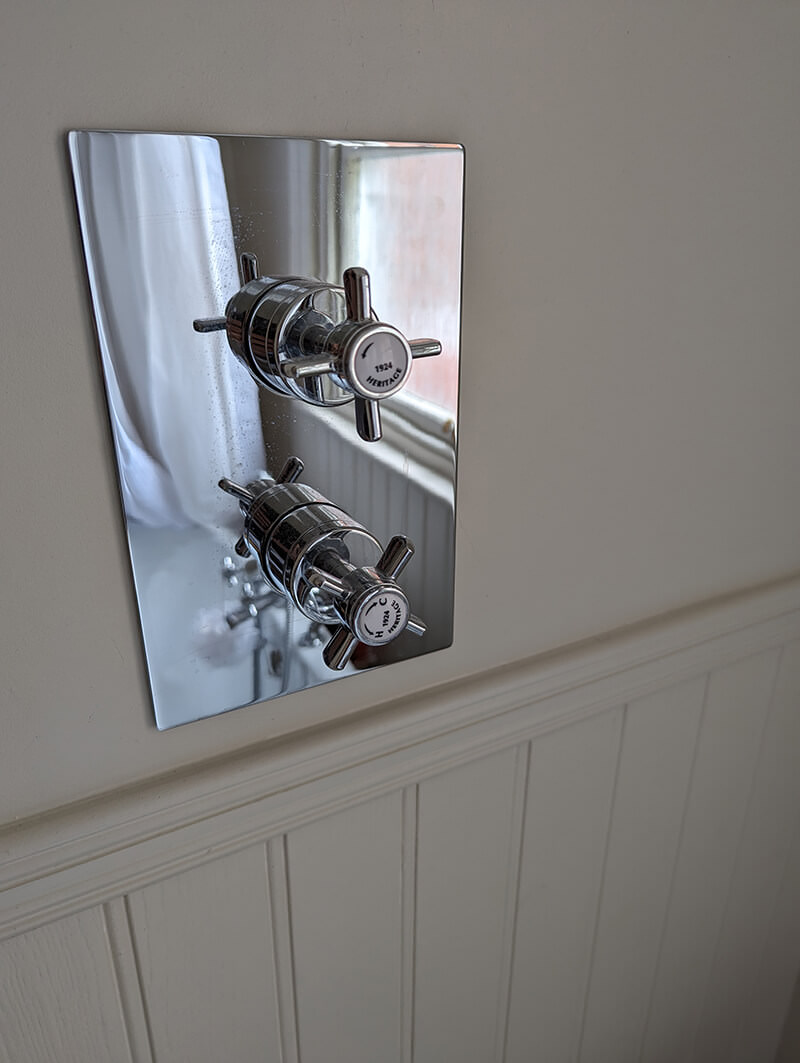

By: Nigel From : Mold Overall Rating: Date: June 14, 2024 Cool meets Victorian

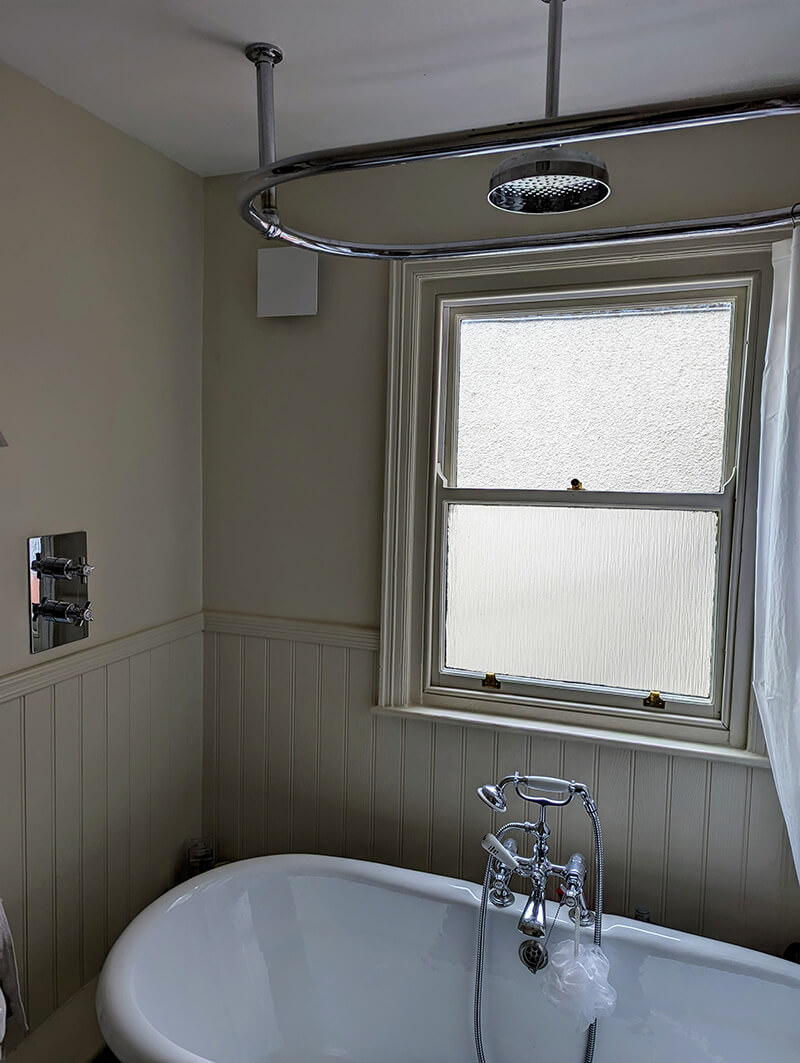

We installed this as part of a re-work of our Victorian bathroom. Coupled with an oval shower ring, curtain, and overhead rain shower head, it brings a touch of modern cool into our traditional bathroom. Looks great and works exactly as it should.

Images Uploaded by the users:
