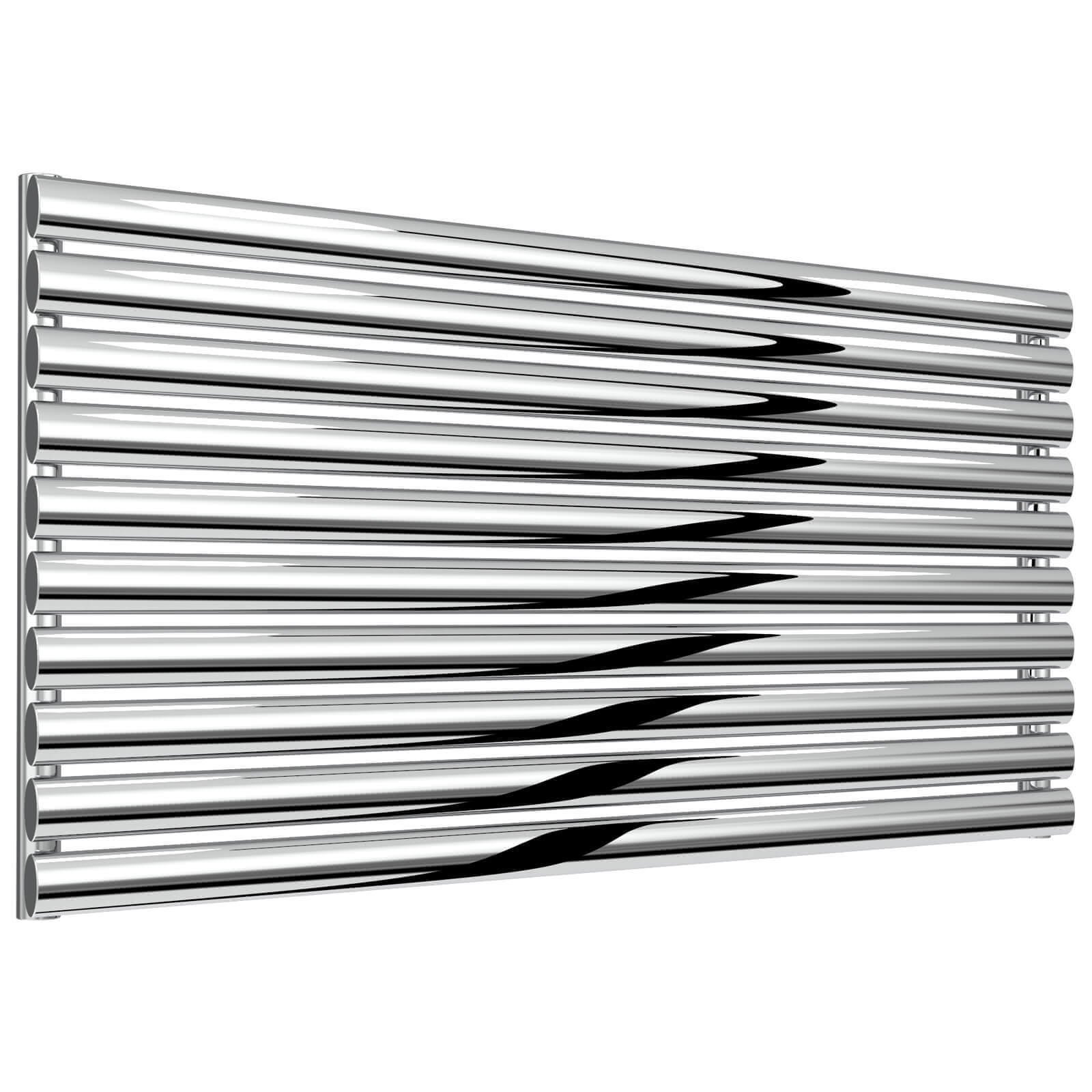

Reina Artena 590mm High Single Panel Stainless Steel Radiator

Reina Artena RNS-AT904P Details

You won't be able to stop yourself from gushing over the Artena Single radiator by Reina. It is made from stainless steel and has an exquisitely polished finish. Horizontal cylindrical tubes go to make up the design of this gorgeous looking appliance. Imagine yourself hosting parties around a metaphorical fireside with this spanking new heating appliance. It saves you the bother of finding a radiator that is compatible with your heating system, as it is suitable for all kinds of systems. It is truly special, and you know you want to own it, so just submit yourself to this temptation. And if the appearance isn't enough, the manufacturer guarantees this product for a staggering 25 years.

Key Features

✔Brackets for radiator included
✔Supplied with Air vent and End plug
✔Manufactured using stainless steel material
✔Twenty-five-year guarantee from Reina against manufacturing defects

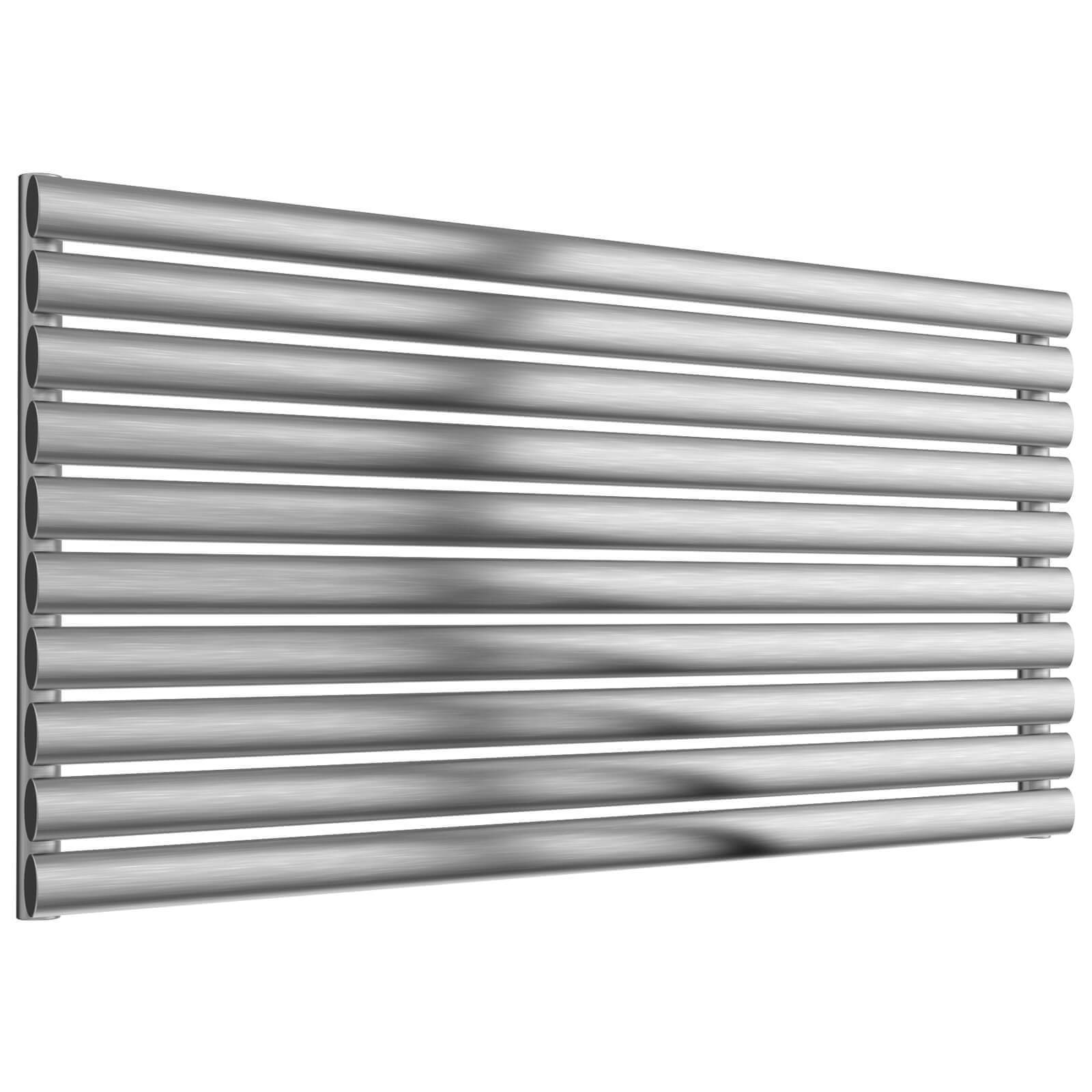

Choice of different finishes: Polished and Brushed - [Optional]
Available in different widths: 400mm, 600mm, 800mm, 1000mm and 1200mm - [Optional]
Available variants: Central heating, Dual Fuel and Electric - [Optional]
Choice of heating element available - [Optional]
Height: 590mm (59cm)
Wall to pipe centres: 65mm (6.5cm)
Wall distance: 103mm (10.3cm)
Tube Quantity: 10
EN 442 Compliant Product
Valves, Sleeving kit and chrome pipe kit - [Optional]
For BTU and Watts, Please Refer to the Chart in the Product Variations Info & MFC Code section
For more information on Elements options download the Elements PDF File from the Additional Info Section
Refer to the technical drawing for more details
The valves shown in the image are not included

Please Note: The appropriate wattage of the element if selected will be decided by the manufacturer, once the order is placed.

Radiator Calculator

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Artena
⤷ Colour
: Polished
⤷ Country of Origin
: Turkey
⤷ Warranty/Guarantee
: 25 Years
⤷ Material
: Stainless Steel
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Width
: 400
⤷ Height
: 590

⤷ Orientation
: Horizontal
⤷ Barcode
: 5081304261170
⤷ BTU Output
: 1719
⤷ Watts
: 504
⤷ No. Of Bars
: 10
⤷ Valves Included
: Sold Seperately
⤷ Fuel Type
: Central Heating | Electric | Dual Fuel
⤷ Wall to Centre of Inlet
: 65
⤷ Panel Configuration
: Single

Additional Info & Downloads

Download the Heating Elements Pdf File Download the Heating Element Manual Instructions Pdf File

Technical Images

Reina Artena 590mm High Single Panel Stainless Steel Radiator

Add-Ons

Optional Accessories

Reina provides optional accessories that you may require for the installation. The manufacturer highly recommends these Accessories. Please Note: The image shown is for illustration purpose only.

No Option Selected
OP-113634 - 200mm Chrome Pipe Kit + £16.40

£210.64

RRP: ~~£339.74~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

Product Variations Info & MFC Code

Variants	Width - 400mm	Width - 600mm	Width - 800mm	Width - 1000mm	Width - 1200mm
Fuel Type	Central Heating /Electric/Dual Fuel	Central Heating /Electric/Dual Fuel	Central Heating /Electric/Dual Fuel	Central Heating	Central Heating
Finish	Polished	Polished	Polished	Polished	Polished
Height	590mm	590mm	590mm	590mm	590mm
Pipe Centres	360mm	560mm	760mm	960mm	1160mm
Wall To Pipe Centre	65mm	65mm	65mm	65mm	65mm
Wall Distance	103mm	103mm	103mm	103mm	103mm
Tube Quantity	10	10	10	10	10
Watts - Delta-70	504	756	1009	1260	1513
BTU - Delta-70	1719	2579	3439	4298	5158
BTU - Delta-60	1409	2114	2819	3523	4228
BTU - Delta-50	1109	1664	2219	2773	3328
BTU - Delta-45	966	1449	1932	2415	2898
BTU - Delta-40	834	1252	1669	2086	2504
BTU - Delta-35	699	1048	1398	1747	2097
BTU - Delta-30	567	851	1135	1418	1702
BTU - Delta-25	221	331	442	552	663
MFC	RNS-AT904P	RNS-AT906P	RNS-AT908P	RNS-AT910P	RNS-AT912P

Variants	Width - 400mm	Width - 600mm	Width - 800mm	Width - 1000mm	Width - 1200mm
Fuel Type	Central Heating /Electric/Dual Fuel	Central Heating /Electric/Dual Fuel	Central Heating /Electric/Dual Fuel	Central Heating	Central Heating
Finish	Brushed	Brushed	Brushed	Brushed	Brushed
Height	590mm	590mm	590mm	590mm	590mm
Pipe Centres	360mm	560mm	760mm	960mm	1160mm
Wall To Pipe Centre	65mm	65mm	65mm	65mm	65mm
Wall Distance	103mm	103mm	103mm	103mm	103mm
Tube Quantity	10	10	10	10	10
Watts - Delta-70	504	756	1009	1260	1513
BTU - Delta-70	1719	2579	3439	4298	5158
BTU - Delta-60	1409	2114	2819	3523	4228
BTU - Delta-50	1109	1664	2219	2773	3328
BTU - Delta-45	966	1449	1932	2415	2898
BTU - Delta-40	834	1252	1669	2086	2504
BTU - Delta-35	699	1048	1398	1747	2097
BTU - Delta-30	567	851	1135	1418	1702
BTU - Delta-25	221	331	442	552	663
MFC	RNS-AT904B	RNS-AT906B	RNS-AT908B	RNS-AT910B	RNS-AT912B

5 Features Included In This Product Explained

Stainless Steel Material

Stainless Steel is an iron alloy with anti-rust and anti-corrosive properties, unlike iron. Along with other metal alloys, it contains a minimum of 10.5% of chromium and less than 1.2% of carbon. This robust, hygienic, hard-wearing base material is popular in the construction of bathroom products.

Optional: Radiator Valve

Radiator valves help control how much hot water enters and leave it, and the flow of water controls how much heat the radiator generates. These are usually found at the radiator's bottom left, and right corners, where the water pipes enter and exit, or can also be present at the bottom near the centre.
Read more...

Optional: Dual Fuel

These radiators or towel warmers can run on a conventional gas-powered central heating system or via your mains electrical supply. You can choose whether or not you want your radiator or towel warmer to come on independently of your central heating system, which is especially useful in summer. These radiators are compatible with heating and hot water, whether the system is open (direct) or closed (indirect).

BTU Output

It is the short form of a British thermal unit (BTU or Btu) and is defined as the amount of heat required to raise the temperature of one pound of water by one degree Fahrenheit. It is a standard unit against which radiator efficiency is measured.
Read more...

Optional Sleeving Kit

A sleeving kit in a radiator heating system are components or materials used to sleeve or insulate the pipes or tubes that circulate hot water or steam from the central heating source to the radiators or heating units. The sleeving kit provides thermal insulation and prevents heat loss, adding to the heating systems efficiency.
