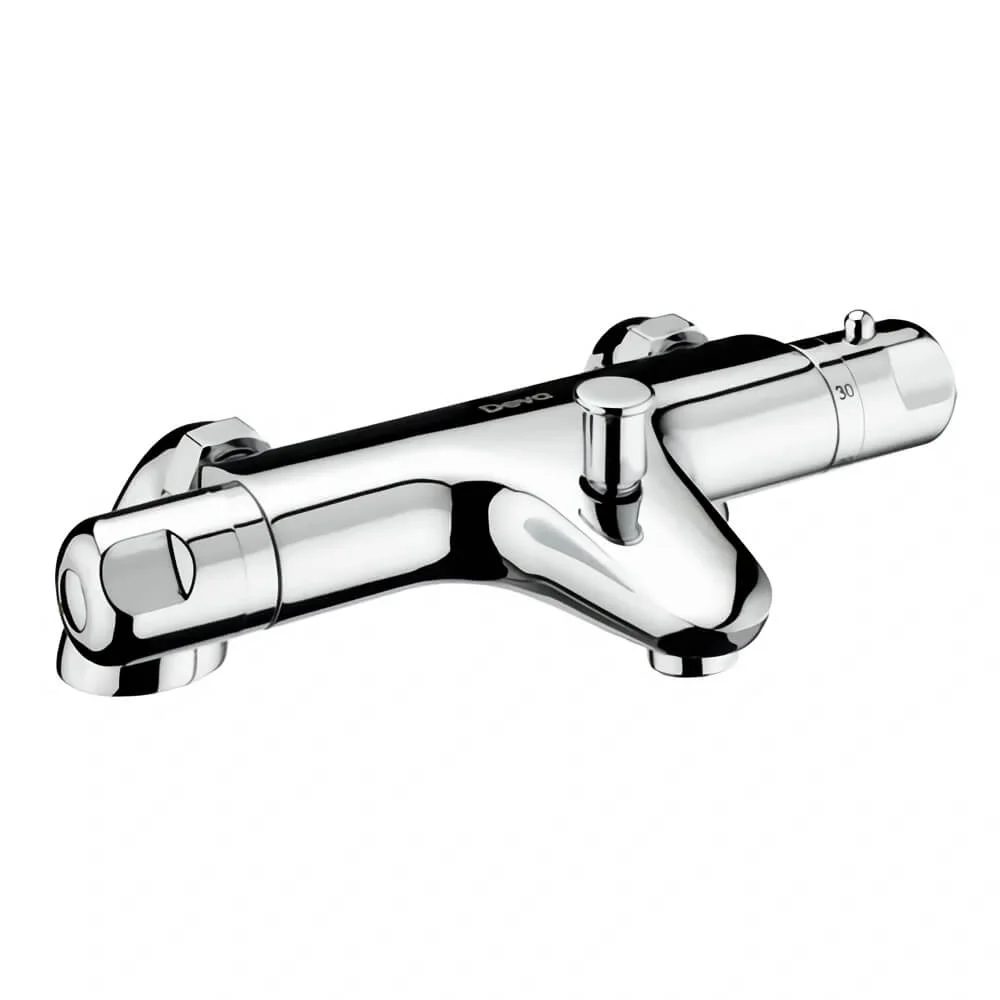

Deva Dynamic Pillar Mounted Thermostatic Chrome Bath Shower Mixer Tap

Deva Dynamic DYN 106 Details

Celebrating the brands sophisticated manufacturing technique, the intricately detailed yet boldly constructed Pillar Mounted Thermostatic Bath Shower Mixer Tap makes a modern statement. Introduced through the Dynamic range of Deva, this mixer tap is supplied with a complete shower kit and wall bracket. Also, it has an in-built thermostatic feature that allows you to control water flow and temperature efficiently. Pair it up with a bath of your choice to give your bathroom a complete and fab look.

The manufacturing code of this product is DYN 106
It comes complete with single mode shower kit and wall bracket
It comes in a chrome finish
Valve /cartridge type: thermostatic
Operation: separate flow and temperature controls
Inlet connections: 3/4 inch BSP
Working pressure: 1.0 - 5.0 bar
Suitable for high water pressure systems

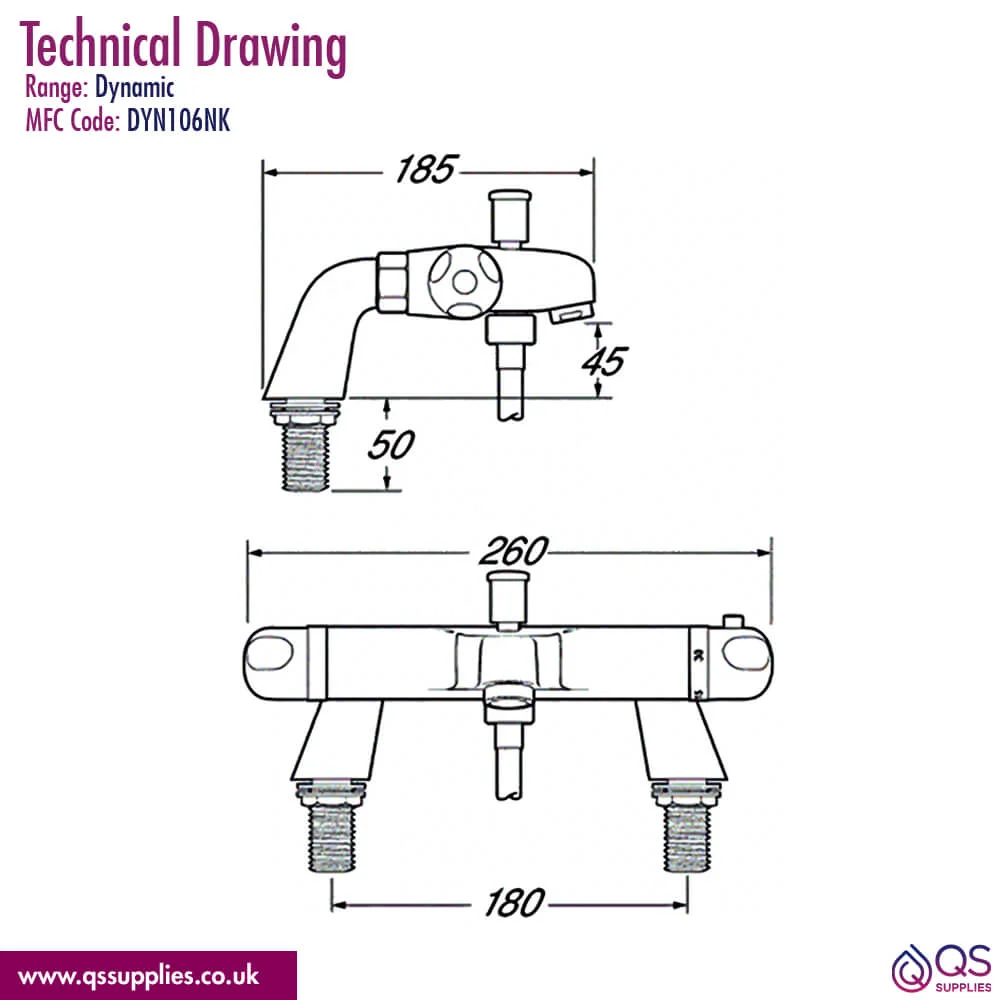

Refer to the technical diagram for the complete technical dimension

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Dynamic
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass And ABS
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 2
⤷ Valve/Cartridge Type
: Thermostatic
⤷ Handle Material
: Ceramic
⤷ Base To Spout
: 45
⤷ Inlet Centres
: 180

⤷ Width
: 260
⤷ Max. Deck Thickness
: 50
⤷ Inlet Connections
: G 3/4 inch
⤷ Minimum Operating Pressure (Bar)
: 1
⤷ Hose Included
: Yes
⤷ Hand-Shower Included
: Yes
⤷ Handle Style
: Knob
⤷ Compliance/Approvals/Standard
: TMV2, WRAS
⤷ Barcode
: 5057199056368
⤷ Product Type
: Bath Shower Mixer Tap

Deva Dynamic Pillar Mounted Thermostatic Chrome Bath Shower Mixer Tap

£185.22

RRP: ~~£398.32~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

2 Features Included In This Product Explained

TMV2 Approved Product

TMV2 is an independent certification for thermostatic mixers, including shower valves, run by BuildCert that ensures national and international standards as specified under (BS EN 1111 and 1287) are met. These standards detail the exacting requirements that a thermostatic valve or product must comply with to guarantee a high thermostatic protection and safety standard. Products meeting this requirement carries the logo and protect against any scalding accidents.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Questions & Answers

Submit Your Questions 2 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Melanie Asked :
Hi, I wondered what the distance is between the base of the 'legs' of the tap (where it sits on the bath) and to the outsides of the 'legs' please? I have a bath with two tap centres 190mm apart, and I want to work out if the base of the 'legs' will cover the gap.

Answered By QS Team

Thank you for your enquiry. The measurement from the outside of the pillars is 230mm; please note that the bath will need to accommodate pipe centres of 180mm. I hope this helps.

Was this answer helpful?

Desmond Asked :
Is this hi-pressure so the flow from our roof tank 35 feet up in the roof can deliver the flow for a shower and bath filling we are used to in the bathroom on the ground floor, or will the thermostat slow the flow a great deal? Thanks for your attention.

Answered By Deva The Dynamic pillar mounted thermostatic bath shower mixer (DYN106) is a high pressure product. it has a minimum working pressure requirement of 1 Bar. This would roughly equate to a 10 meter drop in height from the bottom of the cold water header tank to the position of the handset on the wall. At this pressure you can expect around 15 Litres per Minute though the bath filler.

Was this answer helpful?
