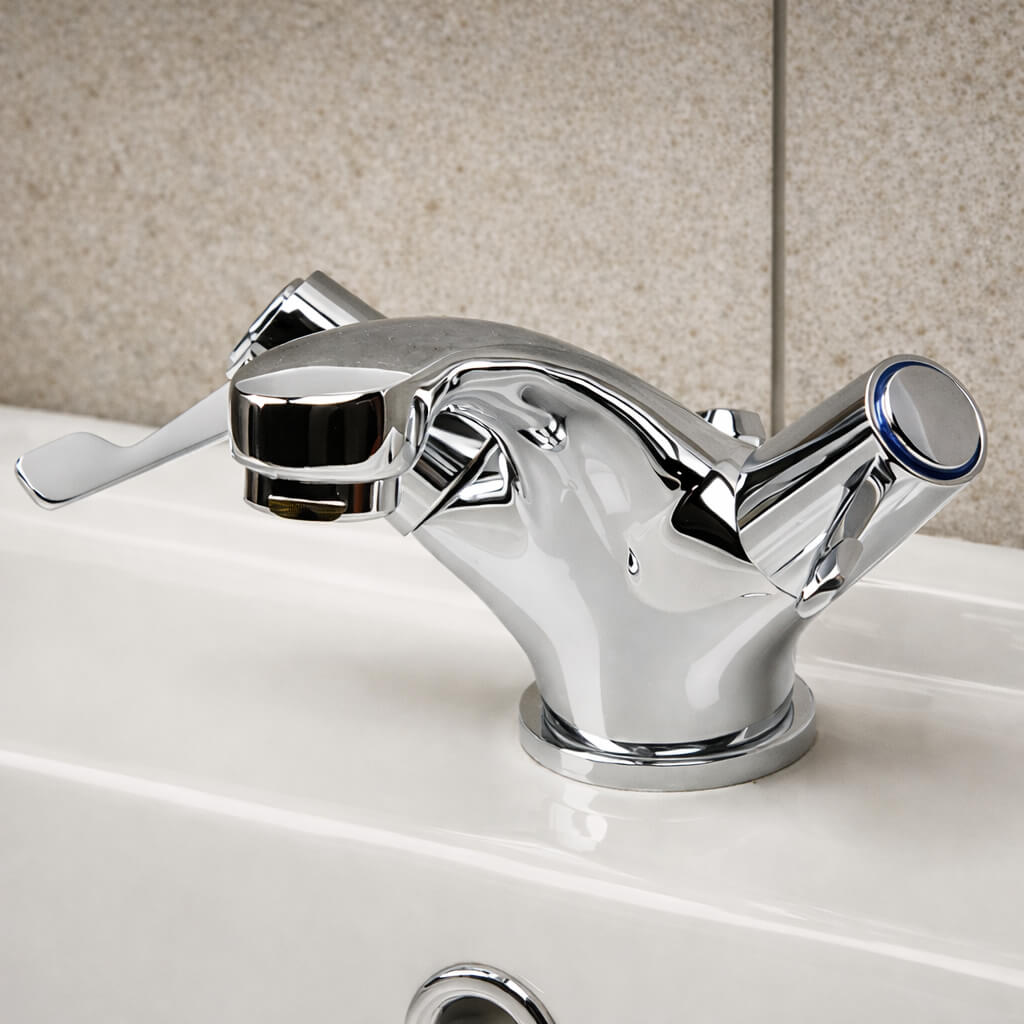

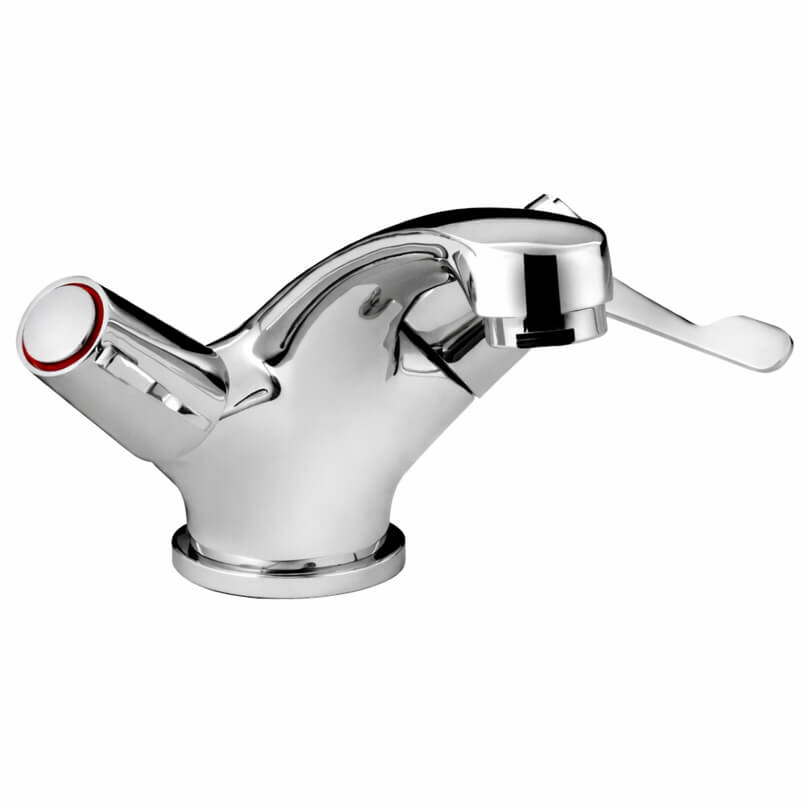

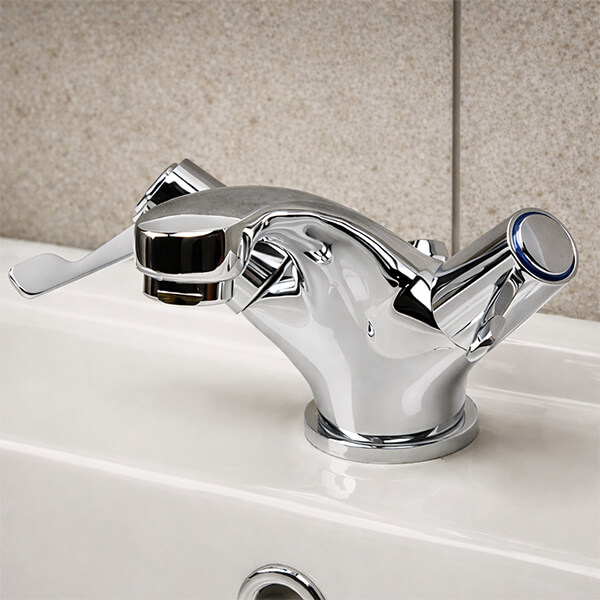

Bristan Lever Chrome Mono Basin Mixer Tap With Pop-Up Waste

Bristan Lever VAL2 BAS C CD Details

Looking for decorative and pleasing brassware for your Basin? Then have a look at the Value Lever Basin Mixer Tap that comes from the house of Bristan. The ultra-modern mono mixer tap provides high standard quality with dainty construction and knob handles with levers. The brass constructed tap comes with a chrome finish that makes it alluring and allows it to blend with a host of other brassware. WRAS certified; the highly efficient tap is included with pop-up waste, metal fixing nuts and 3 inches [76mm] metal levers. Peerless in functioning, the beauty of a mixer tap would be an ideal addition to your bathroom sink.

Chrome finish tap
The manufacturing code of this product is VAL2 BAS C CD
Contemporary design
1/4 turn 1/2 inch ceramic disc valves
Inlet connections: 15mm copper pipes
Size in [mm]: 140mm x 125mm x 150mm [Width x Height x Depth]
Size in [cm]: 14cm x 12.5cm x 15cm [Width x Height x Depth]
Base to spout: 85mm - (8.5cm)
Centre of the inlet to centre of outlet: 120mm - (12cm)
Metal fixing nut included
Complete with 3 inches 76mm metal levers
Requires minimum 0.2 bar to maximum 5.0 bar water pressure
Works smoothly in low and high-water pressure systems
Suitable for all plumbing systems
For complete size details, please refer to the technical drawing
Download the Installation Instruction PDF File From The Additional Info Section

Info / Size (mm)

Tap
Pipe Centre: 120 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Handle Position
: Left & Right
⤷ Range
: Lever
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Fixed
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Ceramic Disc

⤷ Base To Spout
: 85
⤷ Spout Reach
: 120
⤷ Overall Height
: 125
⤷ Width
: 140
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Waste Type
: Pop-Up
⤷ Flow Rates (l/min)
: 0.2 bar - 7 0.4 bar - 10.1 1 bar - 15.7 2 bar - 22.4 3 bar - 27.5 5 bar - 35.5
⤷ Handle Style
: Lever
⤷ WRAS Approved
: Yes
⤷ Waste Included
: Yes
⤷ Barcode
: 5014868001845
⤷ Product Type
: Basin Mixer Tap

Additional Info & Downloads

Download the Installation Guide Pdf File

Bristan Lever Chrome Mono Basin Mixer Tap With Pop-Up Waste

£54.36

RRP: ~~£125.00~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

3 Features Included In This Product Explained

Secure Fix

The design features metal fixings that secure your tap, preventing any movement or rotation during use.

Precise Glide

It comes incorporated with ceramic cartridges for long life with precise control for smooth, leak-free use.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...
