Merlyn 6 Series 900mm Pivot Door And 140mm Inline Panel

Merlyn 6 Series M61221P1H Details

Get a modern look in your shower area by using the Merlyn 6 Series Pivot Door and Inline Panel. This door features 8-millimeter thick safety glass that is totally clear and transparent that is easy to clean and keep away smudges. It comes complete with a reversible design and its own shining chrome handle that offers a clean and modern look. It has a reversible design if you want to switch things around and is compatible with a wet room. It comes with a lifetime guarantee from the manufacturer. Fix it along with a shower valve and a shower head to get an ultimate showering experience.

Toughened safety clear glass

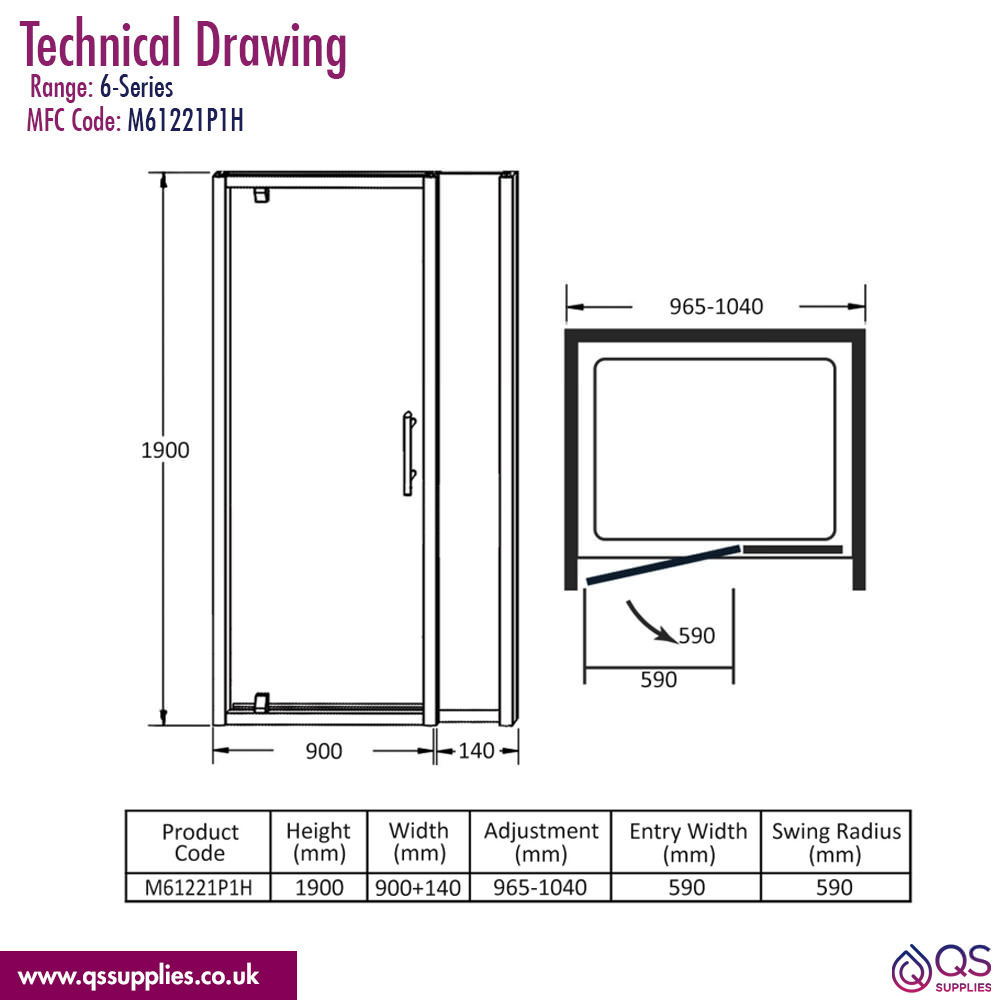

Size [minimum - maximum]: 965 - 1040mm [add 20mm to size when using with side panel]
Size of Door: Width 900mm x Height 1900mm
Size of Inline Panel: Width 140mm x Height 1900mm
Space-saving
Chrome handle
Manufactured in accordance with ISO 9002 and EN 14428 and utilise toughened safety glass to EN 12150
Power shower approved - will retain water under normal showering conditions
Supplied complete with full installation instructions and the necessary fixings
The manufacturing code of this product is M61221P1H
Download Installation Instruction PDF File from the Additional Info Section
Side Panel Optional [See Option]
Enclosure Wiper Optional [See Option]

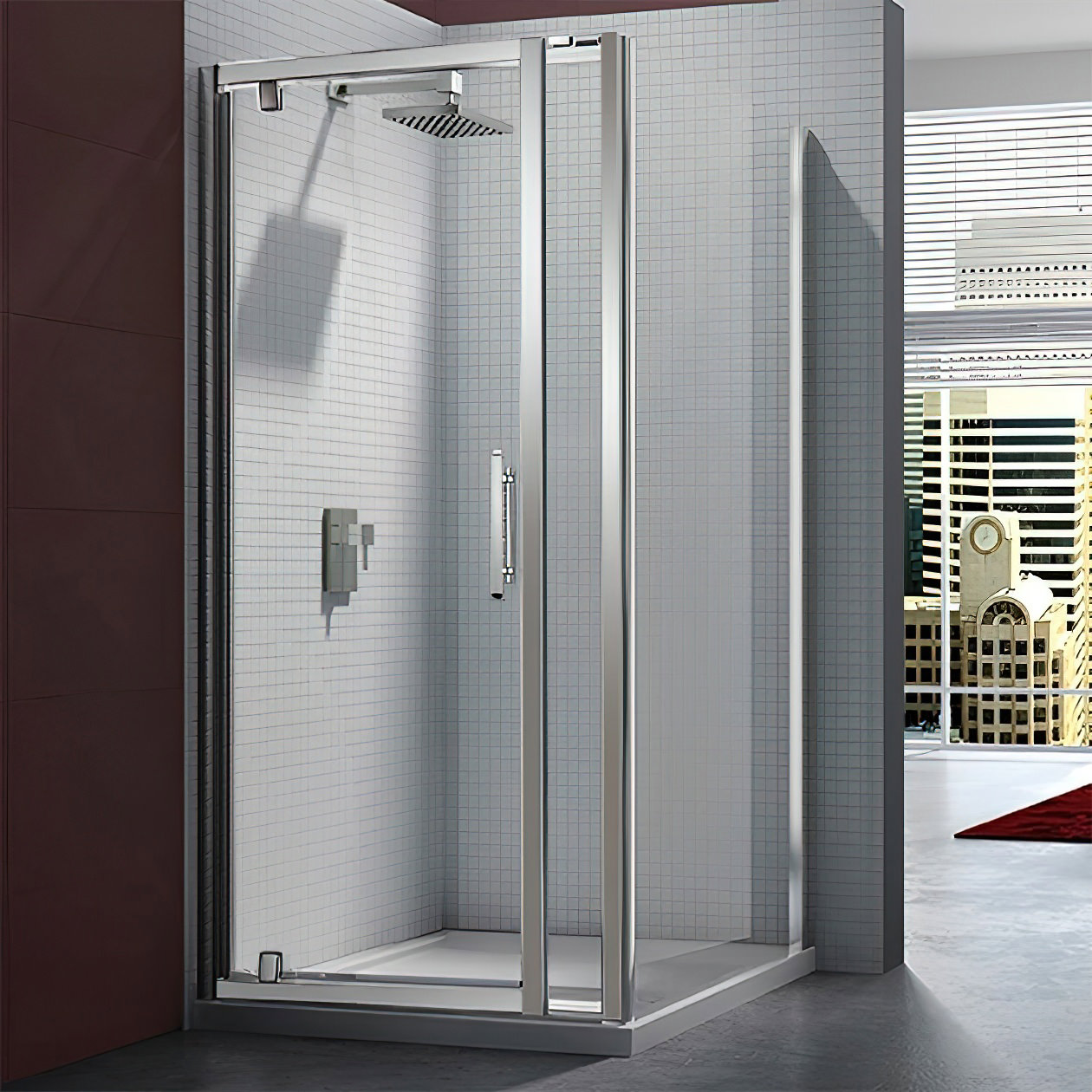

The tray, waste and shower shown in the image are not included

Info / Size (mm)

Door
Width: 900 mm
Height: 1900 mm

Panel
Width: 140 mm
Height: 1900 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: 6-Series
⤷ Handle Finish
: Chrome
⤷ Coating
: Mershield Stay-Clear Glass
⤷ Warranty/Guarantee
: Lifetime
⤷ Installation Type
: Corner / Recess
⤷ Waste Included
: Sold Separately
⤷ Width
: 1040
⤷ Configuration
: Door And Inline Panel
⤷ Height
: 1900
⤷ Compliance/Approvals/Standard
: ISO 9002 EN 14428 EN 12150
⤷ Barcode
: 5057199424938
⤷ Door Type
: Pivot
⤷ Frame Design
: Framed

⤷ Frame / Profile Finish
: Chrome
⤷ Glass Type
: Clear Glass
⤷ Glass Thickness
: 8
⤷ Number Of Doors
: 1
⤷ Side Panel Included
: Sold Separately
⤷ Door Adjustment
: 965-1040
⤷ Tray Included
: Sold Separately
⤷ Easy to Clean Glass
: Yes
⤷ Power Shower Proof
: Yes
⤷ Handle Included
: Yes
⤷ Wetroom Compatible
: Yes
⤷ Tray Compatible
: Yes
⤷ Door Opening
: Reversible

Additional Info & Downloads

Download the Pivot Door Installation Instruction Pdf File Download the Inline Panel Installation Instruction Pdf File

Add-Ons

Side Panel

Made of 6mm Toughened glass. Suitable for use with Merlyn Series 6 Shower Doors. Select your desired option from below. The image shown is for illustration purposes only.

No Option Selected
OP-44568 - 700mm + £341.20
OP-44569 - 760/800mm + £299.48
OP-44570 - 900mm + £318.34

Merlyn Shower Wiper

Merlyn Shower Wiper and Chrome holder available for Merlyn Enclosures. Please note image is for illustration purpose only.

No Option Selected
OP-44516 - Shower Wiper With Chrome Holder + £40.94

Merlyn 6 Series 900mm Pivot Door And 140mm Inline Panel

£619.87

RRP: ~~£1281.00~~

IN-STOCK

Delivery in 2 Working Days Approx.

QS Supplies

Other Sizes / Finishes

Other Sizes / Finishes / Variations Available.

QS Code	Finish	Size / Difference	MFC Code
QS-V8973	-	700mm	M61201P1H

Back to QS-V8960 / MFC Code: M61221P1H

6 Features Included In This Product Explained

Toughened Safety Glass

Toughened glass, tempered or safety glass as it is rightly called, is five times harder than regular glass of the same size and thickness, which makes it so that it won’t break as easily. It also shatters with scattering as it tends to break into tiny, blunt pieces without harming anyone nearby. Known to have greater thermal strength, this durable material with double glazing has almost twice the soundproofing abilities and provides excellent heat insulation.

Reversible Door

A reversible door can be fit to open either to the right or left, depending on the dimensions of your space.

Mershield Stayclear Coating

All Merlyn Series range products are subjected to the Mershield Stayclear glass protection that keeps the glass looking clear. It decelerates the build-up of lime scale and soap deposits, making cleaning an absolute breeze. The coatings' smooth surface does not allow any grime, dirt or water to stick easily, keeping it pristine.

UKCA Great Britain Mark

Merlyn enclosures now carry the UKCA mark, which stands for UK Conformance Assessment. This mark indicates that the product meets or exceeds GB-designated standards. The UKCA mark is now the standard labelling for products sold in Great Britain (England & Wales & Scotland).

Power Shower Proof

Power Shower Proof shower enclosures are built with stronger materials and reinforced construction to withstand increased water pressure without leaking or sustaining damage.

Tray Compatible

Tray-compatible enclosures are designed to fit into the dimensions of a shower tray, ensuring watertight and seamless integration.
