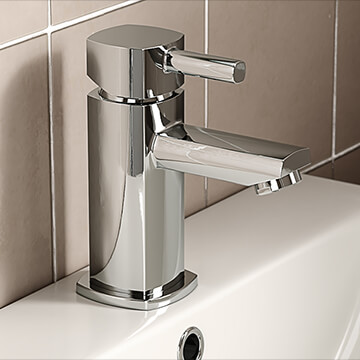

Nuie Vibe Chrome Single Lever Basin Mixer Tap

Nuie Vibe TSI315 Details

Nuie Vibe Single Lever Basin Mixer Tap is a miniature tap is suited for use with small or corner basins and adds a distinctly modern aspect to the cloakroom or bathroom. Simple inscriptions denote hot and cold directions for the single-lever mixer, which features ceramic disc technology to ensure a smooth and even flow.

A gleaming chrome finish and a cubist form with sleek-looking contours make this piece suitable for contemporary interiors. It is perfect for a deck-mounting installation and is easy to access for cleaning and maintenance. For a swift wastewater disposal method, this mixer can be supplied with a fitted push button waste. Suitable to use with wall-hung, cloakroom, under-mount and corner basin.

Available in different heights: 136mm and 180mm - [Optional]
It comes in a luxury chrome finish
Clear, clean lines with ultra-modern waterfall spout
Ceramic disc technology for long life and smooth operation
Cartridge material: Plastic
Suitable for deck-mounted installation
Pipe size: 15mm (1.5cm) (1/2 inch BSP)
Suitable for low-pressure water system
Requires 0.2 bar operating water pressure
Download the Customer Datasheet and Installation Instruction PDF File from the Additional Info Section
Technical drawing available for more technical details
Details For 137mm Height:
Height: 137mm (13.7cm)
The centre of the inlet to the centre of the outlet: 131mm (13.1cm)
Base to spout: 70mm (7cm)
Flow rates (1/min): 0.1 bar - 2.2, 0.5 bar - 7, 1 bar - 10.3, 2 bar - 14.7, 3 bar - 18.2
Details For 180mm Height:
Height: 180mm (18cm)
The centre of the inlet to the centre of the outlet: 134mm (13.4cm)
Base to spout: 111mm (11.1cm)
Flow rates (1/min): 0.1 bar - 3.5, 0.5 bar - 8.3, 1 bar - 12, 2 bar - 17, 3 bar - 21

Info / Size (mm)

Tap
Pipe Centre: 99 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Tap Body Shape
: Square
⤷ Handle Position
: Upward
⤷ Range
: Vibe
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Fixed
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Ceramic Disc

⤷ Base To Spout
: 86
⤷ Spout Reach
: 99
⤷ Inlet Centres
: 99
⤷ Overall Height
: 137
⤷ Width
: 48
⤷ Inlet Connections
: G 1/2 inch BSP
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Waste Type
: Push Button
⤷ Flow Rates (l/min)
: 0.1 bar - 2.2 | 0.5 bar - 7 | 1 bar - 10.3 | 2 bar - 14.7 | 3 bar - 18.2
⤷ Handle Style
: Lever
⤷ Waste Included
: Yes
⤷ Barcode
: 5057199414106
⤷ Product Type
: Basin Mixer Tap

Additional Info & Downloads

Download the Customer Data Sheet For 137mm Height Pdf File Download the Customer Data Sheet 180mm Height Pdf File Download the Installation Instruction Pdf File

Nuie Vibe Single Lever Basin Mixer Tap Chrome

£50.87

RRP: ~~£151.00~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

4 Features Included In This Product Explained

Push Button Basin Waste

It is the perfect choice for many sink designs because of its ease of use and efficiency. The sink drain gets blocked by simply pushing the central button, allowing the water to fill in the sink. Once you are done, the water can be drained by releasing the same.

Waterfall Effect

Water flowing out from the open spout creates a water-fall-like flow, delivering a cascading effect that replicates the relaxed feeling of a spa.

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...
