Dq Heating Cove Single - Double Vertical Radiator

DQ Cove COVE150/5-W Details

Your search for a perfect vertical radiator with a well-calibrated heat output ends here with the DQ Heating Cove Vertical Radiator. This fixture is tall and slim and perfectly compatible with modern interiors. It is compact and thus will have no difficulty fitting into tighter spaces. It is performance-oriented and has immense heat-generating capacity.

Lightweight and easy to operate, this user-friendly radiator is made from mild Steel and available in a selection of attractive finishes for you to customise as per your preference. Never discount this winter, buddy; that can add some fantastic feeling of warmth! Convenient to install and maintain, it comes with a five-year guarantee from the manufacturer.

Key Features

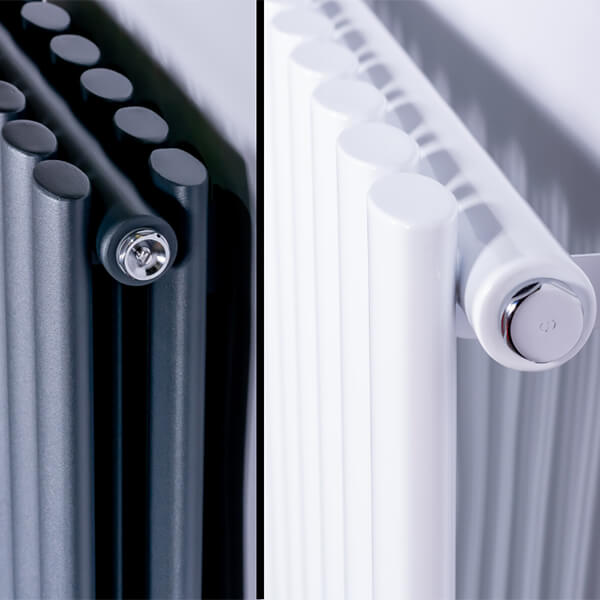

✔Different finishes: White, Anthracite Texture
✔Manufactured from mild steel
✔Five years of guarantee from the manufacturer

Available Variations: Single, Double
Available Height: 1500mm, 1800mm
Available Width: 295mm, 413mm, 531mm
1/2" flow and return connection
Test pressure: 8 Bar
Maximum operation pressure: 6 Bar
Maximum working temperature: 95ºC
The image shown is for illustration purposes only
Download the Installation Instruction PDF File from the Additional Info Section
Brackets are available to hang horizontally [See option below]
Towel hanging rail available [See option below]
Grip peg to hang extra towels [See option below]
VIP hook available [See option below]
The valves shown in the image are not included

Radiator Calculator

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Anthracite
⤷ Shape
: Straight
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Steel
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Width
: 295

⤷ Height
: 1500
⤷ Orientation
: Vertical
⤷ BTU Output
: 1808
⤷ Watts
: 530
⤷ Valves Included
: Sold Separately
⤷ Panel Configuration
: Single

Additional Info & Downloads

Download the Installation Instruction Pdf File

Technical Images

Dq Heating Cove Single - Double Vertical Radiator

Add-Ons

Towel Hanging Rail

Strong and durable rail. Please Note: The image is for illustration purposes only.

No Option Selected
OP-40530 - Chrome Finish + £57.88

Optional Finish

Choose the desired hook finishes from the option given below.

No Option Selected
OP-40517 - Chrome Finish + £33.47
OP-40518 - White Finish + £33.47

Grip Peg

Handy for the Kitchen or Bathroom where that extra towel or tea towel hangs on the bar and not the radiator. Choice of either Chrome or White finish. The image shown is for illustration purposes only.

No Option Selected
OP-40348 - White Finish + £25.90
OP-40516 - Chrome Finish + £25.90

£141.65

RRP: ~~£175.20~~

STOCK AVAILABLITY: 3 Working Days Approx

QS Supplies

Product Variations Info & MFC Code

Product Code	Finish	Height	Width	Watts	BTU	Weight	Wall To Face	Wall To Pipe
COVE150/5-W	White	1500	295	530	1808	14	61	50
COVE150/7-W	White	1500	413	750	2559	19	61	50
COVE180/5-W	White	1800	295	640	2184	15	61	50
COVE180/7-W	White	1800	413	895	3054	20	61	50
COVE180/9-W	White	1800	531	1155	3941	26	61	50
COVE150/5-A	Anthracite	1500	295	530	1808	14	61	50
COVE150/7-A	Anthracite	1500	413	750	2559	19	61	50
COVE180/5-A	Anthracite	1800	295	640	2184	15	61	50
COVE180/7-A	Anthracite	1800	413	895	3054	20	61	50
COVE180/9-A	Anthracite	1800	531	1155	3941	26	61	50

Product Code	Finish	Height	Width	Watts	BTU	Weight	Wall To Face	Wall To Pipe
COVE150/5D-W	White	1500	295	800	2730	25	105	50
COVE150/7D-W	White	1500	413	1130	3856	35	105	50
COVE180/5D-W	White	1800	295	970	3310	28	105	50
COVE180/7D-W	White	1800	413	1350	4606	36	105	50
COVE180/9D-W	White	1800	531	1740	5937	50	105	50
COVE150/5D-A	Anthracite	1500	295	800	2730	25	105	50
COVE150/7D-A	Anthracite	1500	413	1130	3856	35	105	50
COVE180/5D-A	Anthracite	1800	295	970	3310	28	105	50
COVE180/7D-A	Anthracite	1800	413	1350	4606	36	105	50
COVE180/9D-A	Anthracite	1800	531	1740	5937	50	105	50

2 Features Included In This Product Explained

BTU Output

It is the short form of a British thermal unit (BTU or Btu) and is defined as the amount of heat required to raise the temperature of one pound of water by one degree Fahrenheit. It is a standard unit against which radiator efficiency is measured.
Read more...

Mild Steel

Mild Steel is the most common radiator material. It is inexpensive, available in a variety of designs and finishes, lightweight and durable.

Questions & Answers

Submit Your Questions 2 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Ben Asked :
Dq Heating Cove Single - Double Vertical Radiator QS-V48559 MFC Code: COVE150/5-W. Can you tell me the BTU for this radiator at 1800mm x 413mm size? The technical specification on the website is for a smaller size.

Answered By QS Team
