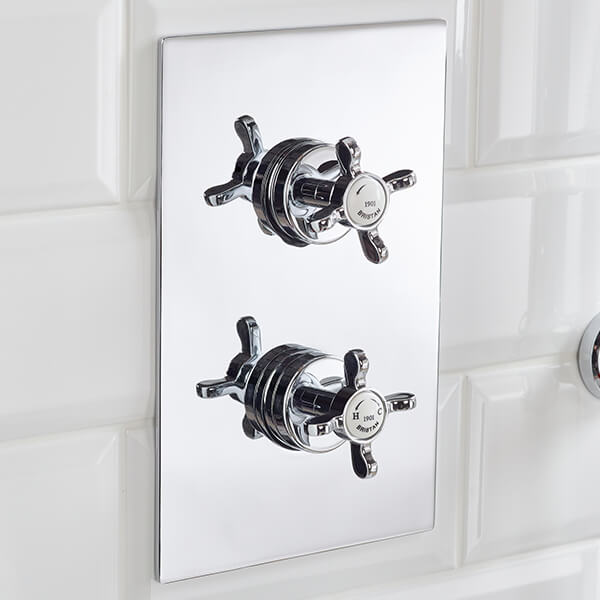

Bristan 1901 Recessed Thermostatic Dual Control Shower Valve

Bristan 1901 N2 SHCVO C Details

The Bristan 1901 Thermostatic Dual Control Shower Valve presents a sleek, user-friendly interface with intuitive controls and a highly modern appearance. The thermostatic technology is capable of providing a consistent temperature for a comfortable shower experience every time while bringing a safe and secure dimension to the bathroom. The classic, control valves with ornate detailing and elegant hot and cold inscriptions are presented in a simple and neat arrangement that makes it easy to use.

It is exquisitely crafted from premium quality brass which gives it a sturdy build and long-lasting ability. Finished in chrome or vintage gold, it is a natural fit in the stylish, modern interiors. It is supplied with a minimalist, rectangular mounting plate and is fully serviceable from the front.

Available Different Variations: Single Diverter and Two Way Diverter
Size of backplate in [mm]: 165mm x 255mm [Width x Height]
Size of backplate in [cm]: 16.5cm x 25.5cm [Width x Height]
15mm inlet connections
This shower valve has been designed to fit any UK wall cavity and only needs a 35mm deep cavity space
Fitting depth, including plasterboard and tiles, is 45mm - 75mm
The minimum cold water supply temperature is 4°C
The maximum hot water supply temperature is 80°C
Fully serviceable from the front
Suitable for all plumbing systems
Required minimum 0.2 bar water pressure
Refer to the technical diagram for complete technical dimensions

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome, Gold
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Wall mounted
⤷ Inlet Centres
: 150
⤷ Overall Height
: 255
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Flow Rates (l/min)
: 0.2 bar - 9.39, 0.5 bar - 14.85, 1.0 bar - 21

⤷ Handle Style
: Crosshead
⤷ Temperature Control
: Thermostatic
⤷ Backplate Width
: 165
⤷ Backplate Height
: 255
⤷ Number of Handles
: 2
⤷ Orientation
: Portrait
⤷ Overall Width
: 165
⤷ Maximum Operating Pressure (Bar)
: 5.0

Additional Info & Downloads

Download the Installation Instruction Pdf File

Bristan 1901 Recessed Thermostatic Dual Control Shower Valve

£203.80

RRP: ~~£406.00~~

IN-STOCK

Delivery in 2 Working Days Approx.

QS Supplies

8 Features Included In This Product Explained

Family Safe

This feature corresponds with the Thermostatic mechanism and automatic safety stops, preventing running water from getting either too hot or too cold.

Luminance Chrome

It is a hard-wearing chrome plating which is salt-tested and scratch-proof for durable, long-lasting use.

2 Outlets 1 On

There are two outlet connections, of which only one can be used at a given time.

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.

Drenching

Drenching in Bristan showers means these showers soak you thoroughly, giving you the most indulgent showering experience.

Diverter

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...
