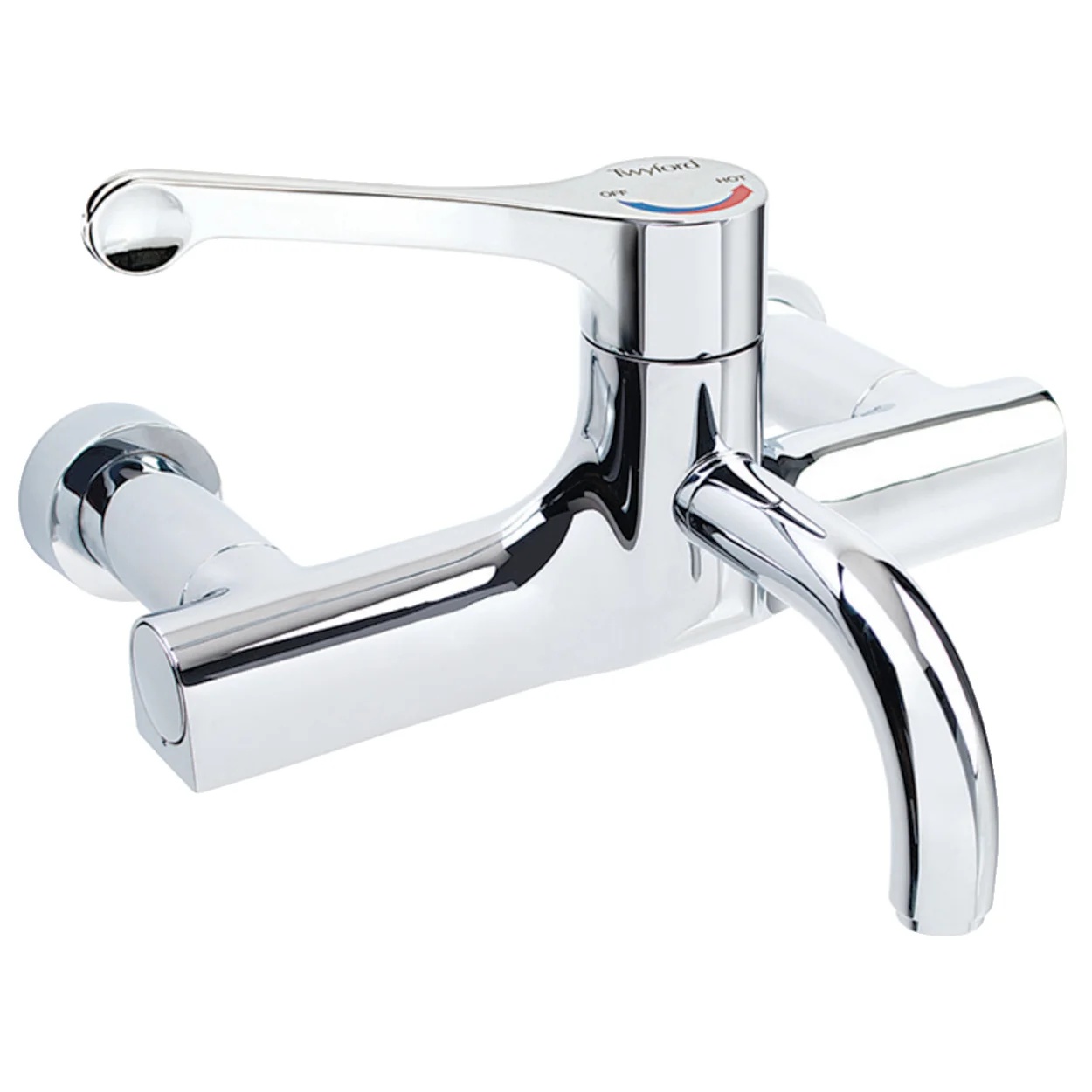

Twyford Sola Chrome Thermostatic Fixed Spout Surgeons Mixer Tap For Wall Mount Installation

Twyford Sola SF1131CP Details

The Twyford Sola Thermostatic Surgeons Mixer Tap combines stunning contemporary looks and convenient functionality to bring style and panache to any bathroom. The modern design consists of clean lines and not many areas for bacterial accumulation. Available with a fixed or detachable spout, it has been designed with ease-of-use in mind; the single lever with an ergonomic grip manoeuvre with minimal effort while the clearly marked hot and cold indices make it easy to use.

An excellent option for spaces with universal access requirements such as commercial or healthcare applications, this mixer is wall-mounted for convenience. It features a chrome finish, adding style to any interiors and is created with a cool touch surface, so people don't have to worry about scalding.

The manufacturing code is SF1131CP
It comes in a chrome finish
Improved design with clean lines and fewer areas for bacterial collection
Features and Specifications:
Size in [mm]: 266mm x 156mm [Width x Height]
Size in [cm]: 26.6cm x 15.6cm [Width x Height]
The centre of the inlet to the centre of the outlet is 233mm [23.3cm]
Inlet centres are 200mm [20cm]
1/2 BSP connection
The fixed spout and single lever
Flow straightener compliant with HTM 04-01
Self-draining spout with smooth internals
The minimum water pressure recommended for smooth working is 1.0 bar [HP-High Pressure], maximum static is 12.0 bar, and dynamic is 5.0 bar
Complete with brass back nuts
Front accessible isolation valves, check valves and filters
Cool touch body
The smooth internal surface on the spout
Weight: 3.85 kg
Frequently used in healthcare and commercial applications

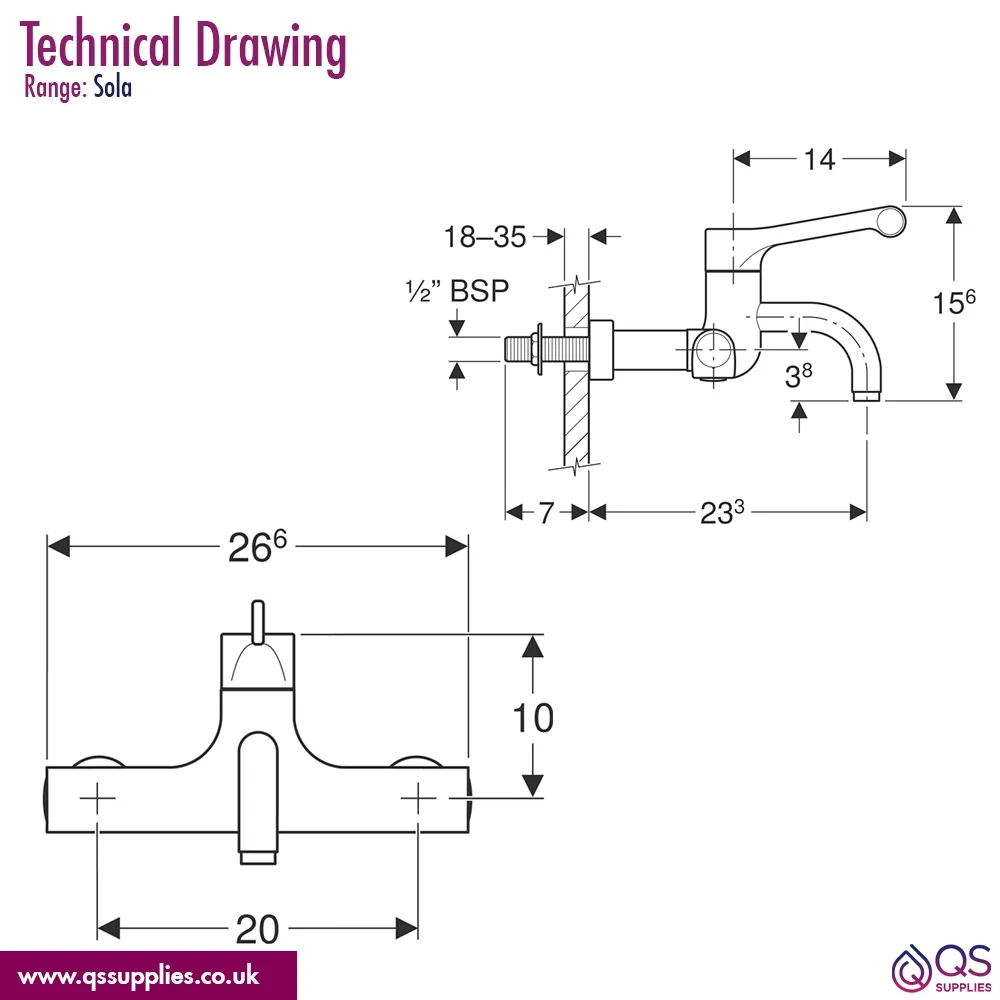

For complete size, details refer to the technical drawing
Download the Installation Instruction and Certificates PDF File from the Additional Info Section

Info / Size (mm)

Tap
Pipe Centre: 200 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Tap Body Shape
: Round
⤷ Range
: Sola
⤷ Handle Position
: Upwards
⤷ Colour
: Chrome
⤷ Country of Origin
: UK
⤷ Warranty/Guarantee
: 2 Years
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ No. of Holes Required
: 2
⤷ Spout type
: Fixed
⤷ Valve Included
: Yes
⤷ Spout Reach
: 233
⤷ Inlet Centres
: 200

⤷ Overall Height
: 156
⤷ Width
: 266
⤷ Min-Max Wall Mount
: 35
⤷ Max. Deck Thickness
: 35
⤷ Inlet Connections
: 1/2 Inch BSP
⤷ Minimum Operating Pressure (Bar)
: 1
⤷ Flow Rates (l/min)
: 4.1 - 1.0 Bar
⤷ Handle Style
: Lever
⤷ WRAS Approved
: Yes
⤷ Technologies
: Thermostatic
⤷ Compliance/Approvals/Standard
: TMV3, BREEAM, HTM 04-01
⤷ Barcode
: 5024959397849
⤷ Product Type
: 2 Taphole Basin Mixer Tap

Additional Info & Downloads

Download the Installation And Maintenance Instructions Pdf File Download the TMV3 Certificate Pdf File Download the WRAS Certificate Pdf File

Twyford Sola Thermostatic Fixed Spout Surgeons Mixer Tap For Wall Mount Installation

£582.66

RRP: ~~£933.96~~

STOCK AVAILABLITY: 6 Working Days Approx

QS Supplies

5 Features Included In This Product Explained

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Flow Straightener

A flow straightener, also called Honeycomb, is a fitting which directs the flow of water from the outlet in a way as to straighten the stream. They are generally not flow-regulated and differ in design from the pressure-compensating aerator.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

TMV3 Approved Product

TMV3 approval means a thermostatic valve is certified and approved for use in healthcare and commercial situations.

Single Lever Taps

These taps are designed with a single lever or handle to control the water's temperature and flow. Extremely easy to operate, these also allow you to preset the water temperature by leaving it in the position with your preferred water temperature. Besides, it is simple to control the flow of water; the higher you lift the lever or move it to the end, the stronger the water flow.
