IMEX Ronda Cast Reinforced 1700 x 700mm Double Ended Bath

IMEX Ronda IMCRDE17X7 Details

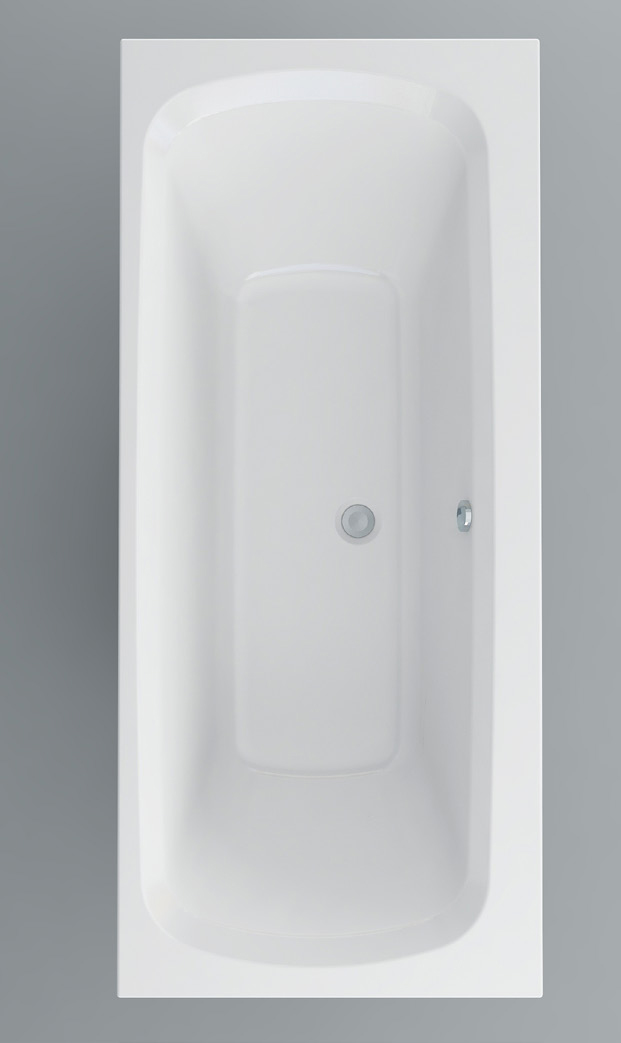

IMEX Ronda 1700 x 700mm White Double Ended Bath

Key Features

✔Supplied with leg pack
✔Manufactured in the UK to the highest standards
✔More comfortable and retain heat for longer than the average bath
✔Twenty-five years guarantee from the manufacturer against manufacturing defects.

It comes in a white finish
Size [mm]: 1700mm x 700mm x 400mm [Length x Width x Depth]
Size [cm]: 170cm x 70cm x 40cm [Length x Width x Depth]
Capacity: 150 litres
Weight for Imex-Cast Bath: 21Kg [Excluding legs]

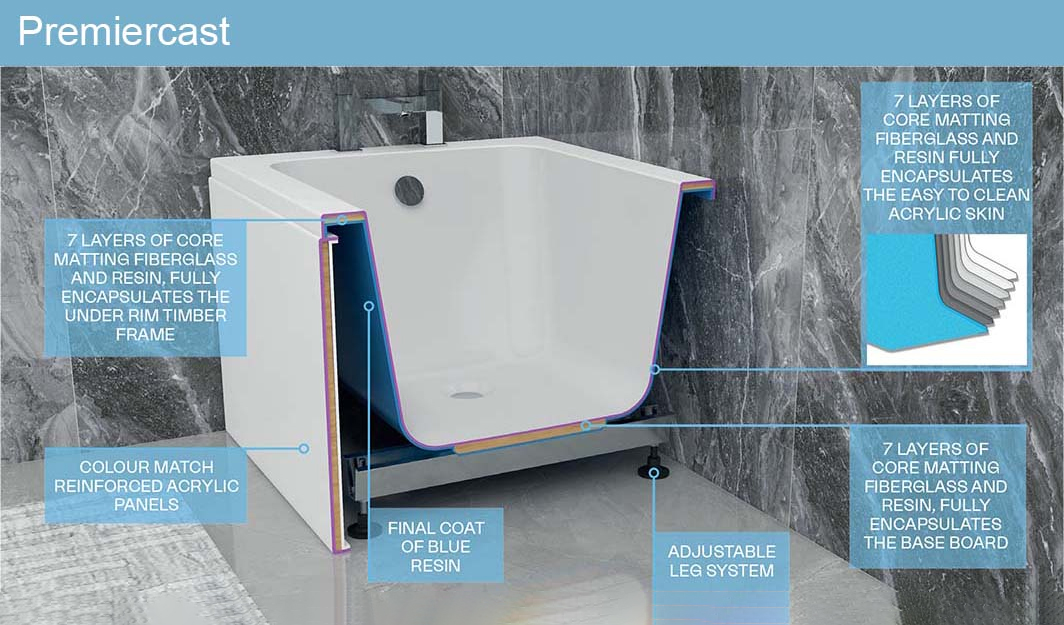

Weight for Premiercast Bath: 24.5Kg [Excluding legs]
The Ronda double-ended bath is available in multiple sizes to suit any size bathroom. With soft curves and ultra-modern design, it will be the centrepiece in any family bathroom
The image shown is for illustration purposes only
For complete size details, refer to technical drawing
Download the Product Data Sheet PDF and Aftercare Guide PDF from the Additional Info tab

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Position of Drain
: Centered Waste
⤷ Bath Type
: Double-Ended
⤷ Range
: Ronda
⤷ Interior Shape
: Rounded Rectangular
⤷ External Length
: 1700
⤷ External Width
: 700
⤷ Tub Depth
: 400
⤷ Feets Included
: Yes
⤷ Height Including Feet or Panel
: Min 505 / Max 550
⤷ Front Panel Included
: Sold Separately
⤷ End Panel Included
: Sold Separately
⤷ Colour
: White
⤷ Internal Bottom Length
: 1020
⤷ Internal Bottom Width
: 350
⤷ Internal Top Length
: 1540
⤷ Internal Top Width
: 535

⤷ Height of Rim
: 40
⤷ Distance Tub edge to centre of drain hole
: 312
⤷ Distance Top edge to centre of overflow hole
: 75
⤷ Diameter of Drain hole
: 50
⤷ Rim Width
: 80, 105
⤷ Weight in kg
: 21
⤷ Slip Resistant
: No
⤷ Shape
: Rectangular
⤷ Capacity in litres
: 150
⤷ Country of Origin
: UK
⤷ Warranty/Guarantee
: 25 Years
⤷ Material
: Imex-Cast
⤷ No. of Bathers
: 2
⤷ Theme
: Modern
⤷ Barcode
: 5057199419590

Additional Info & Downloads

Download the Product Data Sheet For Imex-Cast Bath Pdf File Download the Product Data Sheet For Premiercast Bath Pdf File Download the Aftercare Guide Pdf File

Technical Images

IMEX Ronda 1700 x 700mm White Double Ended Bath

£194.98

RRP: ~~£345.00~~

STOCK AVAILABLITY: 6 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

Encapsulated Base Board

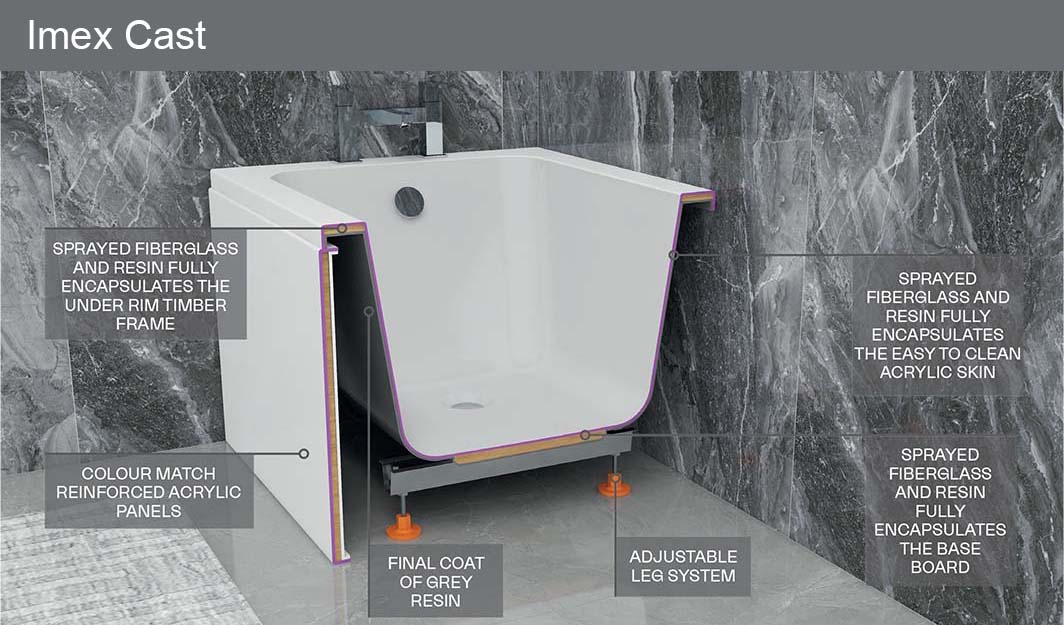

The encapsulated base board has been coated with Glass Reinforced Plastic (GRP) to strengthen it and add a sealing quality to the construction while protecting it from water damage. It goes around the tub and the drain hole, supports the tub, and assists in sealing the underside from moisture.

With / Without Overflow

An overflow is a small hole or opening at the upper part of a sink, basin, bidet or tub that drains away water upon reaching its level so that no water is spilt. When a basin or bath does not come with this design feature, it is called 'without-overflow' and will need a compatible drain.

Optional End Panel

End Panels serve an aesthetic purpose to cap-off the exposed end of a bathtub and come in different sizes, shapes, designs, and finishes.
