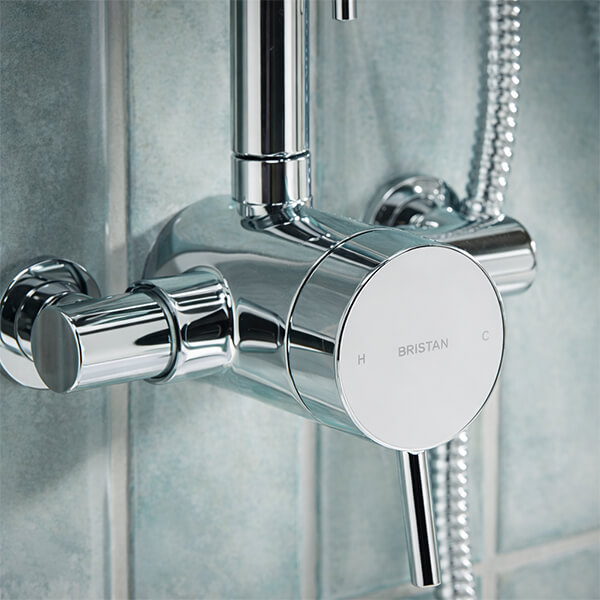

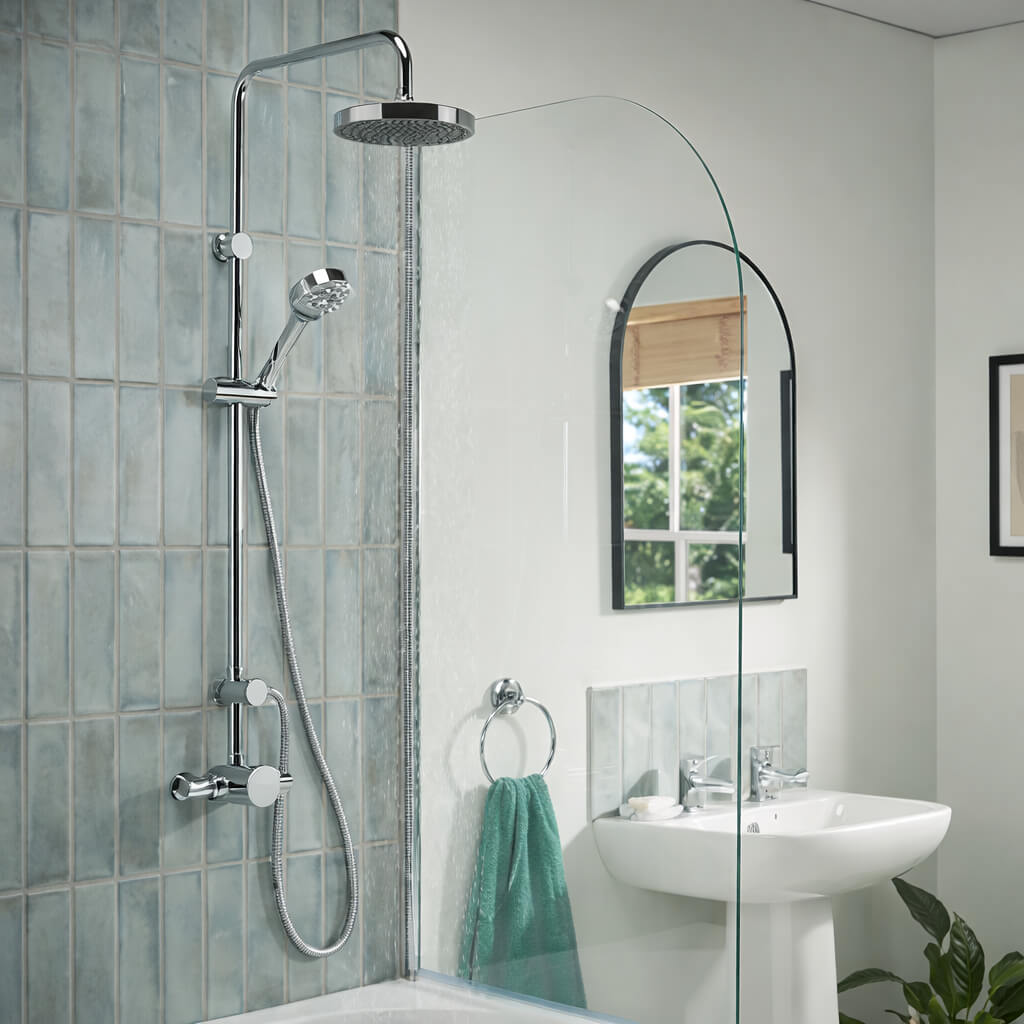

Bristan Prism Thermostatic Exposed Sequential Valve With Diverter And Riser Kit

Bristan Prism PM2 SQSHXDIV C Details

Fully backed by a five-year manufacturer guarantee against any manufacturing defects, this Bristan Prism Thermostatic Exposed Sequential Valve with Diverter and Shower Riser Kit will endow you with fabulously refreshing showering moments. Suitable for high water pressure systems, this valve diverter and riser kit contains an external diverter, shower rose, rigid riser, rub-clean handset and a hose.

For giving you exceptional performance over many years, this unit is produced from top quality material to the highest standards under stringent quality control supervision. It requires a minimum of 0.1 bar to a maximum of 5.0 bar water pressure. This shower set looks great and will add a little flamboyance to your bathroom.

The manufacturing code of this product is PM2 SQSHXDIV C
It comes in an attractive chrome finish
No of controls: 2
Shower type: Exposed sequential exposed valve

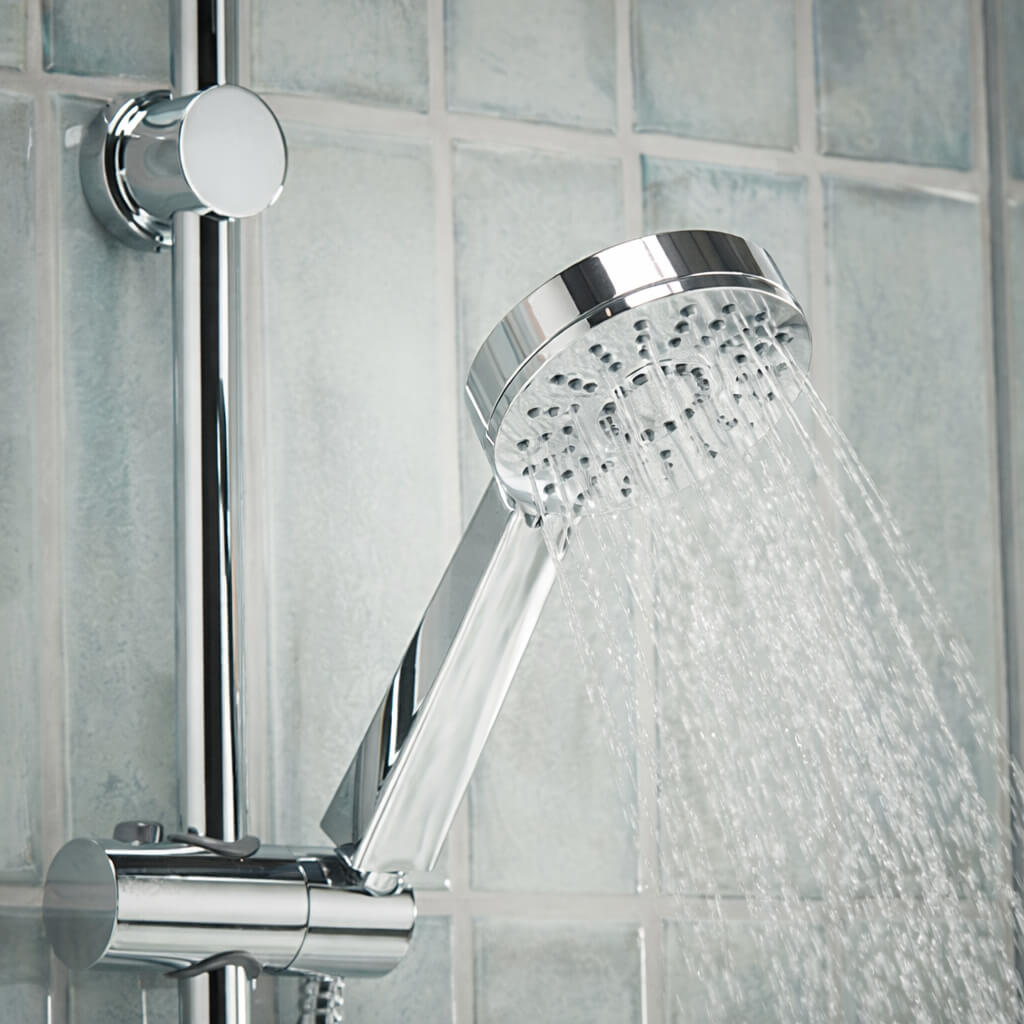

Shower head type: fixed head and handset
Maximum hot water supply temperature: 65°C
Maximum static pressure: 10 bar
Suitable for high-pressure plumbing systems only
Requires a minimum of 0.1 bar to a maximum of 5.0 bar of water pressure
Connection inlet: 15mm compression
Connection outlet: G 1/2 inch

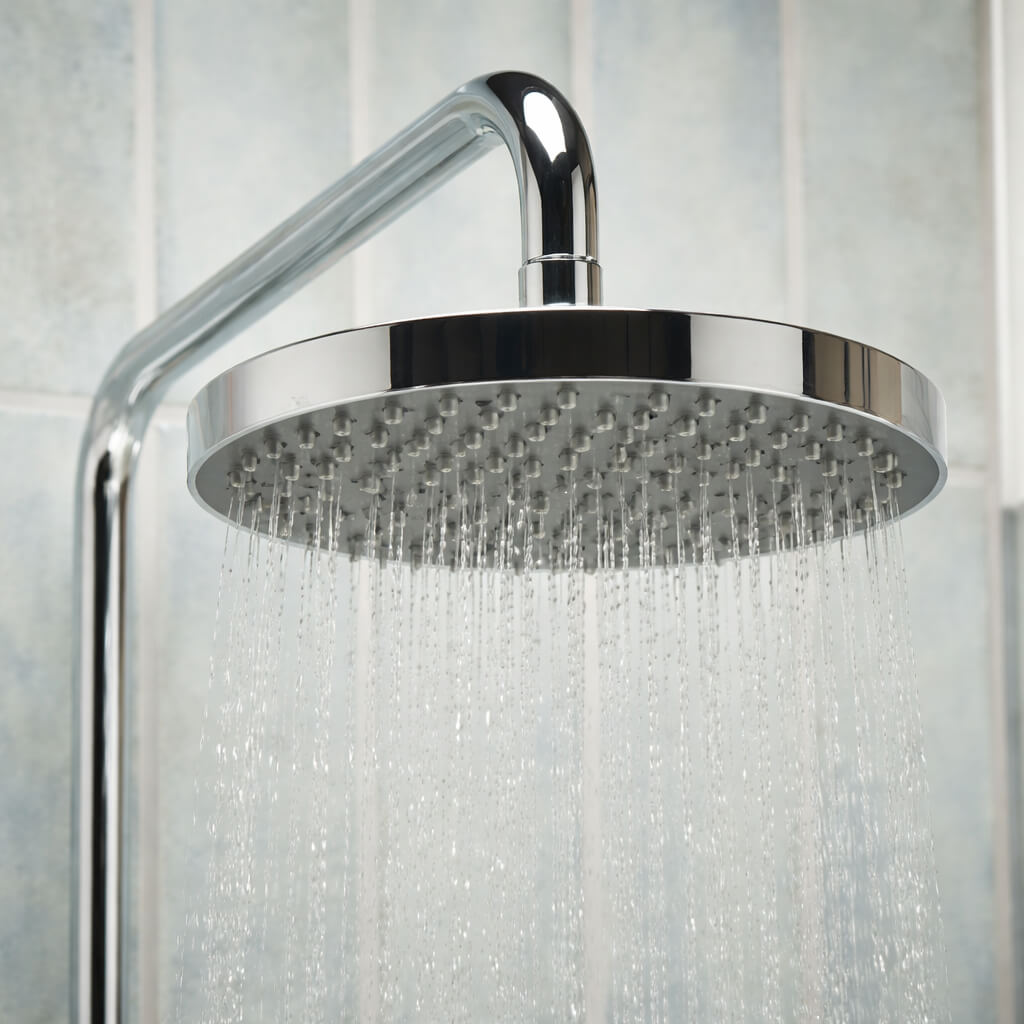

Diameter of round shower head: Ø 200mm - (20cm)
Height of the product: 1276mm - (127.6cm)
Adjustable inlet centre: 136mm - 158mm (13.6cm - 15.8cm)
Easy replacement with adjustable inlets so you can use on existing pipework centres between 136mm (13.6cm) and 158mm (15.8cm)
Thermostatic cartridge with preset temperature stop at 42°C
Refer technical diagram for technical dimensions
Download the Installation Instruction PDF File From The Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Exposed
⤷ Inlet Centres
: 136-158
⤷ Minimum Operating Pressure (Bar)
: 0.1

⤷ Hose Included
: Yes
⤷ Configuration
: Shower Valve With Diverter And Riser Kit
⤷ Temperature Control
: Thermostatic
⤷ Diverter Included
: Yes
⤷ Rail Length
: 1276

Additional Info & Downloads

Download the Installation instruction Pdf File

Bristan Prism Thermostatic Exposed Sequential Valve With Diverter And Chrome Riser Kit

£348.00

RRP: ~~£667.00~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

9 Features Included In This Product Explained

Family Safe

This feature corresponds with the Thermostatic mechanism and automatic safety stops, preventing running water from getting either too hot or too cold.

Decor Smart

In an attempt to keep your decor as neat as before, the unit has a design that will easily fit into the existing holes and fixings as your old shower.

Rub Clean

Any limescale deposits can simply be wiped clean with a clean cloth - no need to scrub or use harsh cleaners.

Luminance Chrome

It is a hard-wearing chrome plating which is salt-tested and scratch-proof for durable, long-lasting use.

2 Outlets 1 On

There are two outlet connections, of which only one can be used at a given time.

Drenching

Drenching in Bristan showers means these showers soak you thoroughly, giving you the most indulgent showering experience.

Sequential Control In Showers

Sequential Control lets you turn the shower on and off and regulate the temperature by turning the same knob. The built-in integral check valves and strainers make it easy to use. The first movement of the knob turns the shower to the cold position, and any subsequent anti-clockwise movement increases the temperature to a set maximum.

Diverter

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Questions & Answers

Submit Your Questions 2 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Martyn Asked :
Is this shower suitable for use with a combi-boiler?

Answered By QS Team

This shower is suitable for use with a combi boiler; the included flow regulators will need to be installed.

Was this answer helpful?

Jill Asked :
Can the riser on PM2 SQSHXDIV C be cut or adjusted to different heights? And is it possible to swivel the head 180 degrees?

Answered By QS Team

We can confirm that the riser rail cannot be cut on this shower as it could compromise some seals. The head swivels 360 degrees and tilts +/– 15 degrees.

Was this answer helpful?
