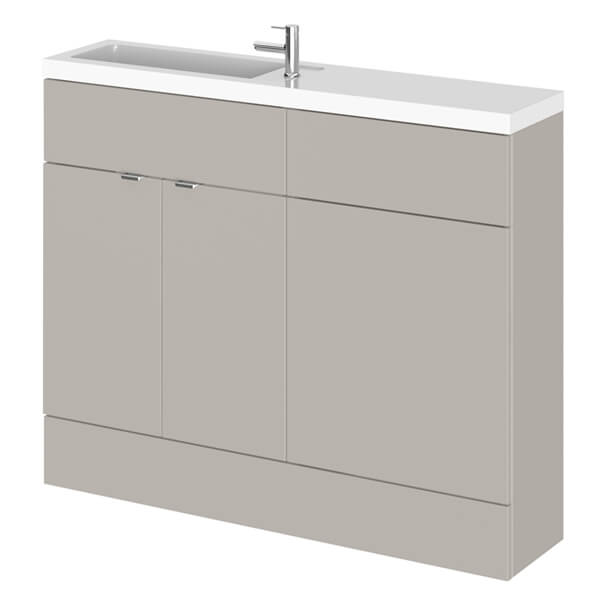

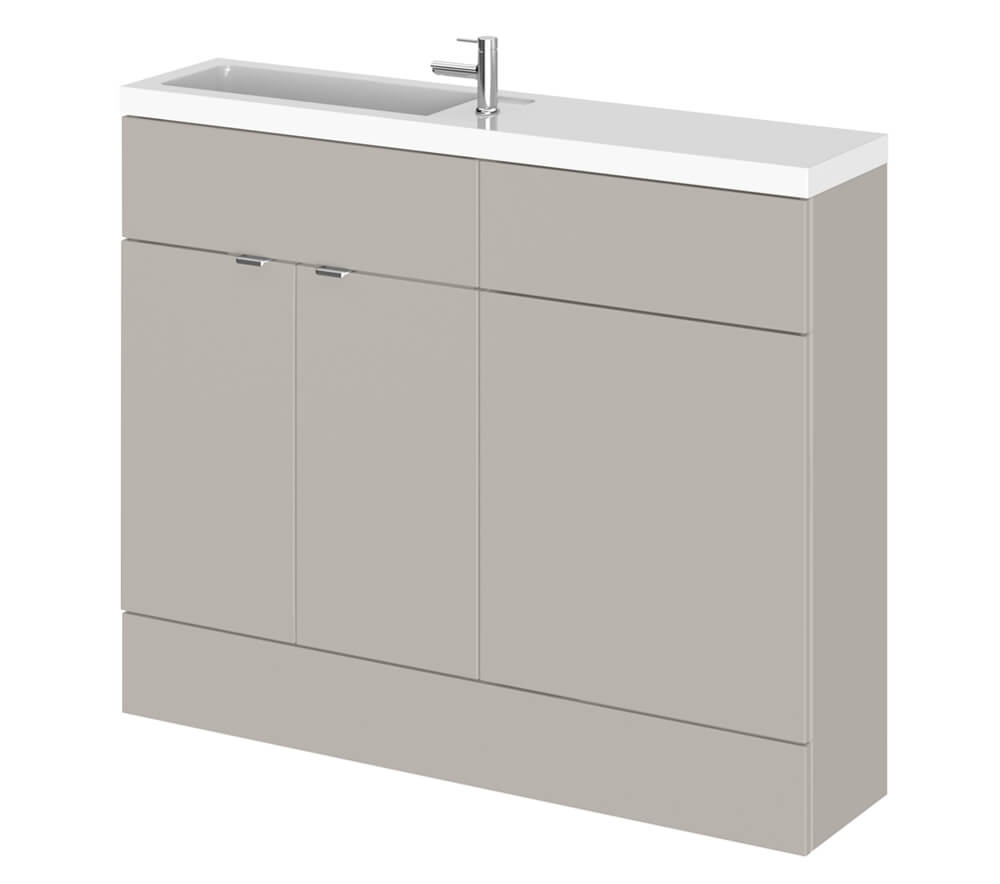

Hudson Reed Fusion 1100mm Compact Furniture Pack

Hudson Reed Fusion CBI101 Details

The Hudson Reed Fusion Compact Furniture Pack - Vanity and WC Unit with Basin is supplied to the user rigid for easy installation and includes a sturdy WC unit with plinth. Available for purchase in several different finishes to choose from and complete with the fixings included for proper installation, this unit boasts sleek, a thinner depth that is ideal for inclusion within cloakrooms or smaller bathroom areas. Created with several different handle finish options as well, this product also includes one tap hole and the plinth showcases lovely cam and wood dowel construction.

Choice of different finish: Gloss White, Natural Oak, Gloss Grey Mist, Grey Woodgrain, Charcoal Black, Gloss Grey and Bleached Oak - [Optional]
Overall Size [mm]: 1105mm x 260mm x 904mm [Width x Depth x Height]
Overall Size [cm]: 110.5cm x 26cm x 90.4cm [Width x Depth x Height]
Made in Britain to the highest quality standard
Download the Customer Data Sheet and Installation Instruction PDF File from the Additional Info Section
Refer to the technical drawing for more details
Details of Compact Vanity Unit
Size [mm]: 600mm x 235mm x 864mm [Width x Depth x Height]
Size [cm]: 60cm x 23.5cm x 86.4cm [Width x Depth x Height]
Cabinet Finish: MFC Painted Gloss
Fascia Finish: MDF Painted Gloss
Cabinet Thickness: 16mm (1.6cm)
Fascia Thickness: 18mm (1.8cm)
Supplied with 1 Internal shelf
2 Soft Close door
Hinge Type: 95 Degree Clip-On Soft Close
Fixing included
Units have a thinner depth, ideal for cloakrooms or smaller bathrooms
Supplied Rigid
FSC Certified
Contemporary Wrap-Over handle in Satin Nickle finish included
Choice of other handles in different finishes available - [Optional]
Details of Basin
Size [mm]: 1103mm x 255mm x 135mm [Width x Depth x Height]
Size [cm]: 110.3cm x 25.5cm x 13.5cm [Width x Depth x Height]
Inner bowl depth: 175mm (17.5cm)
Supplied With 1 Tap Hole
Overflow and cover included
Details of Compact WC Unit
Size [mm]: 500mm x 235mm x 864mm [Width x Depth x Height]
Size [cm]: 50cm x 23.5cm x 86.4cm [Width x Depth x Height]
Cabinet Finish: MFC Painted Gloss
Fascia Finish: MDF Painted Gloss
Cabinet Thickness: 16mm (1.6cm)
Fascia Thickness: 18mm (1.8cm)
Fixing included
Construction Method: Cam and Wood Dowel
Supplied Rigid
Details of Plinth
Size [mm]: 1250mm x 145mm x 18mm [Width x Depth x Height]
Size [cm]: 125cm x 14.5cm x 1.8cm [Width x Depth x Height]
Continuous plinth
Cabinet finish: MFC Painted Gloss
Fascia finish: MDF Painted Gloss
Cabinet and fascia thickness: 18mm (1.8cm)
Construction Method: Cam and Wood Dowel
Construction Type: Flat-Pack
Tap, Pan And WC shown in the image are not included

Info / Size (mm)

Unit
Width: 600 mm
Depth: 235 mm
Height: 864 mm

Basin
Width: 1103 mm
Depth: 255 mm
Height: 135 mm

WC Unit
Width: 500 mm
Depth: 235 mm
Height: 864 mm

Plinth
Width: 1250 mm
Depth: 145 mm
Height: 18 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Fusion
⤷ Colour
: Gloss White
⤷ Warranty/Guarantee
: 5 Years
⤷ Theme
: Modern
⤷ Installation Type
: Floor Mounted
⤷ Fixings included
: Yes
⤷ No. of Tap Holes
: 1
⤷ Compliance/Approvals/Standard
: FSC
⤷ Barcode
: 5055275887035
⤷ Number Of Doors
: 2
⤷ Handle Included
: Yes
⤷ Furniture Material
: MFC
⤷ Pre-assembled
: No
⤷ Sink Included
: Yes

⤷ Sink Colour
: White
⤷ Toilet Included
: No
⤷ No. Of Internal Shelves
: 1
⤷ Soft-Close Door
: Yes
⤷ Vanity Cabinet Included
: Yes
⤷ Vanity Cabinet Width
: 600
⤷ Vanity Cabinet Height
: 864
⤷ Vanity Cabinet Depth
: 255
⤷ WC Unit Included
: Yes
⤷ WC Unit Width
: 500
⤷ WC Unit Height
: 864
⤷ WC Unit Depth
: 255
⤷ Sink Material
: Polymarble
⤷ Number Of Sinks
: 1

Additional Info & Downloads

Download the Customer Data Sheet Pdf File Download the Installation Instruction Pdf File

Hudson Reed Fusion 1100mm Compact Furniture Pack - Vanity And WC Unit With Basin

£353.47

RRP: ~~£1011.00~~

STOCK AVAILABLITY: 3-4 Working Days Approx

QS Supplies

Other Sizes / Finishes

Other Sizes / Finishes / Variations Available.

QS Code	Finish	Size / Difference	MFC Code
QS-V90144	-	1200mm Width	CBI108

Back to QS-V90116 / MFC Code: CBI101

5 Features Included In This Product Explained

Soft-Close Opening

This product features advanced hinges or rollers that allow it to open and close slowly and gently.

Rigid Furniture - Pre-Assembled

Rigid or pre-assembled furniture is any bathroom unit that is ready to install. These arrive entirely constructed with pre-drilled holes and labelled parts making the furniture installation process quick and easy. It helps you save money on labour, and you get a higher-quality product. These are also an excellent choice for anyone looking for a new storage unit that fits their bathroom decor.

With / Without Overflow

An overflow is a small hole or opening at the upper part of a sink, basin, bidet or tub that drains away water upon reaching its level so that no water is spilt. When a basin or bath does not come with this design feature, it is called 'without-overflow' and will need a compatible drain.

Cam & Dowel Method

It is a woodworking process in which a dowel or wooden pin is fit into a pre-carved hole in the opposite pieces of wood to create a strong joint. The resulting piece of furniture has a rigid carcass with a neat finish and removes the need for glue or nails for adhesion.

Melamine Faced Chipboard

Melamine Faced Chipboard or MFC is a type of engineered wood with a smooth surface. It is made using wood chips, then formed into particle board using heat and pressure and bonded to melamine resin impregnated paper. The Melamine layer makes it water resistant, and helps resist scratches, and increases the aesthetics. It is cheaper than MDF or Medium Density Fiberboard.
