Hudson Reed Topaz Triple Exposed Thermostatic Shower Valve

Hudson Reed Topaz TSVT102 Details

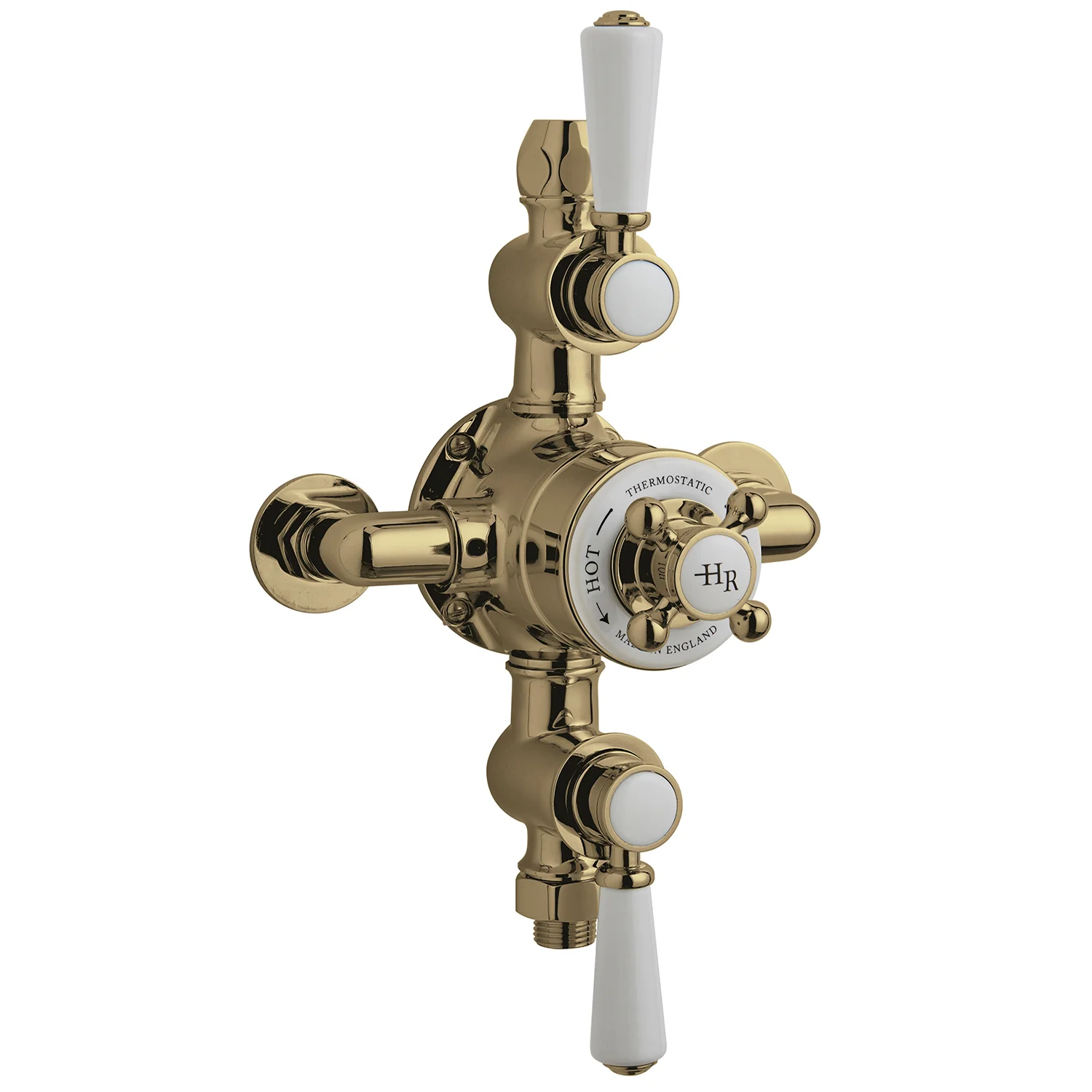

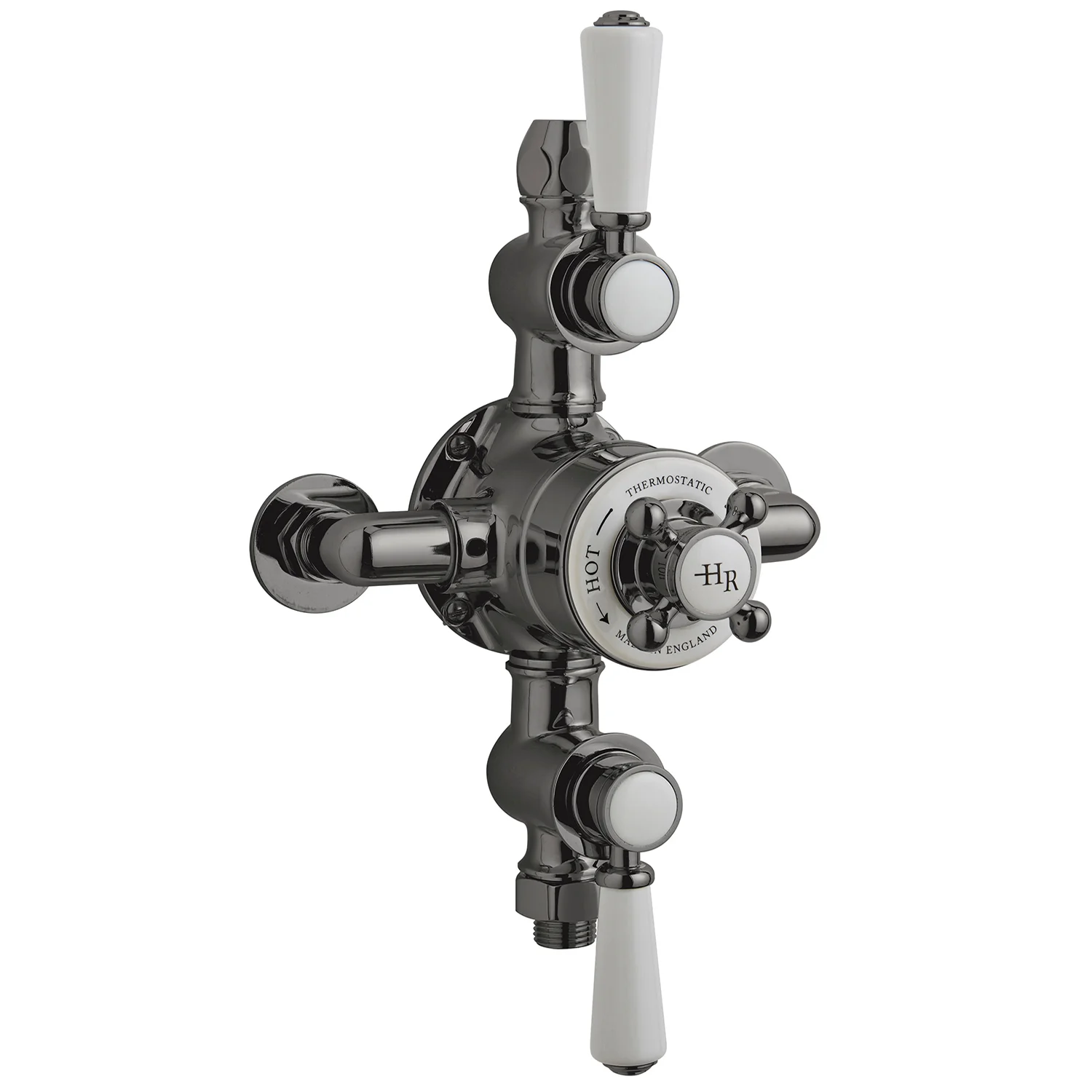

Hudson Reed Topaz Triple Exposed Thermostatic Shower Valve.

Choice of different finishes: Chrome-White or Chrome-Black - [Optional]
Size [mm]: 195mm x 136mm x 206mm [Width x Depth x Height]
Size [cm]: 19.5cm x 13.6cm x 20.6cm [Width x Depth x Height]
Pipe Size: 15mm (1.5cm)
Pipe Centres: 150mm (15cm)
No of Outlets: 2
1/4 turn ceramic disc cartridge
Exposed wall-mounted installation
Thermostatic control to +/- 1 degree - even if the water pressure fluctuates
In the event of hot or cold water failure, the valve will shut down as per the relevant standard
Our valves are suitable for use with all systems: gravity-fed pumped unvented high-pressure or fully modulated combi-boilers
The cartridge is fully reversible, meaning if hot and cold supplies are the wrong way round, it doesn't need re-plumbing
Remove the cartridge, turn 180° and replace
Suitable for low-pressure water system
Requires a minimum of 0.1 bar or above water pressure to operate smoothly
Download the Customer Data Sheet and Installation Instruction PDF file from the Additional Info Section
Refer to the technical drawing for complete size details
Twenty-year guarantee from Hudson Reed against manufacturing defects

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Topaz
⤷ Colour
: Chrome And White
⤷ Warranty/Guarantee
: 20 Years
⤷ Material
: Brass
⤷ Theme
: Traditional
⤷ Installation Type
: Wall Mounted
⤷ Inlet Centres
: 160
⤷ Overall Height
: 332
⤷ Minimum Operating Pressure (Bar)
: 0.1
⤷ Flow Rates (l/min)
: 0.1 bar - 4.5 , 0.5 bar - 13 , 1 bar - 18.5 , 2 bar - 26 , 3 bar - 33

⤷ Handle Style
: Lever
⤷ Depth
: 135
⤷ Temperature Control
: Thermostatic
⤷ Number of Handles
: 3
⤷ Number of Outlet
: 2
⤷ Barcode
: 5055275831601
⤷ Plumbing System Compatibility
: All
⤷ Plumbing Option
: Exposed
⤷ Cartridge Included
: Yes
⤷ Cartridge Type
: Reversible

Additional Info & Downloads

Download the Customer Data Sheet Pdf File Download the Installation Instruction Pdf File

Add-Ons

Shower Elbow

It is made from brass back-to-wall shower elbow for hidden pipework from Hudson Reed. Please Note: The images shown are for illustration purposes only.

No Option Selected
OP-153990 - Back-To - Wall Shower Elbow + £14.00

Hudson Reed Topaz Triple Exposed Thermostatic Shower Valve

£194.95

RRP: ~~£628.00~~

IN-STOCK

Delivery in 2 Working Days Approx.

QS Supplies

5 Features Included In This Product Explained

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Combi-Boiler System

The showerhead or shower system is suitable for use with a Combi-Boiler System. This system heats cold water on demand, relying solely on mains pressure to move water around your home. These are suitable for mixer showers, as they provide hot water instantaneously and at the highest pressure.

Unvented System

The unvented water systems usually have a separate hot water cylinder, which is pre-heated via a combi boiler or other heating sources to store a quantity of hot water at mains pressure.

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...
