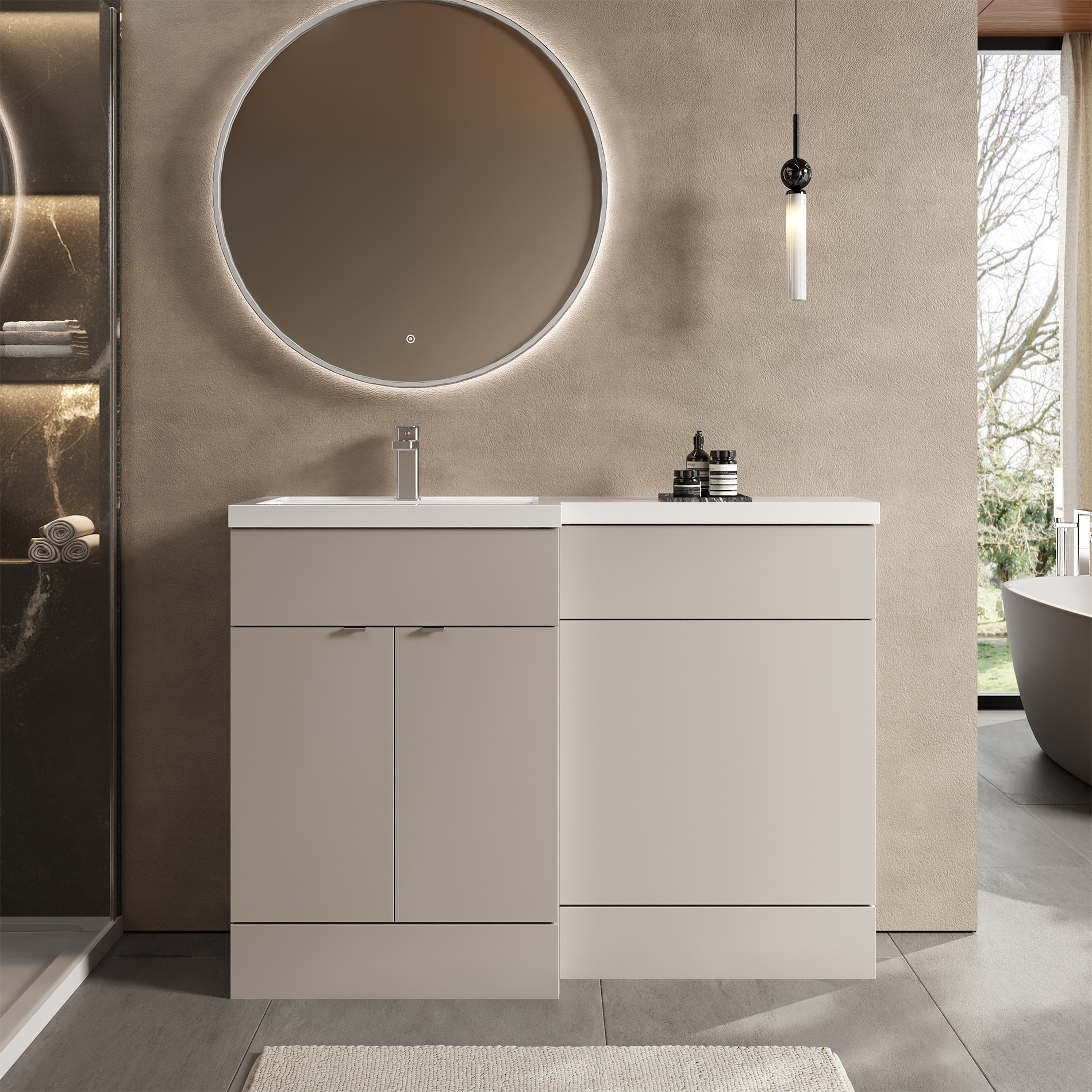

Hudson Reed Fusion 1200mm Full Depth Furniture Pack - Vanity And WC Unit With Basin

Hudson Reed Fusion CBI109 Details

The Hudson Reed Fusion Full Depth Furniture Pack with Basin is a sleek and nearly complete set-up that includes vanity, WC Unit while the tap can be purchased separately if desired. Complete with the fixings required for secure installation and available in either a left- or right-hand configuration, this unit is also available in a range of different stylish colour options to choose from as well. The basin is supplied with 1 tap hole, and overflow and cover included alongside it.

Key Features

✔Construction Method: Cam and Wood Dowel
✔The product consists of Vanity Unit, Wc Unit and Basin
✔Contemporary Wrap-Over handle in Satin Nickle finish included
✔Five years guarantee from Hudson Reed against manufacturing defects

Choice of finish available - Gloss White, Bleached Oak, Anthracite Woodgrain, Charcoal Black and Gloss Grey [Optional]
Available variants - Left Hand and Right Hand [Optional]
Overall Size [mm]: 1205mm x 360mm x 904mm [Width x Depth x Height]
Overall Size [cm]: 120.5cm x 36cm x 90.4cm [Width x Depth x Height]
Made in Britain to the highest quality standard
Download the Installation Instruction and Customer Data Sheet PDF File from the Additional Info Section
Refer to the technical drawing for more technical specifications
Details of Vanity Unit
Size [mm]: 600mm x 355mm x 864mm [Width x Depth x Height]
Size [cm]: 60cm x 35.5cm x 86.4cm [Width x Depth x Height]
Cabinet Finish: MFC Painted Gloss
Fascia Finish: MDF Painted Gloss
Cabinet Thickness: 16mm (1.6cm)
Fascia Thickness: 18mm (1.8cm)
FSC Certified
Supplied with 1 Internal shelf
2 Soft Close door
Hinge Type: 95 Degree Clip-On Soft Close
Fixing included
Full Depth provides ample storage space
Supplied Rigid
Choice of other handles in different finishes available [Optional]
Details of Basin
Size [mm]: 1205mm x 355mm x 135mm [Width x Depth x Height]
Size [cm]: 120.3cm x 35.5cm x 13.5cm [Width x Depth x Height]
Inner bowl depth: 215mm (21.5cm)
L Shaped Polymarble Basin
Supplied With 1 Tap Hole
Overflow and cover included
Details of WC Unit
Size [mm]: 600mm x 255mm x 864mm [Width x Depth x Height]
Size [cm]: 60cm x 25.5cm x 86.4cm [Width x Depth x Height]
Cabinet Finish: MFC Painted Gloss
Fascia Finish: MDF Painted Gloss
Cabinet Thickness: 16mm (1.6cm)
Fascia Thickness: 18mm (1.8cm)
Fixing included
Supplied Rigid

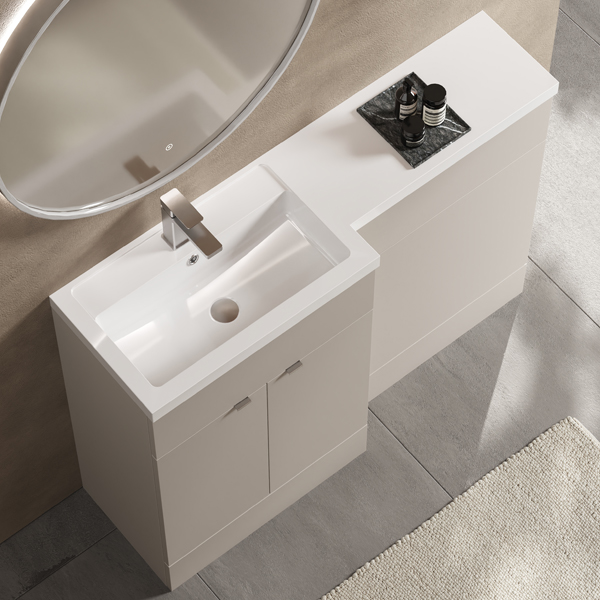

The tap shown in the image is not included

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Fusion
⤷ Colour
: Gloss White
⤷ Warranty/Guarantee
: 5 Years
⤷ Theme
: Modern
⤷ Installation Type
: Floor Mounted
⤷ Fixings included
: Yes
⤷ No. of Tap Holes
: 1
⤷ Compliance/Approvals/Standard
: FSC Certification
⤷ Barcode
: 5055275887110
⤷ Number Of Doors
: 2
⤷ Handle Included
: Yes
⤷ Furniture Material
: MFC Painted Gloss
⤷ Pre-assembled
: Yes
⤷ Sink Included
: Yes

⤷ Sink Colour
: White
⤷ No. Of Internal Shelves
: 1
⤷ Soft-Close Door
: Yes
⤷ Vanity Cabinet Included
: Yes
⤷ Vanity Cabinet Width
: 600
⤷ Vanity Cabinet Depth
: 355
⤷ Vanity Cabinet Height
: 864
⤷ WC Unit Included
: Yes
⤷ WC Unit Width
: 600
⤷ WC Unit Height
: 864
⤷ WC Unit Depth
: 255
⤷ Sink Material
: Polymarble
⤷ Number Of Sinks
: 1

Additional Info & Downloads

Download the Customer Data Sheet For Left Hand Unit And Basin Pdf File Download the Customer Data Sheet For Right Hand Unit And Basin Pdf File Download the Installation Instruction Pdf File

Technical Images

Hudson Reed Fusion 1200mm Full Depth Furniture Pack - Vanity And WC Unit With Basin

£400.64

RRP: ~~£1146.00~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

Other Sizes / Finishes

Other Sizes / Finishes / Variations Available.

QS Code	Finish	Size / Difference	MFC Code
QS-V90112	-	1000mm Width	CBI126
QS-V90120	-	1100mm Width	CBI102

Back to QS-V90308 / MFC Code: CBI109

4 Features Included In This Product Explained

Rigid Furniture - Pre-Assembled

Rigid or pre-assembled furniture is any bathroom unit that is ready to install. These arrive entirely constructed with pre-drilled holes and labelled parts making the furniture installation process quick and easy. It helps you save money on labour, and you get a higher-quality product. These are also an excellent choice for anyone looking for a new storage unit that fits their bathroom decor.

With / Without Overflow

An overflow is a small hole or opening at the upper part of a sink, basin, bidet or tub that drains away water upon reaching its level so that no water is spilt. When a basin or bath does not come with this design feature, it is called 'without-overflow' and will need a compatible drain.

Cam & Dowel Method

It is a woodworking process in which a dowel or wooden pin is fit into a pre-carved hole in the opposite pieces of wood to create a strong joint. The resulting piece of furniture has a rigid carcass with a neat finish and removes the need for glue or nails for adhesion.

Melamine Faced Chipboard

Melamine Faced Chipboard or MFC is a type of engineered wood with a smooth surface. It is made using wood chips, then formed into particle board using heat and pressure and bonded to melamine resin impregnated paper. The Melamine layer makes it water resistant, and helps resist scratches, and increases the aesthetics. It is cheaper than MDF or Medium Density Fiberboard.

Questions & Answers

Submit Your Questions 1 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Lia Asked :
Please let me know which back to wall toilet would you recommend with it? I was hoping to get something with about w 355mm. Also please let me know if is anything else that I need to purchase with it apart from tap. Many thanks Lia

Answered By QS Team

Ceramic for CBI109 are listed below
CBL006

CHM005

CPA008

Other than ceramic, you may need to have a concealed cistern and frame (if required)

Compatible frames and cisterns are available as optional in ceramic products.
