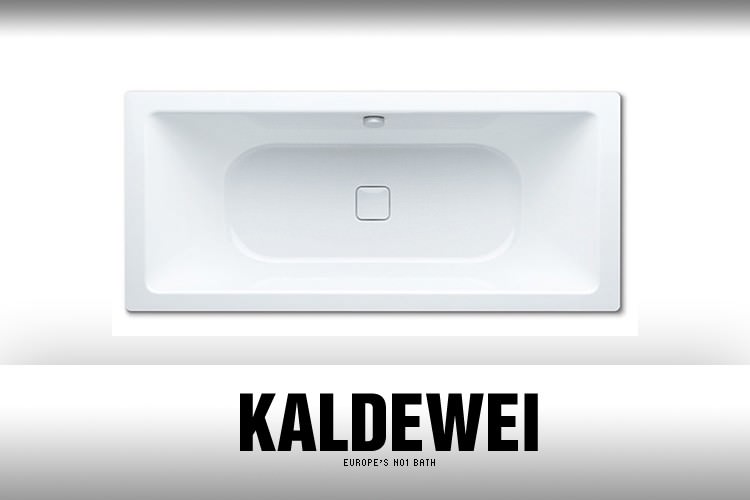

Kaldewei Avantgarde Conoduo 1800 x 800mm Double Ended Steel Bath White

Kaldewei Avantgarde 235110110001 Details

Add a dash of panache to your bathroom, by installing the Kaldewei Avantgarde Conoduo 1800 x 800mm Double-Ended Steel bath that comes in a gleaming white smooth surface. This modern bath makes a bold yet elegant statement when used with a mixer on the deck. Featuring an innovative rectangular cut, this sturdy bath is sure to stand the test of time with its enormous durability.

The product, made using high-quality steel enamel, features a centrally positioned, concealed drain. It also has two identical backrests to add to your comfort. Supplied with no tap-hole, this model looks elegant in a simple, straight-line design. It is guaranteed against all manufacturing defects for 30 years. Fix this bathtub with a bath shower mixer tap for the ultimate bathing experience.

Key Features

✔Classic four-cornered model
✔Straight-lined and purist design
✔Constructed using steel enamel
✔Two identical backrests and centrally positioned waste

Size [mm]: 1800mm x 800mm x 420mm [Length x Width x Depth]
Size [cm]: 180cm x 80cm x 42cm [Length x Width x Depth]
Comes with grip holes or without grip holes [Optional]
Bath with Standard or EasyClean coating available [Optional]
Suitable to use with Anti-Slip and full Anti-Slip [Optional]
Bath Grip [Optional]
It comes in white colour
Enamelled waste cover and overflow knob integrated into the bath design
Water Capacity: 159 Litres
Weight: 56.9kg
For grip hole bath only - One-sided drilling for grip
Images shown are for illustration purposes only
Leg Set Required, Please order adjustable feet set 5037 [Optional]
Conoduo Waste Especially designed for Conoduo bath [Optional]
Refer to the technical drawing for more technical specifications
30 years guarantee from Kaldewei against manufacturing defects
Waste, Overflow and Grip shown in the image are not included

Please Note: Bath variants may be special order and delivery lead time may vary.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Bath Type
: Double-Ended
⤷ Position of Drain
: Centered Waste
⤷ Range
: Conoduo
⤷ Interior Shape
: Rounded Rectangular
⤷ Coating
: EasyClean - Sold Separately
⤷ External Length
: 1800
⤷ External Width
: 800
⤷ Tub Depth
: Internal - 420 External - 445
⤷ Feets Included
: Sold Separately
⤷ Height Including Feet or Panel
: 555-590
⤷ Front Panel Included
: No
⤷ End Panel Included
: No
⤷ Colour
: White
⤷ Grips Included
: Sold Separately
⤷ Internal Bottom Length
: 1180
⤷ Internal Bottom Width
: 520
⤷ Internal Top Length
: 1640
⤷ Internal Top Width
: 640
⤷ Height of Rim
: 50
⤷ Distance Tub edge to centre of drain hole
: 900

⤷ Distance Top edge to centre of overflow hole
: 70
⤷ Diameter of overflow hole
: 52
⤷ Diameter of Drain hole
: 90
⤷ Distance foot end of tub edge to center of foot
: 555
⤷ Distance between the feet
: 690
⤷ Distance tub edge (foot end) to where handle start
: 752
⤷ Distance tub edge (Foot end) to where handle end
: 1048
⤷ Rim Width
: 80
⤷ Weight in kg
: 56.9
⤷ Slip Resistant
: No
⤷ Shape
: Rectangular
⤷ Capacity in litres
: 159
⤷ Country of Origin
: Denmark
⤷ Warranty/Guarantee
: 30 Years
⤷ Material
: Steel
⤷ No. of Bathers
: 2
⤷ Waste Included
: Sold Separately
⤷ Tap Holes
: Un-drilled
⤷ Barcode
: 4001112858271

Technical Images

Kaldewei Avantgarde Conoduo 1800 x 800mm Double Ended Steel Bath White

Add-Ons

Bath Leg Set 5037

Installing a bathtub is particularly quick and straightforward with the all-around bathtub base frame model 5037 by Kaldewei. The bath feet positions on the external points of the base of the bathtub guarantee optimum stability.

No Option Selected
OP-29713 - Leg Set 5037 RECOMMENDED
+ £53.71

Bath Waste

Specially Designed for ConoDuo bath - It Comes in White Colour, concealed and Centrally positioned in the tub. Please Note: the image shown is for illustration purposes only.

No Option Selected
OP-211072 - Comfort Level - Trim Set Waste And Overflow Fitting Chrome + £179.38
OP-29746 - Special waste and overflow fitting KA4080 alpine white + £202.18
OP-211073 - Comfort Level Plus - Integrated Waste With Filling Function + £364.72
OP-29747 - Special Waste And Overflow Fitting KA4081 Integrated Filling Function Alpine White + £433.44

£1100.92

RRP: ~~£2077.20~~

STOCK AVAILABLITY: 6 Working Days Approx

QS Supplies

10 Features Included In This Product Explained

Heat Resistant

The surface will not show any burn or smoke marks when hot objects are in contact.

Scratch And Impact Resistant

KALDEWEI steel enamel combines steel and glass, making it durable and greatly resisting mechanical stress. Its resilience is greater than standard material as it is tougher than Acrylic.

Easy To Clean & Hygienic

The surfaces of KALDEWEI steel enamel will not allow dirt and bacteria to gather, making it extremely hygienic and easy to clean.

UV Resistant

KALDEWEI steel enamel has unique properties that help the product retain its original colour for a long time; it does not fade or turn yellow.

100% Sustainable

All products made using special KALDEWEI steel enamel are entirely recyclable as their source is natural raw materials, i.e. glass and steel.

Chemical Resistant

Most detergents, cosmetics, perfumes, bath salts, oils and other additives or general-purpose household cleaning agents cannot damage the KALDEWEI steel enamel.

Beautiful Shape Forever

The durable KALDEWEI steel enamel remains unaffected by changes in temperature and, therefore, will not suffer cracks or moisture damage.

Optional: EasyClean Finish

KALDEWEI EASY-CLEAN FINISH can be opted for so that the water will roll off the surface of the bathtub, sweeping away all dirt and lime particles along

Optional: Full Or Semi Anti-Slip Enamel

KALDEWEI full or Semi anti-slip system comes certified with the German technical inspection association TUV Rhineland for full anti-slip properties compliant with quality class B for wet barefoot areas (DIN 51097) and quality class R 10 for full anti-slip characteristics within working or work areas with enhanced slipping risk (DIN 51130).

Steel Enamel

Steel enamel is a mixture of steel and glass - natural materials with unique properties. It harnesses the strengths of both materials and is hard-wearing enough for bathtubs, showers and basin surfaces, as it protects the surface and retains its value over the decades.

Questions & Answers

Submit Your Questions 1 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Peter Asked :
We have a Kaldewei bath fitted some 10 years ago but looks identical to the current Conoduo 733 Double-ended Steel bath 1800. The side waste control/filler tap now has a broken cap and I wondered if replacements might be available, please? The internal mechanism still works but needs a pair of narrow pliers to open or close the waste in the centre of the base of the bath. We love the quality of the bath and fittings so would be very keen to find a solution. Many thanks Peter

Answered By QS Team
