Hudson Reed Topaz Wall Mounted Bath Shower Mixer Tap

Hudson Reed Topaz BC304DXWM Details

Bright and cheery, the Bath Shower Mixer Tap from Topaz will put a zing in your day, with its attractive chrome finish and smooth working. The versatile tap can be wall-mounted. It is suitable for low water pressure systems and functions well with minimum 0.2 bar water pressure. It comes complete with the shower kit. It is made from superior and durable material and is guaranteed for 20 years against any manufacturing defects.

Choice of handle finish: White and Black - [Optional]
Available in different handles: Crosshead or Lever - [Optional]
Taps come: Hexagonal or Dome Collar - [Optional]
Traditional design
Suitable for wall mounted installation
Includes shower kit
Suitable for low-pressure systems
Required minimum 0.2 bar water pressure for smooth flow
Size [mm]: 350mm x 155mm x 320mm [Width x Depth x Height]
Size [cm]: 35cm x 15.5cm x 32cm [Width x Depth x Height]
Pipe Size: 22mm (2.2cm) (3/4inch BSP)
Inlet Centres: 200mm (20cm)
The Centre of the inlet to the Centre of the outlet: 125mm (12.5cm)
Download the Customer Data Sheet and Installation Instruction PDF file from the Additional Info Section

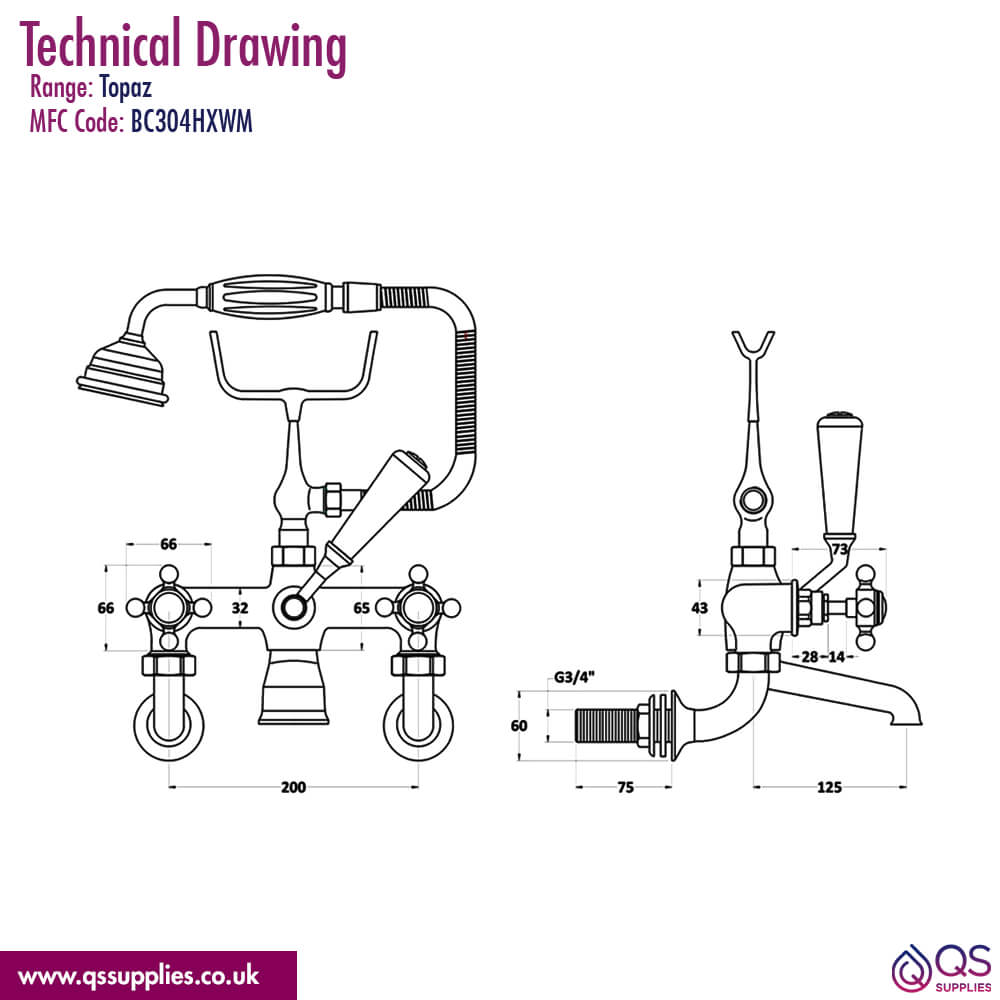

Refer to the technical diagram for complete size details

Info / Size (mm)

Tap
Pipe Centre: 196 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Handle Position
: Left And Right
⤷ Tap Body Shape
: Round
⤷ Range
: Topaz
⤷ Colour
: Chrome
⤷ Country of Origin
: United Kingdom
⤷ Warranty/Guarantee
: 20 Years
⤷ Material
: Brass
⤷ Theme
: Traditional
⤷ Installation Type
: Wall Mounted
⤷ No. of Holes Required
: 2
⤷ Spout type
: Fixed

⤷ Spout Reach
: 125
⤷ Inlet Centres
: 200
⤷ Overall Height
: 320
⤷ Width
: 350
⤷ Depth
: 155
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Hose Included
: Yes
⤷ Hand-Shower Included
: Yes
⤷ Flow Rates (l/min)
: 0.1 bar - 10.6 | 0.5 bar - 28.6 | 1 bar - 41.4 | 2 bar - 59 | 3 bar - 72.8
⤷ Handle Style
: Crosshead
⤷ Barcode
: 5055275895634
⤷ Product Type
: Bath Shower Mixer Tap

Additional Info & Downloads

Download the Customer Data Sheet For Crosshead Handle With Dome Collar Pdf File Download the Customer Data Sheet For Crosshead Handle With Hexagonal Collar Pdf File Download the Customer Data Sheet For Lever Handle With Dome Collar Pdf File Download the Customer Data Sheet For Lever Handle With Hexagonal Collar Pdf File Download the Installation Instruction Pdf File

Hudson Reed Topaz Wall Mounted Bath Shower Mixer Tap

£304.13

RRP: ~~£904.00~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

Other Sizes / Finishes

Other Sizes / Finishes / Variations Available.

QS Code	Finish	Size / Difference	MFC Code
QS-V38745	-	Deck Mounted	BC304HX

Back to QS-V93507 / MFC Code: BC304DXWM

1 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...
