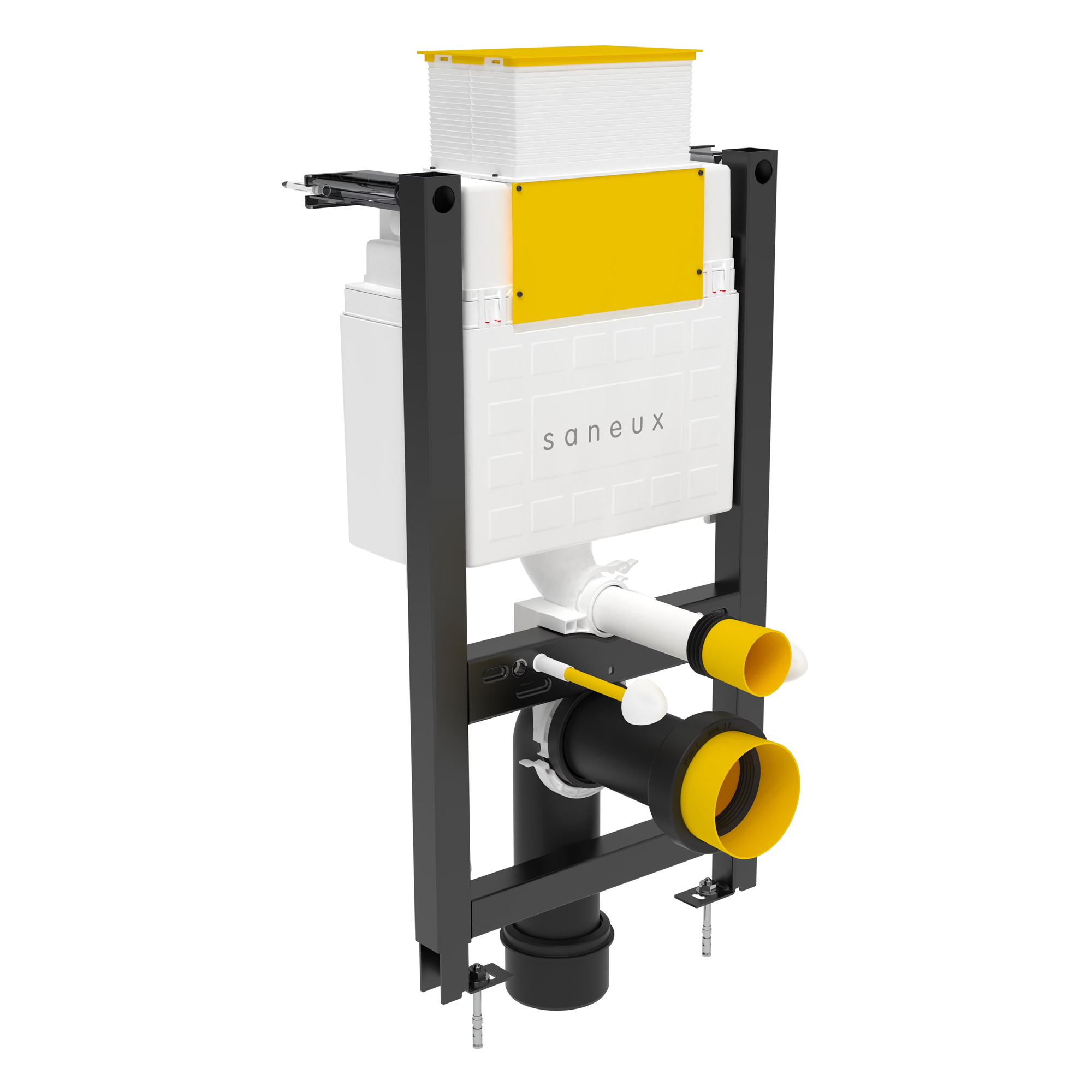

Saneux Flushe 2.0 Universal Framed Cistern With Mechanical Flush

The Saneux Flushe 2.0 Universal Framed Cistern with Mechanical Flush is a truly versatile design that offers front or top flush operation. Created to function with working pressures that range between 0.2 and 16 bar, this unit allows you to choose between two different flushing volumes of 6 and 3-litres. Constructed from steel and plastic materials, this unit includes a steel frame and a blow moulded plastic cistern within it. A product that features an impressively fast-fill; this unit takes only 39 seconds to fill up 6-litres of volume at 3 bar of pressure.

• Manufacturing code of this product - FL2024
• Size in [mm]: 430mm x 155-210mm x 750-1080mm [Width x Depth x Height]
• Size in [cm]: 43cm x 15.5-21cm x 75-108cm [Width x Depth x Height]
• Working pressures: 0.2 - 16 bar
• Flushing volumes: 6/3 Litres
• Connections: 1/2 inch BSP FM left-hand side
• Pan Fixing: M12 thread 180 and 230 centres
• Approvals WRAS: CE: EN14055
• Refer to the technical diagram for the complete technical dimension
