Nuie Ocean Manual Concealed Or Exposed Shower Valve

Nuie Ocean A3200 Details

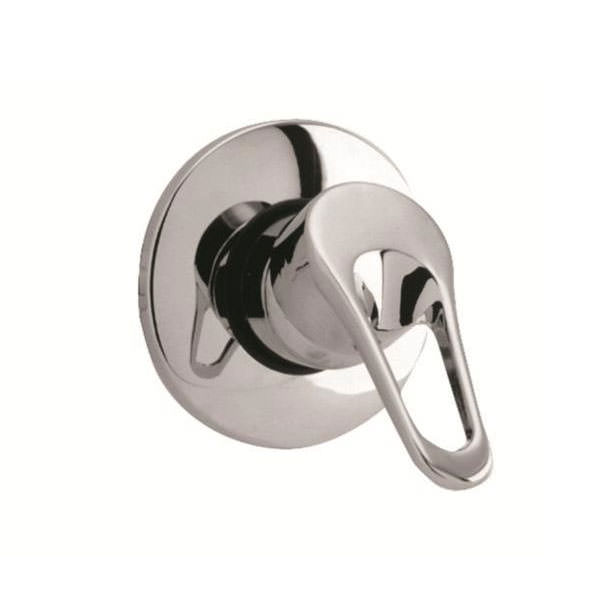

Nuie Bathrooms Ocean Manual Shower Valve has a strikingly futuristic design and doubles your convenience. It can be used Concealed or Exposed and comes with complete fittings in one box. It features a single control for temperature and flow. Designed for convenience, the concealed valve operates one shower accessory; fixed head or slide rail kit while the exposed valve operates only the slide rail kit. Crafted from high-grade material, it comes with a brilliant chrome finish and complies with BS5412 and EN 200 standards and is guaranteed 5 years.

Manufacturing code: A3200
Rounded edges give a sleek minimalist design
Excellent flow rates - even at low pressure
Pipe size: 15mm (1.5cm) (1/2inch BSP)
Pipe centres: 150mm (15cm)
Suitable for low-pressure water system
Requires 0.20 bar operating water pressure
Flow rate (litres per minute): 0.1 bar - 5, 0.5 bar - 10, 1.0 bar - 14, 2.0 bar - 20, 3.0 bar - 26,
The valve and valve (lever) handle included
Number of handles: 1
Mount type: Exposed and Concealed
Features stain/rust resistance
Download the Customer Datasheet PDF and Installation Instruction PDF from the Additional Info section

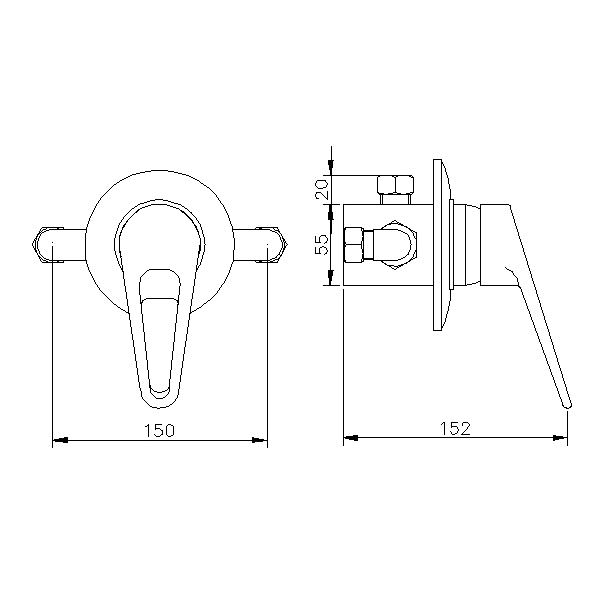

Refer to the technical drawing for more technical specifications

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Shape
: Round
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Inlet Centres
: 150
⤷ Overall Height
: 117
⤷ Inlet Connections
: 1/2" BSP
⤷ Minimum Operating Pressure (Bar)
: 0.2

⤷ Flow Rates (l/min)
: 0.1 bar - 5 | 0.5 bar - 10 | 1.0 bar - 14 | 2.0 bar - 20 | 3.0 bar - 26
⤷ Handle Style
: Lever
⤷ Depth
: 155
⤷ Temperature Control
: Manual
⤷ Anti-Scald
: Yes
⤷ Number of Handles
: 1
⤷ Plumbing Option
: Concealed or Exposed
⤷ Overall Width
: 150
⤷ Cartridge Included
: Yes
⤷ Cartridge Type
: Single Lever

Additional Info & Downloads

Download the Customer Data Sheet Pdf File Download the Installation Instructions Pdf File

Nuie Ocean Manual Concealed Or Exposed Shower Valve

£68.86

RRP: ~~£197.00~~

IN-STOCK

Delivery in 2 Working Days Approx.

QS Supplies

1 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

Reviews & Ratings

By: Ian From : Ramsey Overall Rating: Date: January 10, 2017 polished performer

From the moment it arrived in could tell this was a quality product. It was well boxed and wrapped and opening the package found the valve to be if God weight, great construction, very nice chrome finish and smooth operation . Fitting was easy even for a DIY enthusiast like me. Works well. Very pleased.

Helpful?

1 of 1 People have found this Review useful

Quality:

Style

Value for Money

Questions & Answers

Submit Your Questions 2 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Sarah Asked :
In your opinion, should this work ok with a 10.5 testing instantaneous water heater which is supplied by the cold mains for a satisfying shower. I was going to put the premier low flow fixed shower head with it.

Answered By QS Team

The A3200 is a manual shower and will work off an equal amount of hot and cold water.

Was this answer helpful?

Graham Asked :
Hello, Can you please tell me if I am able to use these controls on the Triton Polona manual mixer shower. Do you have others that i can choose from in your range. Thanks

Answered By QS Team

This valve has a cartridge of SPR07 and this has a large white square spindle and this fits into handle (as below). I would say another shower handle would not fit. https://assets-large.qssupplies.co.uk/L-2017-8-30--13-26-41-173.jpg

Was this answer helpful?
