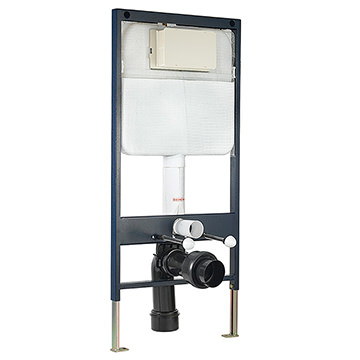

Duravit Durasystem 500 x 840mm Pre-Installation Toilet Frame

£329.99

RRP: £506.40

STOCK AVAILABLITY:

In-Stock In Stock

Not Yet Rated No Rating

Shipping: FREE* Check Postcodes

Delivery in 4 Working Days Approx.
Key Features
  • Self-supporting for drywall construction
  • Concealed cistern CE tested by EN14055
  • Dual flush technology
  • Adjustable flush volume
SKU Code: QS-V96336

MFC Code: WD1016000080

DuraSystem WD1016000080 Details

Ensure that the toilet you install in your bathroom can be supported no matter its shape or size with the Duravit Durasystem 500 x 840mm Pre-Installation Toilet Frame. The frame is built to last out of high-quality metal that features all of the parts needed to set up the WC without additional work. The product measures a total size of 500 millimetres in width by 840 millimetres in height and can support itself behind any drywall. However, it is also suitable for any panelling with plasterboard. The frame is designed for use with WC ceramics with a projection of 620 millimetres.

  • The manufacturing code of this product is WD1016000080
  • Size in [mm]: 500mm x 840mm [Width x Height]
  • Size in [cm]: 50cm x 84cm [Width x Height]
  • Installation instructions are provided in the technical tab
  • Refer to the technical diagram for more technical detail
  • Pre-installed toilet frame for wall-mounted toilet:
  • Suitable for panelling with plasterboards
  • Galvanised frame
  • For WC ceramics with a projection of <= 625mm [62.5cm]
  • Adjustable feet 0–240mm [0-24cm]
  • SensoWash ready
  • Mechanical top or front actuation
  • Tool-free assembly of the transparent service opening plate
  • Requirements of the leading standards of noise protection DIN 4109 and VDI 4100 can be achieved [in combination with noise reduction set # WD6008000000]
  • Cistern:
  • Maximum flush volume 9L
  • Marking of filling height
  • Insulated against condensation
  • Flushing throttle for adjustment of the flow rate
  • Scope Of Delivery:
  • PE-wall-mounted toilet connection bend DN90/90
  • PE-wall-mounted toilet connection set DN90
  • Wall-mounted toilet fastening set M12
  • Mounting accessories for lightweight construction
  • Mounting accessories for a single installation
  • PE wall-mounted toilet reduction DN 90/110 for outlet bend
  • Two cover caps
  • Optional Products:
  • Actuator plate A1
  • Hygienic flush for battery operation
  • Wall-mounted toilet connection set, elongated, 365mm
  • Noise reduction set for a single installation
  • Extension set 240mm [24cm]
  • Connecting set

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Colour
  • : Chrome
  • ⤷ Country of Origin
  • : Germany
  • ⤷ Warranty/Guarantee
  • : 5 Years
  • ⤷ Cistern Included
  • : Yes
  • ⤷ Flush Type
  • : Dual Flush
  • ⤷ Full Flush Volume in litres
  • : 9
  • ⤷ Width
  • : 500
  • ⤷ Height
  • : 840
  • ⤷ Flush Plate Included
  • : Sold Separately

Add-Ons

Actuator Plate
Actuator Plate

The A1 actuator plates for toilets in plastic white or plastic chrome high-gloss can be mounted either? Flush except wet installation or on the surface for flush mounting, a special mounting frame is required. For all other models.

Wall-Mounted Toilet Connection Set
Wall-Mounted Toilet Connection Set

Extended connection set, Scope of delivery, flush pipe with sleeve, straight connector with sleeve, wall-mounted toilet fastening set M12, two cover caps for wall-mounted toilets. Image is shown for illustration purpose only.

Noise Reduction Set
Noise Reduction Set

Duravit produces a Self-adhesive Noise reduction set for structure-borne sound isolation between installation frame and building. Please Note: The image shown is for illustration purpose only.

Extension Set
Extension Set

Duravit Extension Set for use with Urinals. This extension set is for extended height adjustment up to max. 480mm. Please Note: The image shown is for illustration purpose only.

Hygienic Flush
Hygienic Flush

Hygienic flush for mains and battery operated select as per your choice option given below. Please Note: The images shown are for illustration purpose only.

Connecting Set
Connecting Set

The Connecting set in combination with the SensoWash shower toilet seat, for in-wall carriers, with conduit pipe for connection inside the tank. Please Note: The image shown is for illustration purposes only.

£329.99
RRP: £506.40
IN-STOCK In Stock Delivery in 4 Working Days Approx.
QS Supplies

4 Features Included In This Product Explained

Dual-Flush

Dual-Flush

A toilet with a flushing mechanism with two different buttons for flushing solid and liquid waste, thereby saving water.

DIN 4109:1989 and VDI 4100 Standard

DIN 4109:1989 and VDI 4100 Standard

The standards specify requirements for sound insulation to protect inhabitants in buildings from extremely loud noise levels that can come with the transmission of sound. The method on how to check if the degree of sound insulation needed has been complied with is also specified.

Flushing Throttle

Flushing Throttle

A flushing throttle in a WC (water closet or toilet) is a component that controls the flow rate of flushing water during the toilet's flushing process. It prevents splashing over rimless WC ceramics by reducing excess turbulence.

Drywall

Drywall

Drywall, or wallboard, also called plasterboard or gypsum board, is a common building material used in interiors for constructing walls and ceilings. Drywall is gypsum plaster in the middle with layers of paper or fiberglass mats on either side. Drywalls do not need mortar or plaster. The gypsum core is rigid, and the other surface is smooth.

Reviews & Ratings

Rate this Item.:

Questions & Answers

Submit Your Questions 3 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Tim Asked :

Can you connect this frame to a horizontal cast pipe?

Answered By QS Team Answered by the QS Technical Team

The design of the WD1016000080 is a horizontal push-fit connection.

Was this answer helpful?
Lynn Asked :

Does this frame come with a flush plate? If so, what colour is standard, and are there colour options?

Answered By QS Team Answered by the QS Technical Team

The frame does not come with a flush plate. It needs to be purchased separately.

Was this answer helpful?
JO Asked :

What depth is this model?

Answered By QS Team Answered by the QS Technical Team

The depth of this toilet frame is 155mm.

Was this answer helpful?
