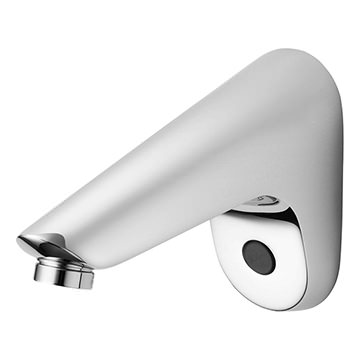

Delabie Binoptic Chrome Mix Electronic Basin Mixer Tap

Delabie Binoptic 379MCH Details

The Delabie Binoptic Mix Electronic Basin Mixer Tap is designed for placement within a cross wall installation with a wall-less than 110mm in depth; this product offers total hygiene by requiring absolutely no touch to operate it for use. WRAS and CE approved, this unit is suitable for use by anyone with reduced mobility. Boasting an active, infrared presence detector that includes a sensor on the end of the spout itself, this product also features a side temperature control with a standard lever as well as an adjustable maximum temperature limiter. Available for purchase in 2 different variations to choose from to fit each particular bathroom set-up.

Available in 2 variants
Cross wall installation = 110mm (11cm)
Total hygiene: no manual contact
Independent IP65 electronic control unit
230/12V mains supply with transformer
Flow rate pre-set at three lpm at 3 bar, can be adjusted from 1.5 to 6 lpm
Scale-resistant flow straightener
Chrome-plated brass body
Cable for sensor, flexible and mounting all pass through the same hole
Spout with a smooth interior and low volume of water (reduces bacterial niches)
Side temperature control with standard lever and adjustable maximum temperature limiter
Suitable for people with reduced mobility
Spout reach: 230mm (23cm)
Refer to the technical diagram for more technical detail
Specification For M3/8 Inch:
Filters and solenoid valves M3/8 Inch
Adjustable duty flush (pre-set flush - 60 seconds every 24 hours after last use)
Specification For Ø15mm (Ø1.5cm) Conical Inlets:
Filters, solenoid valves, and Ø15mm (Ø1.5cm) conical inlets
Duty flush (-60 seconds every 24h after last use)

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Motion Sensor
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Installation Type
: Wall Mounted

⤷ Spout Reach
: 230
⤷ Water Saving
: Yes
⤷ Power Source
: Mains Supply
⤷ Barcode
: 5057199942173
⤷ Product Type
: Sensor Basin Tap

Additional Info & Downloads

Download the Installation Instruction Pdf File

Delabie Binoptic Mix Chrome Electronic Basin Mixer Tap

£475.12

RRP: ~~£655.27~~

STOCK AVAILABLITY: 6 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

CE Certified Product

CE mark meets the prescribed safety, health and environmental protection requirements and all appropriate EU requirements. This mark is mandatory for products designed, made and sold in the European Economic Area.

Mains-Operated

Mains-operated devices work on electricity by plugging into electrical wall sockets. These require higher electrical energy and can't be operated using batteries as small batteries can't power the device. Large, non-portable electrical appliances are typically mains operated.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Flow Straightener

A flow straightener, also called Honeycomb, is a fitting which directs the flow of water from the outlet in a way as to straighten the stream. They are generally not flow-regulated and differ in design from the pressure-compensating aerator.
