Hudson Reed Revive 600mm High Horizontal Single Panel Radiator

Hudson Reed Revive HL337 Details

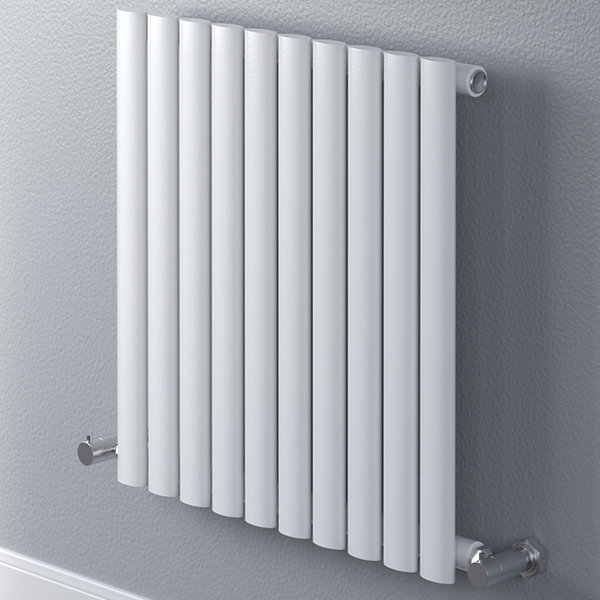

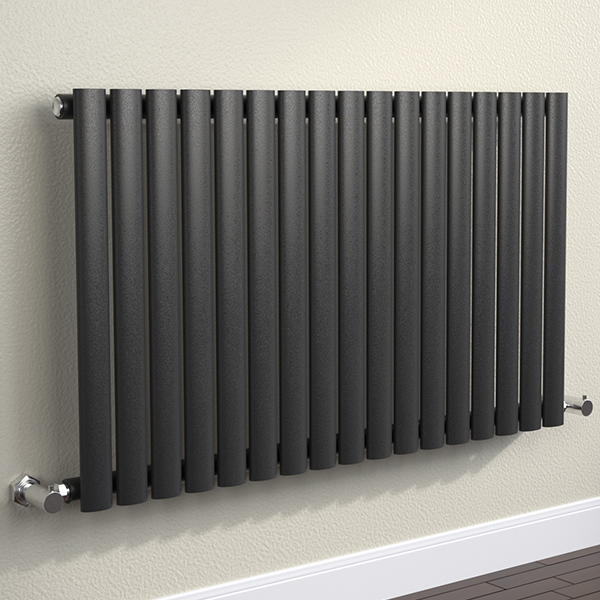

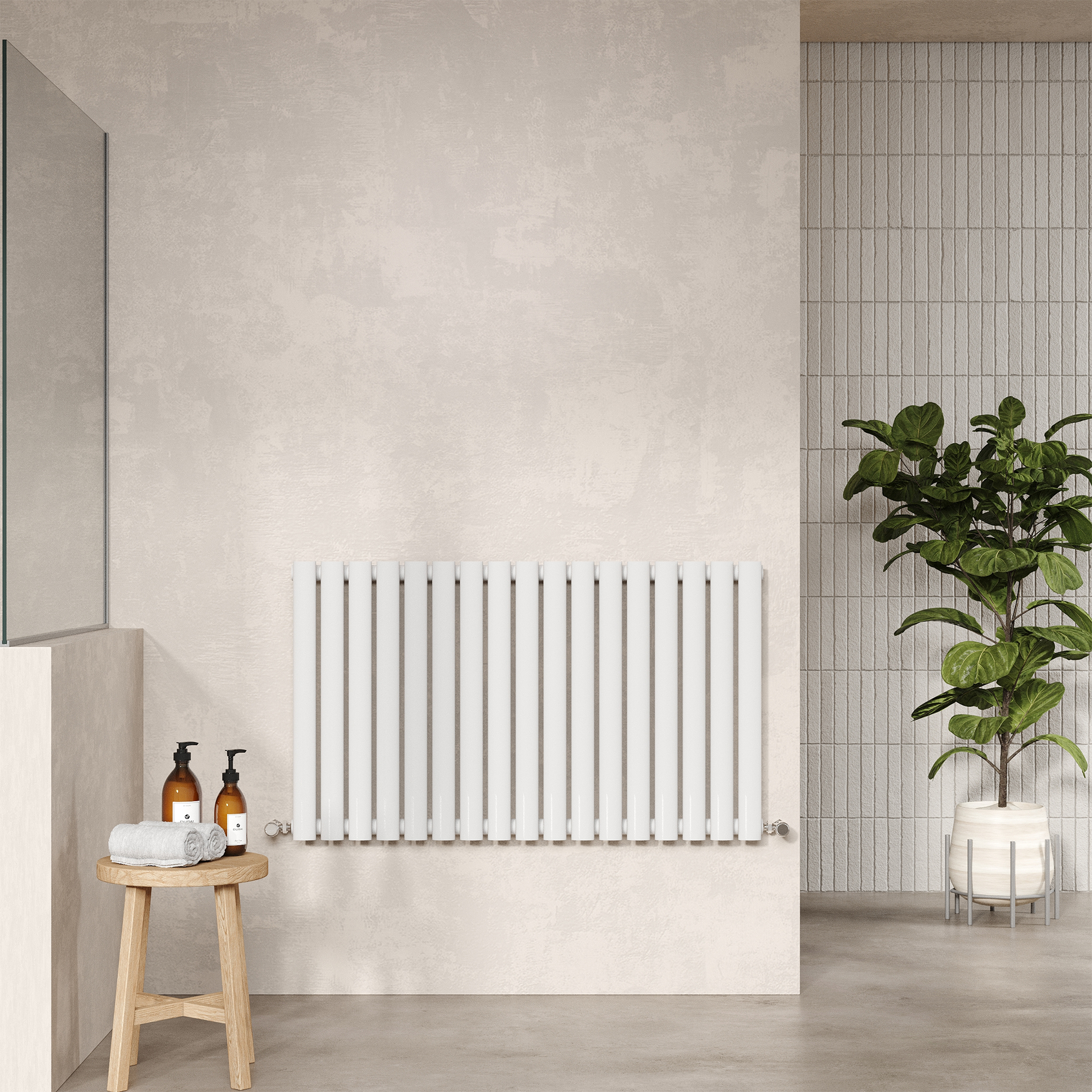

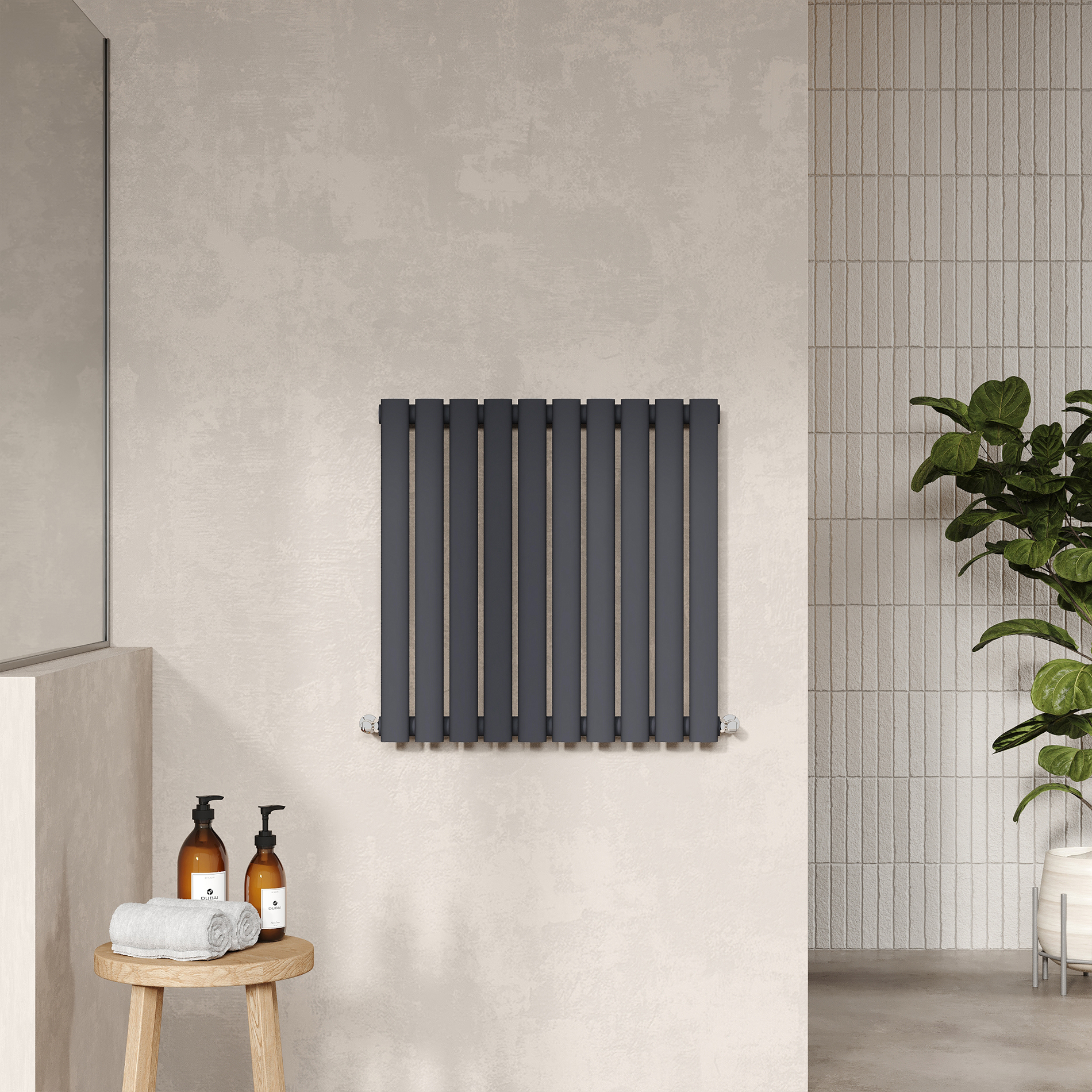

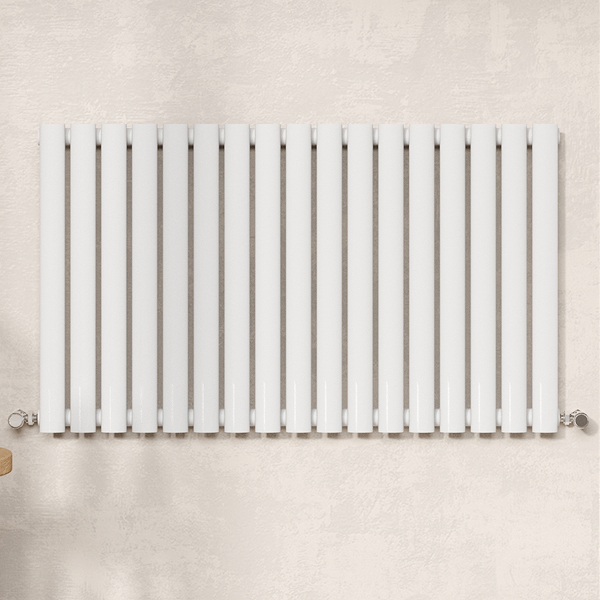

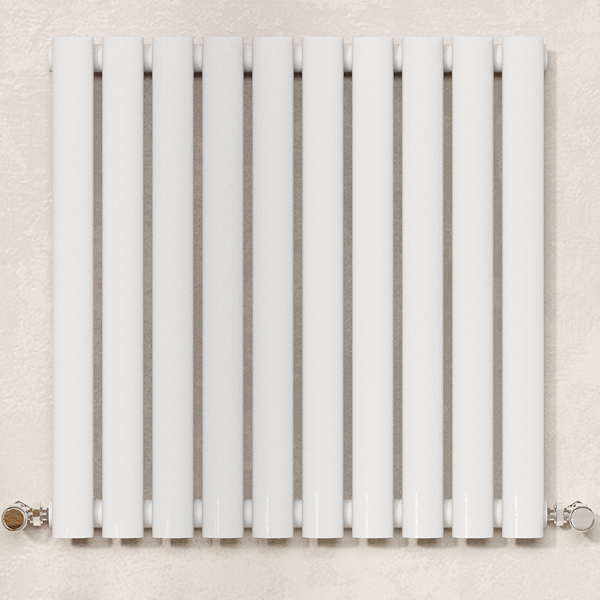

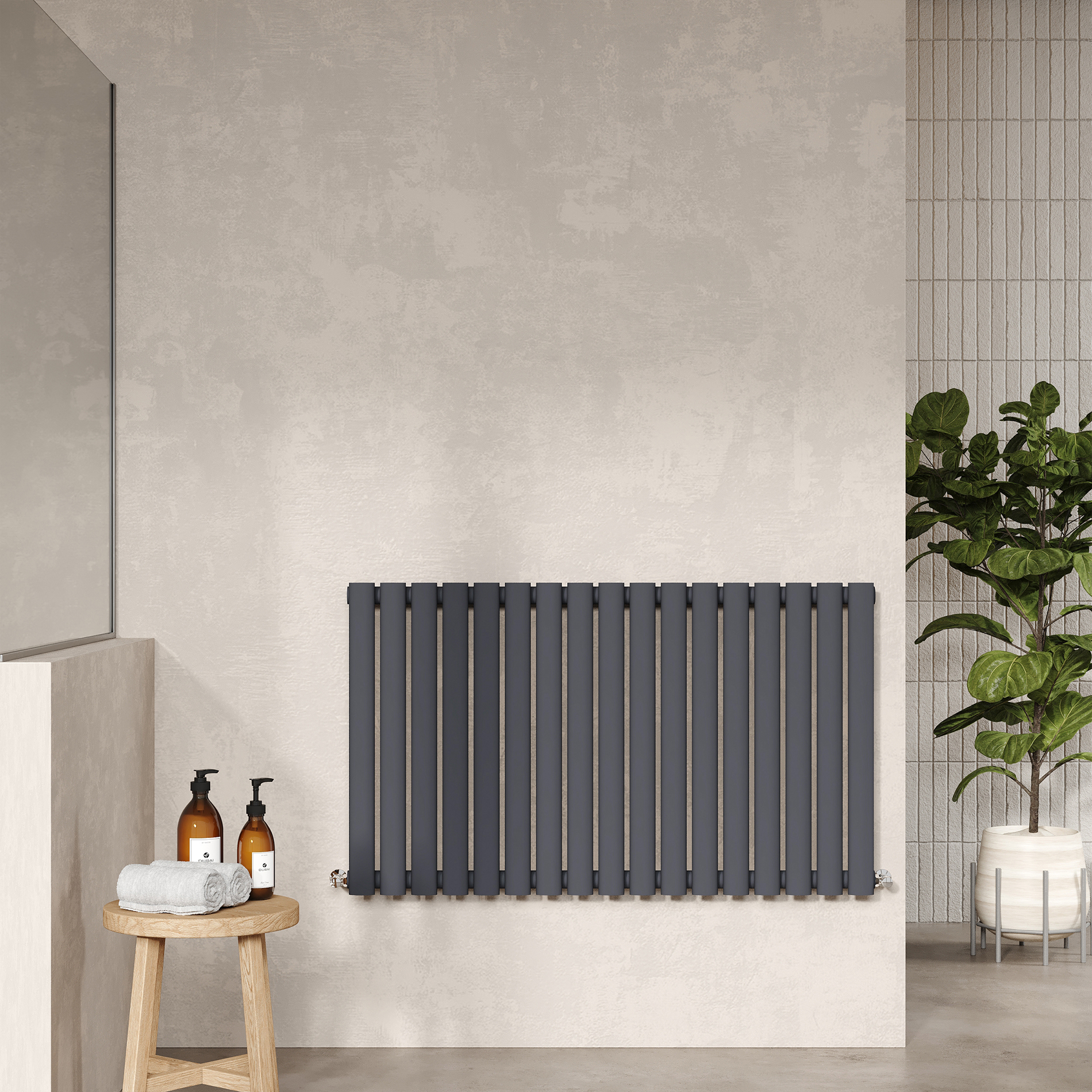

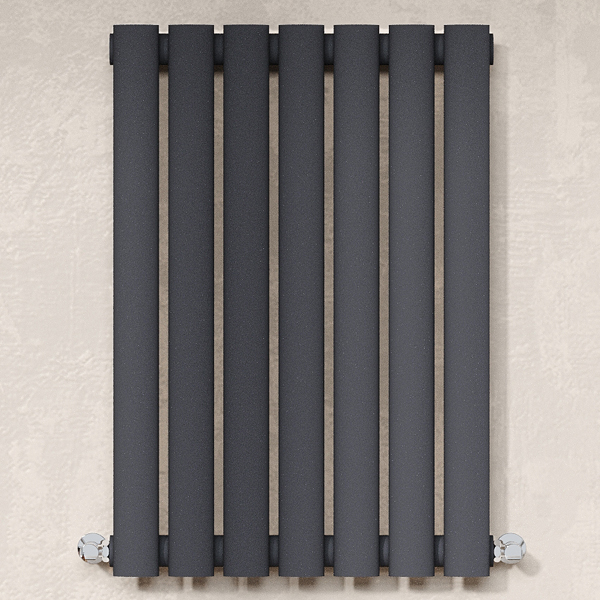

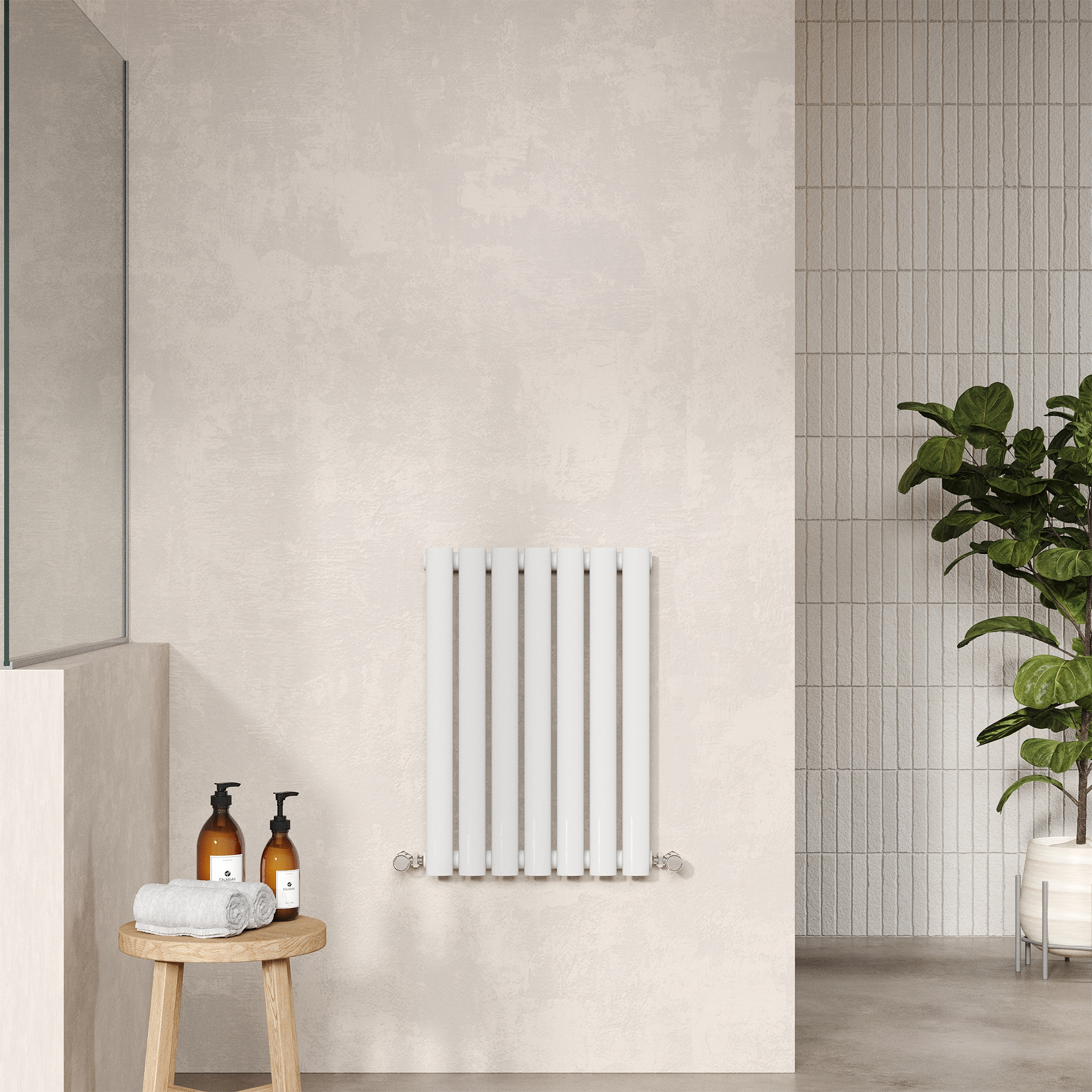

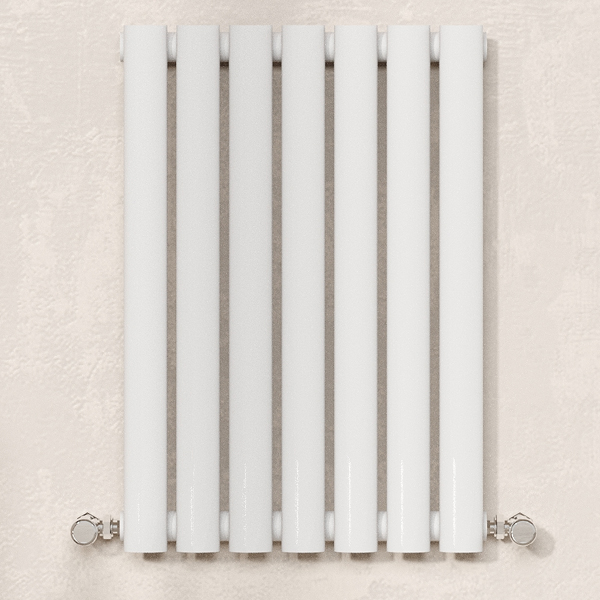

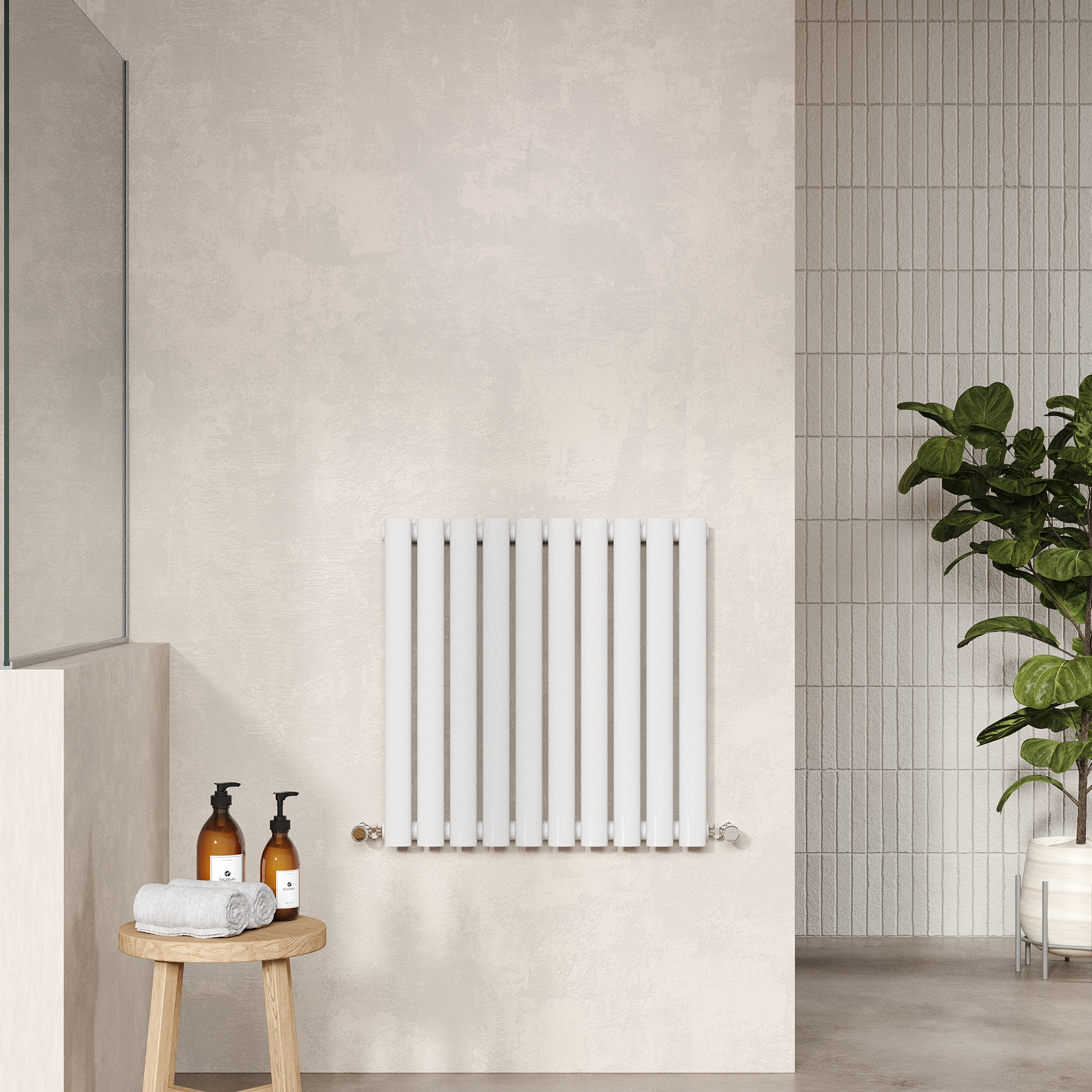

Hudson Reed introduces the best in class Revive Horizontal Single Panel Radiator to keep you warm during the chilly weather. The well-designed horizontal steel radiator comes in shining white and anthracite finish to give it a clean look. It can be comfortably placed on any load-bearing wall, which gives a decorative look to your house. It comes in a range of widths and height of 600mm to suit your requirement. Radiator Valves shown in the image are not included.

Key Features

✔All tappings are 1/2" British standard pipe
✔Material: Steel
✔Supplied with fixing screws and brackets
✔Five years guarantee from Hudson Reed against manufacturing defects

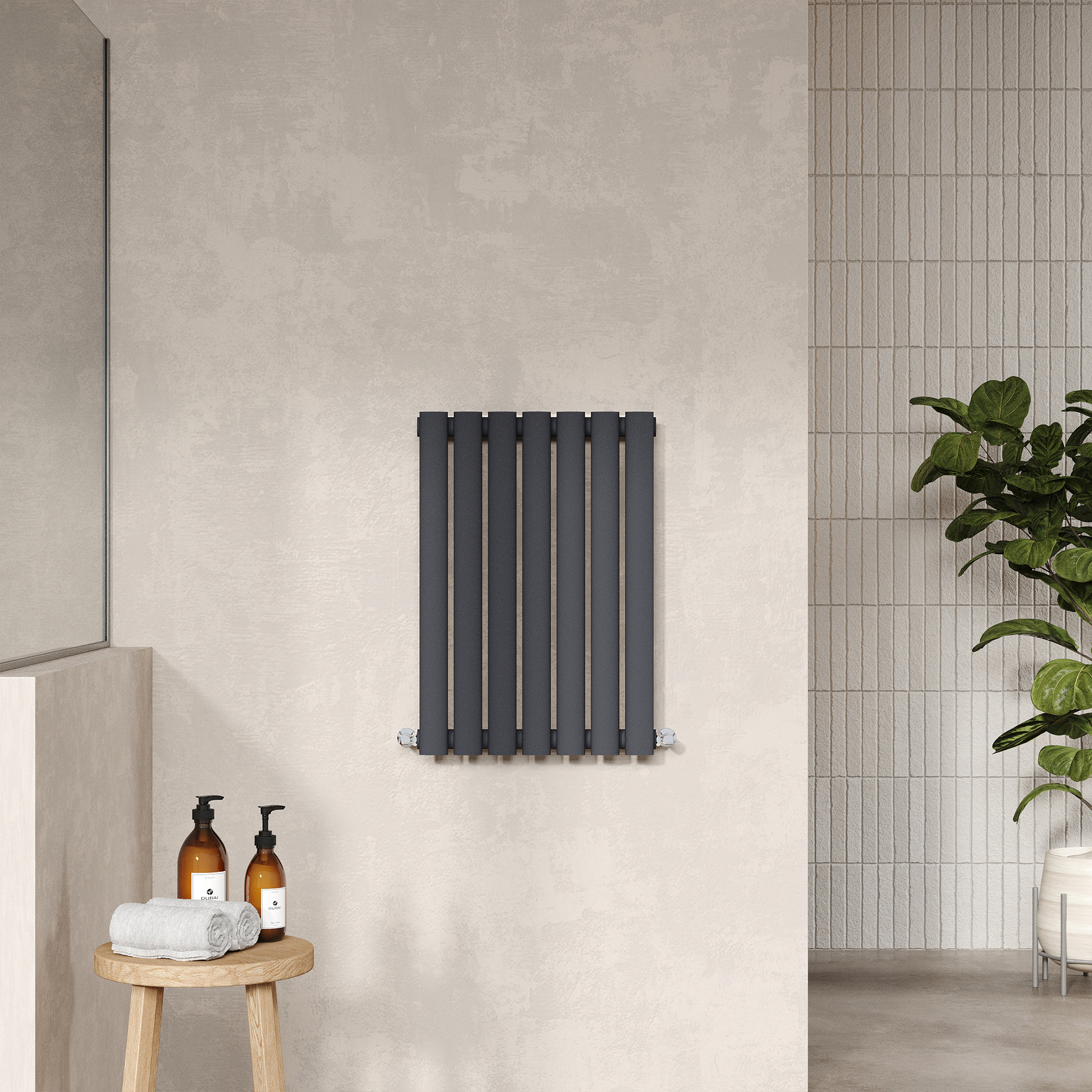

✔Choice of finishes available - High Gloss White - RAL Number: 9016 and Anthracite - RAL Number: 7016 [Optional]

Available in different widths: 412mm, 586mm and 992mm - [Optional]
Size [mm]: 55mm x 600mm [Depth x Height]
Size [cm]: 5.5cm x 60cm [Depth x Height]
Suitable for wall-mounted installation
Wall to the centre of tappings: 51
Type of heat: water
No. of heat setting: 1
Projection from wall: 110mm (11cm)
When refilling the system, a suitable inhibitor is recommended after installing any new radiators
Suitable valve available in Compatible Valves tab below - [Optional]
Robe hook for rail - [Optional]
For more details, refer to the Production Variation Info and MFC Code tab below
Download the Customer Data Sheet and Installation Instruction PDF File from the Additional Info Section
Refer to the technical drawing for more details
Valves shown in the image are not included - sold separately

Note: It is recommends that the pipework should not be done until the heated towel rail is receipt. After installing any new radiators, when refilling the system, it is recommended that a suitable inhibitor is used. Dimensions are subject to minor deviations.

Radiator Calculator

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Revive
⤷ Colour
: High Gloss White
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Steel
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Width
: 412
⤷ Projection (Depth)
: 55
⤷ Height
: 600

⤷ Orientation
: Horizontal
⤷ Barcode
: 5056211885078
⤷ BTU Output
: 30°C - 534 | 50°C - 1034 | 60°C - 1309
⤷ Watts
: 30°C - 157| 50°C - 303 | 60°C - 384
⤷ No. Of Bars
: 7
⤷ Valves Included
: Sold Separately
⤷ Fuel Type
: Central Heating
⤷ Wall to Centre of Inlet
: 51
⤷ Panel Configuration
: Single

Additional Info & Downloads

Download the Technical Data Sheet Pdf File Download the Installation Instructions Pdf File

Technical Images

Hudson Reed Revive 600mm High Horizontal Single Panel Radiator

Add-Ons

Radiator Accessories

Hudson Reed provides strong and durable accessories for its radiator. Please Note Image shown is for illustration purpose only.

OP-101782 - Magnetic Robe Hook + £27.19
OP-101783 - Radiator Hook + £17.77
OP-101785 - Robe Hook for Radiator + £12.13
OP-101784 - Magnetic Towel Rail + £63.34
OP-101786 - Towel Rail for Radiator + £43.38

£66.96

RRP: ~~£175.00~~

IN-STOCK

Delivery in 2 Working Days Approx.

QS Supplies

Product Variations Info & MFC Code

Radiator Sizes	412mm Wide	586mm Wide	992mm Wide
High Gloss White Finish - RAL Number: 9016	HL337	HL338	HL339

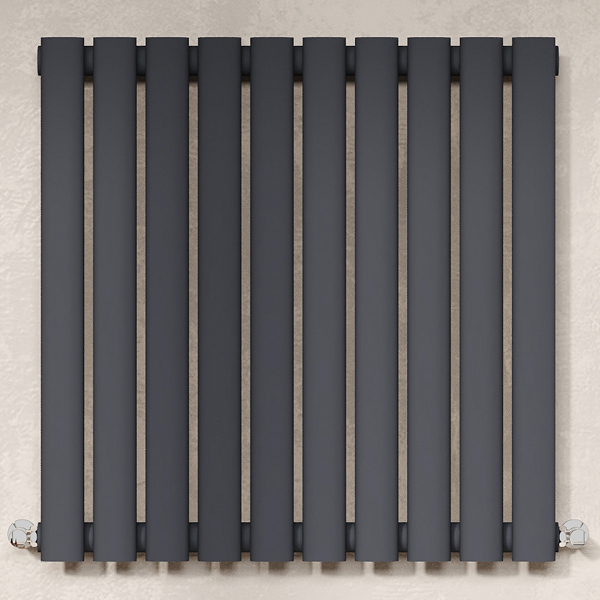

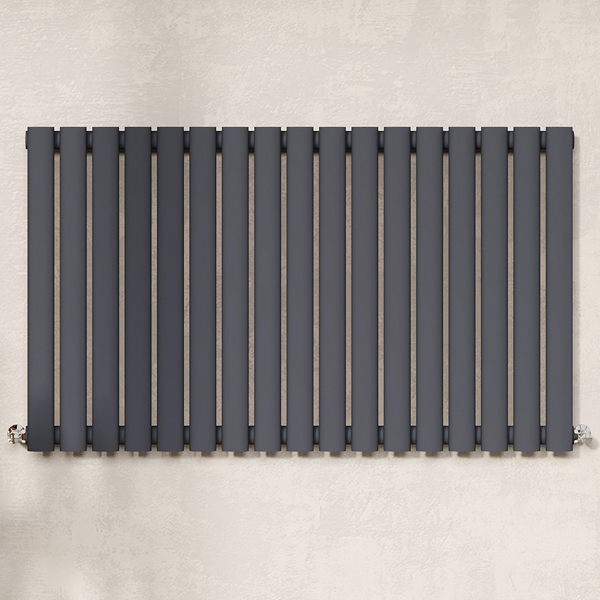

Anthracite Finish - RAL Number: 7016	HLA37	HLA38	HLA39
Number Of Sections / Panels	7	10	17
BTU @ 30 Deg. C	534	764	1298
Thermal Output @ 30 Deg. C - Watts	157	224	380
BTU @ 50 Deg. C	1034	1477	2511
Thermal Output @ 50 Deg. C - Watts	303	433	736
BTU @ 60 Deg. C	1309	1871	3180
Thermal Output @ 60 Deg. C - Watts	384	548	932

1 Features Included In This Product Explained

RAL Colours

It refers to a European colour-matching system which defines colours for coatings, paints, and plastics. The colour standard is administrated by the RAL Deutsches Institut für Gütesicherung und Kennzeichnung.
