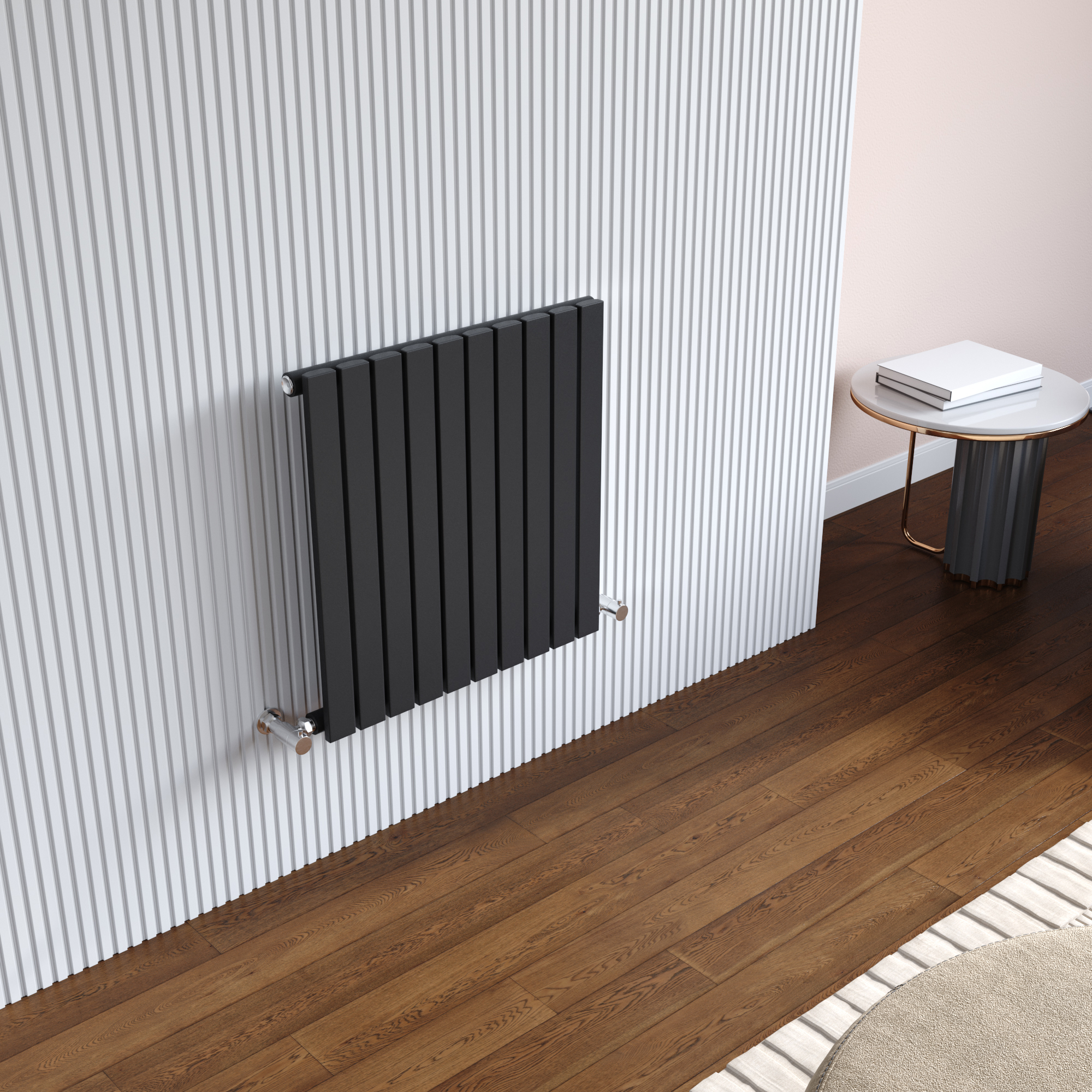

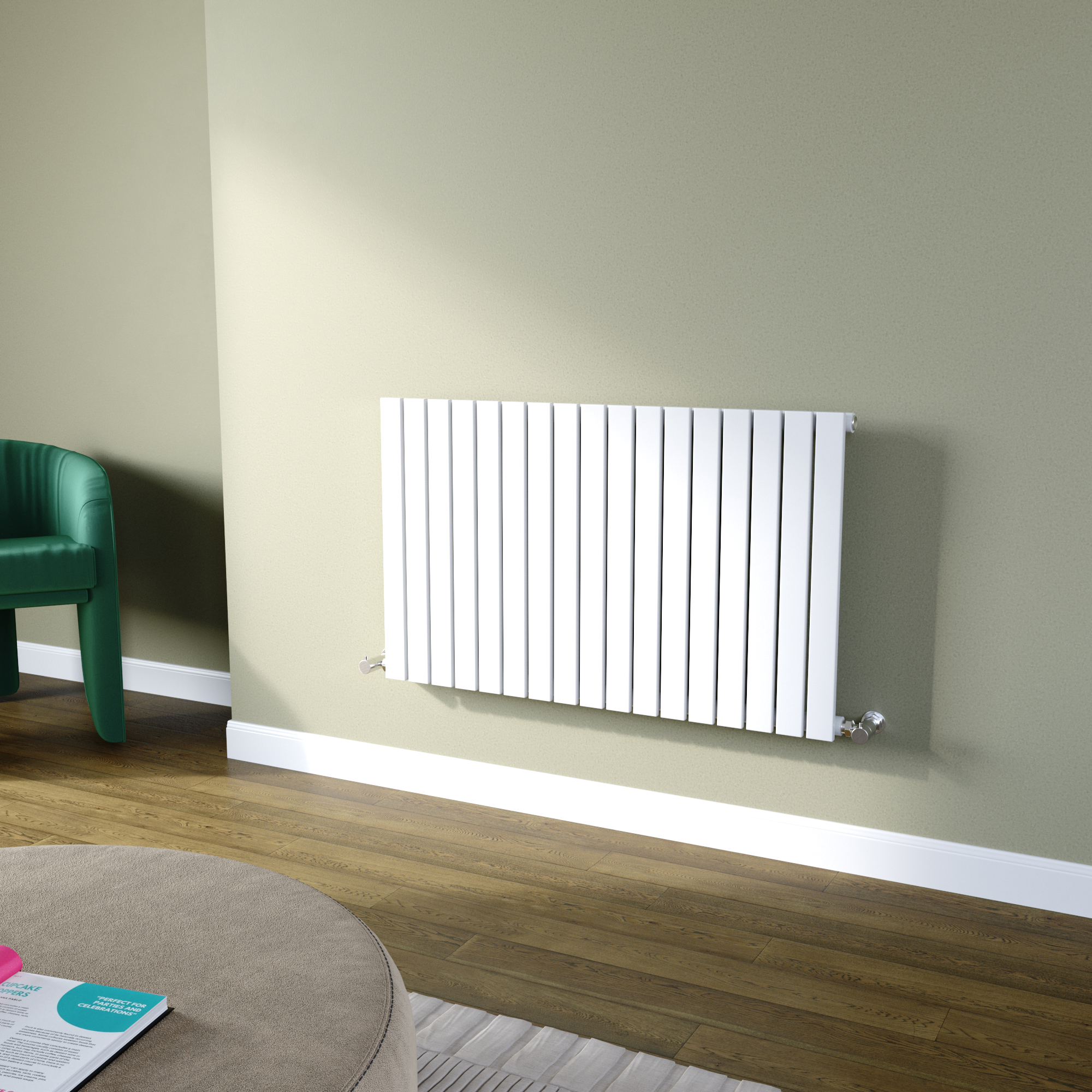

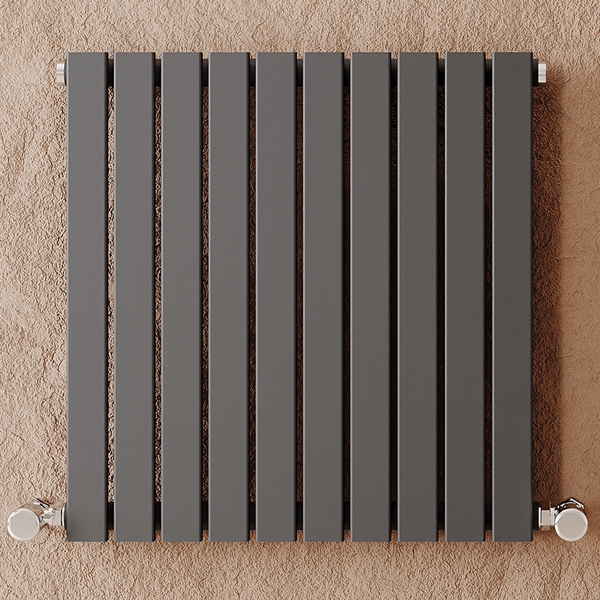

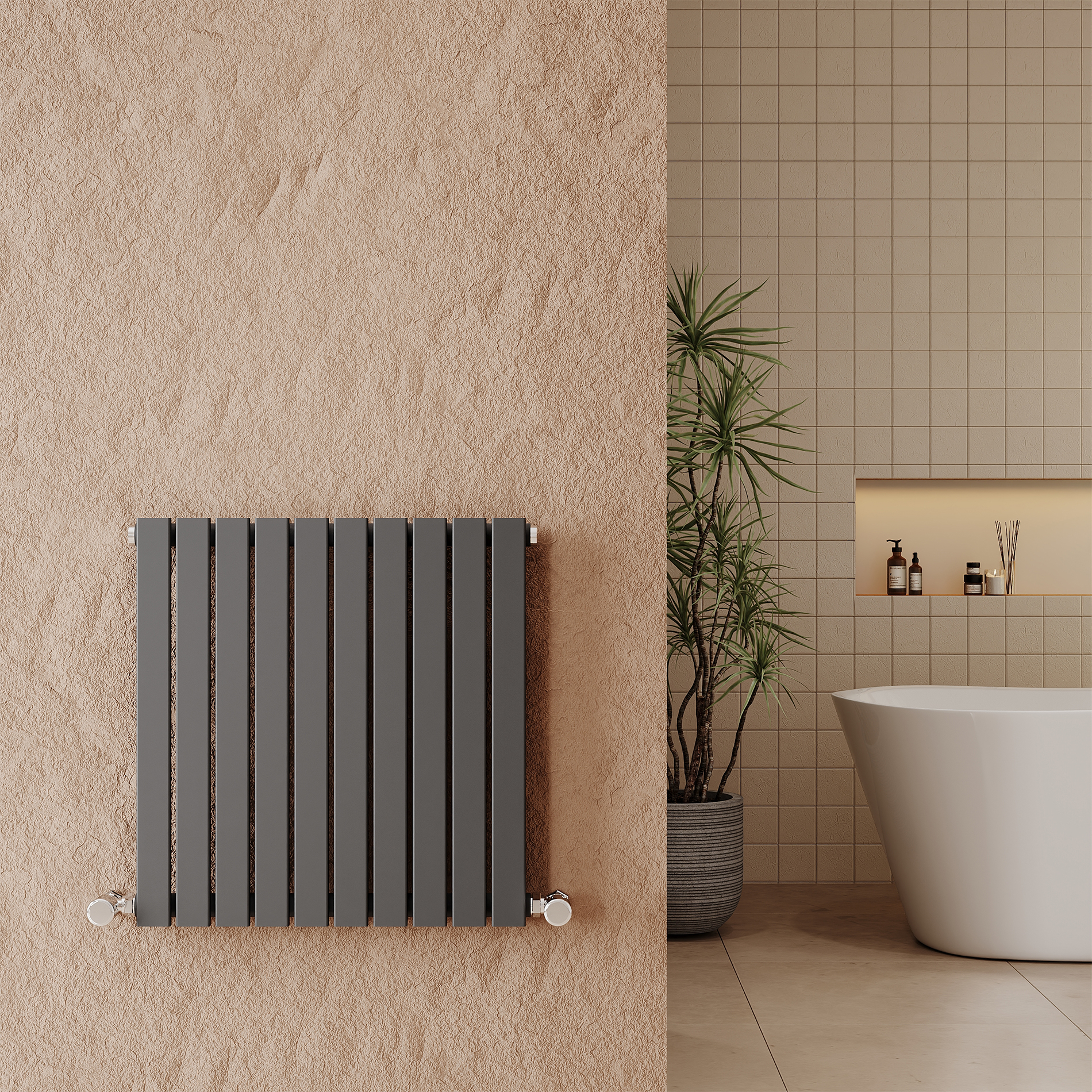

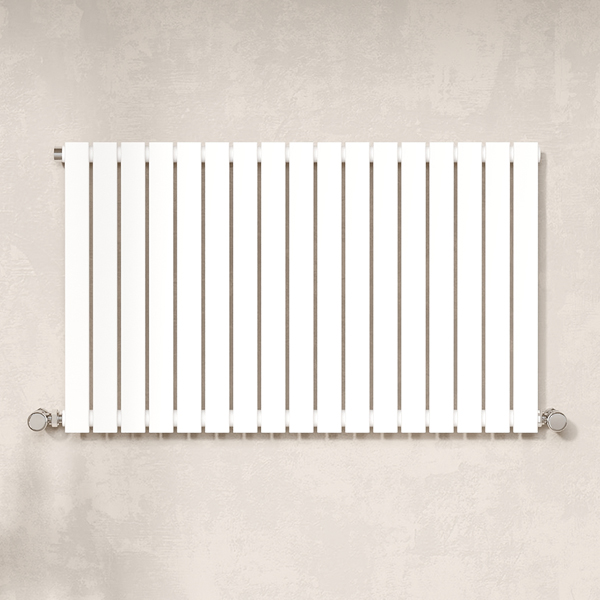

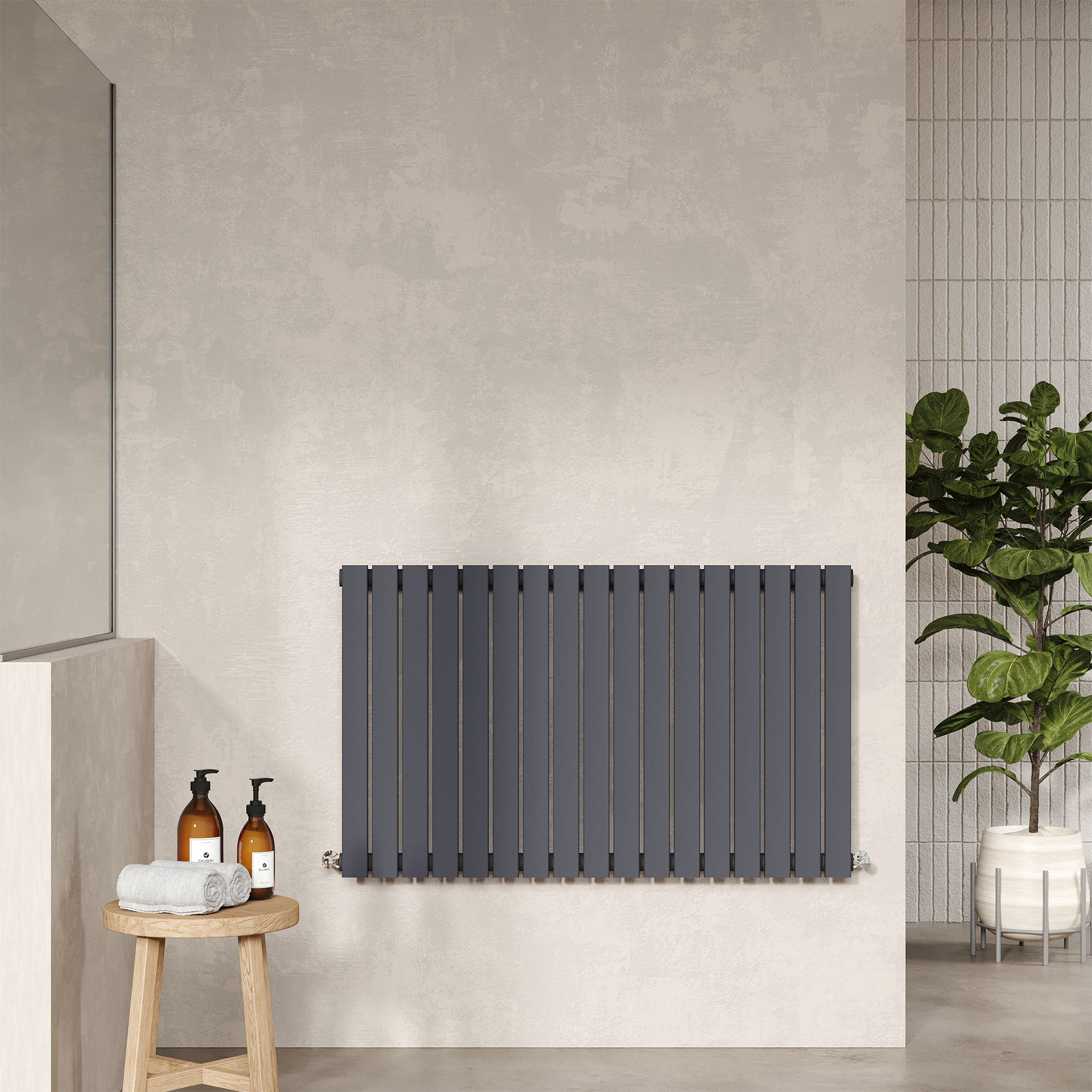

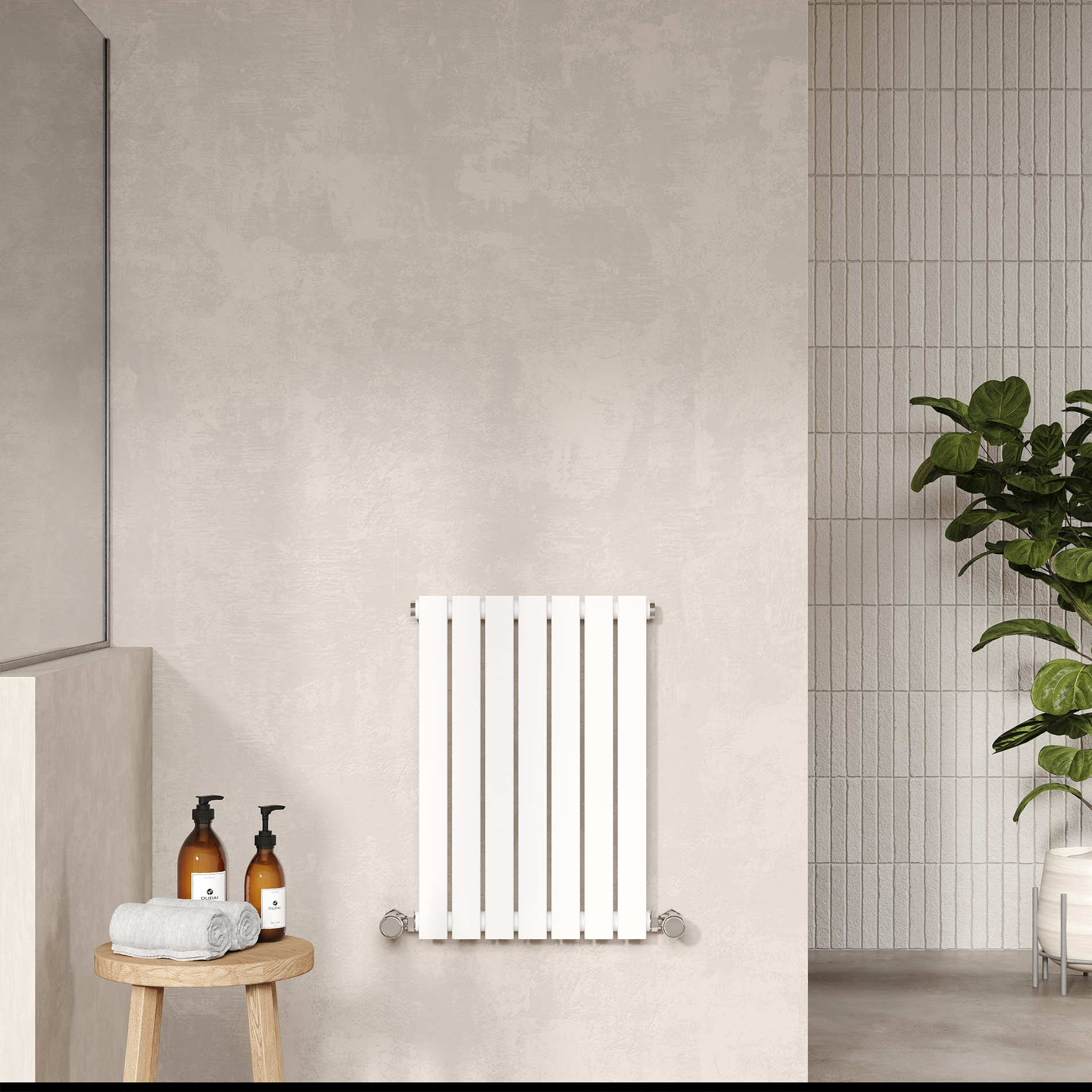

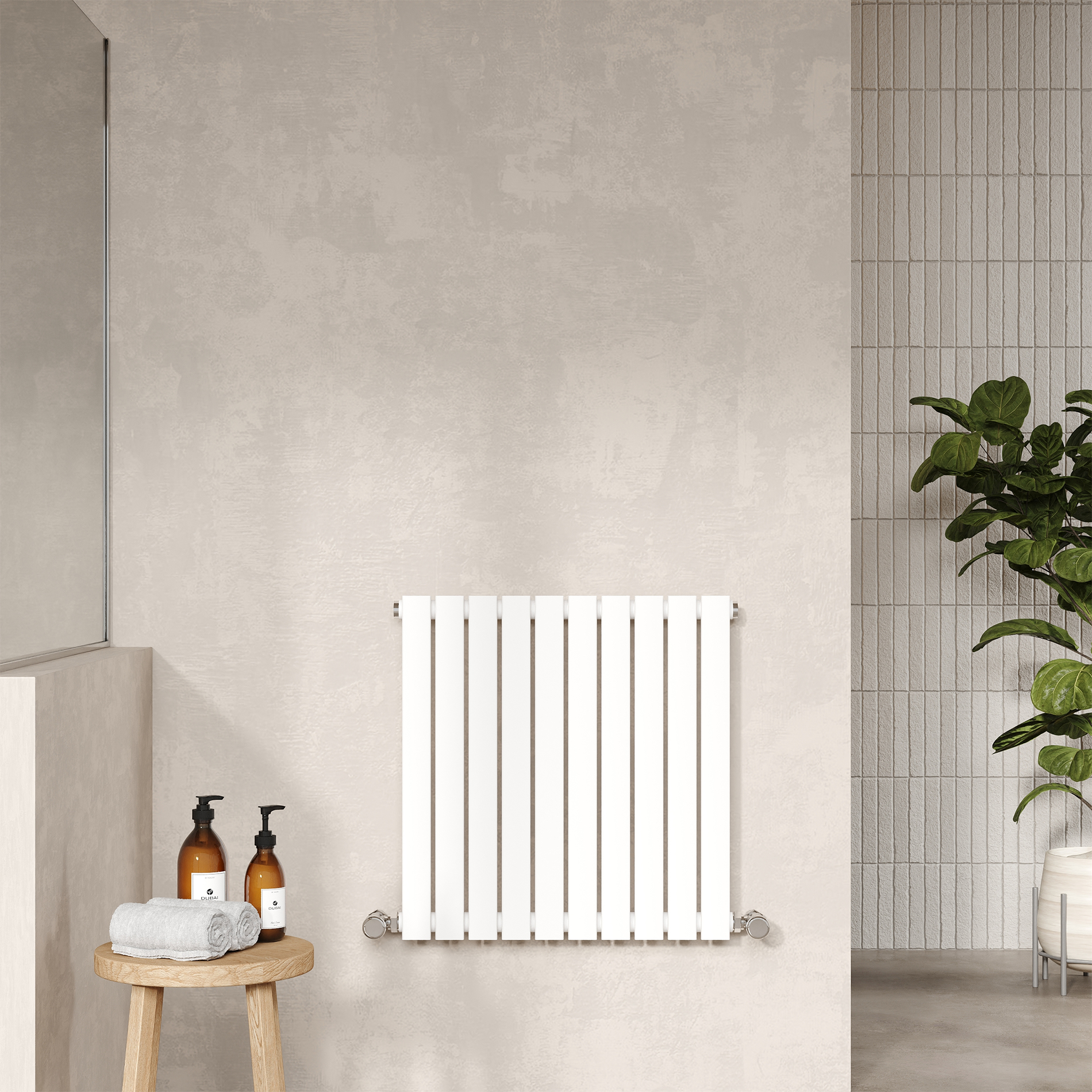

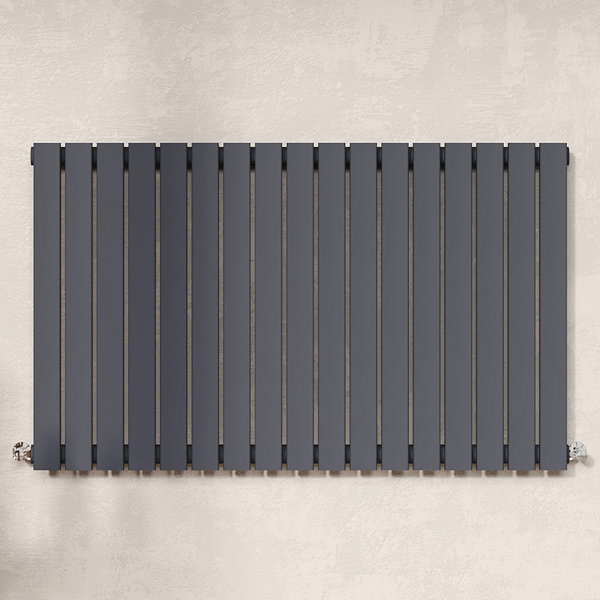

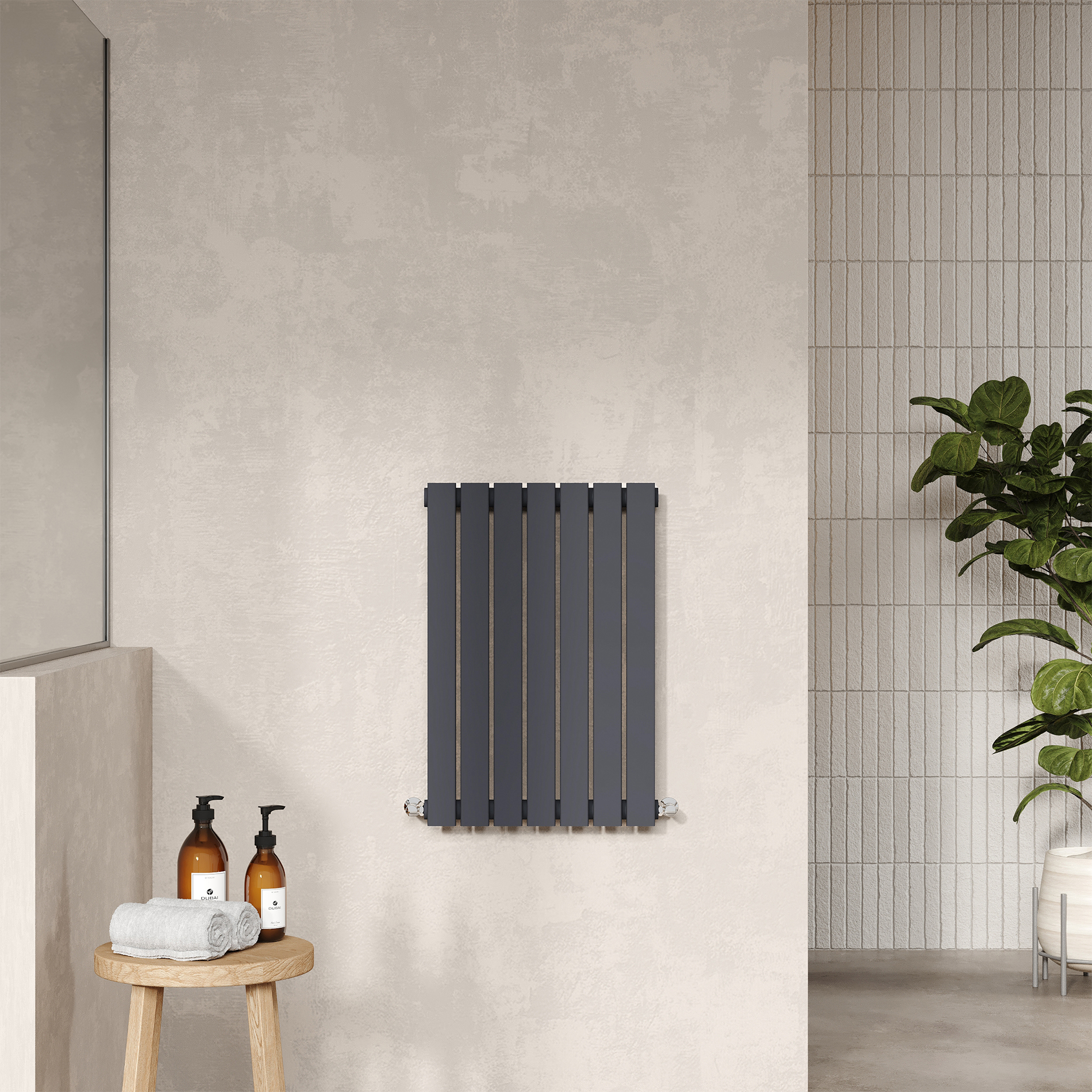

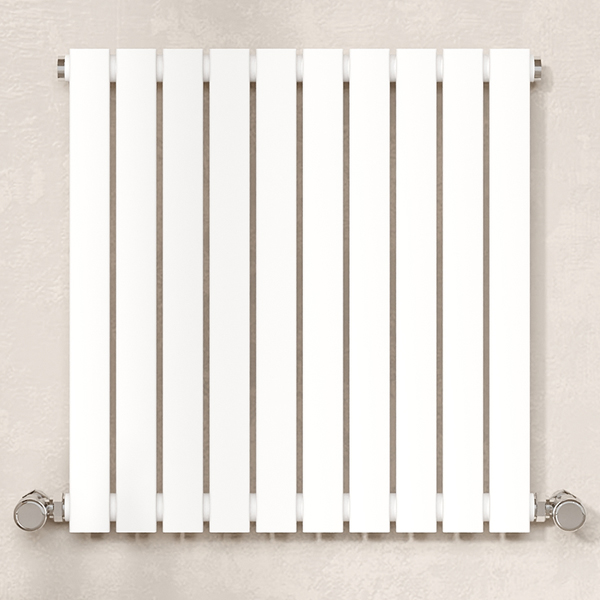

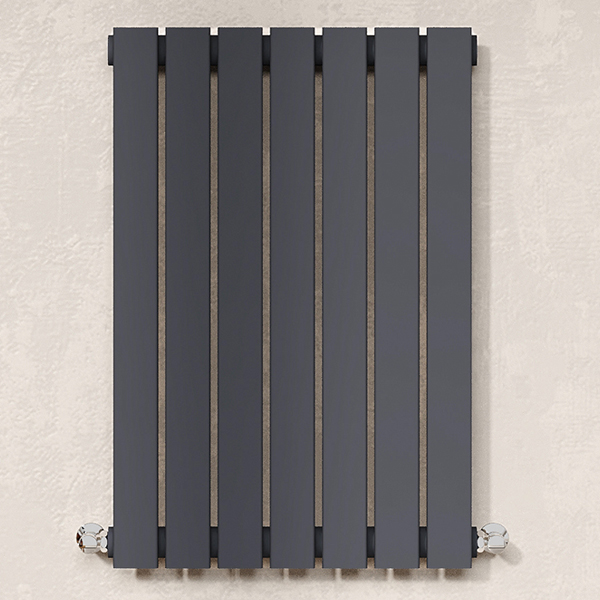

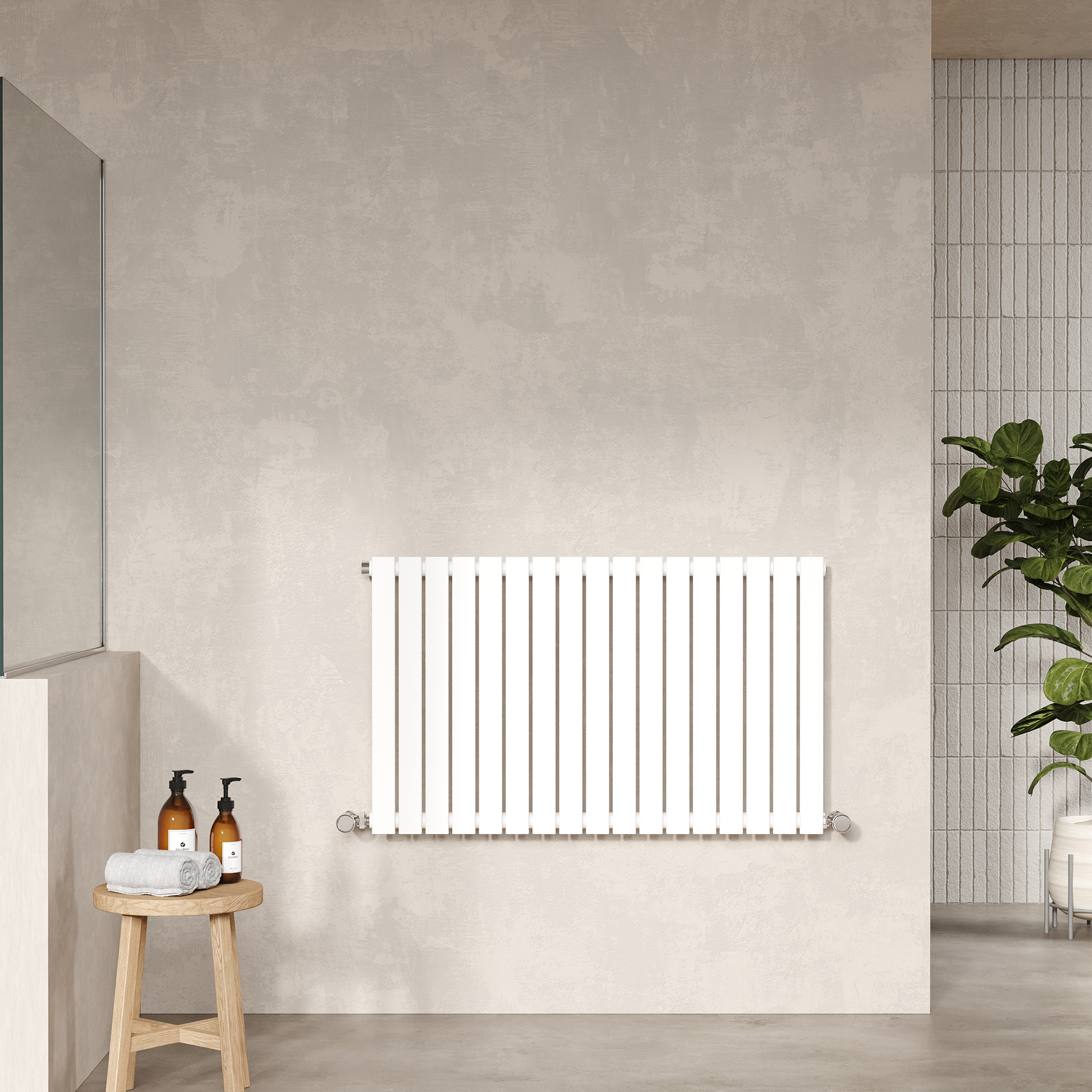

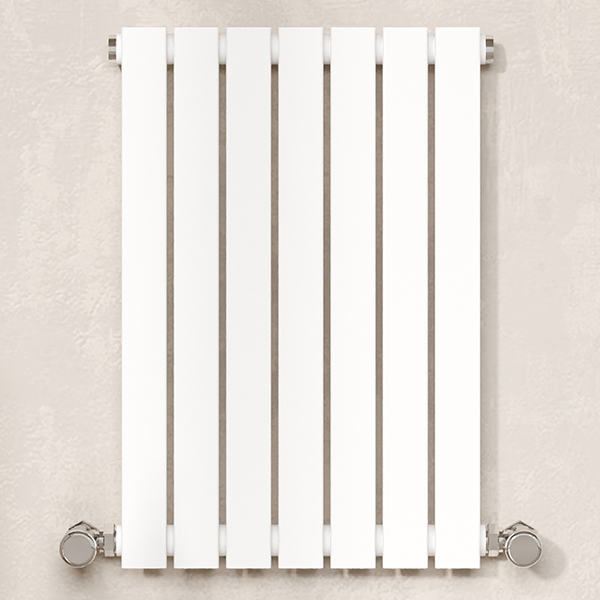

Hudson Reed Sloane 600mm High Horizontal Single Panel Radiator

Hudson Reed Sloane HLW54 Details

The endeavour behind Sloane 600mm High Horizontal Single Panel Radiator is to service small and medium-sized rooms; its particularly effective in smaller rooms with limited installation space aptly served by wall-mounted installation design supported by 51 walls to centre tappings. Composed with a depth of 53mm with 1 heat setting, this product arrives in either anthracite or high gloss white finish. Sloane is supplied with fixing screws and brackets; however, robe hook for rail and valves can be purchased separately. Steel manufactured, bearing a 5-year Hudson Reed guarantee, Sloane is available in different widths of 412mm, 586mm, and 992mm.

Key Features

✔Choice of different finishes available - Anthracite - RAL No. 7016 and High Gloss White - RAL No. 9016 [Optional]
✔Material: Steel
✔Supplied with fixing screws and brackets
✔Five years guarantee from Hudson Reed against manufacturing defects

Available in different widths: 412mm, 586mm and 992mm - [Optional]
Size [mm]: 53mm x 600mm [Depth x Height]
Size [cm]: 5.3cm x 60cm [Depth x Height]
Suitable for wall-mounted installation
Wall to the centre of tappings: 51
Type of heat: water
No. of heat setting: 1
Projection from wall: 110mm (11cm)
All tappings are 1/2inch British standard pipe
After installing any new radiators, when refilling the system, it is recommended a suitable inhibitor is used
Suitable valve available in Compatible Valves tab below [Optional]
Robe hook for rail - [Optional]
For more details, refer Production Variation Info & MFC Code tab shown below
Refer to the technical drawing for more details
Download the Installation Instruction and Customer Data Sheet PDF from the Additional Info Section
Valves shown in the image are not included - sold separately

Note: It is recommends that the pipework should not be done until the heated towel rail is receipt. After installing any new radiators, when refilling the system, it is recommended that a suitable inhibitor is used. Dimensions are subject to minor deviations.

Radiator Calculator

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Sloane
⤷ Colour
: Anthracite
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Steel
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Width
: 412
⤷ Projection (Depth)
: 53
⤷ Height
: 600

⤷ Orientation
: Horizontal
⤷ Barcode
: 5056211885320
⤷ BTU Output
: 30°C - 490 | 50°C - 952 | 60°C - 1206
⤷ Watts
: 30°C - 144| 50°C - 279 | 60°C - 354
⤷ Valves Included
: Sold Separately
⤷ Fuel Type
: Central Heating
⤷ Wall to Centre of Inlet
: 51
⤷ Panel Configuration
: Single

Additional Info & Downloads

Download the Technical Data Sheet Pdf File Download the Installation Instructions Pdf File

Technical Images

Hudson Reed Sloane 600mm High Horizontal Single Panel Radiator

Add-Ons

Radiator Accessories

Hudson Reed provides strong and durable accessories for its radiator. Please Note Image shown is for illustration purpose only.

OP-101782 - Magnetic Robe Hook + £27.19
OP-101783 - Radiator Hook + £17.77
OP-101785 - Robe Hook for Radiator + £12.13
OP-101784 - Magnetic Towel Rail + £63.34
OP-101786 - Towel Rail for Radiator + £43.38

£79.25

RRP: ~~£213.00~~

IN-STOCK

Delivery in 2 Working Days Approx.

QS Supplies

Product Variations Info & MFC Code

Radiator Sizes	412mm Wide	586mm Wide	992mm Wide
Anthracite Finish - RAL Number: 7016	HLA54	HLA55	HLA56
High Gloss White Finish - RAL Number: 9016	HLW54	HLW55	HLW56
Number Of Sections / Panels	14	10	17
BTU @ 30 Deg. C	490	701	1191
Thermal Output @ 30 Deg. C - Watts	144	205	349
BTU @ 50 Deg. C	952	1361	2313
Thermal Output @ 50 Deg. C - Watts	279	399	678
BTU @ 60 Deg. C	1206	1723	2930
Thermal Output @ 60 Deg. C - Watts	354	505	859

1 Features Included In This Product Explained

RAL Colours

It refers to a European colour-matching system which defines colours for coatings, paints, and plastics. The colour standard is administrated by the RAL Deutsches Institut für Gütesicherung und Kennzeichnung.
