Burlington Riviera White Full Back To Wall Close Coupled Pan With Cistern And Seat

Burlington Riviera RIV10 Details

Bring home the Burlington Riviera Full Back To Wall Close Coupled Pan With Cistern And Seat. The WC pan features a high-quality vitreous china composition that is remarkably strong and easy to clean. The crisp white hue allows it to work in any bathroom style without clashing. The product measures an overall size of 392.5 mm in width by 660 mm in depth by 820mm in height and sits right back against the wall, making it ideal for all kinds of bathrooms and is backed by a Lifetime guarantee from the manufacturer.

Floor-mounted installation
Overall size: 392.5mm x 820mm [Width x Height]
Projection: 660mm
Pan size: 357mm x 420mm [Width x Height]
Cistern size: 392.5mm x 400mm [Width x Height]
Elegant full back-to-wall model
Supplied with chrome cistern flush lever and seat hinges as standard
Gold or Nickel set of seat hinges and one cistern flush lever [See Option]
Refer to the technical image for more size details
Download the installation instructions PDF file from the Additional Info section
You will need either our ceramic trap or our ceramic straight pan connector, depending on your plumbing [See Option]

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Riviera
⤷ Colour
: Gloss White
⤷ Warranty/Guarantee
: Lifetime
⤷ Material
: Vitreous China
⤷ Theme
: Traditional
⤷ Installation Type
: Floor Mounted
⤷ Pan Width
: 357
⤷ Pan Height
: 420
⤷ Toilet Overall Height
: 820
⤷ Projection (Depth)
: 660
⤷ Cistern Included
: Yes
⤷ Cistern Width
: 392.5

⤷ Cistern Height
: 400
⤷ Configuration
: WC Pan With Cistern And Seat
⤷ Seat Included
: Yes
⤷ Seat Type
: Soft Close
⤷ Seat Finish
: White
⤷ Barcode
: 5057200000000
⤷ Bowl Shape
: D-Shaped
⤷ Product Type
: Close Coupled WC
⤷ Cistern Depth (projection)
: 156
⤷ Front Of Bowl To Centre Of Seat Holes
: 435
⤷ Base width
: 245
⤷ Base Depth (projection)
: 542

Additional Info & Downloads

Download the Installation Instruction Pdf File

Add-Ons

Optional Seat Hinges

The WC comes with chrome seat hinges as standard. If you prefer to change these to Gold or Nickel, please select the option below. Note: The image shown is for illustration purposes only.

No Option Selected
OP-223729 - Gold Seat Hinges + £39.67
OP-223730 - Nickel Seat Hinges + £39.67

Optional Cistern Lever

The WC comes with a chrome cistern flush lever as standard. If you prefer to change these to Gold or Nickel, please select the option below. Note: The image shown is for illustration purposes only.

No Option Selected
OP-223731 - Gold Cistern Flush Lever + £29.48
OP-223732 - Nickel Cistern Flush Lever + £29.48

Optional Ceramic Accessories

This product requires one extra ceramic accessory to make it functional. Depending on your plumbing, you will need either our ceramic trap or our straight pan connector.

No Option Selected
OP-223733 - Ceramic Trap For Converting P Trap Pan to S Trap Floor Outlet + £80.39
OP-223734 - Ceramic Straight Pan Connector + £80.39

Burlington Riviera White Full Back To Wall Close Coupled Pan With Cistern And Seat

£388.74

STOCK AVAILABLITY: 4 Working Days Approx

QS Supplies

2 Features Included In This Product Explained

Soft-Close Seat

Soft-closing seats are a new alternative to classic seats. Their modern design hinges allow them to close slowly and gently.

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.

Reviews & Ratings

By: Chris From : Newark Overall Rating: Date: November 29, 2024 New toilet

As always, excellent service and delivery.

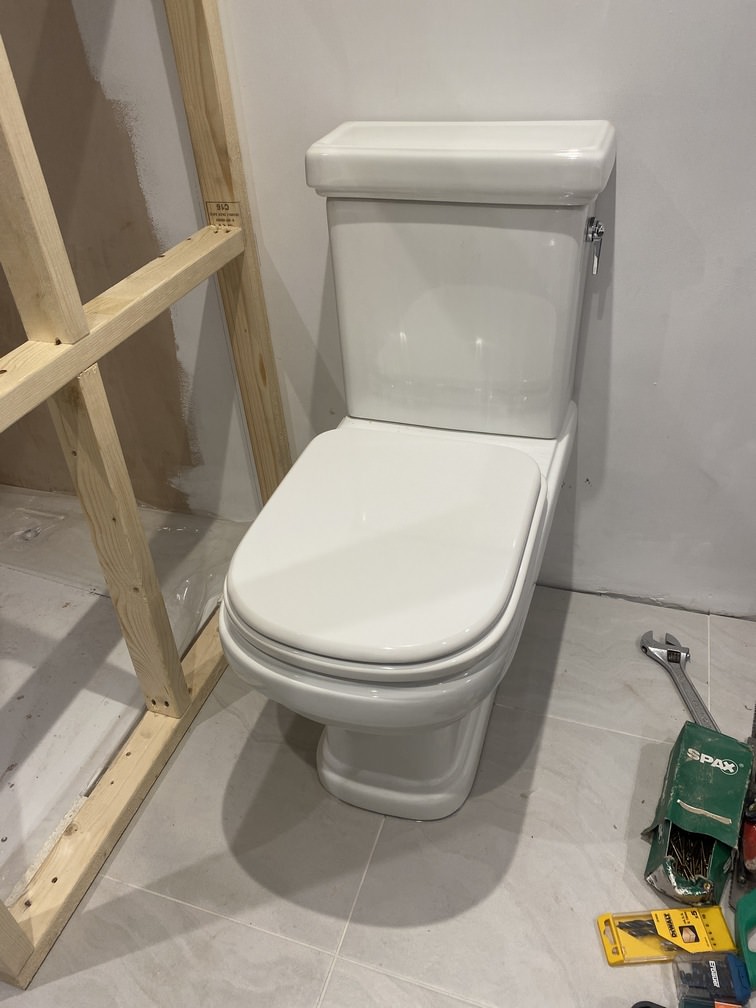

Images Uploaded by the users:

Helpful?

Quality:

Style

Value for Money

Questions & Answers

Submit Your Questions 5 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Richard Asked :
My waste pipe comes up through the floor and is adjacent to the wall. Will it work with this kind of arrangement? I don’t want a flexible pipe joining it up, ideally.

Answered By QS Team

With the RIV10 pan, you can have a pipe go either straight through the wall or the floor. If you need the pipe to turn along the wall, you would need the open-backed RIV9 pan. The cistern and seat remain the same.

Was this answer helpful?

Victoria Asked :
Does this pan require a ceramic connector or can you use a plastic connector for waste?

Answered By QS Team

Using a plastic connector with Burlington Riviera Pan is completely acceptable. The design and installation method ensure that the fitting will be concealed, so aesthetic concerns related to the visibility of the plastic connector are not an issue.

Was this answer helpful?

Rosie Asked :
Hello, I am looking to purchase this but wondered if it comes with a handle for flushing it or if this needs to be purchased/can one choose this?

Answered By QS Team

The product comes with a chrome cistern flush lever as standard. Still, if you prefer to change these to Gold or Nickel, you can add one from the options given in the "Customise Your Product" section.

Was this answer helpful?

Steve Asked :
Has the pan got a horizontal outlet?

Answered By QS Team

Yes, It has a Horizontal outlet with a 180mm centre from the floor.

Was this answer helpful?

Alan Asked :
I am looking to purchase the Burlington Riveria Back to Wall Close Coupled toilet - product code QS-V101452, but I need to know the height of the exit waste up from the floor (so that I can ensure I drill the hole for it through the wall to the correct height).

Answered By QS Team

The measurement from the floor to the middle of the outlet is 180mm.

Was this answer helpful?
