Tivolis Pozo 400mm Wide Straight Chrome Towel Rail

Tivolis Pozo 701-600252 Details

Tivolis Pozo 400mm Wide Flat Towel Rail.

Available in different Height: 800mm, 1000mm, 1200mm, 1400mm, 1600mm and 1800mm - [Optional]
Width: 400mm (40cm)
Finish: Chrome
Flat Shape towel rail
22mm (2.2cm) Tube
Pipe Centres: 355mm (35.5cm)
Wall to pipe centres: 75-90mm (7.5-9cm)
Distance from Wall: 90-105mm (9-10.5cm)
Installation Type: Wall Mounted
Suitable for central heating system
Can be used as dual fuel in combination with T-Piece and Heating Elements [Optional]
All Fittings are supplied with the product with a simple instruction manual
For more information on BTU and Watts, please refer to PRODUCT VARIATIONS INFO and MFC CODE below

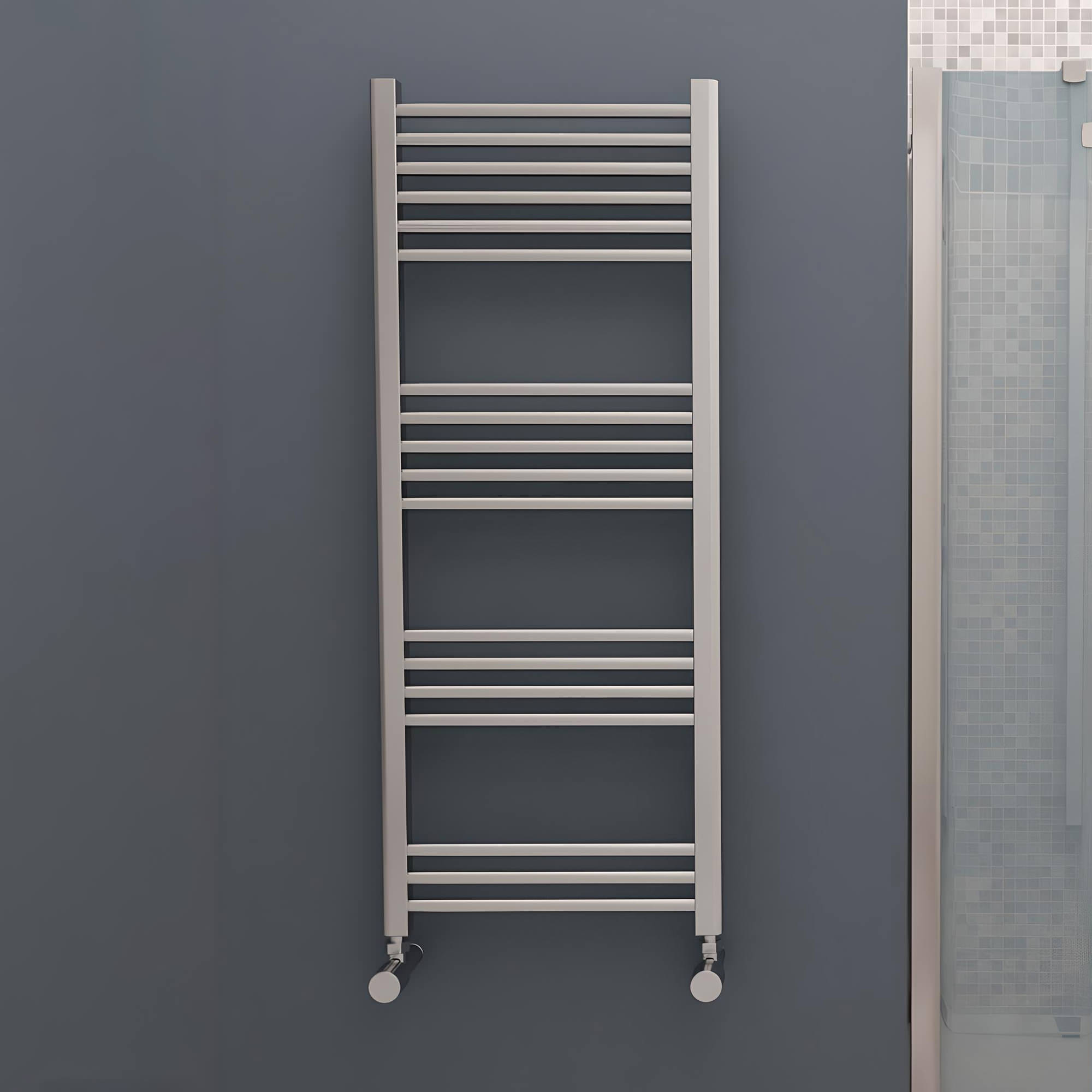

Please Note - Image is for just illustration purposes; the original product may differ from the image provided
The radiator Valve shown in the image is not included - Sold Separately [Optional]

Please Note : There is one important thing, you should know before installing a heated towel rail. The surface of Towel rails has a higher temperature than radiators. If you have infants in your house, you may need to consider the position of towel rail in bathroom

Radiator Calculator

Info / Size (mm)

Radiator
Width: 400 mm
Height: 800 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Pozo
⤷ Colour
: Chrome
⤷ Shape
: Straight
⤷ Country of Origin
: Turkey
⤷ Warranty/Guarantee
: 5 Years
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Width
: 400
⤷ Height
: 800
⤷ Orientation
: Vertical
⤷ Compliance/Approvals/Standard
: EN442

⤷ Barcode
: 5057199957030
⤷ BTU Output
: 50°C - 619
⤷ Watts
: 50°C - 181
⤷ Tapping / Pipe Centres
: 355
⤷ Valves Included
: Sold Separately
⤷ Fuel Type
: Central Heating and Dual Fuel
⤷ Wall to Centre of Inlet
: 75-90
⤷ Tube Diameter
: 22
⤷ Heating Element Included
: Sold Separately
⤷ Element Type
: Standard | Thermostatic

Add-Ons

Radiator Valves

Listed below are the compatible valves that works well with Tivolis towel rail and radiator. It is available in Angled, Straight and Corner version in Sphere, Square and TMV Modal. Please Note: Images shown are for illustration purpose only.

No Option Selected
OP-212085 - Sphere Angled Radiator Valve + £27.26
OP-212087 - Square Angled Radiator Valve + £44.41
OP-212089 - TRV MODAL - Angled Radiator Valve + £50.64
OP-212088 - Square Straight Radiator Valve + £52.82
OP-212090 - TRV MODAL - Straight Radiator Valve + £60.30

Heating Element

Standard and Thermostatic Heating elements are available to make the towel rail or Radiator a Dual Fuel. Appropriate wattage elements will be send as per the towel rail selected. T-Piece connection is essential to make a dual fuel towel rail.

OP-212092 - T Piece Connection + £16.36
OP-212093 - Standard heating Element + £112.97
OP-212094 - Thermostatic heating Element + £145.69

Tivolis Pozo 400mm Wide Chrome Straight Towel Warmer

£80.32

RRP: ~~£121.46~~

STOCK AVAILABLITY: 4 Working Days Approx

QS Supplies

Other Sizes / Finishes

Other Sizes / Finishes / Variations Available.

QS Code	Finish	Size / Difference	MFC Code
QS-V98297	-	500mm Wide	701-600256
QS-V98298	-	600mm Wide	701-600260

Back to QS-V98296 / MFC Code: 701-600252

Product Variations Info & MFC Code

Overall Height	Dimension Width	Pipe Centres	Wall to Pipe Centres	Wall Distance	BTU	WATT
800mm	400mm	355mm	75-90mm	90-105mm	619	181
1000mm	400mm	355mm	75-90mm	90-105mm	803	235
1200mm	400mm	355mm	75-90mm	90-105mm	929	272
1400mm	400mm	355mm	75-90mm	90-105mm
1600mm	400mm	355mm	75-90mm	90-105mm	1238	363
1800mm	400mm	355mm	75-90mm	90-105mm

3 Features Included In This Product Explained

Optional: Radiator Valve

Radiator valves help control how much hot water enters and leave it, and the flow of water controls how much heat the radiator generates. These are usually found at the radiator's bottom left, and right corners, where the water pipes enter and exit, or can also be present at the bottom near the centre.
Read more...

Optional: Dual Fuel

These radiators or towel warmers can run on a conventional gas-powered central heating system or via your mains electrical supply. You can choose whether or not you want your radiator or towel warmer to come on independently of your central heating system, which is especially useful in summer. These radiators are compatible with heating and hot water, whether the system is open (direct) or closed (indirect).

BTU Output

It is the short form of a British thermal unit (BTU or Btu) and is defined as the amount of heat required to raise the temperature of one pound of water by one degree Fahrenheit. It is a standard unit against which radiator efficiency is measured.
Read more...

Questions & Answers

Submit Your Questions 1 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Greg Asked :
Can you confirm how this radiator is secured to the wall and if the photo is accurate, as it looks like it’s directly secured via fixtures hidden behind the frame?

Answered By QS Team
