Armitage Shanks Conceala-2 Low Level Lever Type Concealed Cistern

Armitage Shanks Conceala-2 S333067 Details

Armitage Shanks has manufactured Conceala Concealed Cistern that boasts quality with reliability. The two-lever type cistern is made from the finest quality plastic and supplied with internal overflow and plastic flush bend for further ease. With pre-fitted components, it is suitable for use with wall-hung toilets and back-to-wall WCs. This functional element is supported with a 5-years guarantee, from the manufacturer, against any manufacturing defects. Buy it today at a low price from QS Supplies.

The manufacturing code is S333067
Suitable for use with wall-hung and back-to-wall WCs

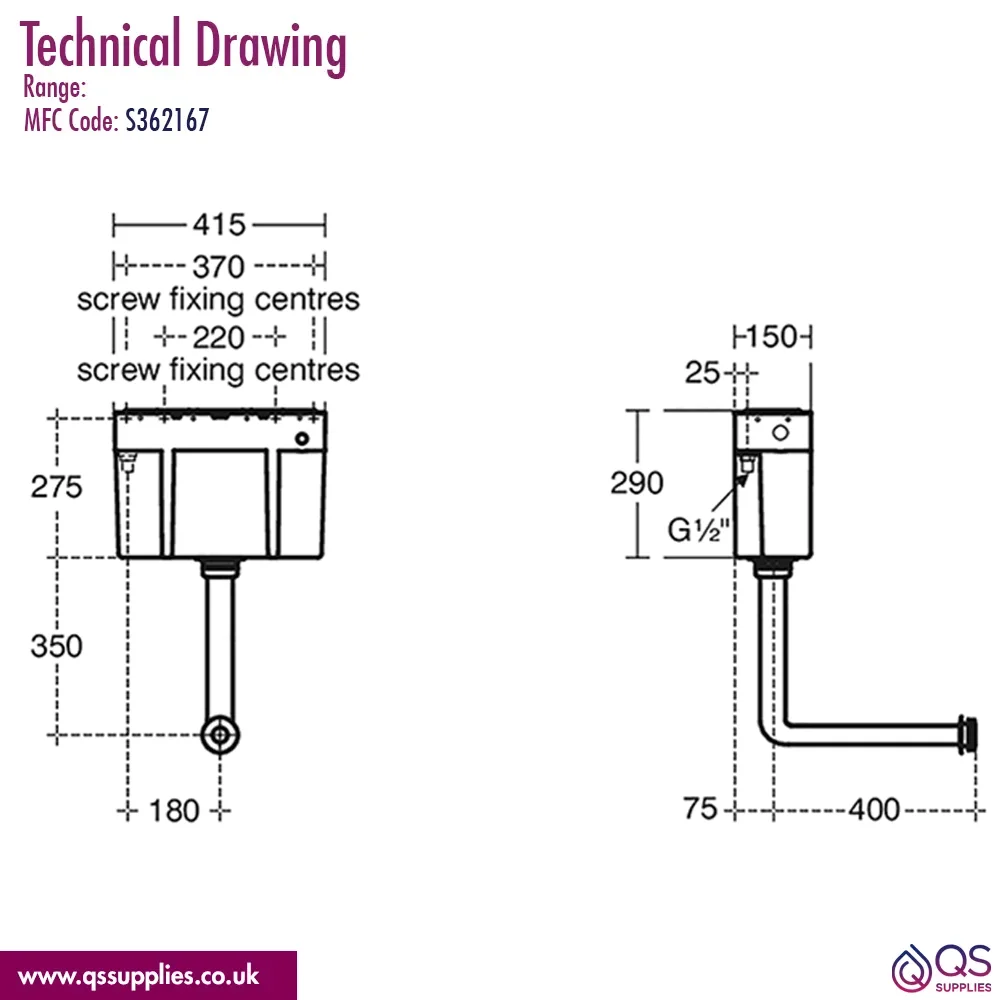

Size in [mm]: 415mm x 150mm x 285mm [Width x Depth x Height]
Size in [cm]: 41.5cm x 15cm x 28.5cm [Width x Depth x Height]
Weight: 3.0 kg
Capacity: 6.0 litres
Optional Products: Modern and Traditional Cistern Levers
The lever shown in the image is not included

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Plastic
⤷ Cistern Type
: Concealed
⤷ Flush Type
: Single Flush
⤷ Full Flush Volume in litres
: 4.5

⤷ Flush Mechanism
: Lever Operated
⤷ Cistern Lever Or Button Placement
: Right
⤷ Width
: 415
⤷ Depth
: 150
⤷ Height
: 285

Additional Info & Downloads

Download the Installation Instructions Pdf File

Add-Ons

Cistern-Lever

Cistern lever for use with this toilet. Please Note: The image shown is for illustration purpose only.

No Option Selected
OP-42863 - Chrome Finish Extended Flushing Lever + £57.67
OP-56243 - 28mm Modern Concealed Lever - E6020AA + £64.28
OP-56244 - 405mm Modern Concealed Lever - E6021AA + £106.91

Armitage Shanks Conceala-2 Low Level Lever Type Concealed Cistern

£78.72

RRP: ~~£127.50~~

STOCK AVAILABLITY: 4 Working Days Approx

QS Supplies

Questions & Answers

Submit Your Questions 2 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Mike Asked :
On the AS Conceala 2, lever-operated, what is the diameter of the flush pipe?

Answered By QS Team

The diameter of the flush pipe is 1.5 inches.

Was this answer helpful?

Alexandra Asked :
Hi, What’s the shortest size the flush pipe can be cut to? (Pipe centre to the underside of the cistern)

Answered By QS Team

For the Conceala cistern, you would need to know what pan you are using it with, as that will determine the height the cistern will be at; then, if required, cut the flush pipe. If it is a back-to-wall or wall-mounted pan from the Conceala range, see Conceala installation instructions.

Was this answer helpful?
