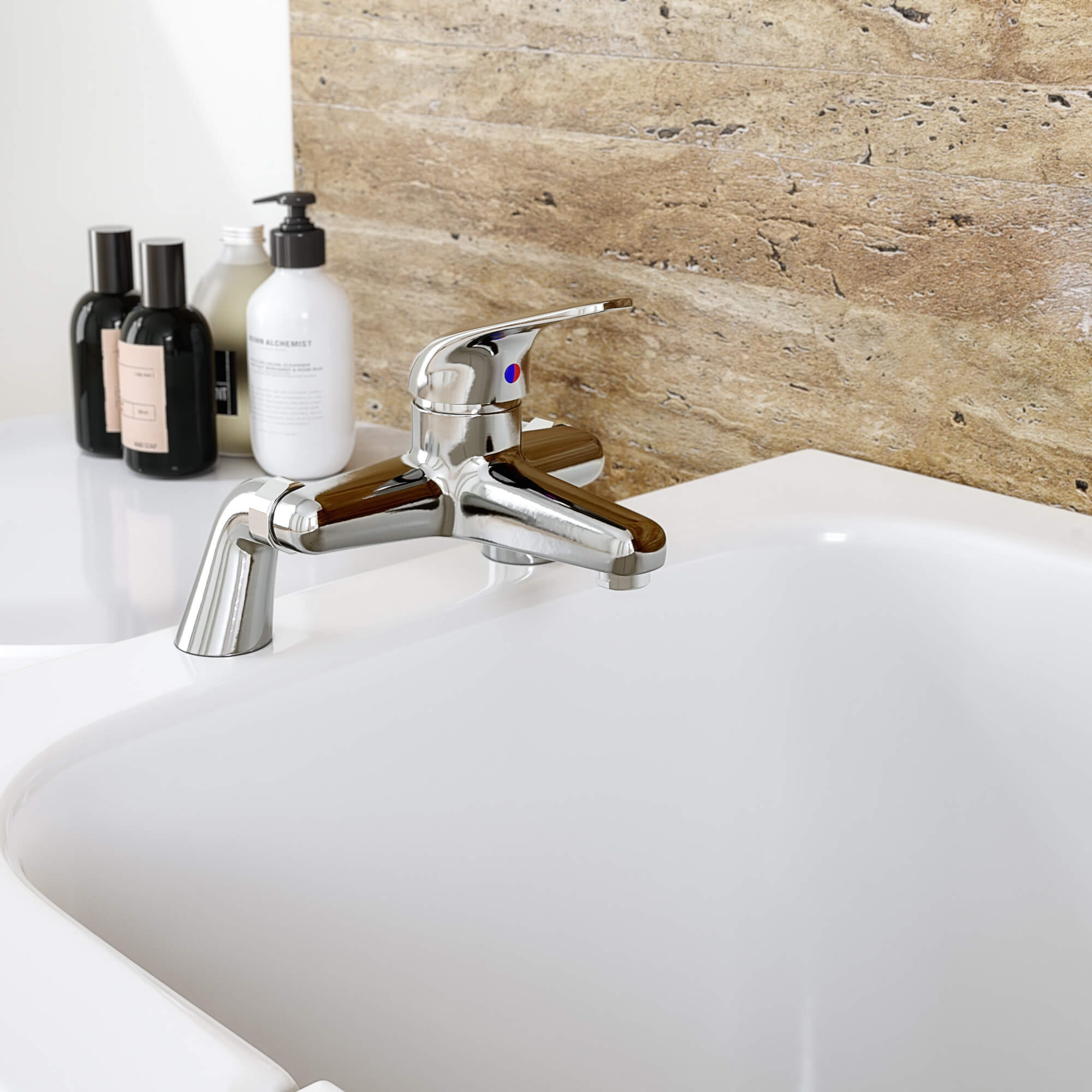

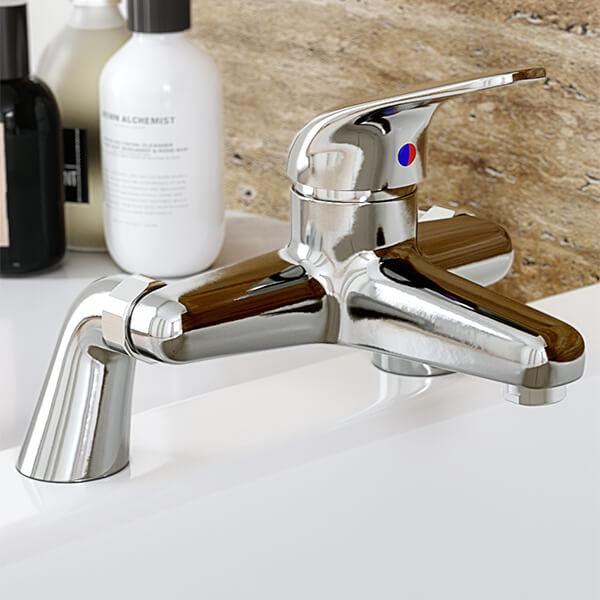

Joseph Miles Evelyn Deck Mounted 2 TH Chrome Bath Mixer Tap

Joseph Miles Evelyn JMQS105702 Details

The Joseph Miles Evelyn Deck Mounted 2 TH Chrome Bath Mixer Tap comes with or without a Handset and is a beautifully sculpted form that instantly creates a wow factor in the bath area. It features a chrome-finished brass body that complements any bathroom exuding a contemporary design. It is a balanced product that suits all bathroom designs and bathtubs. It is supplied with an ergonomic lever handle that operates the hot and cold feeds and fills the tub with water at the right temperature.

Available variations: Tap only; tap with the handset
It comes in a chrome finish
Suitable for deck-mounted installation
Size In [mm]: 222mm x 185mm x 160mm (Width x Depth x Height)
Size In [cm]: 22.2cm x 18.5cm x 16cm (Width x Depth x Height)
Spout reach: 150mm - (15cm)
Base to spout: 43mm - (4.3cm)
Inlet centre: 180mm - (18cm)
Connection type: Flexible tails
Operation: Single lever cartridge
Suitable for high-water pressure system
Required a minimum 2.0 bar water pressure system
Download the Installation Instruction PDF File From The Additional Info Section
Refer to the technical diagram for the complete technical dimensions

Info / Size (mm)

Taps
Pipe Center: 150 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Evelyn
⤷ Water Activation
: By Lifting/Tilting
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upwards
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 3 Years On Valve and 5 Years On Body And Finish
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck-Mounted
⤷ No. of Holes Required
: 2
⤷ Spout type
: Fixed
⤷ Base To Spout
: 43

⤷ Spout Reach
: 150
⤷ Inlet Centres
: 180
⤷ Overall Height
: 160
⤷ Width
: 222
⤷ Inlet Connections
: G 3/4 Inch
⤷ Minimum Operating Pressure (Bar)
: 2.0
⤷ Hose Included
: Yes (With Handset)
⤷ Hose Length
: 1500
⤷ Hand-Shower Included
: Yes (With Handset)
⤷ Handle Style
: Lever
⤷ Barcode
: 5057199969323
⤷ Product Type
: Bath Mixer Tap

Additional Info & Downloads

Download the Installation Instruction Pdf File

Joseph Miles Evelyn Deck Mounted 2 TH Chrome Bath Mixer Tap

£42.54

RRP: ~~£75.00~~

STOCK AVAILABLITY: 6 Working Days Approx

QS Supplies

2 Features Included In This Product Explained

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Flexible Tail Pipes

Flexible Tails, or "Flexi" Tails, are one of the easiest methods to connect the plumbing pipework to the tap fitting. Mixers generally have two tails, one for the hot water supply and the other for the cold. These tailpipes consist of rubber inside a braided metal and come in many sizes.
