Reina Delia 1800mm High Aluminium Vertical Designer Radiator

Reina Delia A-DLA18040A Details

This 1800mm High Designer Vertical Aluminium Radiator from the Delia range of Reina comes with multiple benefits: it is fetching, friendly on the pocket, and a fantastic performer. The product has vertical flat panels welded to each other, which increases the extent of its effective heating surface.

Flawless in white or anthracite finish, it boasts an attractive, minimalist profile, thus scoring quite high in the looks department as well. The device, which comes with mounting brackets, an air vent, and a plug, has been crafted from fine-quality aluminium. It is also corrosion-resistant and comes in two sizes.

Key Features

✔EN 442 Compliant product
✔Brackets for radiator included
✔Manufactured using aluminium material
✔Available in different finishes - Anthracite and White [Optional]
✔Five years of guarantee from Reina against manufacturing defects

Different widths available - 400mm, 500mm and 600mm [Optional]
Height: 1800mm (180cm)
Wall to pipe centres: 37mm (3.7cm)
Distance from wall: 77mm (7.7cm)
Suitable for central heating systems only
Supplied with Air vent and End plug
For BTU, Watts and other details, please refer chart in the PRODUCT VARIATIONS INFO and MFC CODE Tab
Valves, Sleeving kit and chrome pipe kit [Optional]
Download the Installation Instruction PDF File from the Additional Info Section

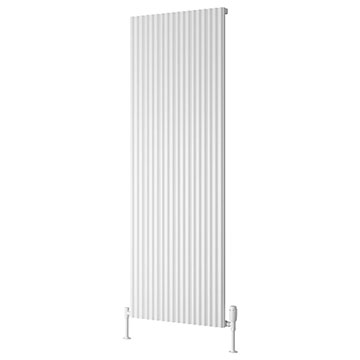

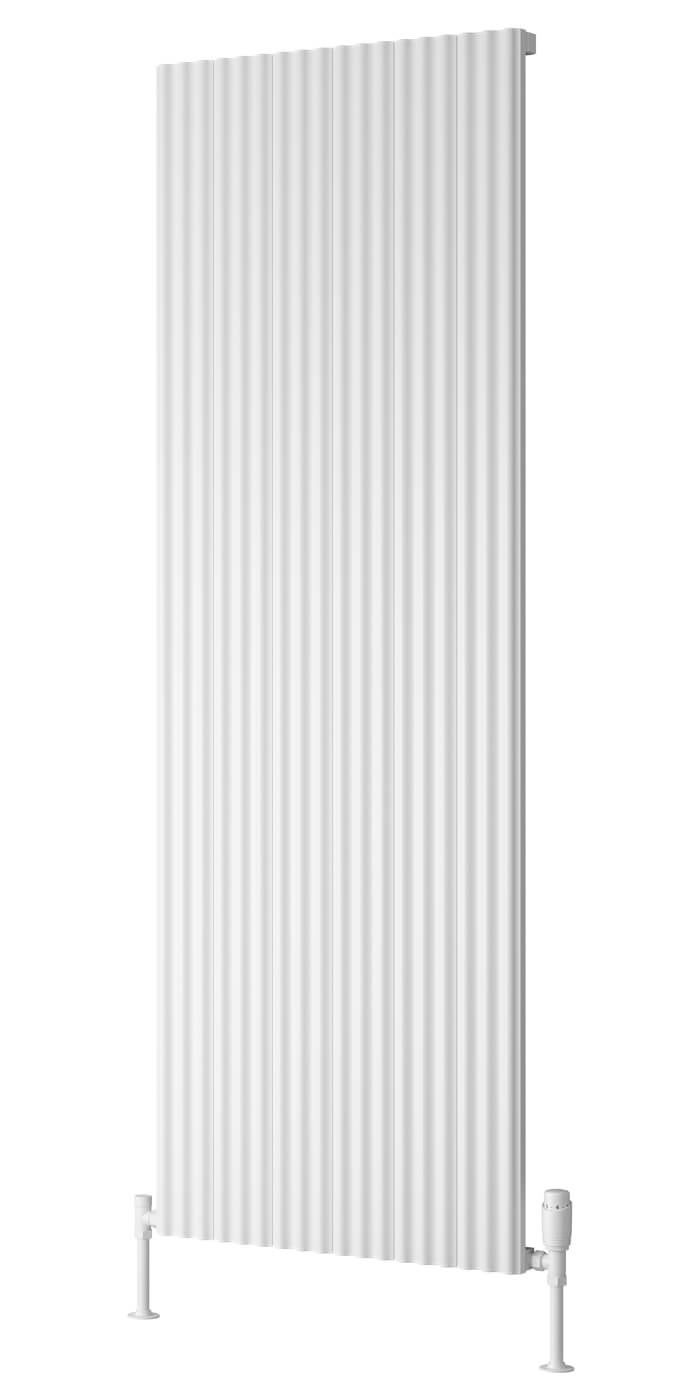

The valves and towel bar shown in the image are not included

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Delia
⤷ Colour
: Anthracite
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Aluminium
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted | Floor Mounted
⤷ Width
: 400
⤷ Projection (Depth)
: 77

⤷ Height
: 1800
⤷ Orientation
: Vertical
⤷ Barcode
: 8800161284255
⤷ BTU Output
: 70°C - 6769
⤷ Watts
: 70°C - 1985
⤷ Valves Included
: Sold Separately
⤷ Fuel Type
: Central Heating

Additional Info & Downloads

Download the Installation Instruction Pdf File

Add-Ons

Optional Accessories

Reina provides optional accessories that you may require for the installation. The manufacturer highly recommends these Accessories. Please Note: The image shown is for illustration purpose only.

No Option Selected
OP-113634 - 200mm Chrome Pipe Kit + £16.40

Reina Delia 1800mm High Aluminium Vertical Designer Radiator

£394.32

RRP: ~~£636.00~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

Product Variations Info & MFC Code

Width	400mm	500mm	600mm
Finish	Anthracite	Anthracite	Anthracite
Pipe Centres	400	500	600
Wall to Pipe centres	37	37	37
Wall Distance	77	77	77
Tube Quantity	4	5	6
Fuel Type	Central Heating	Central Heating	Central Heating
Watts - Delta-70	1985	2481	2977
BTU - Delta-70	6769	8460	10152
BTU - Delta-60	5548	6934	8321
BTU - Delta-50	4367	5458	6550
BTU - Delta-45	3803	4753	5703
BTU - Delta-40	3286	4107	4928
BTU - Delta-35	2752	3439	4127
BTU - Delta-30	2234	2792	3350
BTU - Delta-25	870	1087	1305
MFC	A-DLA18040A	A-DLA18050A	A-DLA18060A

Width	400mm	500mm	600mm
Finish	White	White	White
Pipe Centres	400	500	600
Wall to Pipe centres	37	37	37
Wall Distance	77	77	77
Tube Quantity	4	5	6
Fuel Type	Central Heating	Central Heating	Central Heating
Watts - Delta-70	1985	2481	2977
BTU - Delta-70	6769	8460	10152
BTU - Delta-60	5548	6934	8321
BTU - Delta-50	4367	5458	6550
BTU - Delta-45	3803	4753	5703
BTU - Delta-40	3286	4107	4928
BTU - Delta-35	2752	3439	4127
BTU - Delta-30	2234	2792	3350
BTU - Delta-25	870	1087	1305
MFC	A-DLA18040W	A-DLA18050W	A-DLA18060W

2 Features Included In This Product Explained

Air Vent

An air vent or a radiator air valve or bleed valve, is a small part of the radiator. Its role is to release trapped air or gases from inside the radiator, keeping the appliance heating efficiently and evenly. An Air vent can be an automatic air vent or manually opened to release air and are made of metal or plastic.

Optional Sleeving Kit

A sleeving kit in a radiator heating system are components or materials used to sleeve or insulate the pipes or tubes that circulate hot water or steam from the central heating source to the radiators or heating units. The sleeving kit provides thermal insulation and prevents heat loss, adding to the heating systems efficiency.
