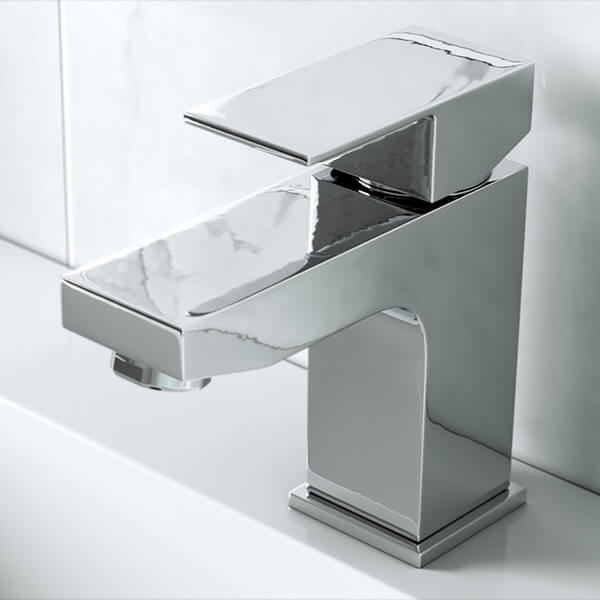

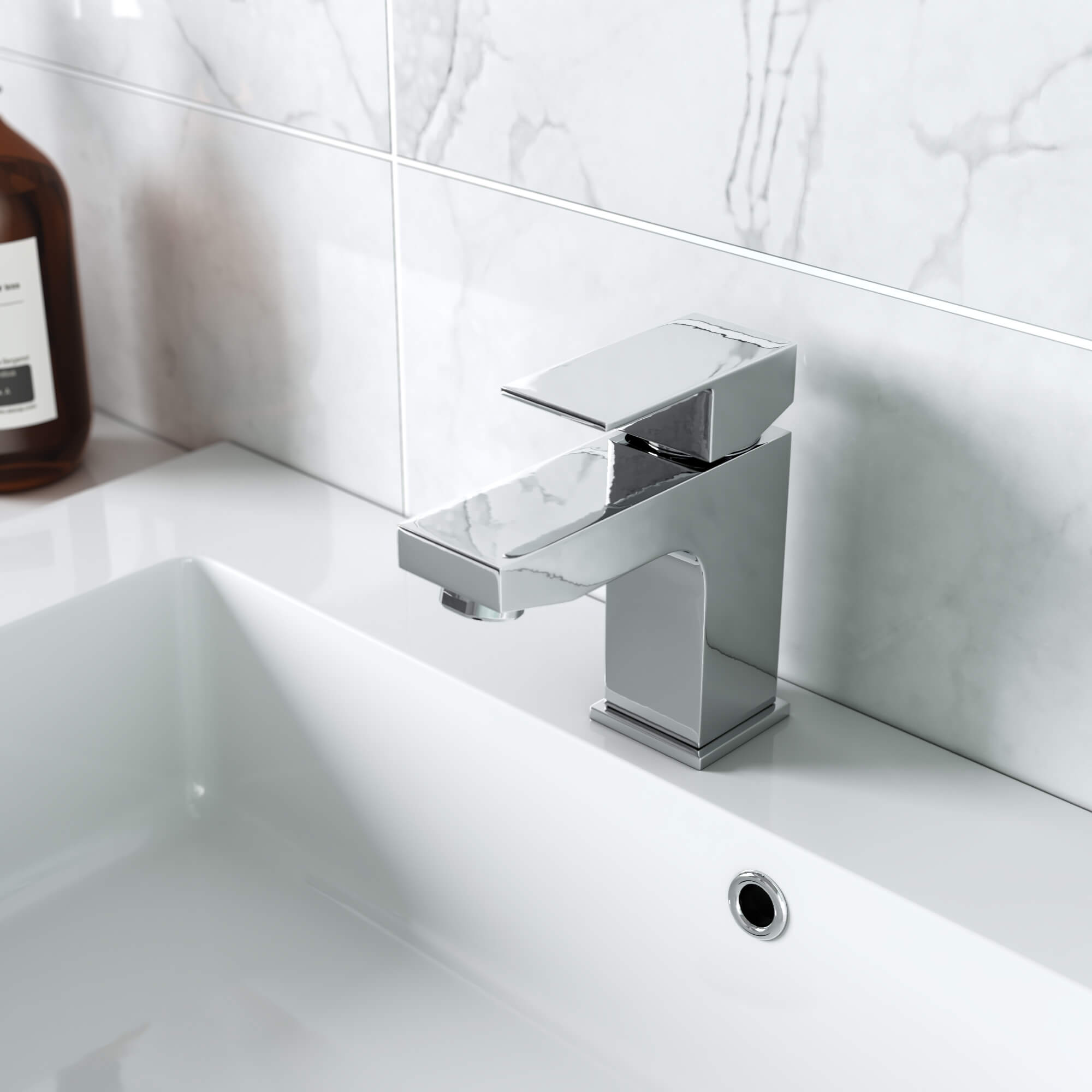

QS Basics Ivy Chrome Mono Basin Mixer With Click Waste

QS Basics Ivy OFEL1W Details

QS Basics Ivy Mono Basin Mixer with Click Waste has a contemporary, user-friendly design. Although at first glance the tap looks ordinary, its only upon its use that you realise its potential for efficient working and an extremely sturdy build.

It features a short spout with a smart lever, which makes it easy and convenient to operate, tilt, and water flow out. The brilliant chrome finish gives it the versatility to match many interior designs and colour schemes. It is provided with a click waste, which offers an excellent method of disposing of wastewater quickly and hygienically.

The manufacturing code of this product is OFEL1
Single lever tap
Deck-mounted installation
Size [mm]: 49mm x 125mm x 135mm [Width x Depth x Height]
Size [cm]: 4.9cm x 12.5cm x 13.5cm [Width x Depth x Height]
Centre of the inlet to centre of outlet: 100mm (10cm)
Base to spout: 80mm (8cm)
1/2 inch BSP flex hoses
Ceramic disc cartridge technology
Suitable for low water pressure system
Requires minimum 0.2 bar and maximum 1.0 bar operating water pressure
Refer to the technical diagram for more size details

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Tap Body Shape
: Square
⤷ Handle Position
: Upward
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: Lifetime
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Ceramic Disc
⤷ Base To Spout
: 80

⤷ Spout Reach
: 100
⤷ Overall Height
: 135
⤷ Width
: 49
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Waste Type
: Click Waste
⤷ Flow Rates (l/min)
: 0.2 Bar - 6 / 0.5 Bar - 8.3 / 1.0 Bar - 11 / 2 Bar - 15.6 / 3 Bar - 19
⤷ Handle Style
: Lever Handle
⤷ Deck Mount Drill Hole Diameter
: 42
⤷ Waste Included
: Yes
⤷ Compliance/Approvals/Standard
: BS EN 200
⤷ Barcode
: 5060168228680
⤷ Product Type
: Basin Mixer Tap

QS Basics Ivy Chrome Mono Basin Mixer With Click Waste

£31.51

RRP: ~~£129.00~~

Stock Availablity: 6 Working Days Approx

QS Supplies

2 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Questions & Answers

Submit Your Questions 1 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Tony Asked :
What is a ‘click’ waste on a single basin tap and how does it work?

Answered By QS Team

The click waste is the plug for the basin where the trap connects to. The clicker mechanism: you just push it down, and it will click shut to hold the water in the basin; push it again, and it will click open and release the water.
