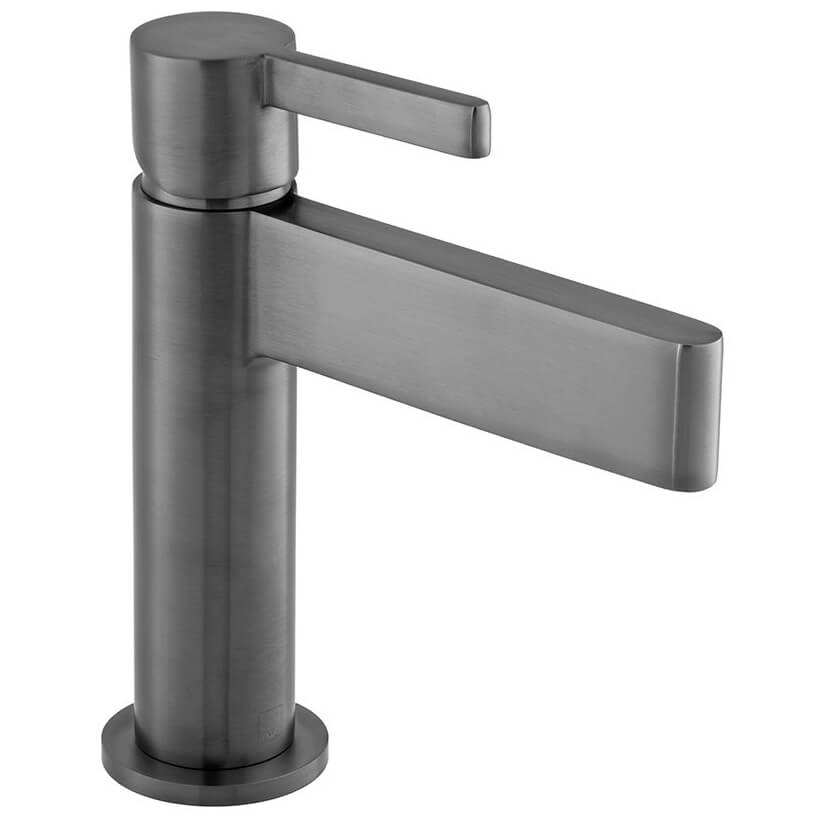

Vado Individual Edit Deck Mounted Mono Basin Mixer Tap

Vado Individual Edit IND-EDI100/SB-BLK Details

Vado Individual Edit Deck Mounted Mono Basin Mixer Tap is endowed with a host of features that make its use fun and easy. Designed to be mounted to the deck area of the basin, this mixer with single lever operation offers ergonomic control over the water flow and a convenient temperature setting.

The stunning brushed black finish will add luxury and sophistication to the bathroom interiors. It is crafted using the finest quality brass, which means your mixer will satisfy the highest demands for performance, durability and aesthetics. This unit is all about getting that designer look for a fraction of the price.

Manufactured using high-quality materials
Deck-mounted installation
Size [mm]: 50mm x 150mm x 165mm [Width x Depth x Height]
Size [cm]: 5cm x 15cm x 16.5cm [Width x Depth x Height]
Base to spout: 101mm (10.1cm)
Connections/Fittings: 2 x 1/2-Inch 400mm (40cm) flexi pipe connection
Deck hole drill diameter: 35mm (3.5cm)
Includes ceramic cartridge (C-010-N25)
Plumbing System Suitability: Pumped System, Combination Boiler, Pressurised System
Suitable for high-pressure water systems
Requires a minimum of 1.0 bar and a maximum of 5.0 bar pressure for smooth working
Refer to the technical drawing for additional dimensional details
For flow rates, please refer to the additional images in the product
Fifteen-year guarantee from the manufacturer

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Range
: Edit
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upwards
⤷ Colour
: Brushed Black
⤷ Warranty/Guarantee
: 15 Years
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Fixed
⤷ Valve Included
: Yes

⤷ Valve/Cartridge Type
: Ceramic Disc Cartridge
⤷ Base To Spout
: 110
⤷ Overall Height
: 165
⤷ Width
: 50
⤷ Minimum Operating Pressure (Bar)
: 1.0
⤷ Water Saving
: Yes
⤷ Handle Style
: Stick Handle
⤷ WRAS Approved
: Yes
⤷ Deck Mount Drill Hole Diameter
: 35
⤷ Barcode
: 5052120213308
⤷ Product Type
: Basin Mixer Tap

Additional Info & Downloads

Download the Installation Instruction Pdf File

Vado Individual Edit Deck Mounted Mono Basin Mixer Tap

£259.25

RRP: ~~£425.00~~

STOCK AVAILABLITY: 6 Working Days Approx

QS Supplies

5 Features Included In This Product Explained

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Single Lever Taps

These taps are designed with a single lever or handle to control the water's temperature and flow. Extremely easy to operate, these also allow you to preset the water temperature by leaving it in the position with your preferred water temperature. Besides, it is simple to control the flow of water; the higher you lift the lever or move it to the end, the stronger the water flow.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Flow Regulator

As the name suggests, a flow regulator is a simple device designed to regulate water flow to a predetermined level. The job of a flow regulator is to stop water wastage. For instance, if the regular flow rate through a tap is 20 litres per minute, a flow regulator can reduce the flow rate between 6 to 12 litres per minute to complete the desired chore without feeling low pressure.
