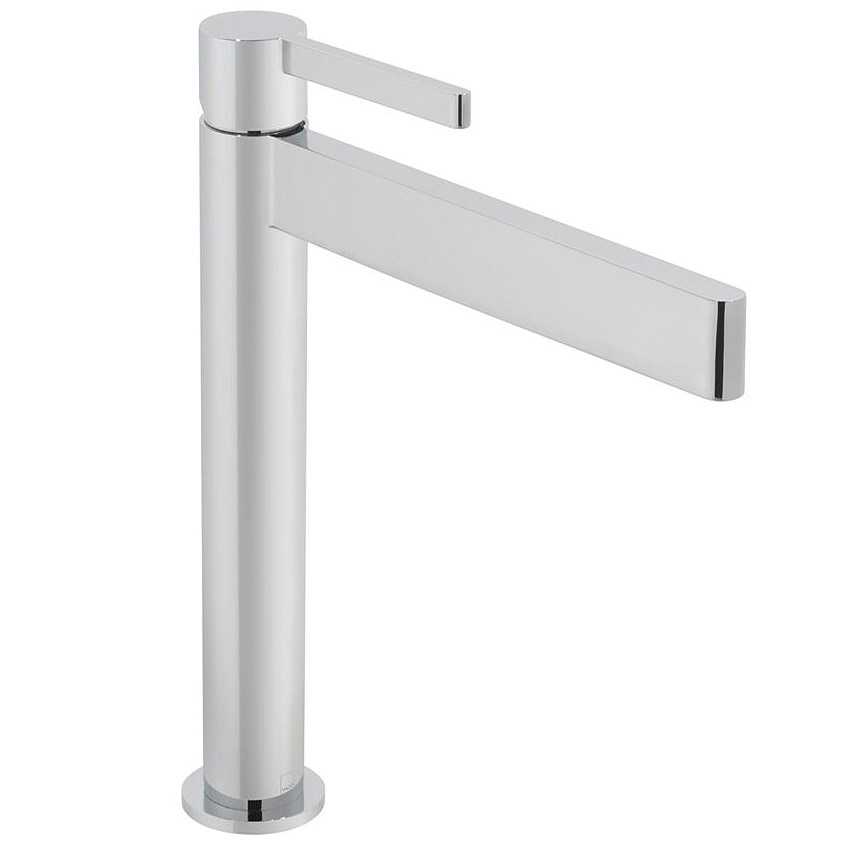

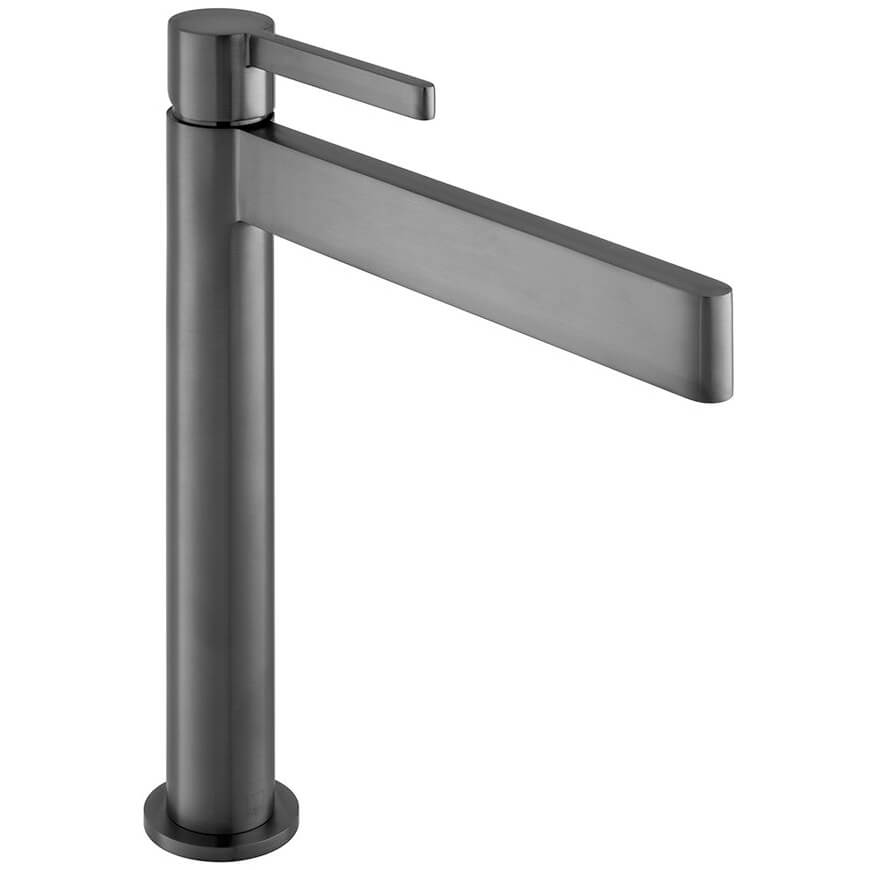

Vado Individual Edit Single Lever Deck Mounted Tall Basin Mixer Tap

Vado Individual Edit IND-EDI100E/SB-BRN Details

Vado Individual Edit Single Lever Deck Mounted Tall Basin Mixer Tap has a minimalist design with contemporary lines and will streamline your bathrooms basic functionality. The elongated spout is straight, which is a refreshing change from the more traditional tap design. The lever on top is small and simple for ease of use, simply lift for a refreshing stream of water.

It is fashioned from solid materials and will last you for many years to come. With gleaming, metallic finishes, this tap is a great choice that will complement the colour and design of any home basin. Install this mixer if you have high water pressure for a functional new addition thats as attractive as it is useful.

Manufactured using high-quality materials
Deck-mounted installation
Size [mm]: 50mm x 236mm x 280mm [Width x Depth x Height]
Size [cm]: 5cm x 23.6cm x 28cm [Width x Depth x Height]
Base to spout: 216mm (21.6cm)
Connections/Fittings: 2 x 1/2-Inch 400mm (40cm) flexi pipe connection
Deck hole drill diameter: 35mm (3.5cm)
Includes ceramic cartridge (C-010-N25)
Suitable for high-pressure water system
Requires a minimum of 1.0 bar and a maximum of 5.0 bar water pressure for smooth working
Plumbing System Suitability: Pumped System, Combination Boiler, Pressurised System
Refer to the technical drawing for additional dimensional details
For flow rates, please refer to the additional images in the product
Fifteen-year guarantee from the manufacturer

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Range
: Edit
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upwards
⤷ Colour
: Brushed Nickel
⤷ Warranty/Guarantee
: 15 Years
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Fixed
⤷ Valve Included
: Yes

⤷ Valve/Cartridge Type
: Ceramic Disc Cartridge
⤷ Base To Spout
: 216
⤷ Overall Height
: 280
⤷ Width
: 50
⤷ Minimum Operating Pressure (Bar)
: 1.0
⤷ Handle Style
: Stick Handle
⤷ WRAS Approved
: Yes
⤷ Deck Mount Drill Hole Diameter
: 35
⤷ Barcode
: 5052120213391
⤷ Product Type
: Basin Mixer Tap

Vado Individual Edit Single Lever Deck Mounted Tall Basin Mixer Tap

£320.26

RRP: ~~£525.00~~

STOCK AVAILABLITY: 6 Working Days Approx

QS Supplies

6 Features Included In This Product Explained

Flexible Tail Pipes

Flexible Tails, or "Flexi" Tails, are one of the easiest methods to connect the plumbing pipework to the tap fitting. Mixers generally have two tails, one for the hot water supply and the other for the cold. These tailpipes consist of rubber inside a braided metal and come in many sizes.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Single Lever Taps

These taps are designed with a single lever or handle to control the water's temperature and flow. Extremely easy to operate, these also allow you to preset the water temperature by leaving it in the position with your preferred water temperature. Besides, it is simple to control the flow of water; the higher you lift the lever or move it to the end, the stronger the water flow.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Flow Regulator

As the name suggests, a flow regulator is a simple device designed to regulate water flow to a predetermined level. The job of a flow regulator is to stop water wastage. For instance, if the regular flow rate through a tap is 20 litres per minute, a flow regulator can reduce the flow rate between 6 to 12 litres per minute to complete the desired chore without feeling low pressure.
