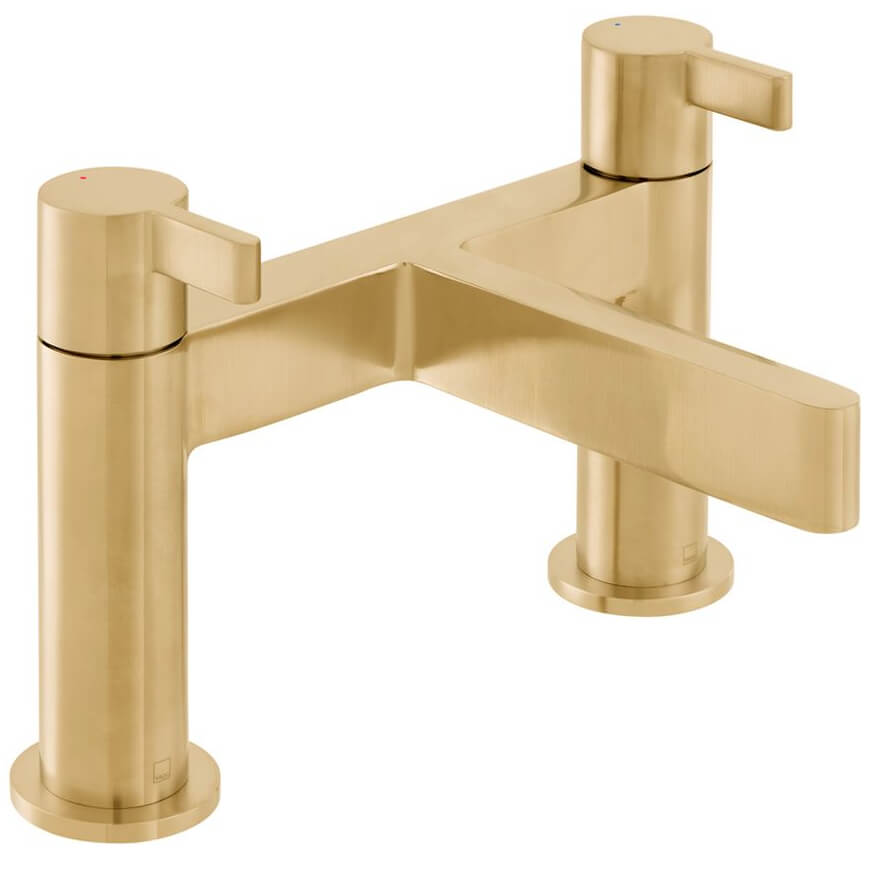

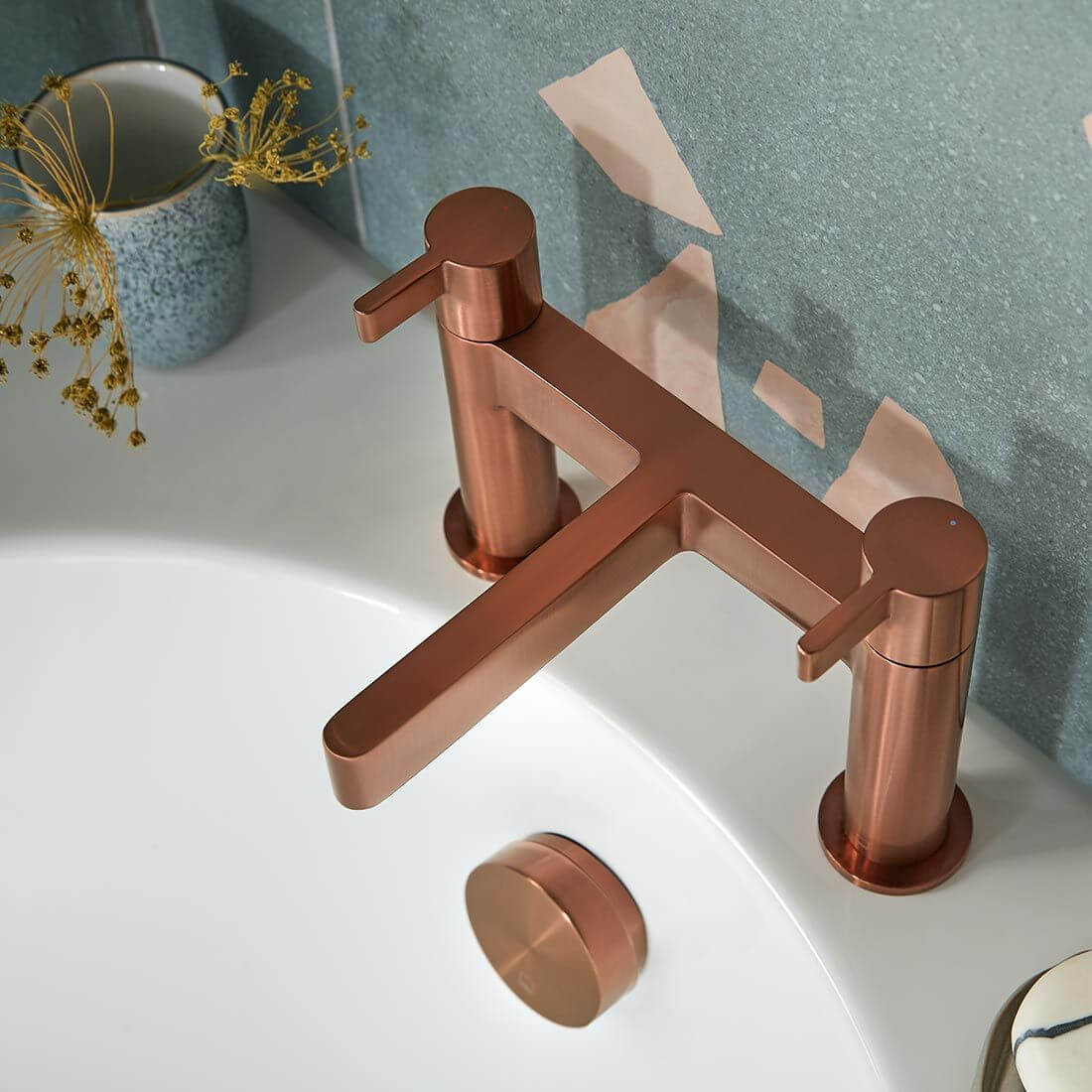

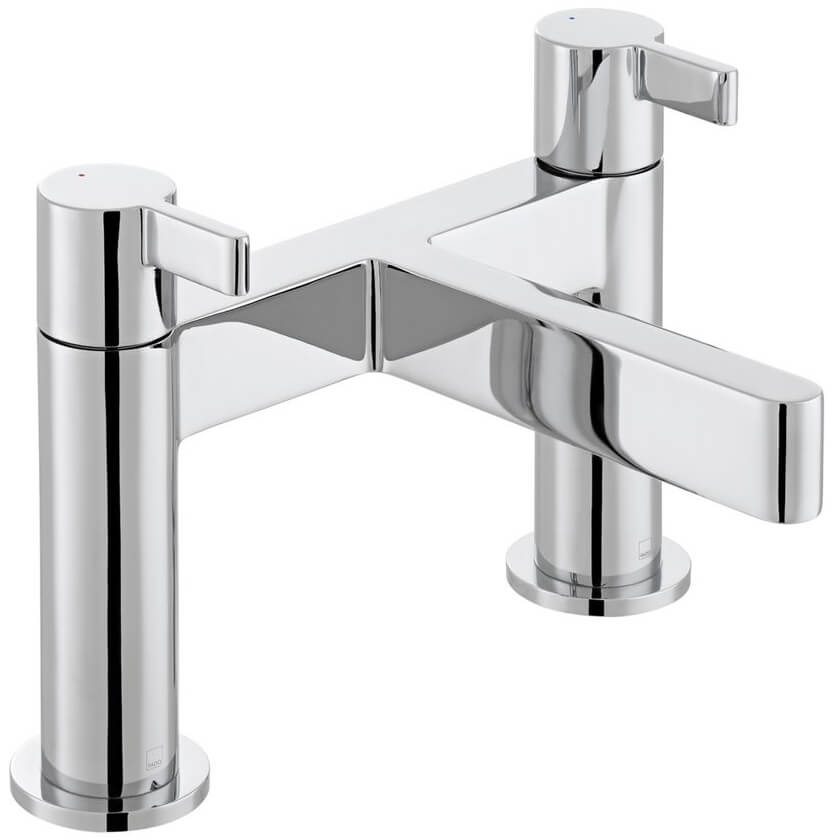

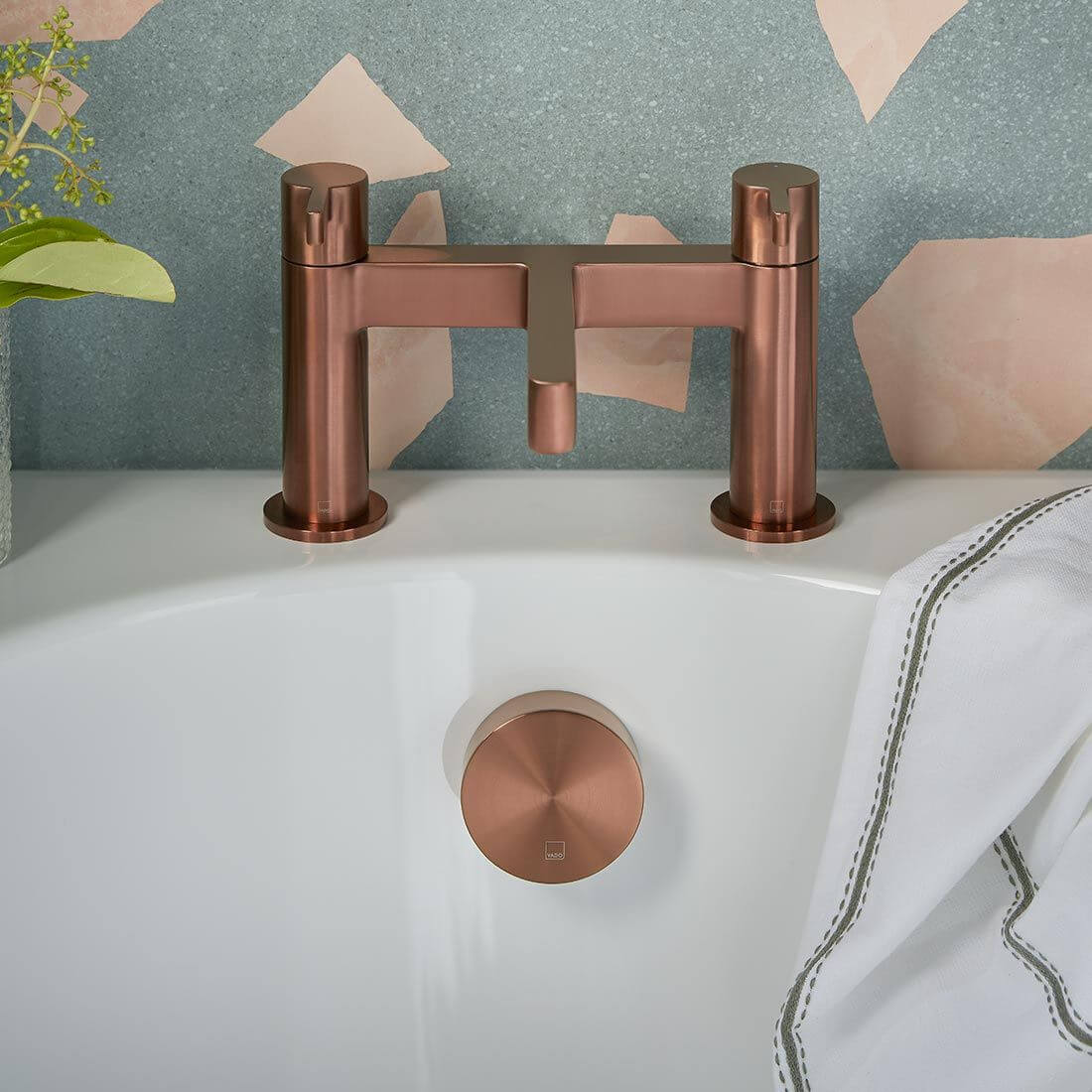

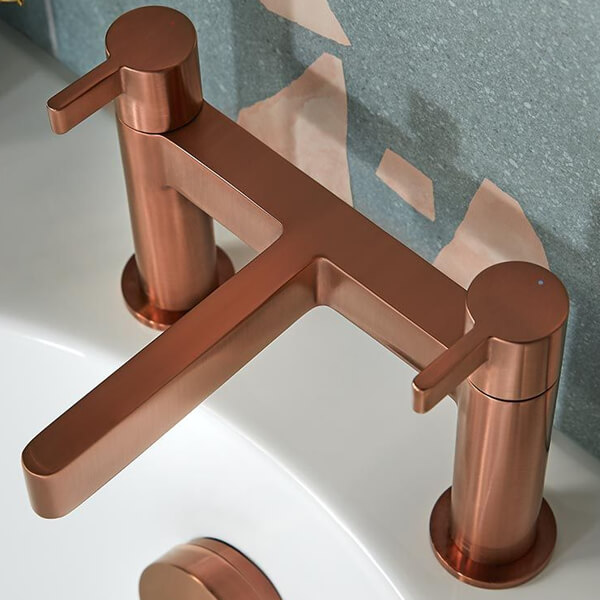

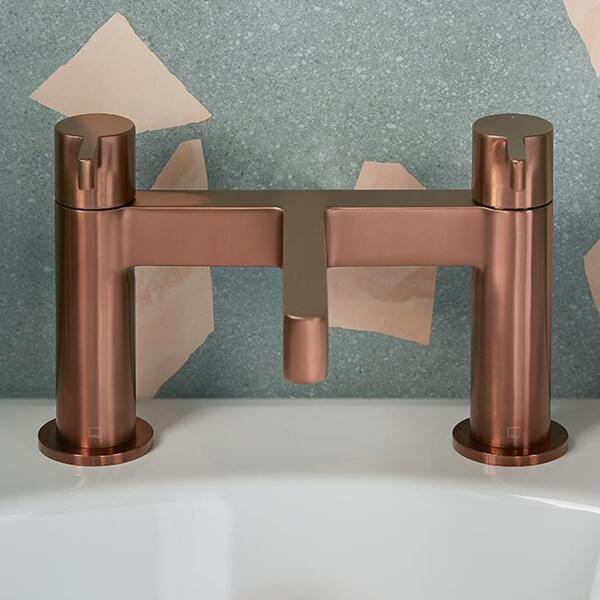

Vado Individual Edit Deck Mounted Bath Mixer Tap

Vado Individual Edit IND-EDI137-BLK Details

Vado Individual Edit Deck Mounted Bath Mixer Tap has an uncluttered charm that entices the user with its precisely sculptured, crisp lines. This bath filler will give an indulgent bathing experience that delivers a steady stream of water into your bath from its elongated spout. The double metal levers fitted with a ceramic cartridge give an easy grip and smooth and user-friendly action over water flow and temperature.

This piece is exquisitely crafted from premium quality brass for durability and longevity. The brilliant finishes give it a neat and streamlined look. It is built with a unique design, and if you are the kind of person who loves stylish products, then you have one here with you with this bath mixer.

Key Features

✔Fifteen-year guarantee from the manufacturer
✔Supplied with cold (C-302-RTC) and hot (C-302-LTC) ceramic cartridge
✔Available in 4 finishes: Brushed Black, Brushed Gold, Brushed Nickel, Brushed Bronze

Available in 2 variations: Tap Without Kit, Tap With Kit
Crafted using premium quality materials
Deck-mounted installation
Deck hole drill diamter: 2 x 28-30mm
Suitable for high-pressure water system
Requires a minimum of 1.0 bar water pressure for smooth working
Refer to the technical diagram for additional dimensional details
For flow rates, refer to the additional images
Download the Installation Instructions PDF file from the Additional Info section
Specification of Tap Only:
Dimension: 215mm x 168mm x 156mm [Width x Depth x Height]
Base to spout: 90mm
Centre of the inlet to the centre of the outlet: 128mm
Inlet centres: 180mm
Connections/Fittings: 2 x 3/4-Inch 48mm fitted tails
Plumbing System Suitability: Gravity System, Pumped System, Combination Boiler, Pressurised System
Specification of Tap With Kit:
Air-injection technology shower kit included
Dimension: 230mm x 175mm x 156mm [Width x Depth x Height]
Base to spout: 90mm
Centre of the inlet to the centre of the outlet: 128mm
Hose length: 1500mm smooth hose
Shower handset dimension: Ø110mm x 251.5mm [Width x Height]
Connections/Fittings: 2 x 3/4-Inch 50mm fitted tails
Plumbing System Suitability: Pumped System, Combination Boiler, Pressurised System
Recommended flow regulator (FR-SHOWER/9-C/P) for shower handset available as an option

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Range
: Edit
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upwards
⤷ Colour
: Brushed Black
⤷ Warranty/Guarantee
: 15 Years
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 2
⤷ Spout type
: Fixed

⤷ Valve/Cartridge Type
: Ceramic Disc
⤷ Base To Spout
: 90
⤷ Spout Reach
: 128
⤷ Inlet Centres
: 180
⤷ Overall Height
: 156
⤷ Minimum Operating Pressure (Bar)
: 1.0
⤷ Handle Style
: Stick Handle
⤷ Flow Regulator Included
: Sold Separately
⤷ Barcode
: 5052120275177
⤷ Product Type
: Bath Mixer Tap

Additional Info & Downloads

Download the Installation Instruction Pdf File

Technical Images

Vado Individual Edit Deck Mounted Bath Mixer Tap

Add-Ons

Flow-Regulator

Flow regulators are designed to regulate and control the flow of water without hampering the performance or design of the product. Can save up to 80% water usage. Please note: The image is for illustration purposes only.

No Option Selected
OP-225217 - Flow Regulator For Shower Handset RECOMMENDED
+ £14.03

£301.96

RRP: ~~£495.00~~

STOCK AVAILABLITY: 6 Working Days Approx

QS Supplies

2 Features Included In This Product Explained

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
