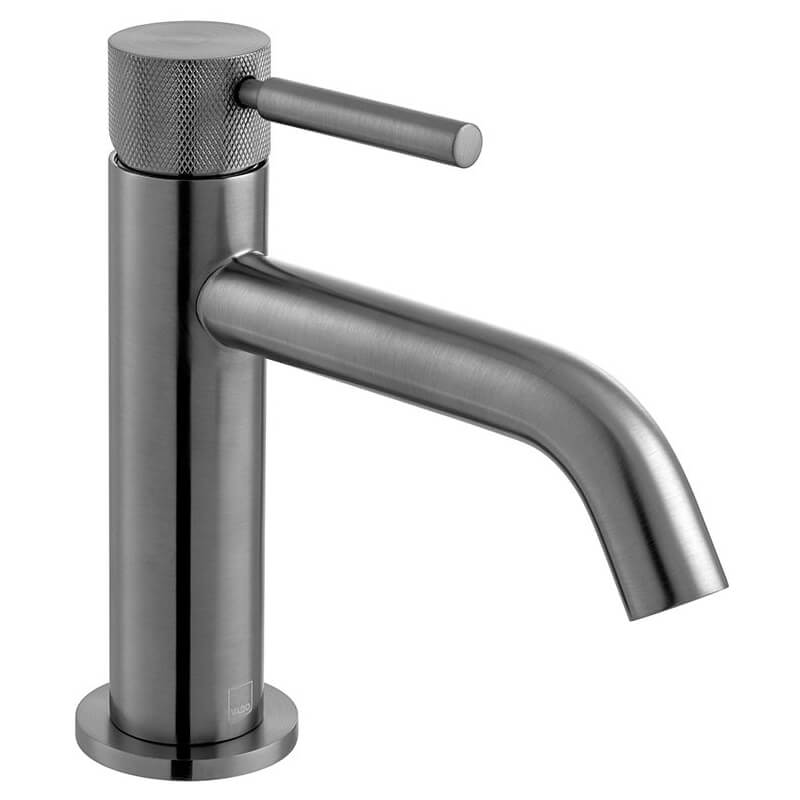

Vado Individual Origins Deck Mounted Mono Basin Mixer Tap With Knurled Handle

Vado Individual Origins IND-ORI200/SB-BRNK Details

The Vado Individual Origins Deck Mounted Mono Basin Mixer Tap With Knurled Handle is a true star. The product, part of the brands Origins range, has a tubular lever handle and a tubular spout, both placed on a circular backplate for working the mixer and easy movement of the lever.

Suitable for high-water pressure systems, it is incredibly smooth to handle and works with a high-quality ceramic cartridge. That is not all; the model, crafted from fine quality brass, is straightforward to install. It looks good, feels great, and offers the convenience of quickly wiping up with a damp cloth.

Single lever slimline mono basin mixer tap
Brushed finish with knurled handle
Deck mounted installation
Size [mm]: 48mm x 153mm x 152mm [Width x Depth x Height]
Size [cm]: 4.8cm x 15.3cm x 15.2cm [Width x Depth x Height]
Centre of inlet to centre of outlet: 129mm (12.9cm)
2 x 1/2" 400mm (40cm)lexipipe connections
35mm (3.5cm) Deck hole drill diameter
5 l/m flow regulator fitted as standard
Water flow aerator included
Ceramic cartridge [C-010-N25]
Suitable for high water pressure system
Minimum water pressure recommended for smooth working is 1.0 bar and maximum of 5.0 bar
Refer technical drawing for complete size details
Download the User Guide and Installation Instruction PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Range
: Origins
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upwards
⤷ Colour
: Brushed Nickel
⤷ Warranty/Guarantee
: 15 Years
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Valve/Cartridge Type
: Ceramic Disc

⤷ Base To Spout
: 76
⤷ Spout Reach
: 129
⤷ Overall Height
: 152
⤷ Width
: 48
⤷ Minimum Operating Pressure (Bar)
: 1.0
⤷ Handle Style
: Stick
⤷ WRAS Approved
: Yes
⤷ Deck Mount Drill Hole Diameter
: 35
⤷ Product Type
: Basin Mixer Tap

Additional Info & Downloads

Download the User Guide Pdf File Download the Installation Instructions Pdf File

Vado Individual Origins Deck Mounted Mono Basin Mixer Tap With Knurled Handle

£271.45

RRP: ~~£445.00~~

STOCK AVAILABLITY: 6 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

Flow Regulator

As the name suggests, a flow regulator is a simple device designed to regulate water flow to a predetermined level. The job of a flow regulator is to stop water wastage. For instance, if the regular flow rate through a tap is 20 litres per minute, a flow regulator can reduce the flow rate between 6 to 12 litres per minute to complete the desired chore without feeling low pressure.

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...
