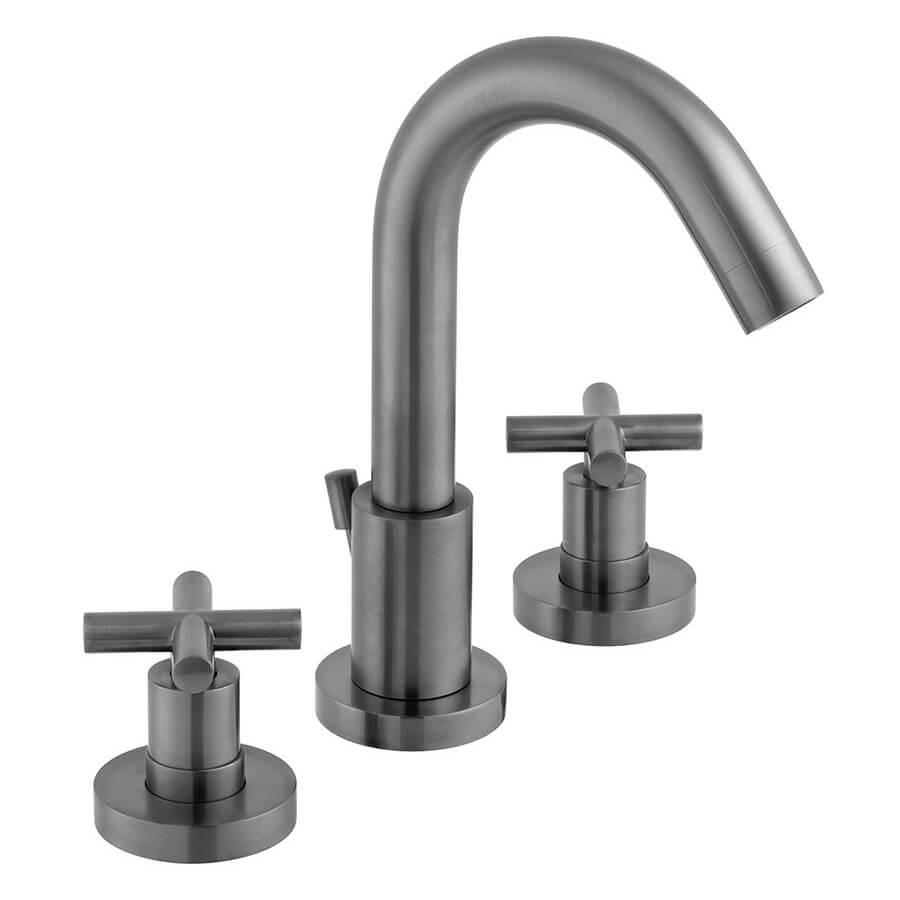

Vado Individual Elements 3 Hole Deck Mounted Basin Mixer Tap With Pop-Up Waste

Vado Individual Elements IND-ELW101F-BRZ Details

Vado Individual Elements 3 Hole Deck Mounted Basin Mixer Tap with Pop-Up Waste presents an exquisite arrangement, which gives it a streamlined and uncluttered look. It has traditionally styled crosshead handles that are a pleasure to turn on and off to obtain the perfect mix every time you use the tap. The central spout swivels for convenience and delivers hot and cold water.

Suitable for both low and high-pressure water systems, it will make a valuable addition to any bathroom setting. Users have only good to say about its stunning, good looks and smooth, lasting brass construction. The fact that it comes in a choice of 4 different finishes is another feather in its cap.

Manufactured using high-quality materials
Deck-mounted installation
Dual cross-handles
Includes cold (C-206-RTC) and hot (C-206-LTC) ceramic cartridge
5 l/m flow regulator fitted as standard
Flow aerator included
Size [mm]: 164mm x 232mm [Depth x Height]
Size [cm]: 16.4cm x 23.2cm [Depth x Height]
Centre of the inlet to the centre of the outlet: 130mm (13cm)
Inlet centres: 240-300mm (24-30cm)
Valve deck mount drill hole diameter: 27mm (2.7cm)
Spout deck mount drill hole diameter: 30mm (3cm)
Connections/Fittings: 2 x 1/2-Inch nut x 600mm (60cm) flexi pipe connections
Plumbing system suitability: Gravity System
Suitable for low-pressure water system
Requires 0.2 - 5.0 bar water pressure for smooth working
Refer to the technical drawing for more dimensional details
For flow rates, please refer to the additional images
Download the Installation Instructions PDF file from the Additional Info section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Range
: Elements
⤷ Handle Position
: Left & Right
⤷ Tap Body Shape
: Round
⤷ Colour
: Brushed Bronze
⤷ Warranty/Guarantee
: 15 Years
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 3
⤷ Spout type
: Swivel
⤷ Valve/Cartridge Type
: Ceramic Disc Cartridge
⤷ Base To Spout
: 232
⤷ Spout Reach
: 130

⤷ Inlet Centres
: 240-300
⤷ Overall Height
: 232
⤷ Spout Deck Mount Drill Hole Diameter
: 30
⤷ Handle Deck Mount Drill Hole Diameter
: 27
⤷ Handle Height
: 65
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Waste Type
: Pop-Up
⤷ Handle Style
: Crosshead Handle
⤷ Waste Included
: Yes
⤷ Flow Regulator Included
: Yes
⤷ Barcode
: 5052120278321
⤷ Product Type
: Basin Mixer Tap

Additional Info & Downloads

Download the Installation Instruction Pdf File

Vado Individual Elements 3 Hole Deck Mounted Basin Mixer Tap With Pop-Up Waste

£388.13

RRP: ~~£575.00~~

STOCK AVAILABLITY: 6 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

Pop-Up Waste

The Pop-Up waste or pop-up assembly refers to the type of pipe fitting for a sink, basin or bidet connected to a waste pipe at the plughole. It comes with a lever or knob-controlled plug or stopper and operates using a lever that can be lowered or lifted to close and open the plug.
Read more...

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Flow Regulator

As the name suggests, a flow regulator is a simple device designed to regulate water flow to a predetermined level. The job of a flow regulator is to stop water wastage. For instance, if the regular flow rate through a tap is 20 litres per minute, a flow regulator can reduce the flow rate between 6 to 12 litres per minute to complete the desired chore without feeling low pressure.
