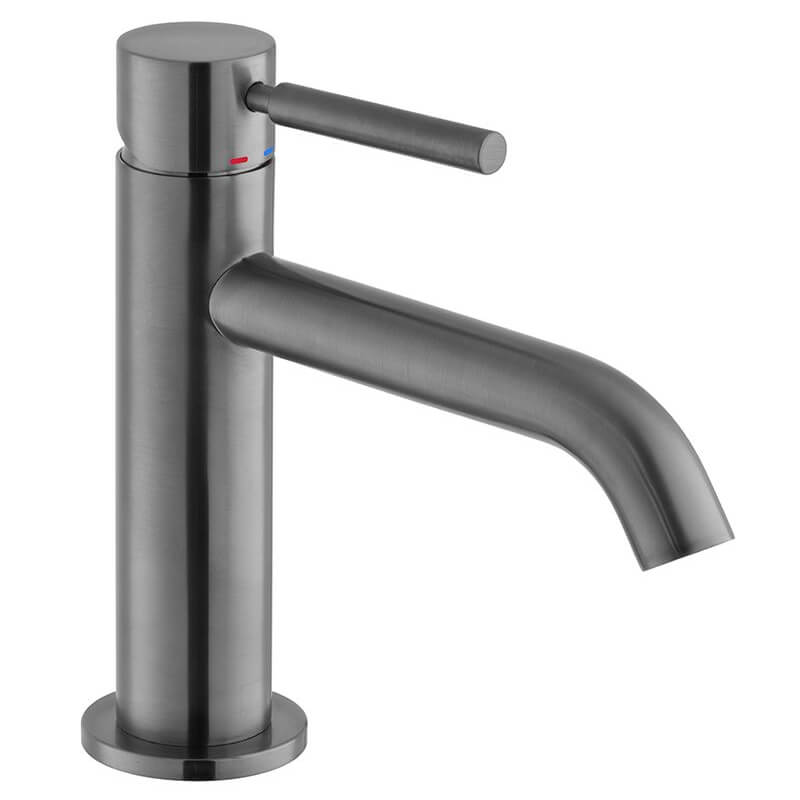

Vado Individual Origins Deck Mounted Slimline Mono Basin Mixer Tap

Vado Individual Origins IND-ORI200/SB-BRZ Details

The Vado Individual Origins Deck Mounted Slimline Mono Basin Mixer Tap features a bold, futuristic, form with clean smooth lines, bringing the wash area into sharp focus. This brushed finish tap, which is suitable for high-pressure systems, uses a single lever to balance water flow and temperature and is conveniently located on top of the round spout.

It features a ceramic disc cartridge which ensures drip-free usage along with smooth and precise operation. It is supplied with the unique 5 l/m flow regulator that makes the tap water efficient.

Single lever slimline mono basin mixer tap
Brushed finish
Deck-mounted installation
Size [mm]: 48mm x 153mm x 152mm [Width x Depth x Height]
Size [cm]: 4.8cm x 15.3cm x 15.2cm [Width x Depth x Height]
Centre of the inlet to centre of outlet: 129mm (12.9cm)
2 x 1/2" nut x 400mm (40cm) flexipipe connections
35mm (3.5cm) Deck mount drill hole diameter
5 l/m flow regulator fitted as standard
Water flow aerator included
Ceramic cartridge [C-010-N25]
Suitable for high water pressure system
Minimum water pressure recommended for smooth working is 1.0 bar and a maximum of 5.0 bar
Refer to the technical drawing for complete size details

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Range
: Origins
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upwards
⤷ Colour
: Brushed Bronze
⤷ Warranty/Guarantee
: 15 Years
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Valve/Cartridge Type
: Ceramic

⤷ Base To Spout
: 76
⤷ Spout Reach
: 129
⤷ Overall Height
: 152
⤷ Width
: 48
⤷ Minimum Operating Pressure (Bar)
: 1.0
⤷ Handle Style
: Stick
⤷ WRAS Approved
: Yes
⤷ Deck Mount Drill Hole Diameter
: 35
⤷ Product Type
: Basin Mixer Tap

Vado Individual Origins Slimline Mono Basin Mixer Tap

£306.00

RRP: ~~£425.00~~

STOCK AVAILABLITY: 6 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

Flow Regulator

As the name suggests, a flow regulator is a simple device designed to regulate water flow to a predetermined level. The job of a flow regulator is to stop water wastage. For instance, if the regular flow rate through a tap is 20 litres per minute, a flow regulator can reduce the flow rate between 6 to 12 litres per minute to complete the desired chore without feeling low pressure.

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...
