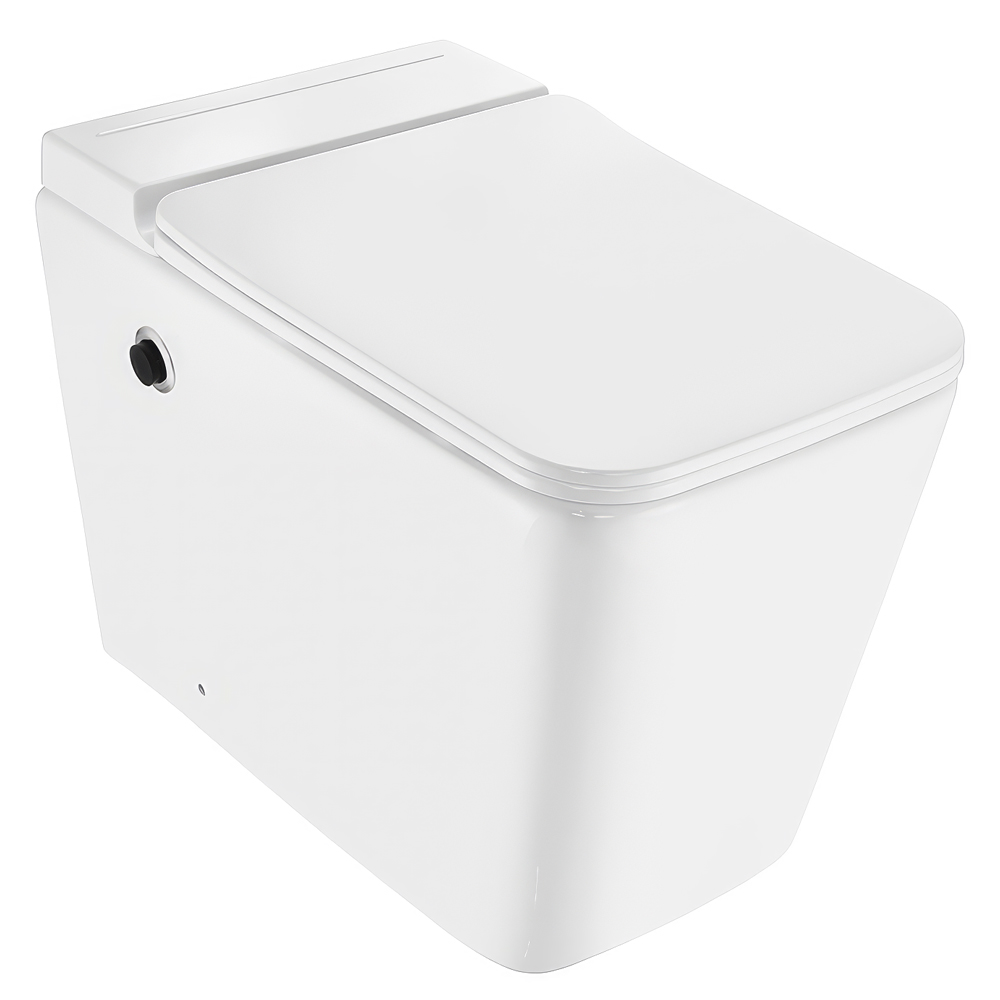

Jaquar Aria 590mm Tankless Floor Standing WC Pan With Seat

Jaquar Aria ARS-WHT-39851S300UFSMTL Details

Manufacturing code of this product is ARS-WHT-39851S300UFSMTL
Tankless single piece WC
Size [mm]: 360mm x 590mm x 450mm [Width x Projection x Height]
Size [cm]: 36cm x 59cm x 45cm [Width x Projection x Height]
Comes in white finish
Modern design
Touch free operation (Flush) with Infrared sensor
Installation type: floor standing
UF soft close seat with cover included
Supplied with angle valve with fittings
Complete with toilet sealing ring and floor fixing screw
Inlet and outlet gasket
Outlet type: Vertical
S-Trap - 300mm
External diameter of outlet hole: Ø 80mm provide connector pipe
Water pressure required: 1.5 bar - 5.0 bar (dynamic)
2-70℃ range of self operating water temperature
180mm Sensor range from the edge of sensor
Passive sensor type with IP68 rating
Operated by 4 units of AA Alkalines batteries
Suitable for green building norms saves water with efficient flushing @4.5ltr
Compliance: EN 997:2012 + A1:2015 (E), SANS 497:2011
Refer technical drawing for complete size details

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Aria
⤷ Coating
: Anti-Germ
⤷ Colour
: White
⤷ Weight in kg
: 39
⤷ Warranty/Guarantee
: 10 Years WC | 5 Years Seat
⤷ Material
: Ceramic
⤷ Theme
: Modern
⤷ Installation Type
: Floor Standing
⤷ Projection (Depth)
: 590

⤷ Width
: 360
⤷ Outlet
: Vertical
⤷ Height
: 450
⤷ Seat Included
: Yes
⤷ Seat Type
: Soft Close
⤷ Seat Finish
: White
⤷ Seat Post Hole Centers
: 140
⤷ Front Of Bowl To Centre Of Seat Holes
: 410
⤷ Outlet Diameter
: 80

Jaquar Aria 590mm Tankless Floor Standing WC Pan With Seat

£470.86

RRP: ~~£645.00~~

STOCK AVAILABLITY: 6 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

Soft-Close Seat

Soft-closing seats are a new alternative to classic seats. Their modern design hinges allow them to close slowly and gently.

CE Certified Product

CE mark meets the prescribed safety, health and environmental protection requirements and all appropriate EU requirements. This mark is mandatory for products designed, made and sold in the European Economic Area.

Bar Pressure

Bar is a unit of pressure, which is accepted for use with SI by The International Bureau of Weights and Measures. The bar is used as it is almost equal in value as the standard atmosphere which is 1.01325 bar.

Vertical Outlet

It is a toilet where the plumbing exits through the floor. In certain scenarios, these toilets may need to be installed a few inches higher than the surrounding floor to accommodate the plumbing.
