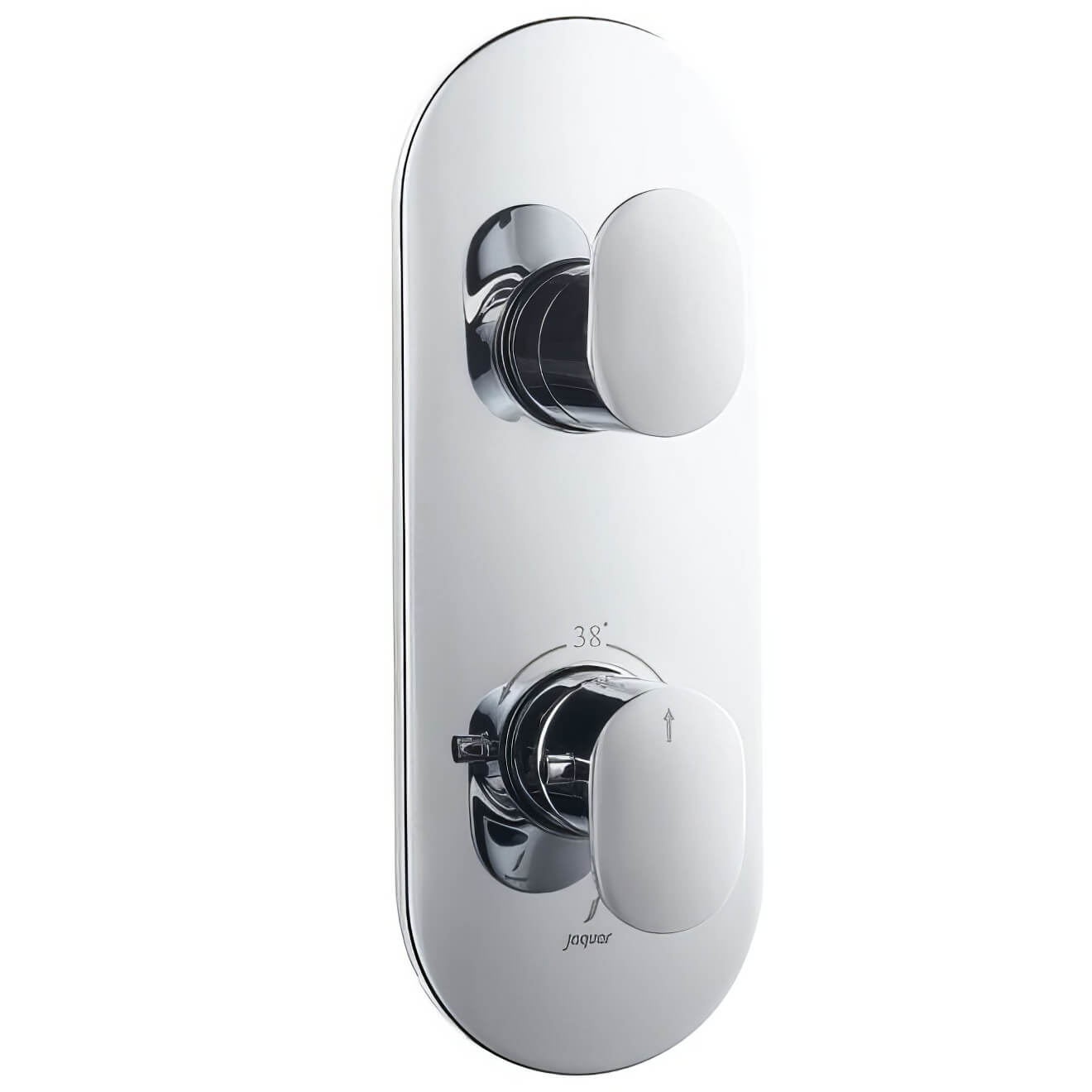

Jaquar Opal Prime Concealed Thermostatic Shower Valve With Diverter

Jaquar Opal Prime OPP-CHR-15681KPM Details

Jaquar Opal Prime Concealed Thermostatic Shower Valve With Diverter.

Key Features

✔Protected against backflow
✔Crafted using premium quality brass material
✔Ten-year warranty from the manufacturer against manufacturing defects
✔Available in 7 finishes: Chrome, Brass Matt, Black Chrome, Black Matt, Antique Bronze, Antique Copper, Gold Bright PVD

Available in 2 variants: 2-Outlets, 3-Outlets
Wall-mounted installation
Portrait/Vertical orientation
Backplate Size [mm]: 105mm x 290mm [Width x Height]
Backplate Size [cm]: 10.5cm x 29cm [Width x Height]
Connections: 3/4-Inch BSP
Supplied with in-wall part
Cartridges made of high-performance thermostatic polymer materials that meet the global standards for high and low-pressure
Thermoplastic polymer minimises lime-scale build-up
Standard temperature range: 15°C to 60°C (59-104˚F)
Shower mixer contains ceramic cartridge for diverting water to the outlets
Recommended water pressure: 0.2 bar - 5 bar
Flow rate for 2-outlet valve: 42 lpm @ 3 bar
Flow rate for 3-outlet valve: 52 lpm @ 3 bar
Refer to the technical drawing for more size details
The images shown are for illustration purposes only

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Opal Prime
⤷ Colour
: Chrome
⤷ Shape
: Round
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Inlet Connections
: 3/4-Inch BSP
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Handle Style
: Lever
⤷ Temperature Control
: Thermostatic

⤷ Backplate Width
: 105
⤷ Backplate Height
: 290
⤷ Number of Outlet
: 2 | 3
⤷ Diverter Included
: Yes
⤷ Orientation
: Portrait
⤷ Product Type
: Thermostatic Shower Valve
⤷ Plumbing Option
: Concealed
⤷ Maximum Operating Pressure (Bar)
: 5
⤷ Concealed Body Included
: Yes
⤷ Cartridge Included
: Yes

Technical Images

Jaquar Opal Prime Concealed Thermostatic Shower Valve With Diverter

£343.37

RRP: ~~£464.00~~

STOCK AVAILABLITY: 6 Working Days Approx

QS Supplies

5 Features Included In This Product Explained

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Diverter

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...
