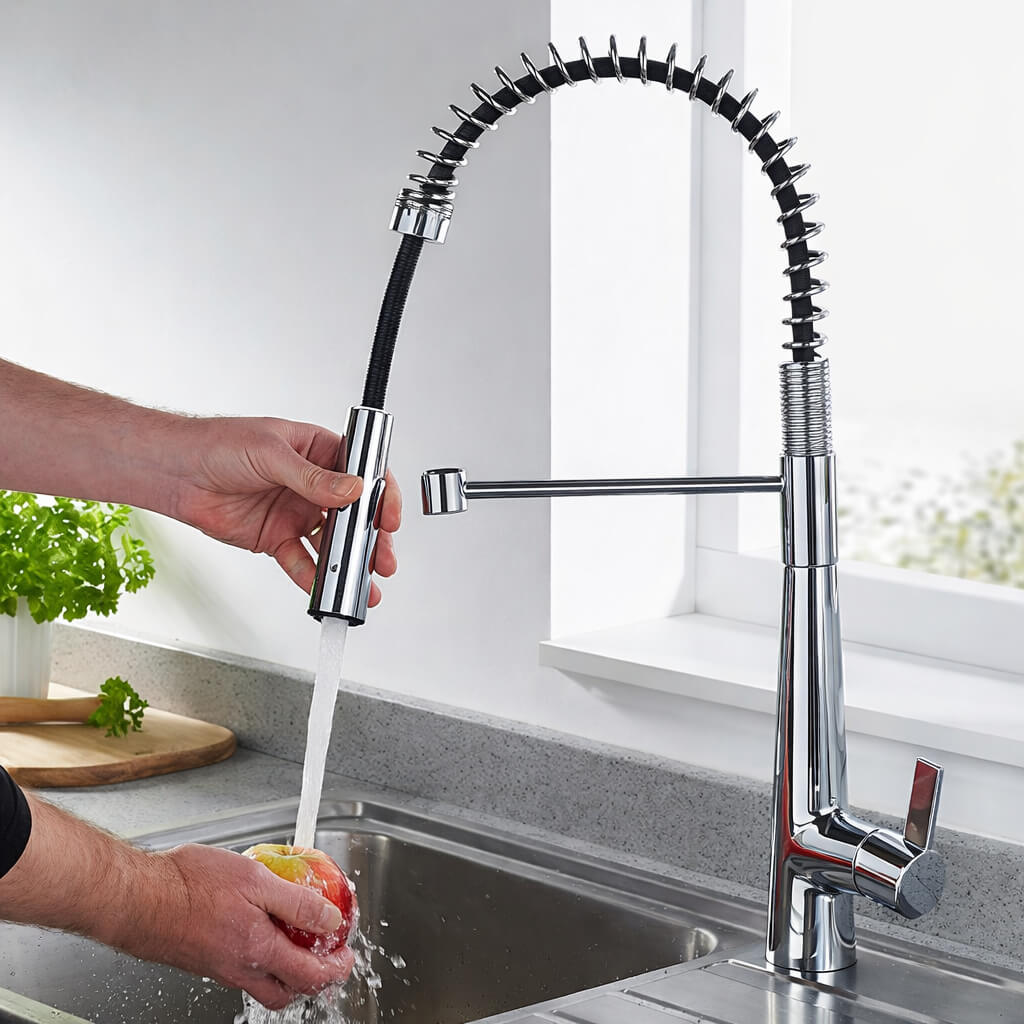

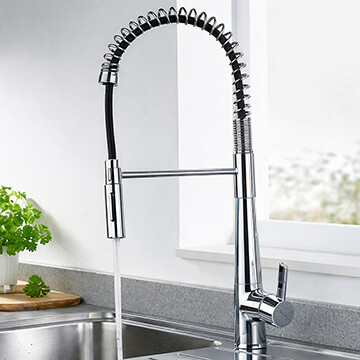

Bristan Axia Professional Kitchen Sink Mixer Tap With Pull-Down Hose And Eco Start

Axia AX PROSNK C Details

Bristan Axia Professional Kitchen Sink Mixer Tap With Pull-Down Hose And Eco Start.

Manufacturing code of this item: AX PROSNK C

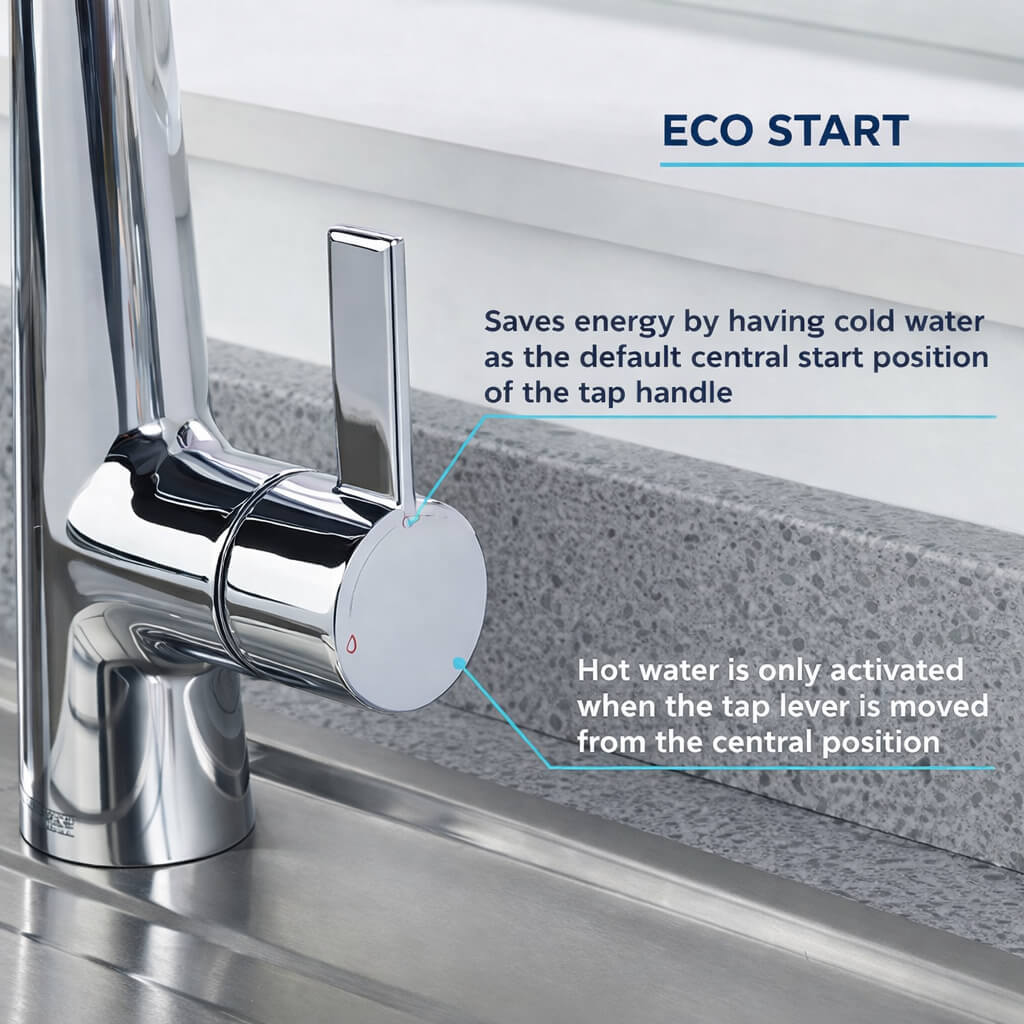

Eco Start technology saves energy by having cold water as the default upright start position of the tap handle
Hot water is only activated when the tap lever is moved from the upright start position, so your boiler is not unnecessarily fired up
Eco Start technology saves energy by having cold water as the default central start position of the tap handle
Hot water is only activated when the tap lever is moved from the central position, so your boiler is not unnecessarily fired up
Incorporates with flexible tails and fixing kit
Long-life ceramic cartridge for added durability and ease of use
High-quality metal fixings for security and durability
Size in [mm]: 115mm x 255mm x 475mm [Width x Depth x Height]
Size in [cm]: 11.5cm x 25.5cm x 47.5cm [Width x Depth x Height]
Base to spout height: 190mm [19cm]
Centre of inlet to centre of outlet: 230mm [23cm]
Connection inlet: 1/2 inch BSP flexible tails
Connection outlet: Aerator handset
Cartridge type: 35mm Eco-Start cartridge
Suitable for high water pressure systems
Works on a minimum of 1.5 bar to a maximum of 5.0 bar water pressure
Maximum hot water temperature: 60°C
Maximum static pressure: 10 bar
Download the installation instructions PDF and product data sheet from Additional Info section
Refer to the technical diagram for complete technical dimensions

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Axia
⤷ Water Activation
: By Lifting/Tilting
⤷ Handle Position
: Right Hand
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Stainless Steel, ABS
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Swivel

⤷ Valve/Cartridge Type
: 35mm Eco-Start Cartridge
⤷ Spout Swivel
: Yes
⤷ Base To Spout
: 190
⤷ Spout Reach
: 230
⤷ Overall Height
: 475
⤷ Width
: 115
⤷ Minimum Operating Pressure (Bar)
: 1.5
⤷ Handle Style
: Lever
⤷ Pull Out Spray
: Yes
⤷ Barcode
: 5014868080680
⤷ Product Type
: Kitchen Sink Mixer Tap

Additional Info & Downloads

Download the Product Data Sheet Pdf File Download the Installation Instructions Pdf File

Bristan Axia Professional Kitchen Sink Mixer Tap With Pull-Down Hose And Eco Start

£104.54

RRP: ~~£187.00~~

IN-STOCK

Delivery in 3 Working Days Approx.

QS Supplies

5 Features Included In This Product Explained

Swivel-Spout

The respective apparatus is engineered with the ability to move sideways or at certain angles, which helps them cover a greater area than would be possible in a stationary position.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Secure Fix

The design features metal fixings that secure your tap, preventing any movement or rotation during use.

Luminance Chrome

It is a hard-wearing chrome plating which is salt-tested and scratch-proof for durable, long-lasting use.

Precise Glide

It comes incorporated with ceramic cartridges for long life with precise control for smooth, leak-free use.
