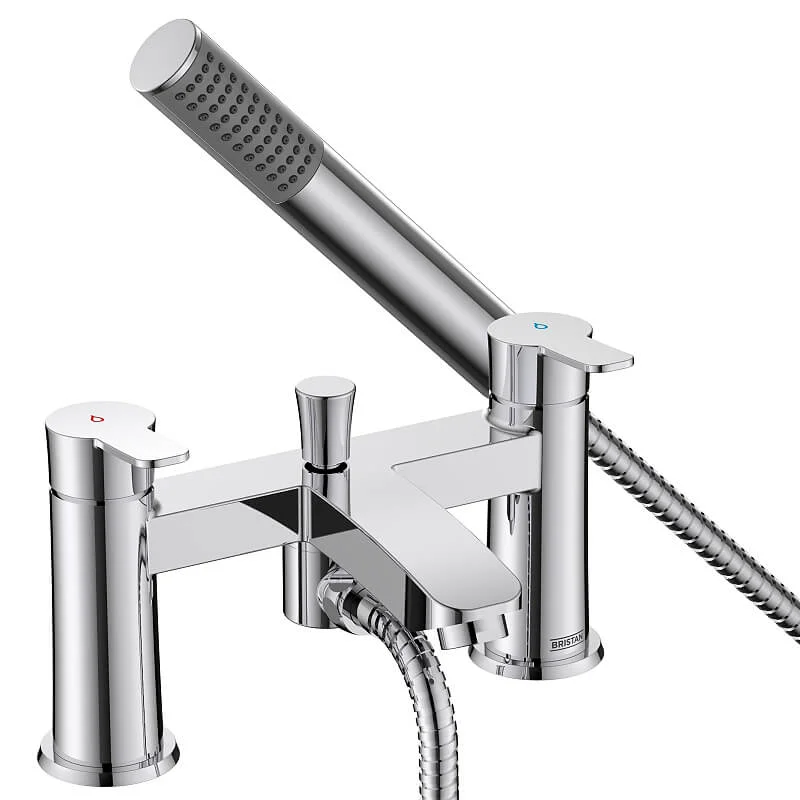

Bristan Appeal Deck Mounted Bath Shower Mixer Tap

Appeal APL BF C Details

Bristan Appeal Deck Mounted Bath Shower Mixer Tap

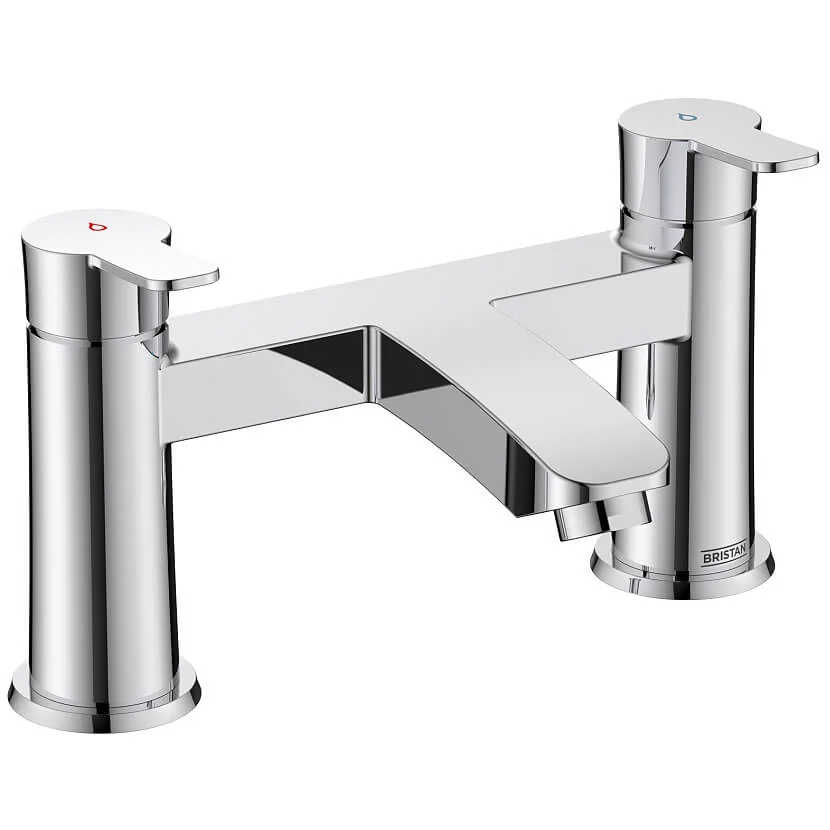

Available in 2 variations: With and Without Kit
Available In 3 Finishes: Chrome, Black and Brushed Brass
Size In [mm]: 230mm x 140mm x 135mm [Width x Depth x Height]
Size In [cm]: 23cm x 14cm x 13.5cm [Width x Depth x Height]
Inlet centre: 180mm - [18cm]
Base to spout: 65mm - [6.5cm]
Centre of inlet to centre of outlet: 105mm [10.5cm]
Installation type: Deck mounted
Handle type: Paddle lever
Connection inlet: 3/4 Inch BSP
Connection outlet: Housed M24 aerator
Number of tap holes: 2
Suitable for low and high water pressure systems
Required minimum 0.2 bar to maximum 5.0 bar water pressure
Maximum hot water temperature: 60°C
Maximum static pressure: 10 bar
Cartridge type: 3/4 Inch short stem ceramic disc valve
Suitable for all plumbing systems
Supplied with 1500mm hose [Tap with kit]
Rub clean handset: Easily remove limescale and debris by rubbing a finger or cloth over the nozzles
Long life 1/4 turn ceramic disc valves for added durability and smooth control
Robust metal fixing nut to secure the tap in place, reducing the risk of loosening over time
Refer to the technical diagram for complete technical dimensions
Download the product data-sheet and installation instructions from our additional info section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Material
: Brass
⤷ Spout type
: Fixed
⤷ Base To Spout
: 65
⤷ Spout Reach
: 105
⤷ Overall Height
: 135
⤷ Inlet Connections
: 3/4 Inch BSP

⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Spray Setting
: 1
⤷ Handle Style
: Lever
⤷ WRAS Approved
: Yes
⤷ Compliance/Approvals/Standard
: KIWA

Additional Info & Downloads

Download the Product Data Sheet Pdf File Download the Installation Instructions Pdf File

Bristan Appeal Bath Shower Mixer Tap - Deck Mounted

£126.70

RRP: ~~£235.00~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

8 Features Included In This Product Explained

Luminance Chrome

It is a hard-wearing chrome plating which is salt-tested and scratch-proof for durable, long-lasting use.

Precise Glide

It comes incorporated with ceramic cartridges for long life with precise control for smooth, leak-free use.

Secure Fix

The design features metal fixings that secure your tap, preventing any movement or rotation during use.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

KIWA Approved

KIWA is a universally accepted Dutch approval standard at par with German DVGW, Austrian OVGW, Swiss SVGW, and French NF approval systems. The KIWA approval means that the products meet a high-quality standard for portable water and gas-related products.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...
