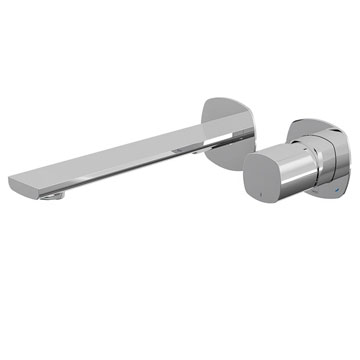

Vado Cameo 2 Hole Wall Mounted Basin Mixer Tap

Vado Cameo CAM-109S-CP Details

Vado Cameo 2 Hole Wall Mounted Basin Mixer Tap

Key Features

✔Ceramic cartridge C-002-N30
✔Fifteen years of guarantee from the manufacturer
✔Choice of 4 different finishes available: Chrome, Matt Black, Matt White and Satin Brass

Comes in two handle choices: Knob and Lever handle
Compatible with high and low water pressure system
Wall mounted installation
2 x 1/2" Inlets
Min-max Wall Mount: 53mm-73mm
Centre of the inlet to centre of outlet: 202.5mm (20.25cm)
Tile-to-mortar guard included
Wall hole drill diameter: Spout 30-60mm, Handle 50-60mm
Refer technical drawing for complete size details
Download the Installation Instruction PDF file from the Additional Info section
Specification for taps with high water pressure system (1.0 Bar):
5 l/min flow regulator
Plumbing System Suitability: Combination Boiler
Specification for taps with low water pressure system (0.2 Bar):
Comes with water flow straightener
Plumbing System Suitability: Gravity System

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Range
: Cameo
⤷ Handle Position
: Right
⤷ Tap Body Shape
: Square
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 1
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ No. of Holes Required
: 2

⤷ Spout type
: Fixed
⤷ Valve/Cartridge Type
: Ceramic
⤷ Spout Reach
: 202.5
⤷ Inlet Centres
: 100
⤷ Min-Max Wall Mount
: 53-73
⤷ Inlet Connections
: 1/2 Inch
⤷ Minimum Operating Pressure (Bar)
: 1.0/0.2
⤷ Handle Style
: Lever
⤷ Flow Regulator Included
: Yes

Additional Info & Downloads

Download the Installation Instructions Pdf File Download the User Guide Pdf File

Technical Images

Vado Cameo 2 Hole Wall Mounted Basin Mixer Tap

£167.75

RRP: ~~£275.00~~

STOCK AVAILABLITY: 5-7 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

Flow Regulator

As the name suggests, a flow regulator is a simple device designed to regulate water flow to a predetermined level. The job of a flow regulator is to stop water wastage. For instance, if the regular flow rate through a tap is 20 litres per minute, a flow regulator can reduce the flow rate between 6 to 12 litres per minute to complete the desired chore without feeling low pressure.

Flow Straightener

A flow straightener, also called Honeycomb, is a fitting which directs the flow of water from the outlet in a way as to straighten the stream. They are generally not flow-regulated and differ in design from the pressure-compensating aerator.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
