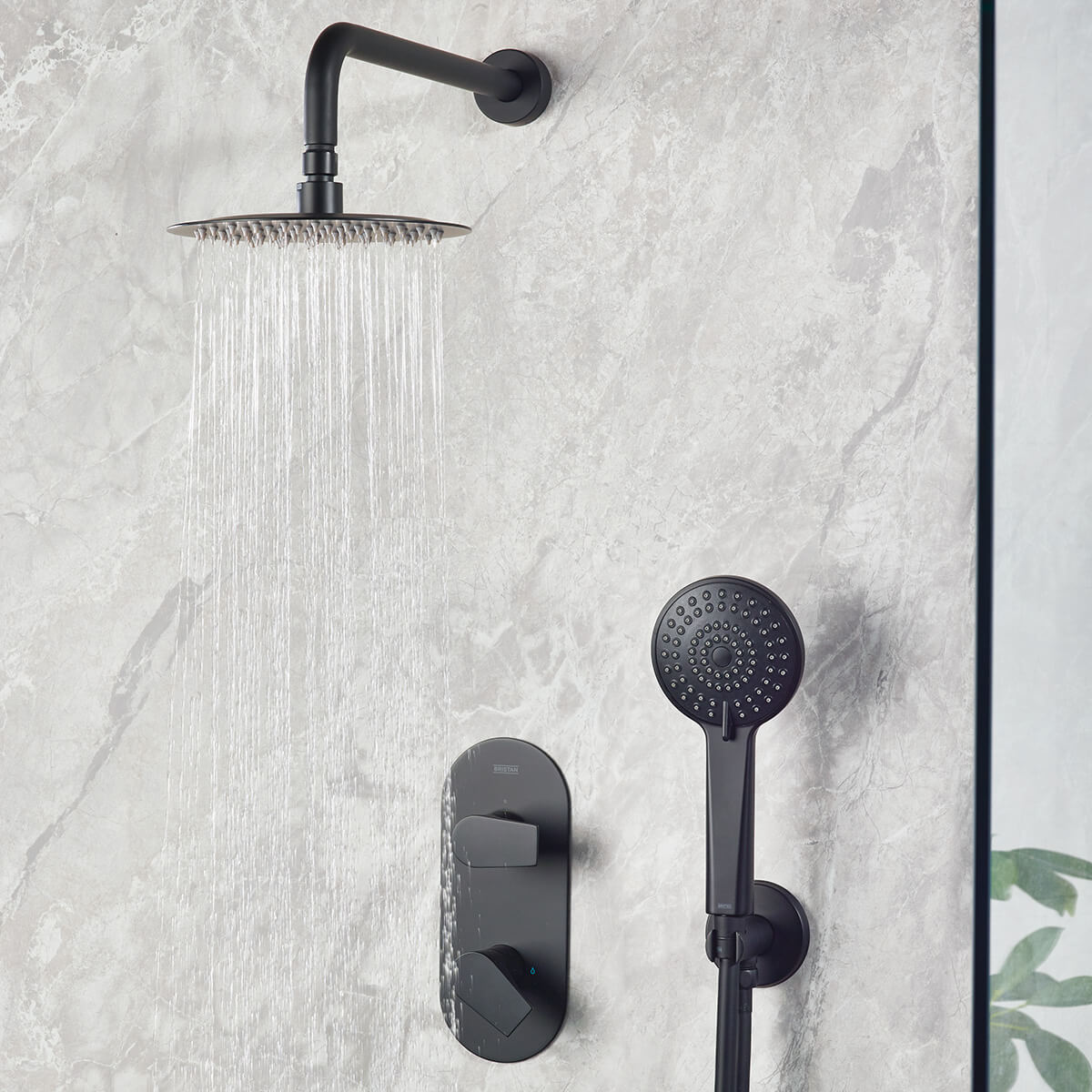

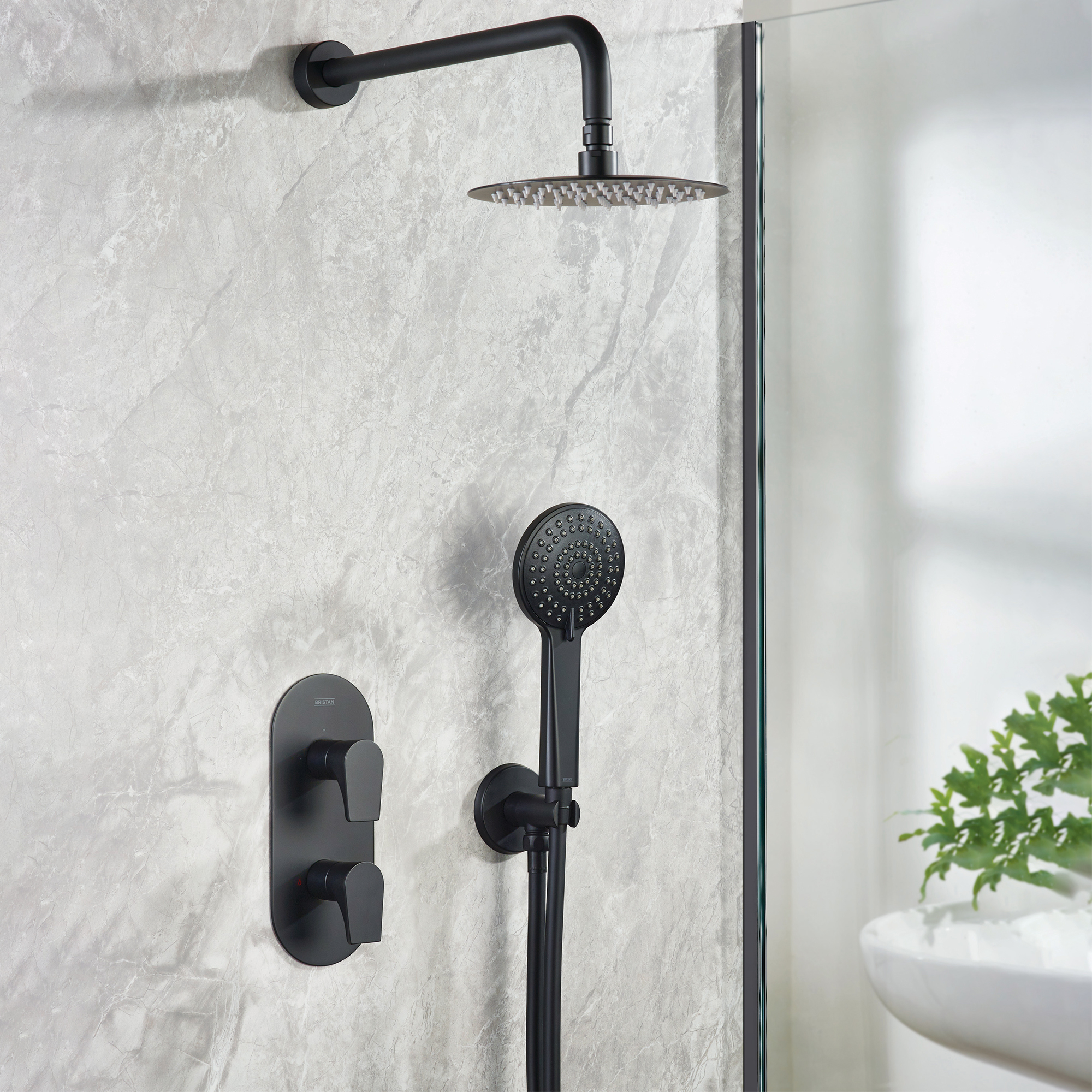

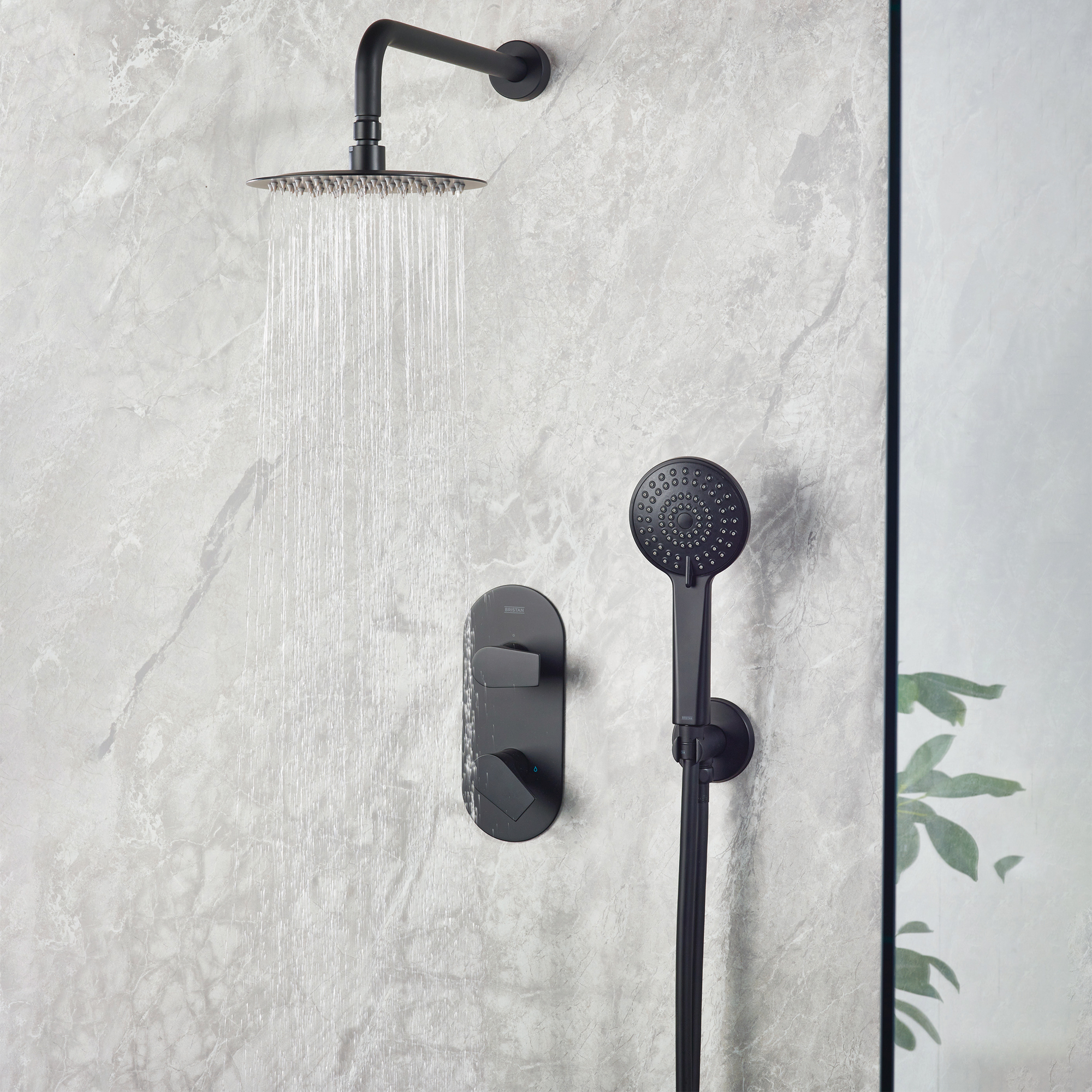

Bristan Hourglass Black Concealed Dual Control Thermostatic Showerset With Riser kit

Hourglass HOURGLASS BLK SHWR PK Details

Manufacturing code of this product: HOURGLASS BLK SHWR PK

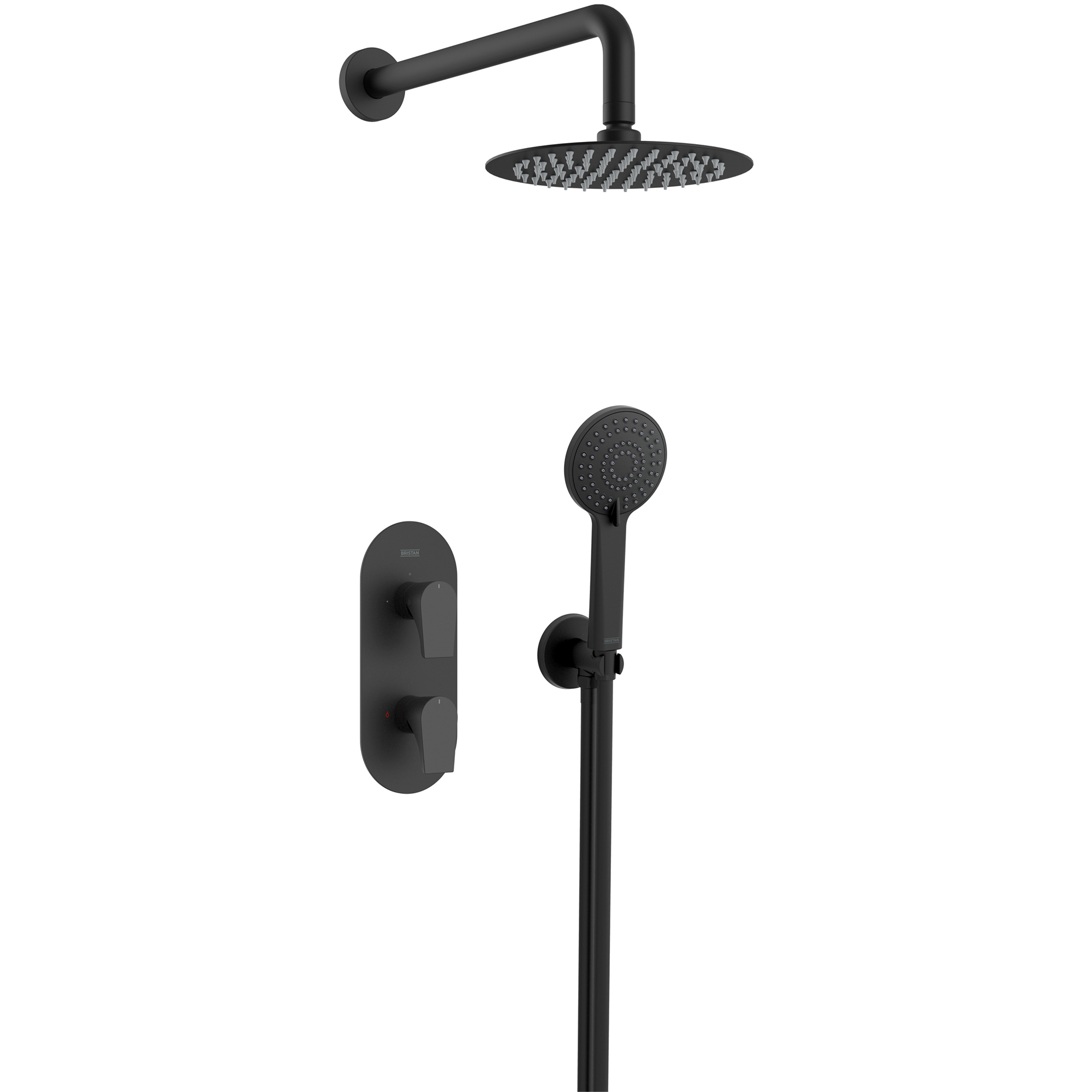

Pack includes: Shower valve with integral two outlet diverter, slimline 200mm round drench head with shower arm, and shower kit with an adjustable riser rail plus a multi-function handset and wall outlet
Size of riser rail In [mm]: 115mm x 80mm x 725mm [Width x Depth x Height]
Size of riser rail In [cm]: 11.5cm x 8cm x 72.5cm [Width x Depth x Height]

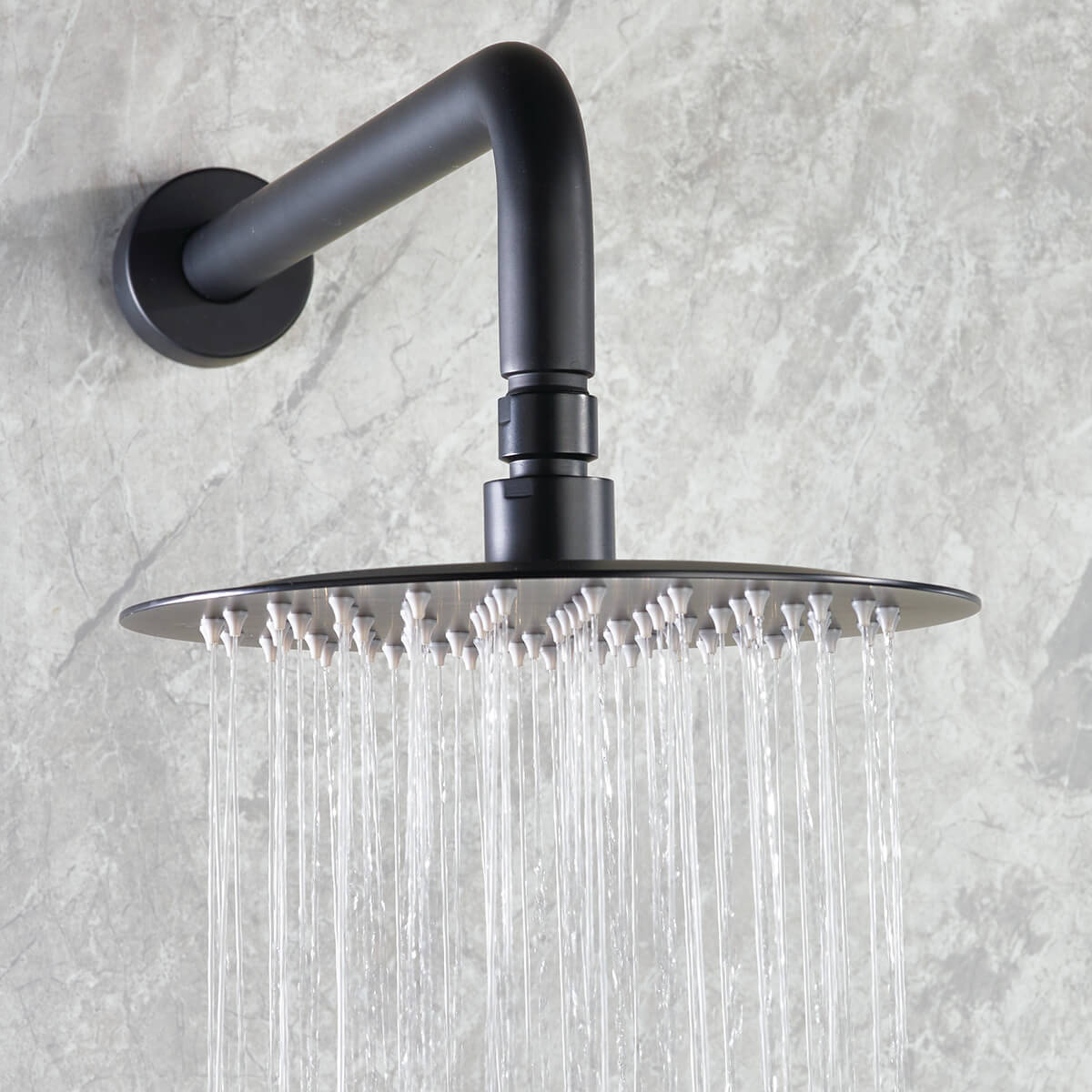

Size of shower head: Ø200mm [20cm]
Length of shower arm: 370mm [37cm]

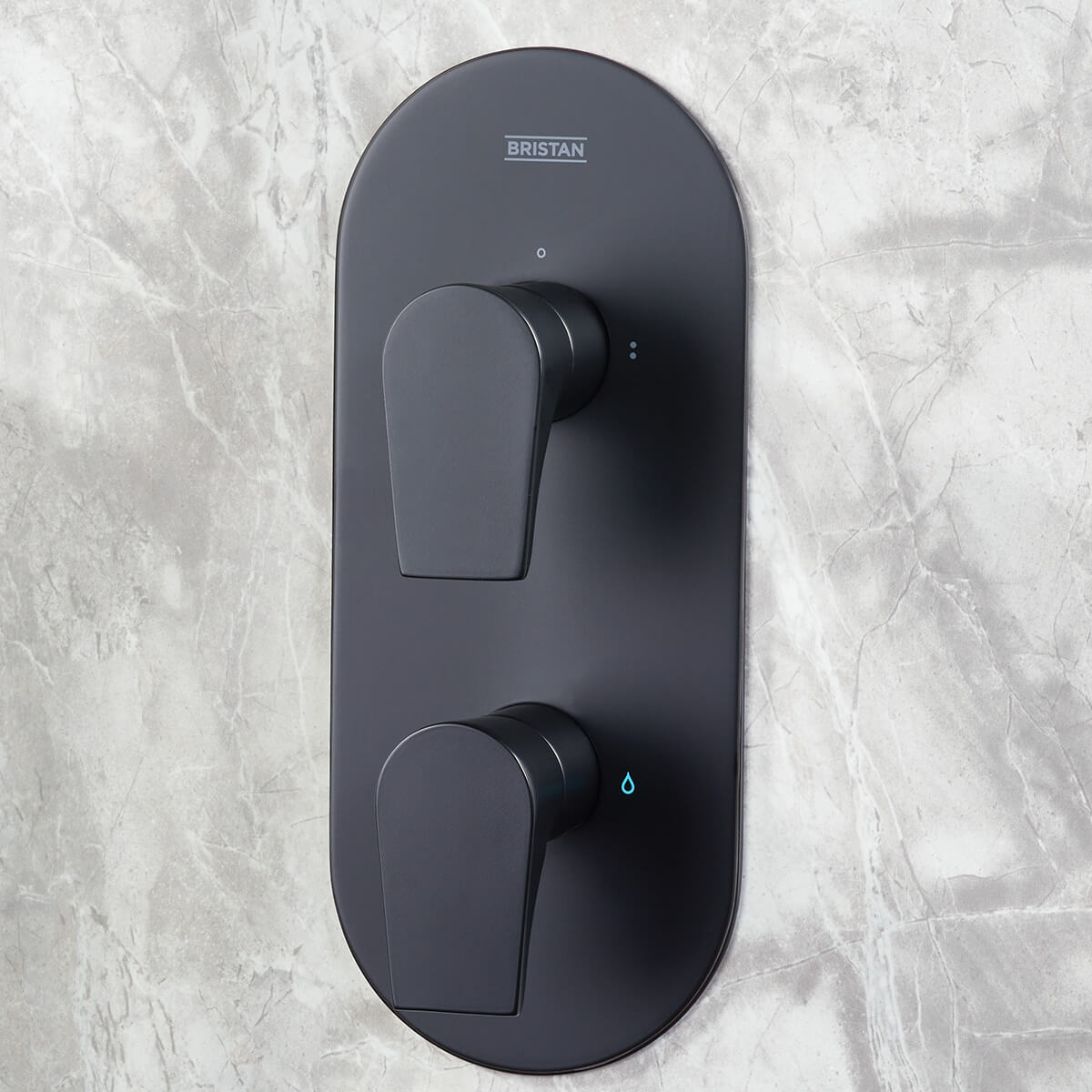

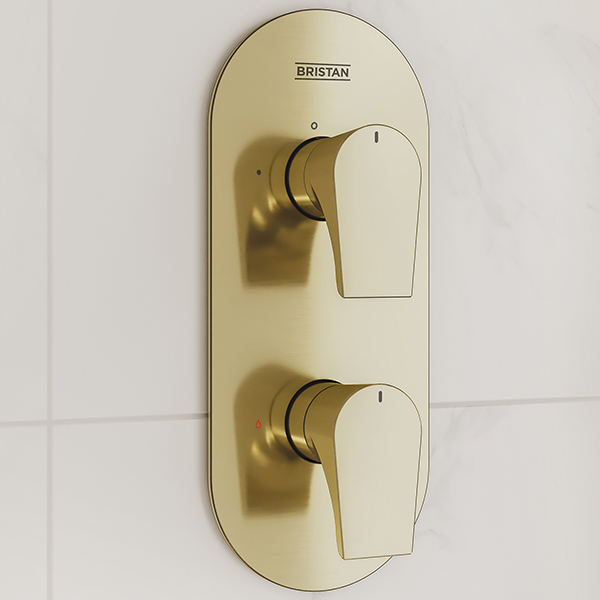

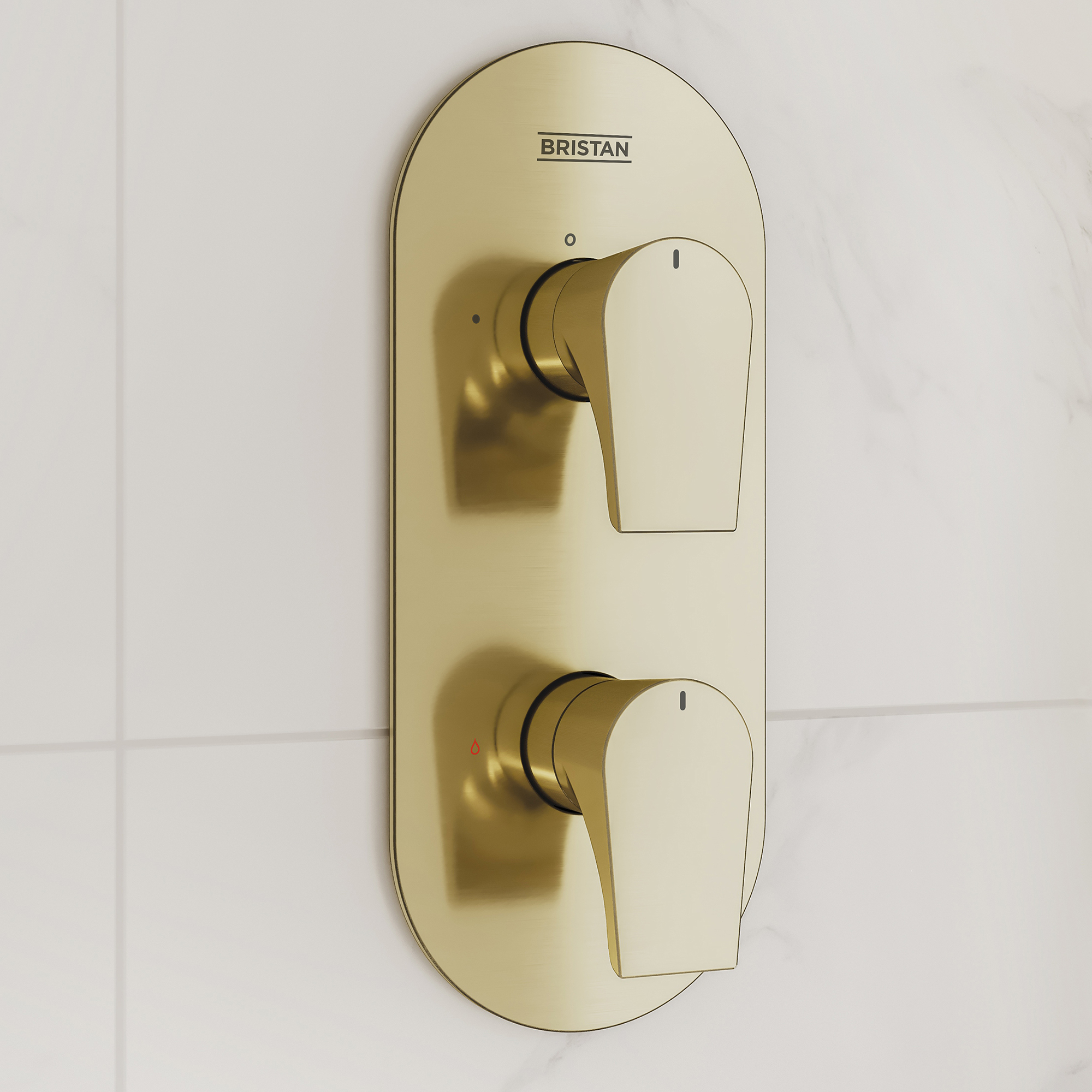

Size of the valve: 100mm [10cm] x 240mm [24cm] [Width x Height]

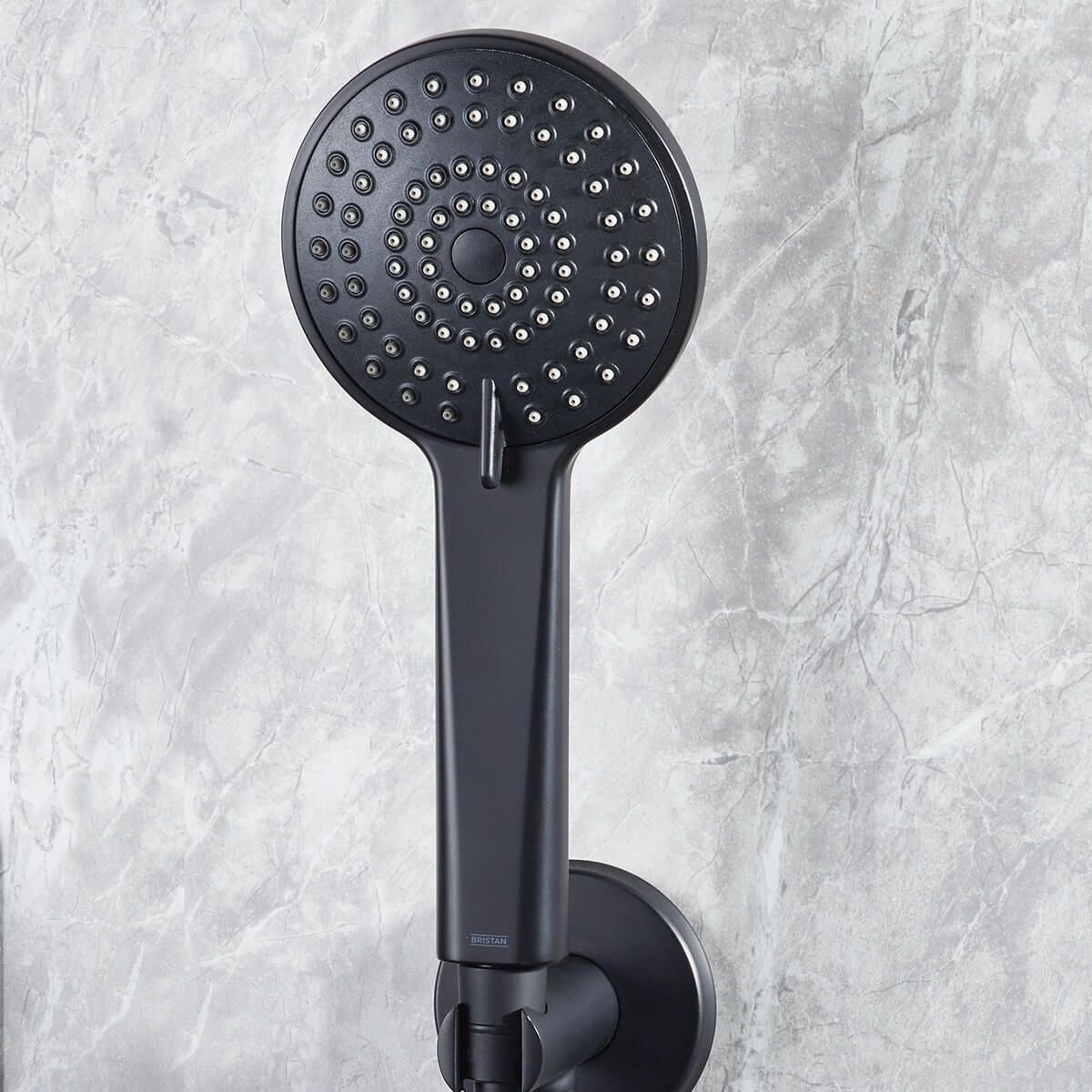

Size of handset: 110mm [11cm] x 250mm [25cm] [Width x Height]
No of controls: 2
Shower type: Dual control
Shower head type: Fixed head, adjustable
Maximum hot water supply temperature: 65ºC
Maximum static pressure: 10 bar
Connection inlet: 15mm compression
Connection outlet: G 1/2 Inch
Check valve included: Yes
Suitable for all plumbing systems, ideally balanced
Suitable for low and high water pressure systems
Required minimum 0.2 bar to maximum 5 bar water pressure
The cartridge can be accessed from the front for easy servicing
Fitting depth, including plasterboard and tiles: 60mm - 75mm
Valve/cartridge type: Thermostatic cartridge & 3/4 Inch ceramic disc valve
Rub clean drench head: Easily remove limescale and debris by rubbing a finger or cloth over the nozzles
Slim design recessed shower valve will fit into a cavity space as small as 35mm for hassle-free installation
Thermostatic cartridge with preset temperature safety stop at 42°C for family-safe showering
A higher temperature can be selected, if required, by selecting the override function
Dual control: Flow and temperature are operated separately, giving accurate control of both
Automatic shut-off in the event of hot or cold water supply failure for family-safe showering
Refer to the technical diagram for complete technical dimensions
Download the product data sheet and installation instructions from our additional info section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Black
⤷ Warranty/Guarantee
: 15 Years
⤷ Material
: Brass And ABS
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Thermostatic Cartridge & 3/4 Inch Ceramic Disc Valve
⤷ Inlet Centres
: 150
⤷ Inlet Connections
: G1/2 Inch
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Hose Included
: Yes
⤷ Temperature Control
: Thermostatic
⤷ Backplate Width
: 100

⤷ Backplate Height
: 240
⤷ Diverter Included
: Yes
⤷ Product Type
: Shower Set
⤷ Showerhead Finish
: Black
⤷ Riser Rail & Kit Finish
: Black
⤷ Handset Included
: Yes
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: Ø200
⤷ Rail Length
: 725
⤷ Hose Retainer Included
: Yes
⤷ Outlet Elbow Included
: Yes

Additional Info & Downloads

Download the Product Data Sheet Pdf File Download the Installation Instructions Pdf File

Bristan Hourglass Black Concealed Dual-Control Thermostatic Showerset With Riser kit

£375.08

RRP: ~~£710.00~~

IN-STOCK

Delivery in 3 Working Days Approx.

QS Supplies

8 Features Included In This Product Explained

2 Outlets 1 On

There are two outlet connections, of which only one can be used at a given time.

Rub Clean

Any limescale deposits can simply be wiped clean with a clean cloth - no need to scrub or use harsh cleaners.

Drenching

Drenching in Bristan showers means these showers soak you thoroughly, giving you the most indulgent showering experience.

Family Safe

This feature corresponds with the Thermostatic mechanism and automatic safety stops, preventing running water from getting either too hot or too cold.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

ABS Plastic

ABS, or Acrylonitrile butadiene styrene, is a thermoplastic polymer used to manufacture many non-food products. It is inexpensive and can be easily shaped and machined. It also features high strength, stiffness, increased chemical and temperature resistance, electrical insulation and a glossy look.
