Duravit Qatego Variable Width Console With 1 Cut Out For Washbasin

Duravit Qatego QA4699018180000 Details

Duravit Qatego Variable Width Console With 1 Cut Out For Washbasin.

Key Features

✔Design by Studio F. A. Porsche
✔Supplied with Console Support
✔Comes with 1 Cut Out for washbasin
✔5 Years guarantee from Duravit against manufacturing defects

Width available between 1200mm to 2000mm [Optional]
Available in 8 finishes [Optional]
Suitable to use with Washbasin with Stone Console - Refer Compatible Basin tab
Size: Depth 480mm x Height 170mm
Size: Depth 48cm x Height 17cm
Concrete wall fixing [Optional]
Additional Console Support [Optional]

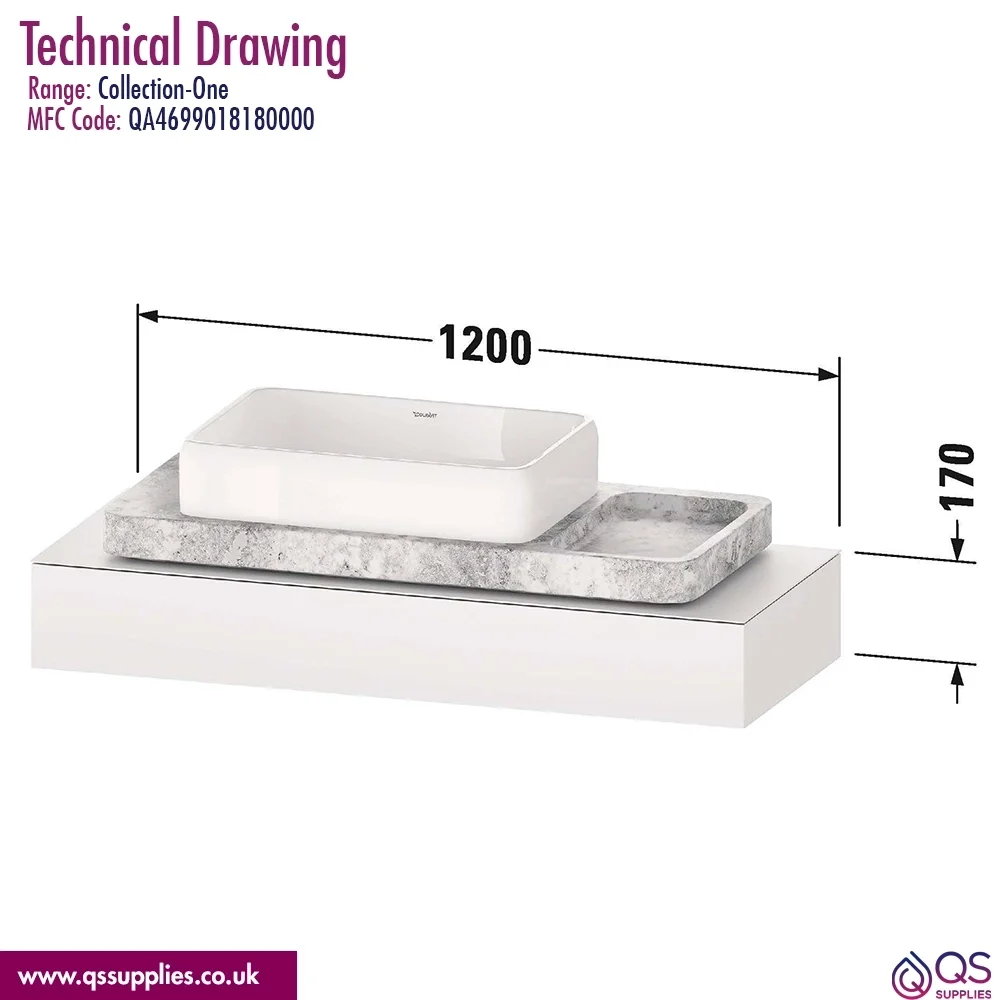

Refer to the technical drawing for more technical specification
Customer Datasheet and Installation Instruction PDF available in Additional Info tab
Taps, Basin and Stone Console Shown in the image are not included

Please Note: If the ceramic is placed on the left or right, an additional console support is required, for widths > 1400 mm. If the ceramic is placed in the middle, two additional bracket supports are necessary from a width > 1600 mm.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Qatego
⤷ Colour
: White Matt
⤷ Weight in kg
: 36
⤷ Country of Origin
: Germany
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: 3-Ply Chipboard
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted

⤷ Width
: 1200
⤷ Depth
: 480
⤷ Product Type
: Console Only
⤷ Sink Included
: Sold Separately
⤷ Height / Thickness
: 170
⤷ Can be combined with basin
: Yes
⤷ No. of Cut-out For Basin
: 1
⤷ Bracket Included
: Yes

Additional Info & Downloads

Download the Customer DataSheet Pdf File Download the Optional Basin DataSheet Pdf File Download the Installation Instructions Pdf File

Technical Images

Duravit Qatego Variable Width Console With 1 Cut Out For Washbasin

Add-Ons

Concrete Wall Fixing Set

Duravit presents a strong fixing set that are suitable for concrete wall. Please note: Images shown are for illustration purpose only.

No Option Selected
OP-239551 - Concrete Wall Fixing + £67.87

Console Support

Diamond Black Matt finish console support from Duravit are highly esential to provide support to the console. Please note: Image shown is for illustration purpose only.
