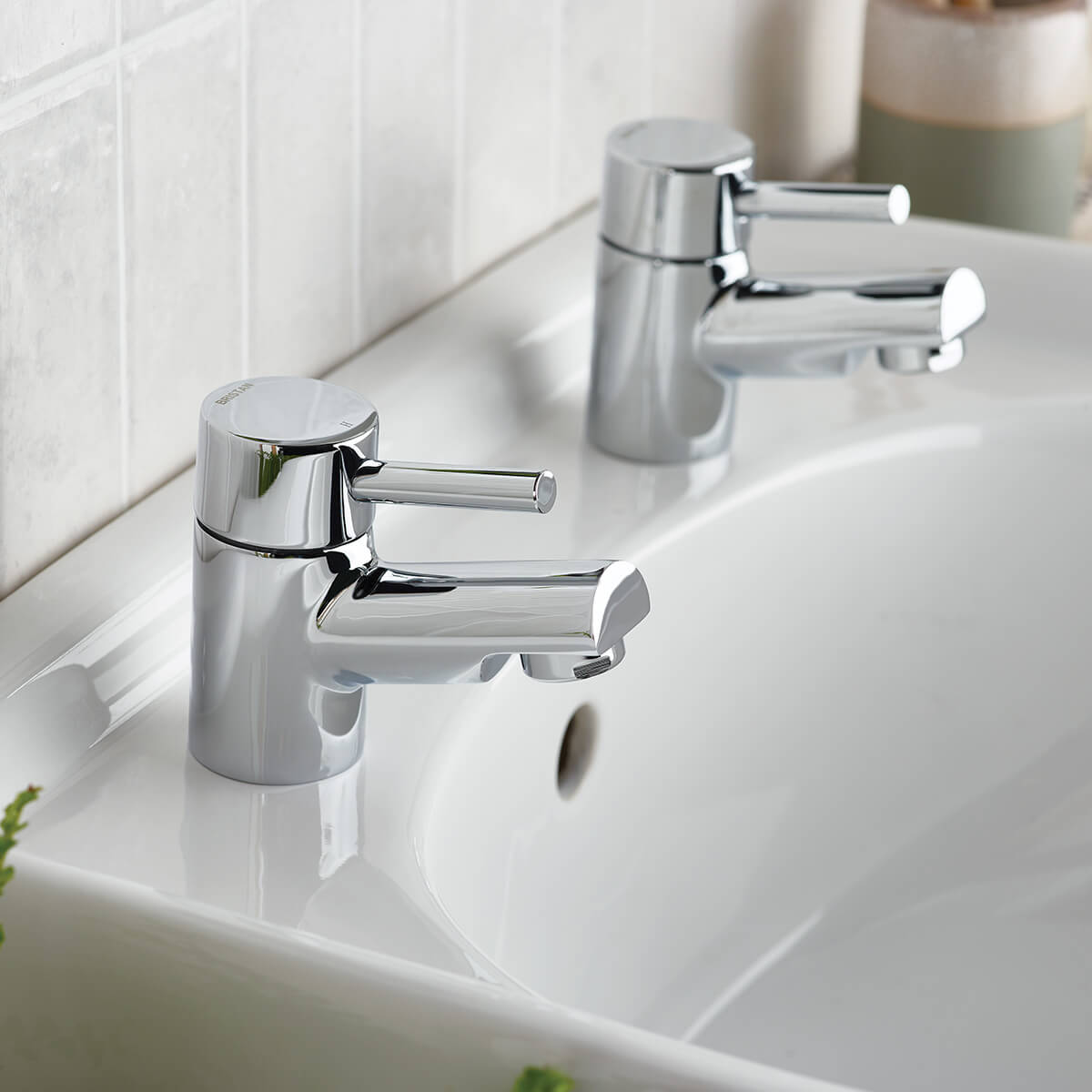

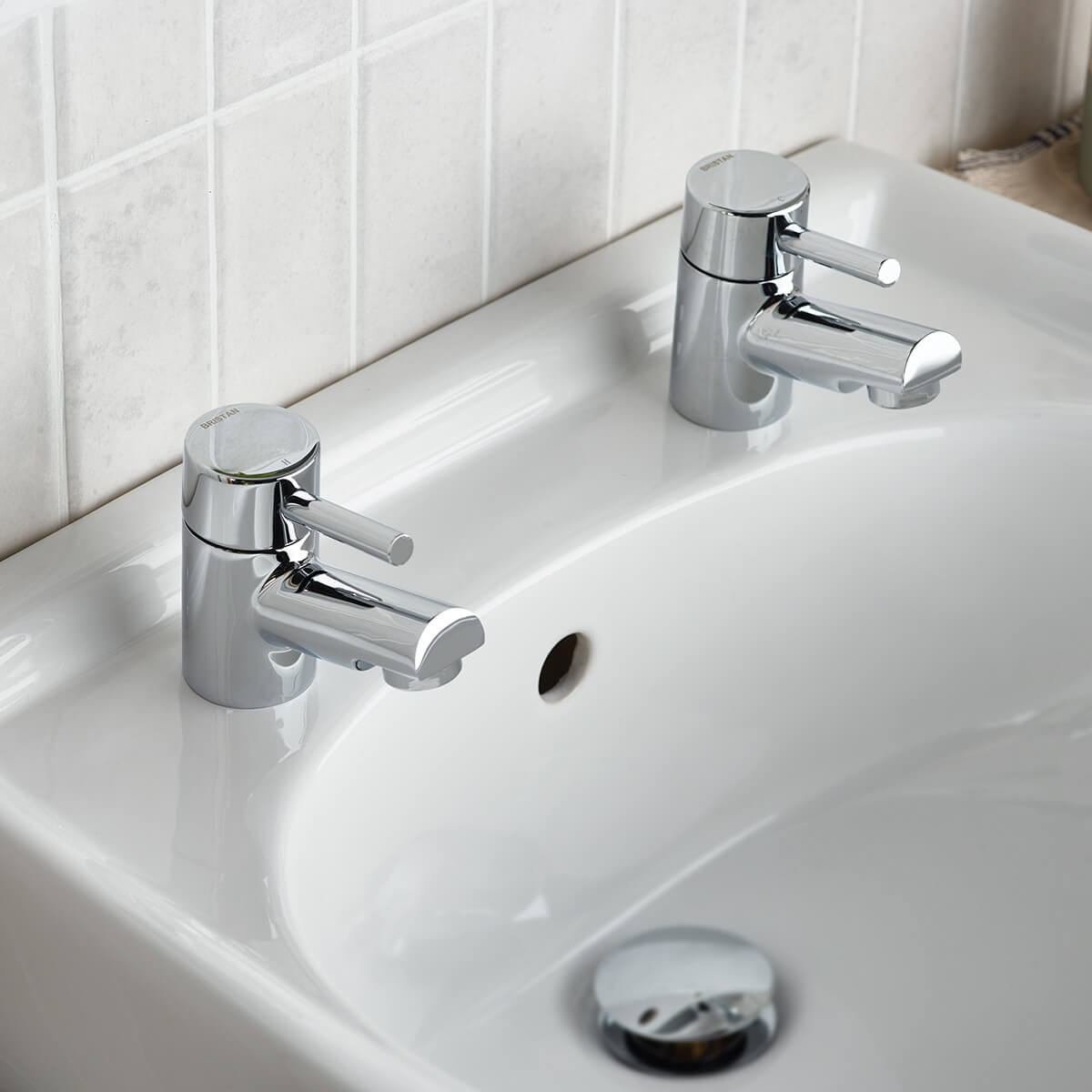

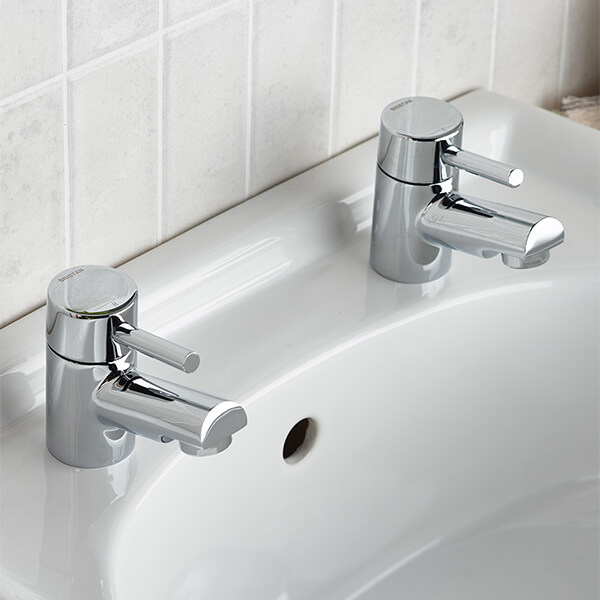

Bristan Prism Chrome Deck Mounted Basin Taps

Prism PM 1/2 E4 C Details

Available in 2 variations: 4 Litres per minute and 6 Litres per minute
Size In [mm]: 45mm x 110mm x 80mm [Width x Depth x Height]
Size In [cm]: 4.5cm x 11cm x 8cm [Width x Depth x Height]
Base to spout: 40mm [4cm]
Centre of inlet to centre of outlet: 75mm [7.5cm]
Number of tap holes: 2
Handle type: Stick handle
Installation type: Deck mounted
Connection inlet: 1/2 Inch BSP
Connection outlet: M24 Flow straightener
Maximum hot water temperature: 65°C
Maximum static pressure: 10 bar
Valve type: 1/2 Inch ceramic disc valve
Suitable for all plumbing systems
Suitable for low and high water pressure systems
Required minimum 0.2 bar to maximum 5.0 bar water pressure
Refer to the technical diagram for complete technical dimensions
Download the product data sheet and installation instructions from our additional info section
Features of Eco 4 Taps:
Supplied with 2 x 2 litre per minute flow regulators, which can be inserted into the threaded tail to reduce water consumption and increase water efficiency (Flow Regulator accurate +/- 10%)
Features of Eco 6 Taps:
Supplied with 2 x 3 litre per minute flow regulators, which can be inserted into the threaded tail to reduce water consumption and increase water efficiency (Flow Regulator accurate +/- 10%)

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Range
: Prism
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upwards
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 2

⤷ Valve/Cartridge Type
: 1/2 Inch Ceramic Disc Valve
⤷ Base To Spout
: 40
⤷ Spout Reach
: 75
⤷ Overall Height
: 80
⤷ Width
: 45
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Handle Style
: Stick
⤷ Barcode
: 5014868012469
⤷ Product Type
: Basin Pillar Taps

Additional Info & Downloads

Download the Product Data Sheet Pdf File Download the Installation Instructions Pdf File

Bristan Prism Chrome Deck Mounted Basin Taps

£124.43

RRP: ~~£237.94~~

STOCK AVAILABLITY: 5-7 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Flow Straightener

A flow straightener, also called Honeycomb, is a fitting which directs the flow of water from the outlet in a way as to straighten the stream. They are generally not flow-regulated and differ in design from the pressure-compensating aerator.

Flow Regulator

As the name suggests, a flow regulator is a simple device designed to regulate water flow to a predetermined level. The job of a flow regulator is to stop water wastage. For instance, if the regular flow rate through a tap is 20 litres per minute, a flow regulator can reduce the flow rate between 6 to 12 litres per minute to complete the desired chore without feeling low pressure.
