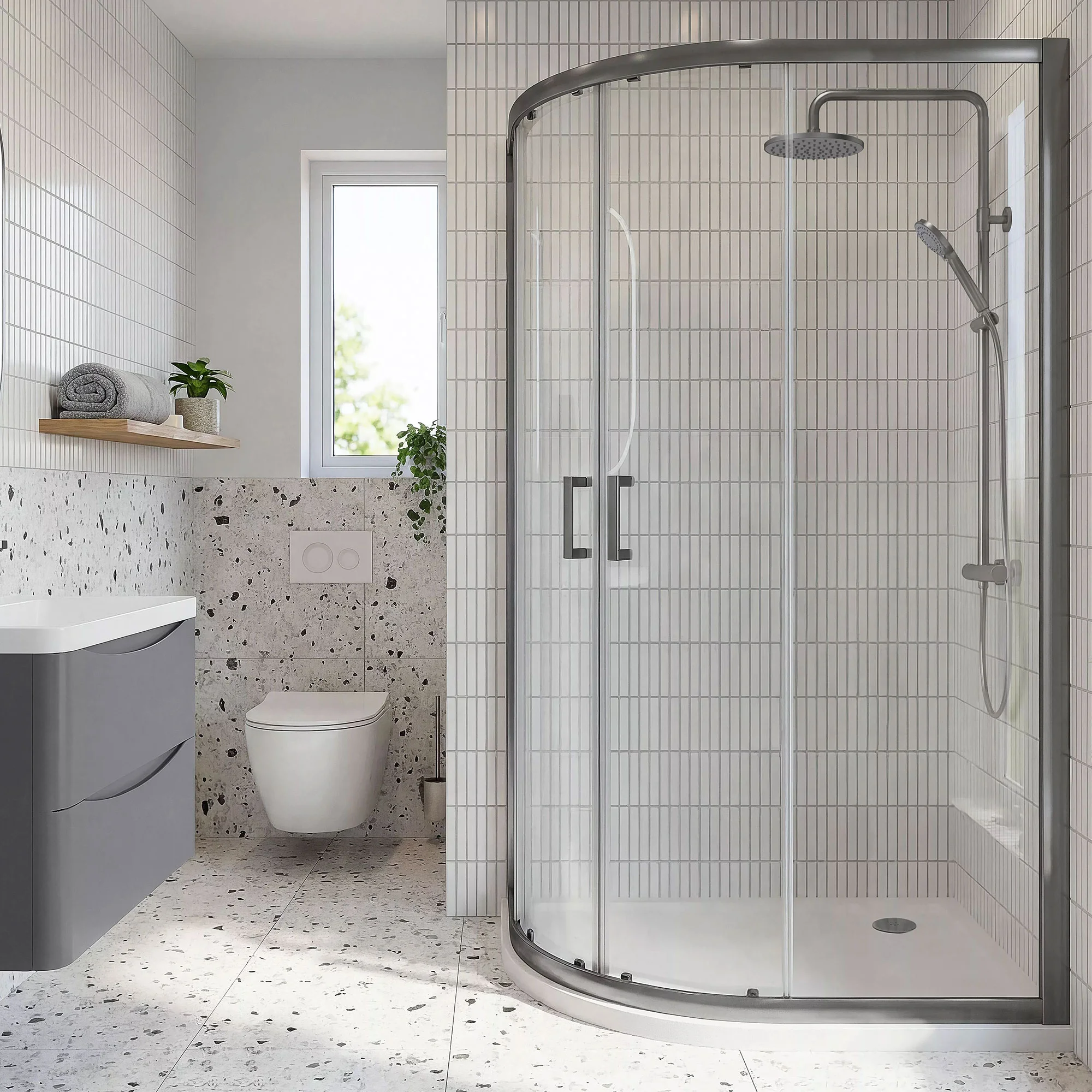

Nuie Rene 1900mm High Offset Quadrant Shower Enclosure

Nuie Rene SMQU769-E6 Details

Nuie Rene 1900mm High Offset Quadrant Shower Enclosure.

Key Features

✔Patented Easyfit profile assembly system
✔Constructed using 6mm (0.6cm) toughened safety glass
✔Reversible design - can be fitted on the left or right-hand
✔Lifetime guarantee from the Nuie against manufacturing defects
✔Choice of different finish: Polished Chrome and Matt Black and Brushed Brass [Optional]

Available in different sizes: 900 x 760mm, 1000 x 800mm, 1000 x 900mm, 1200 x 800 and 1200 x 900mm [Optional]
Profile material: Aluminium
Quick-release wheels for easy clean
Sliding doors for easy access
Height: 1900mm (190cm)
Radius: 538mm (53.8cm)
Supplied with a square D-bar handles
Framed design enclosure
Fixings Included
Handle Material: ABS
Compatible shower tray and waste [Optional]
Profile extension kit [Optional]
Hook [Optional]
Download the Installation Instruction PDF File from the Additional Info Section
Refer to the technical drawing for more technical specifications
The tray shown in the image is not included

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Handle Finish
: Chrome
⤷ Range
: Rene
⤷ Coating
: Without Coating
⤷ Weight in kg
: 41
⤷ Shape
: Offset Quadrant
⤷ Warranty/Guarantee
: Lifetime
⤷ Installation Type
: Corner
⤷ Radius
: 538
⤷ Handle Style
: Square D-Handle
⤷ Waste Included
: Sold Separately
⤷ Width
: 740
⤷ Depth
: 880
⤷ Configuration
: Panels And Doors
⤷ Height
: 1900
⤷ Fixings included
: Yes

⤷ Barcode
: 5056678432426
⤷ Door Type
: Sliding
⤷ Frame Design
: Framed
⤷ Frame / Profile Finish
: Polished Chrome
⤷ Frame Material
: Aluminium
⤷ Glass Type
: Toughened Safety Glass
⤷ Glass Thickness
: 6
⤷ Number Of Doors
: 2
⤷ Door Adjustment
: 735-755 | 875-895
⤷ Entry Width
: 450
⤷ Closing / Opening Mechanism
: Quick Release Rollers
⤷ Tray Included
: Sold Separately
⤷ Handle Included
: Yes
⤷ Tray Compatible
: Yes
⤷ Door Opening
: Reversible

Additional Info & Downloads

Download the Installation Instruction Pdf File

Technical Images

Nuie Rene 1900mm High Offset Quadrant Shower Enclosure

Add-Ons

Enclosure Hook

Robe Hook from Lauren is ideal for framed shower enclosures. This elegant chrome finish hook will make a practical and stylish addition to your shower enclosures.

No Option Selected
OP-37682 - Enclosure Hook + £25.01

Shower Tray

Sleek, strong, easy to fit Pearlstone shower trays from Lauren. The image is for illustration purpose only.

No Option Selected
OP-59390 - Left Handed 1000 x 800 x 40mm + £92.71

£175.00

RRP: ~~£500.00~~

STOCK AVAILABLITY: 5 Working Days Approx

QS Supplies

2 Features Included In This Product Explained

Toughened Safety Glass

Toughened glass, tempered or safety glass as it is rightly called, is five times harder than regular glass of the same size and thickness, which makes it so that it won’t break as easily. It also shatters with scattering as it tends to break into tiny, blunt pieces without harming anyone nearby. Known to have greater thermal strength, this durable material with double glazing has almost twice the soundproofing abilities and provides excellent heat insulation.

Reversible Design

It is a design which allows the product to be fitted either to the right or left, depending on the dimensions of your space.
