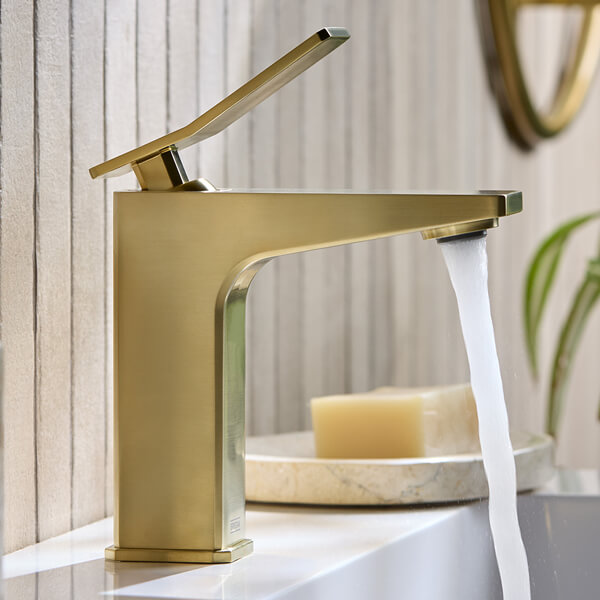

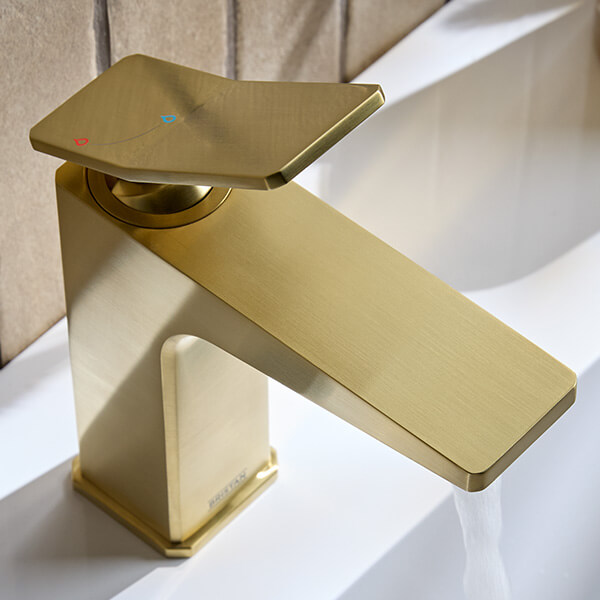

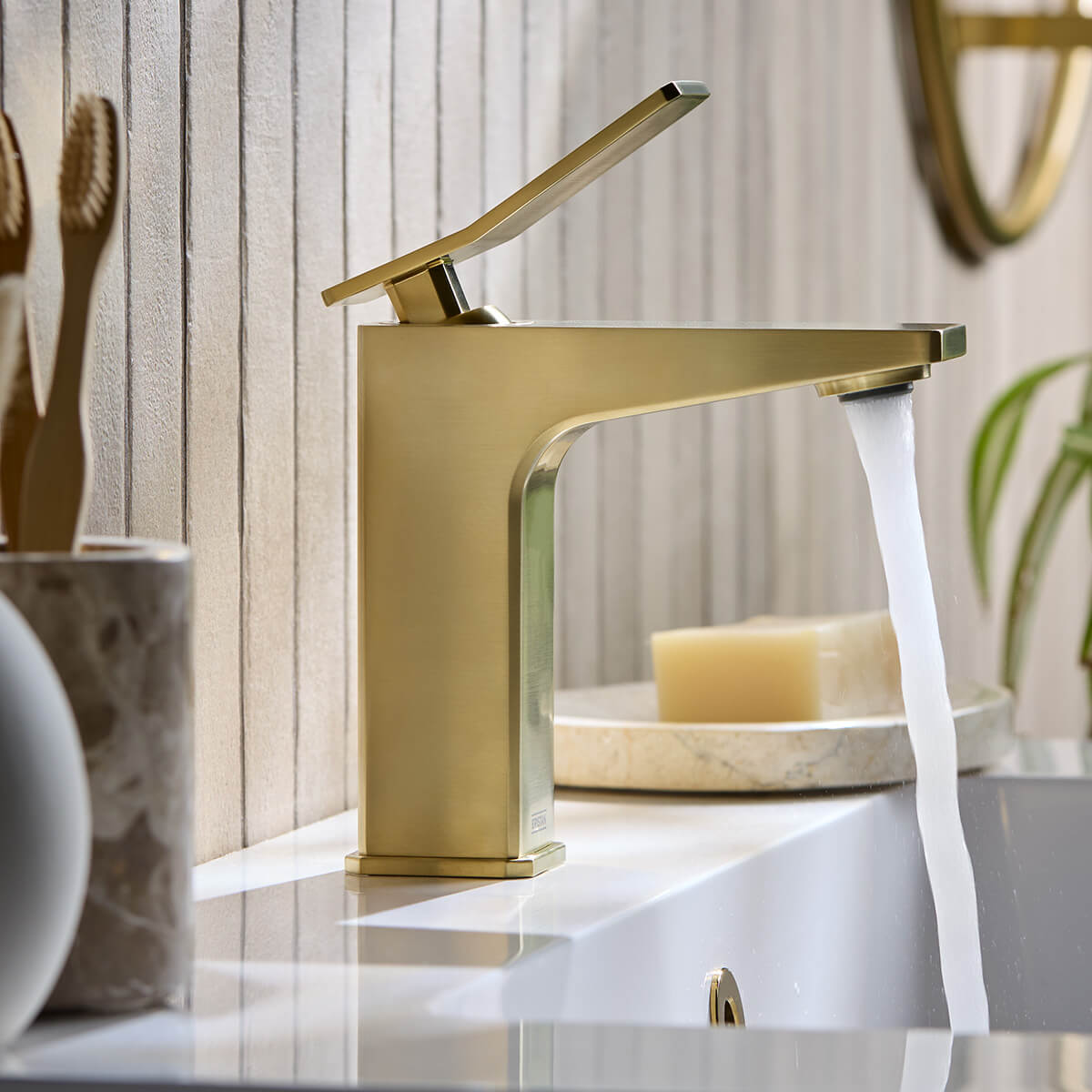

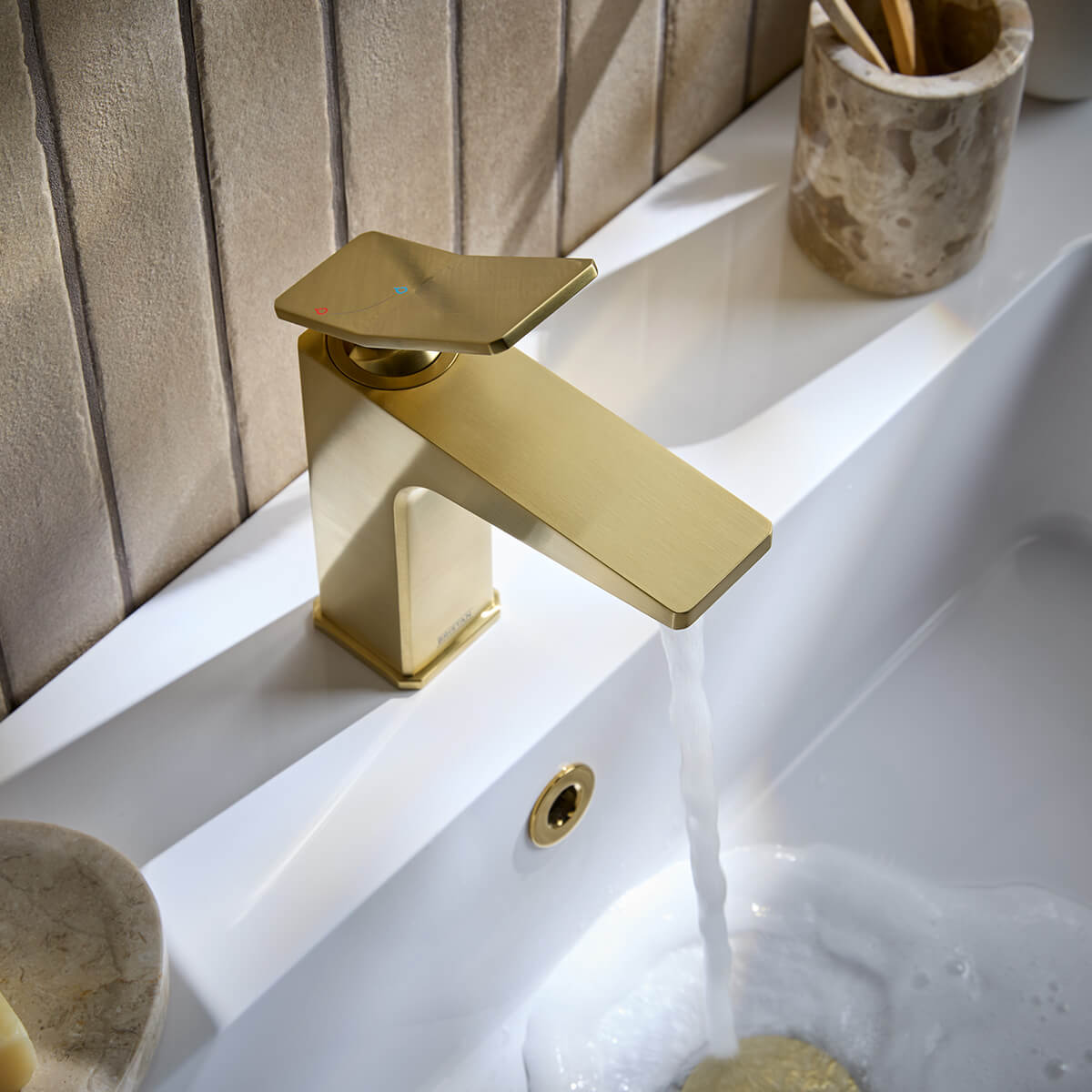

Bristan Tangram Eco Start Basin Mixer Tap With Clicker Waste

Bristan Tangram TAN ES BAS C Details

Bristan Tangram Eco Start Basin Mixer Tap With Clicker Waste.

Eco Start technology saves energy by having cold water as the default central start position of the tap handle
Hot water is only activated when the tap lever is moved from the central position, so your boiler is not unnecessarily fired up
Includes flow regulator, which limits the flow of water to 5 litres per minute, reducing the amount of water you use
Size [mm]: 45mm x 145mm x 160mm [Width x Depth x Height]
Size [cm]: 4.5cm x 14.5cm x 16cm [Width x Depth x Height]
Base to spout: 110mm (11cm)
Spout reach: 105mm (10.5cm)
Easy installation
Supplied with clicker waste
Connection inlet: 1/2 inch BSP flexible tails
Connection outlet: M24 5lpm coin slot aerator
28mm Cold start upper seal cartridge
Required minimum 0.5 bar or above 5 bar water pressure system
Suitable for high water pressure system
Maximum hot water temperature: 60 degree celsius
Maximum static pressure: 10 bar
WRAS approved
Refer to the technical diagram for the complete technical dimensions
Download the installation instruction and technical data sheet PDF from the additional Info section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Tap Body Shape
: Square
⤷ Range
: Tangram
⤷ Handle Position
: Upwards
⤷ Colour
: Chrome, Matt-Black, Brushed-Brass
⤷ Warranty/Guarantee
: 10 years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck-Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Fixed
⤷ Valve/Cartridge Type
: Ceramic Cartridge

⤷ Base To Spout
: 110
⤷ Spout Reach
: 105
⤷ Overall Height
: 160
⤷ Width
: 45
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Waste Type
: Clicker
⤷ Handle Style
: Lever
⤷ WRAS Approved
: Yes
⤷ Waste Included
: Yes
⤷ Barcode
: 5014868075013
⤷ Product Type
: Basin Mixer Tap

Additional Info & Downloads

Download the Technical Data Sheet Pdf File Download the Installation Instruction Pdf File

Bristan Tangram Eco Start Basin Mixer Tap With Clicker Waste

£87.85

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

3 Features Included In This Product Explained

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...
