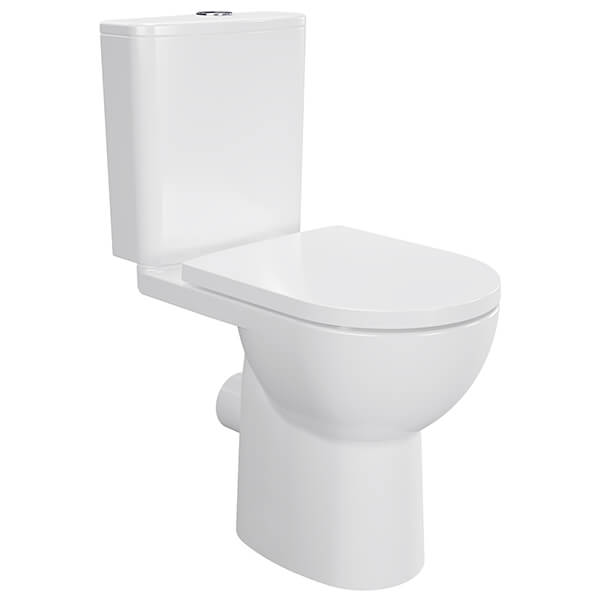

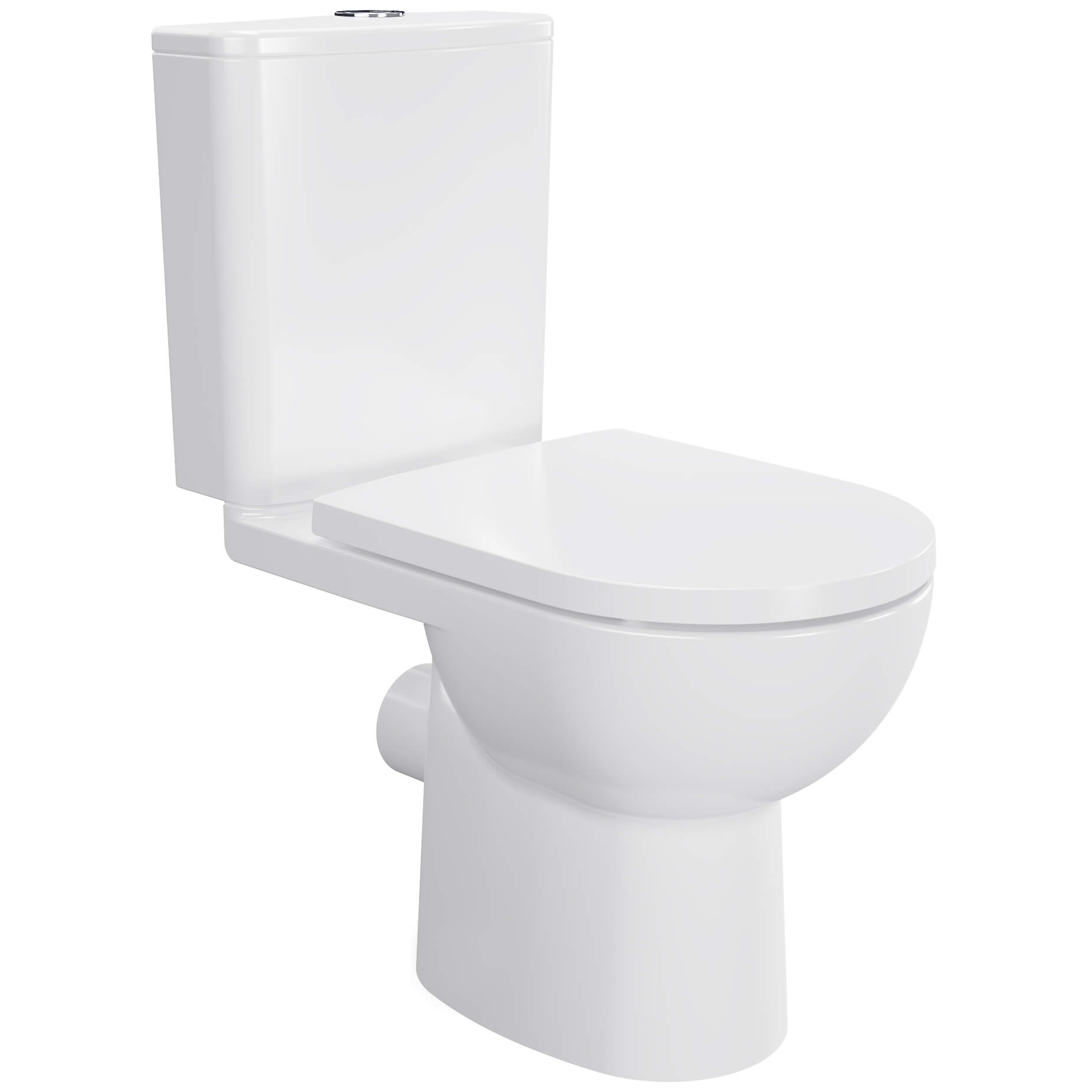

Imex Ivan Rimless Open Back Close Coupled Pan With Cistern And Seat

Ivan CT10176R Details

Imex Ivan Rimless Open Back Close Coupled Pan with Cistern And Seat is chic, stylish and modern with an emphasis on functionality. It is designed to offer maximum comfort to the user, whether this product is installed in a public setting or within your home.

The package includes a close-coupled WC pan that is floor-mounted with a concealed cistern and a bang-free soft close seat. You may also include a toilet roll holder and other accessories, which are optional. The pack has been crafted from durable ceramic, creates an environment built on class elegance, and gives your bathroom a luxe finish.

Available in 2 different variations: standard 800mm height and comfort 850mm height
It comes in a white finish
Includes WC pan, cistern and soft-close seat
Eco flush at 2.6 Litre and 4 Litre capability
Standard flush at 4 Litre and 6 Litre capability
Designed to complement all styles of bathroom
For complete size details, please refer to the technical drawing
Download the Aftercare Guide PDF provided in the Additional Info tab
Specification Of 800mm:
Size: 355mm [35.5cm] x 620mm [62cm] [Width x Projection]
Height of Pan: 400mm [40cm]
Overall height with cistern: 800mm [80cm]
Specification Of 850mm:
Size: 355mm [35.5cm] x 620mm [62cm] [Width x Projection]
Height of Pan: 450mm [45cm]
Overall height with cistern: 850mm [85cm]

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Ivan
⤷ Toilet Design
: Open Back
⤷ Colour
: White
⤷ Warranty/Guarantee
: 25 Years
⤷ Theme
: Modern
⤷ Installation Type
: Floor Standing
⤷ Water Saving
: Yes
⤷ Pan Width
: 355
⤷ Pan Height
: 400 | 450
⤷ Toilet Overall Height
: 800 | 850
⤷ Projection (Depth)
: 620
⤷ Rimless Bowl
: Yes
⤷ Cistern Included
: Yes
⤷ Flush Type
: Eco | Standard

⤷ Cistern Lever Or Button Placement
: Top
⤷ Configuration
: Pan | Cistern | Seat
⤷ Seat Included
: Yes
⤷ Seat Type
: Soft Close
⤷ Seat Finish
: White
⤷ Compliance/Approvals/Standard
: CE
⤷ Barcode
: 5057199981653
⤷ Bowl Shape
: D Shaped
⤷ Product Type
: Close Coupled
⤷ Cistern Depth (projection)
: 142
⤷ Seat Post Hole Centers
: 160
⤷ Front Of Bowl To Centre Of Seat Holes
: 425
⤷ Outlet Diameter
: 100
⤷ Base to centre of outlet
: 185

Additional Info & Downloads

Download the Aftercare Guide Pdf File

Videos

Video of Why Choose Short Projection Toilet?

Video of Why Choose Imex Rimless Toilets

Imex Ivan Rimless Open Back Close Coupled Pan With Cistern And Seat

£160.48

RRP: ~~£300.00~~

STOCK AVAILABLITY: 3-4 Working Days Approx

QS Supplies

5 Features Included In This Product Explained

Comfort Height

These toilets are usually a little higher than regular toilets. They measure from 17 to 19 inches off the ground.

CE Certified Product

CE mark meets the prescribed safety, health and environmental protection requirements and all appropriate EU requirements. This mark is mandatory for products designed, made and sold in the European Economic Area.

Open-Back Toilet

Open-back toilets are a type of close-coupled toilet with a cistern attached to the back of the toilet, creating one single unit. In the open-back model, there is a space at the back between the toilet bowl and the wall to access pipework at the back, while the closed back does not have a gap.

Soft-Close Seat

Soft-closing seats are a new alternative to classic seats. Their modern design hinges allow them to close slowly and gently.

Rimless

A rimless toilet does not have a brim at its edge, from which the water usually flows when you flush. Instead of flowing from the top, such toilets shoot water towards its edge and around it, allowing no missing spots with filth remaining after a flush. These toilets also remove any spaces for germs to hide and breed, providing a hygienic alternative for your bathroom.
