Deva Vitality Lever Chrome Deck Mounted Basin Mixer Tap With Waste

Vitality Lever VL113 Details

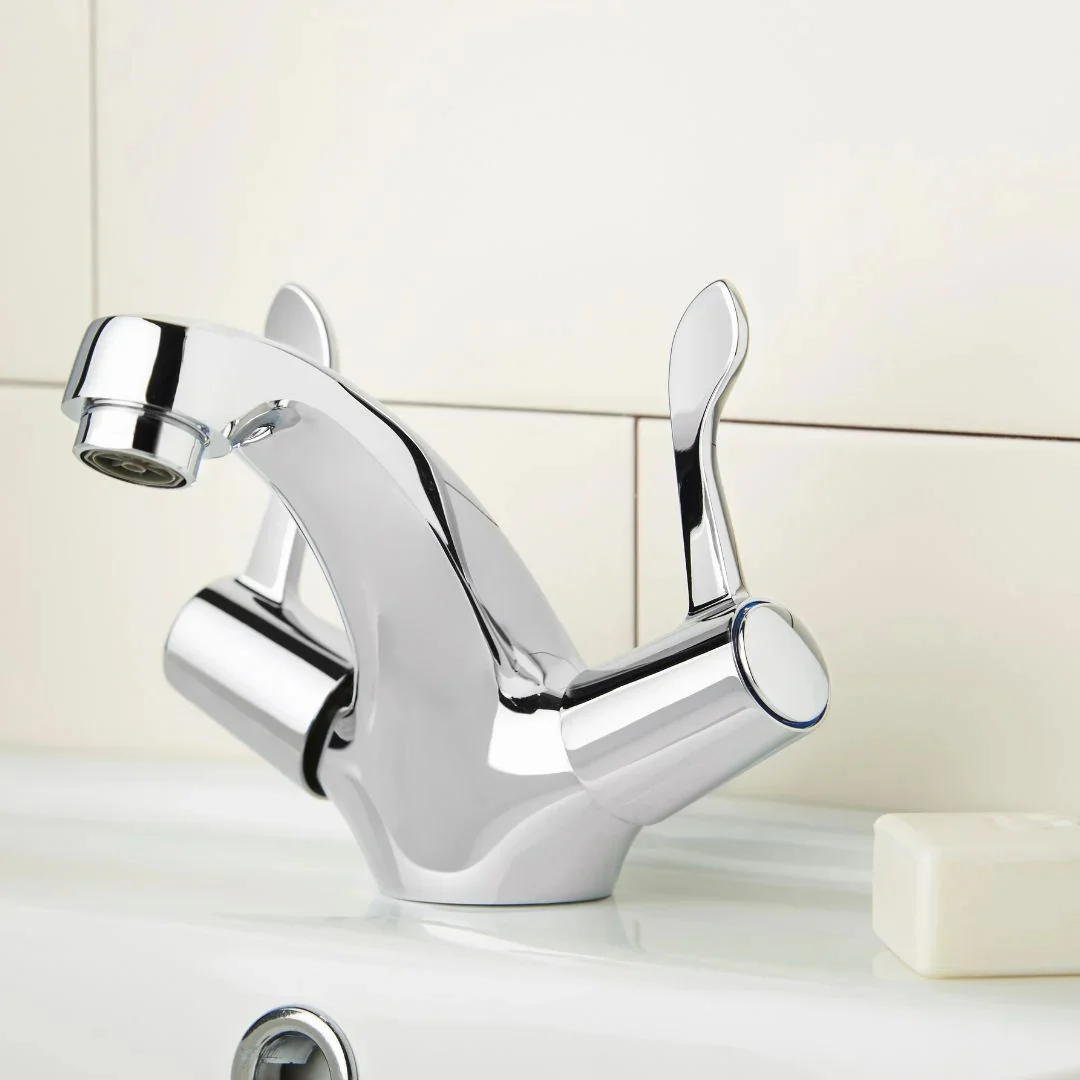

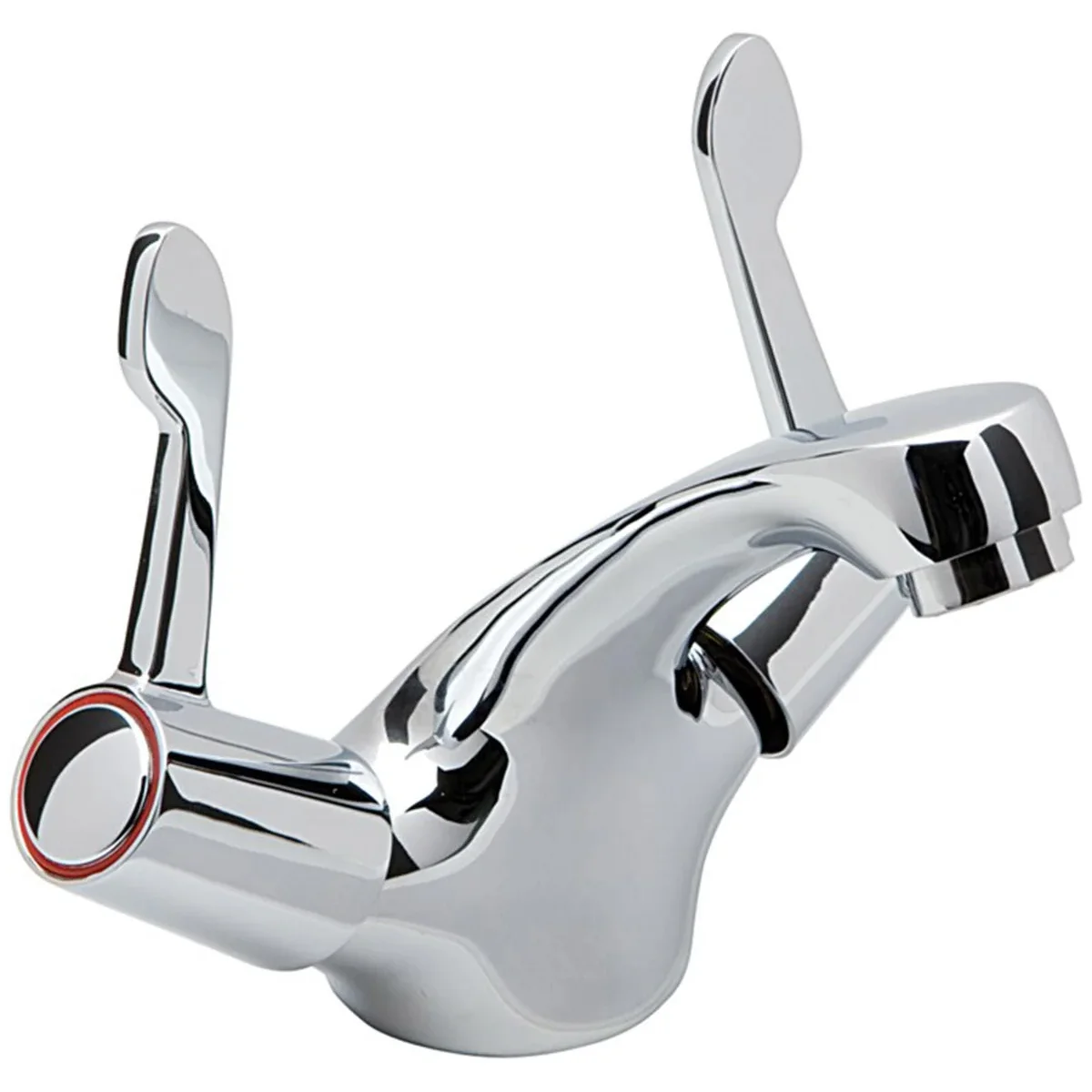

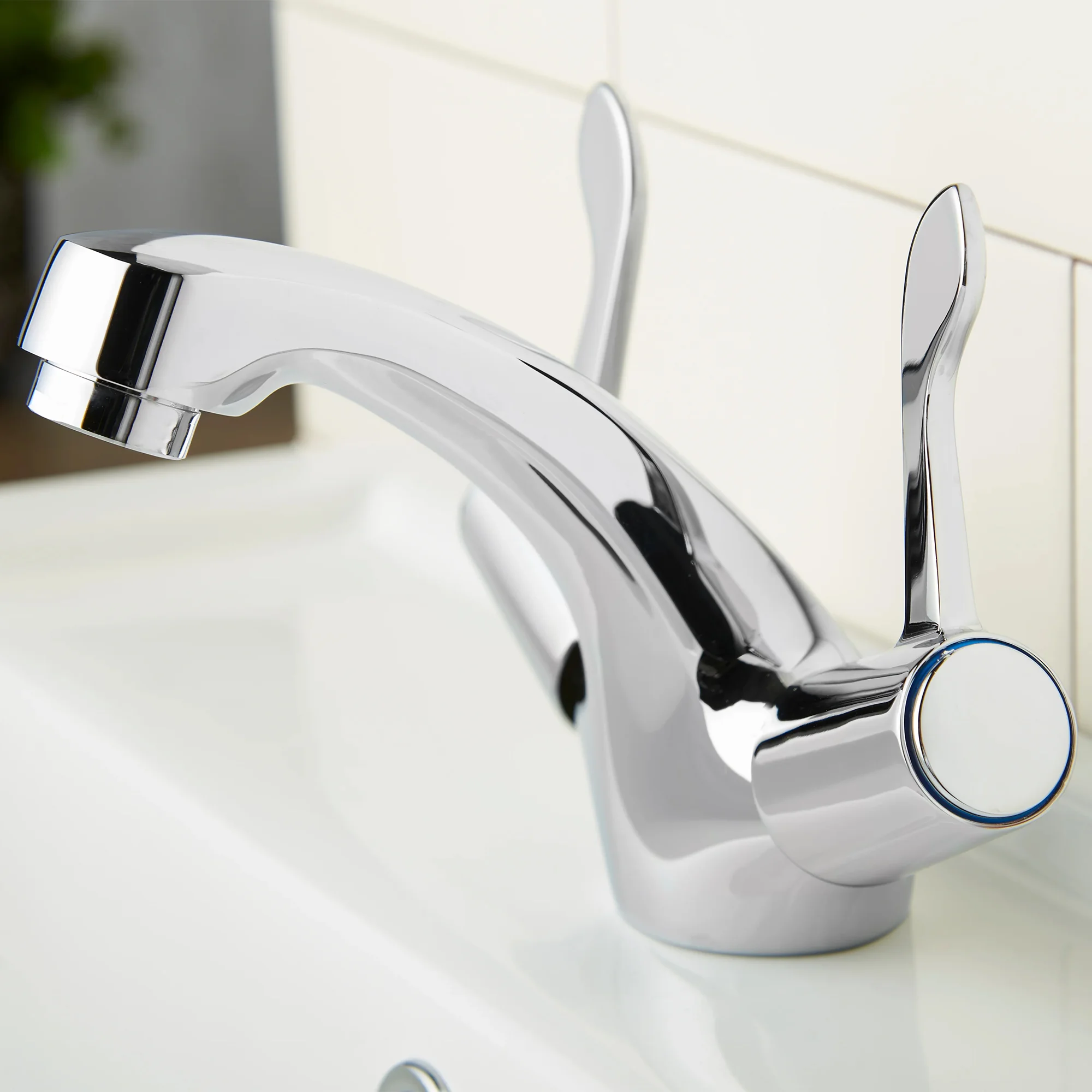

Deva Vitality Lever Chrome Deck Mounted Basin Mixer Tap With Waste.

Manufacturing code of this item: VL113
1/4 turn ceramic disc handles ensure a smooth operation
Easy maintenance
Easy identifiable hot and cold water selection
Features brass back nuts
Flexi Tails: M10 - 300mm
Suitable for all plumbing systems
Inlet connection: G1/2 inch BSP
Size in (mm): 156mm x 123.5mm [Width x Height]
Size in (cm): 15.6cm x 12.35cm [Width x Height]
Base to spout height: 85.5mm (8.55cm)
Centre of inlet to centre of outlet: 100mm (10cm)
Suitable for low and high water pressure systems
Works on minimum 0.1 bar to maximum 5.0 bar water pressure system

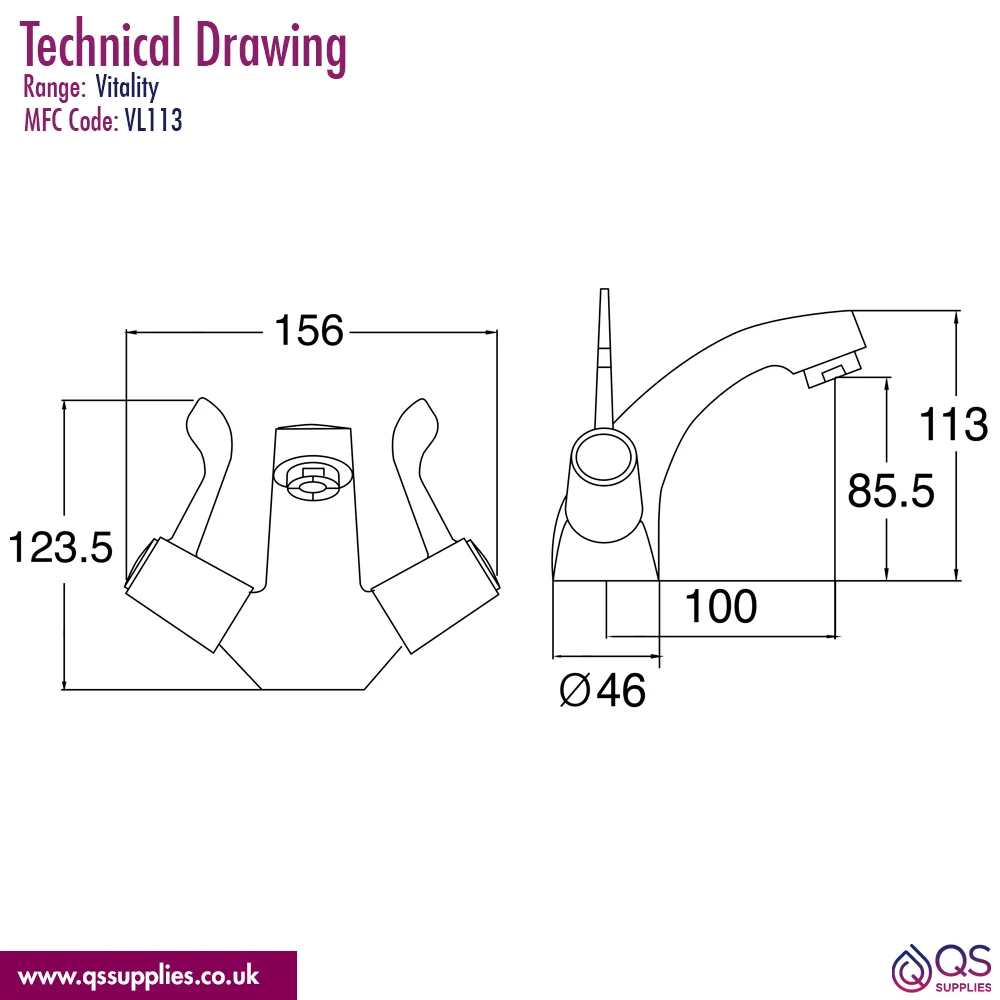

Refer to the technical diagram for complete technical dimensions
Download the Product Data Sheet and Installation Instructions PDF from the Additional Info section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Handle Position
: Left, Right
⤷ Tap Body Shape
: Round
⤷ Range
: Vitality
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 12 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Fixed
⤷ Base To Spout
: 85.5

⤷ Spout Reach
: 100
⤷ Overall Height
: 123.5
⤷ Width
: 156
⤷ Inlet Connections
: G1/2 Inch
⤷ Minimum Operating Pressure (Bar)
: 0.1
⤷ Waste Type
: Press Top Waste
⤷ Handle Style
: Lever
⤷ WRAS Approved
: Yes
⤷ Waste Included
: Yes
⤷ Barcode
: 5057199978165
⤷ Product Type
: Basin Mixer Tap

Additional Info & Downloads

Download the Product Data Sheet Pdf File Download the Installation Instructions Pdf File

Deva Vitality Lever Chrome Deck Mounted Basin Mixer Tap With Waste

£66.00

IN-STOCK

Delivery in 3 Working Days Approx.

QS Supplies

3 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...
