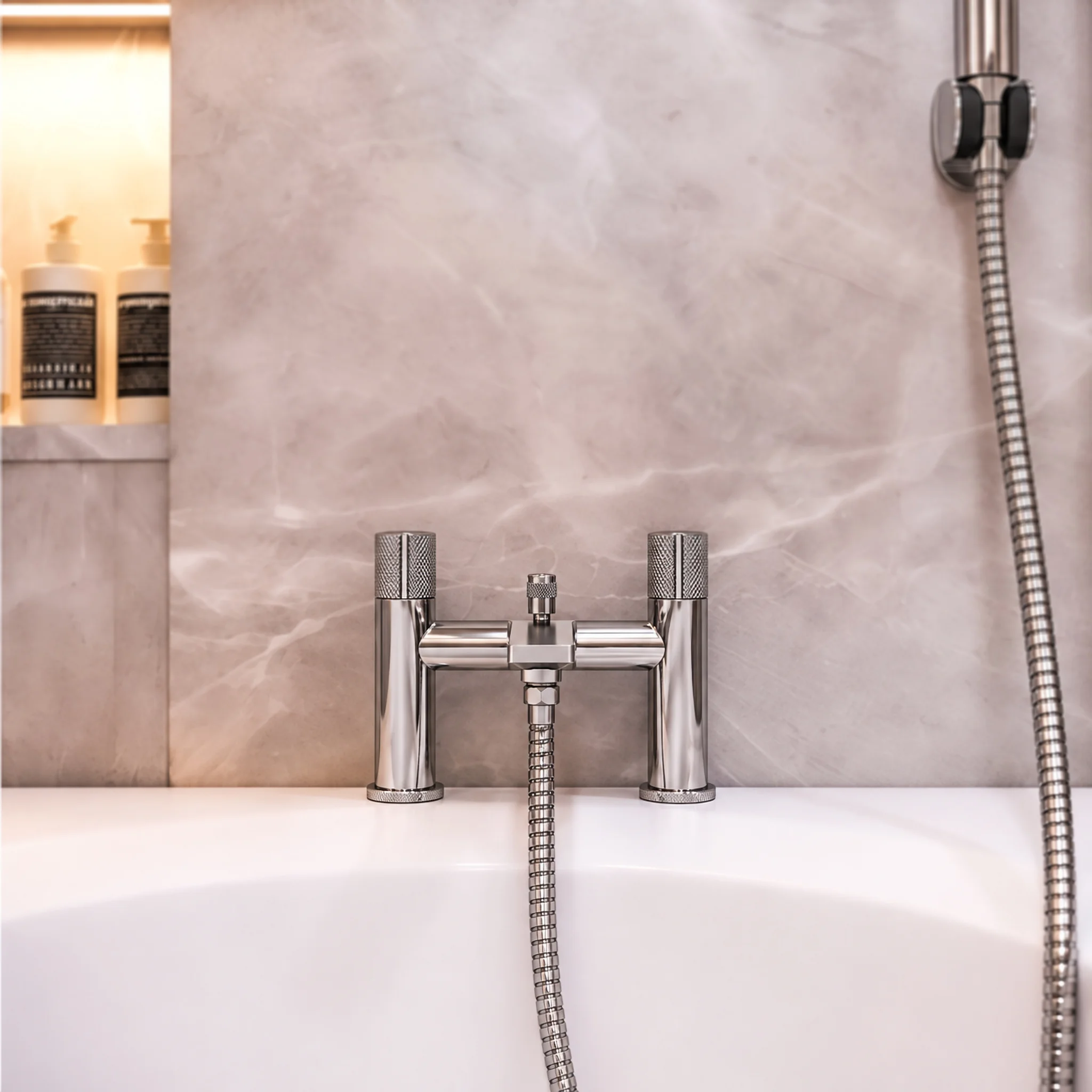

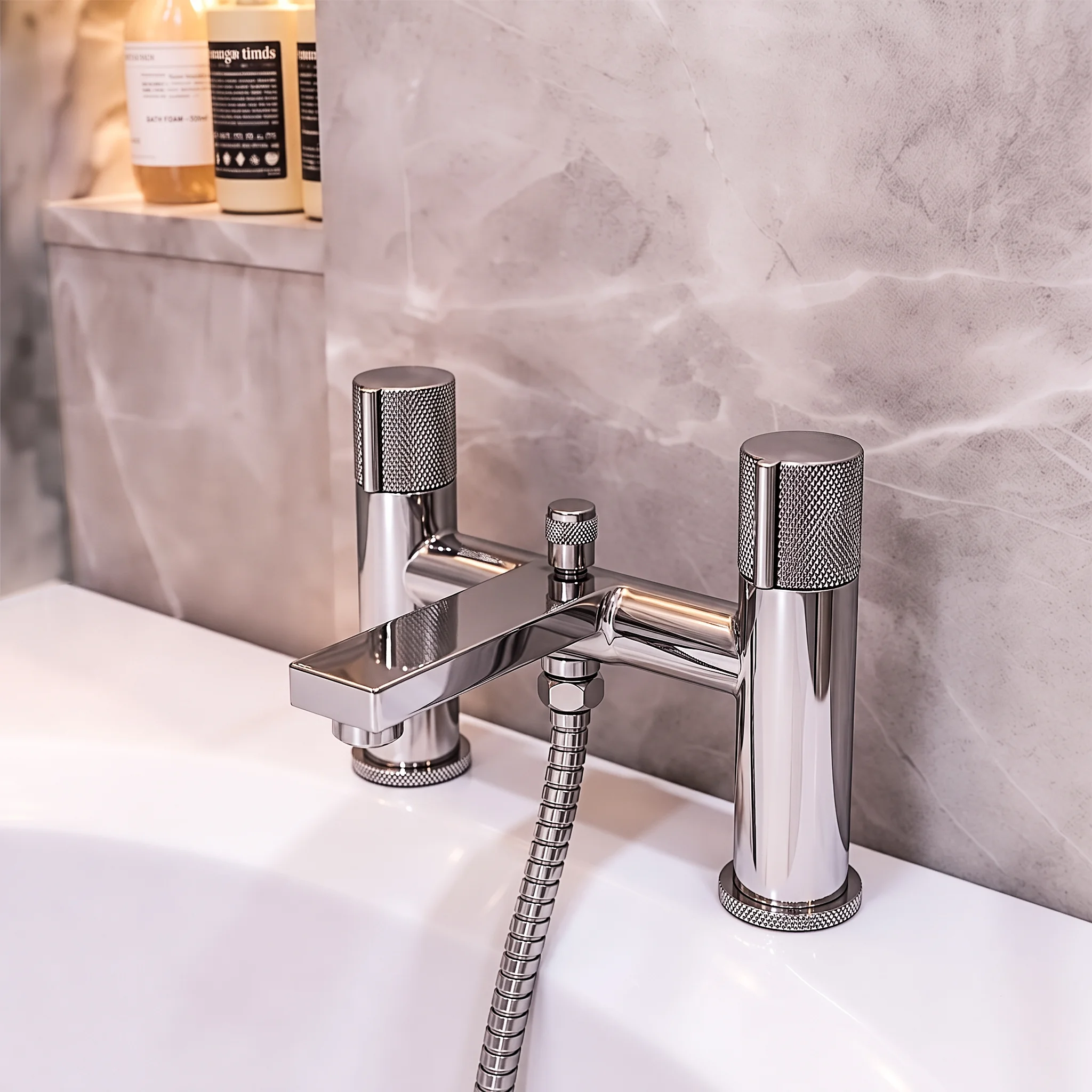

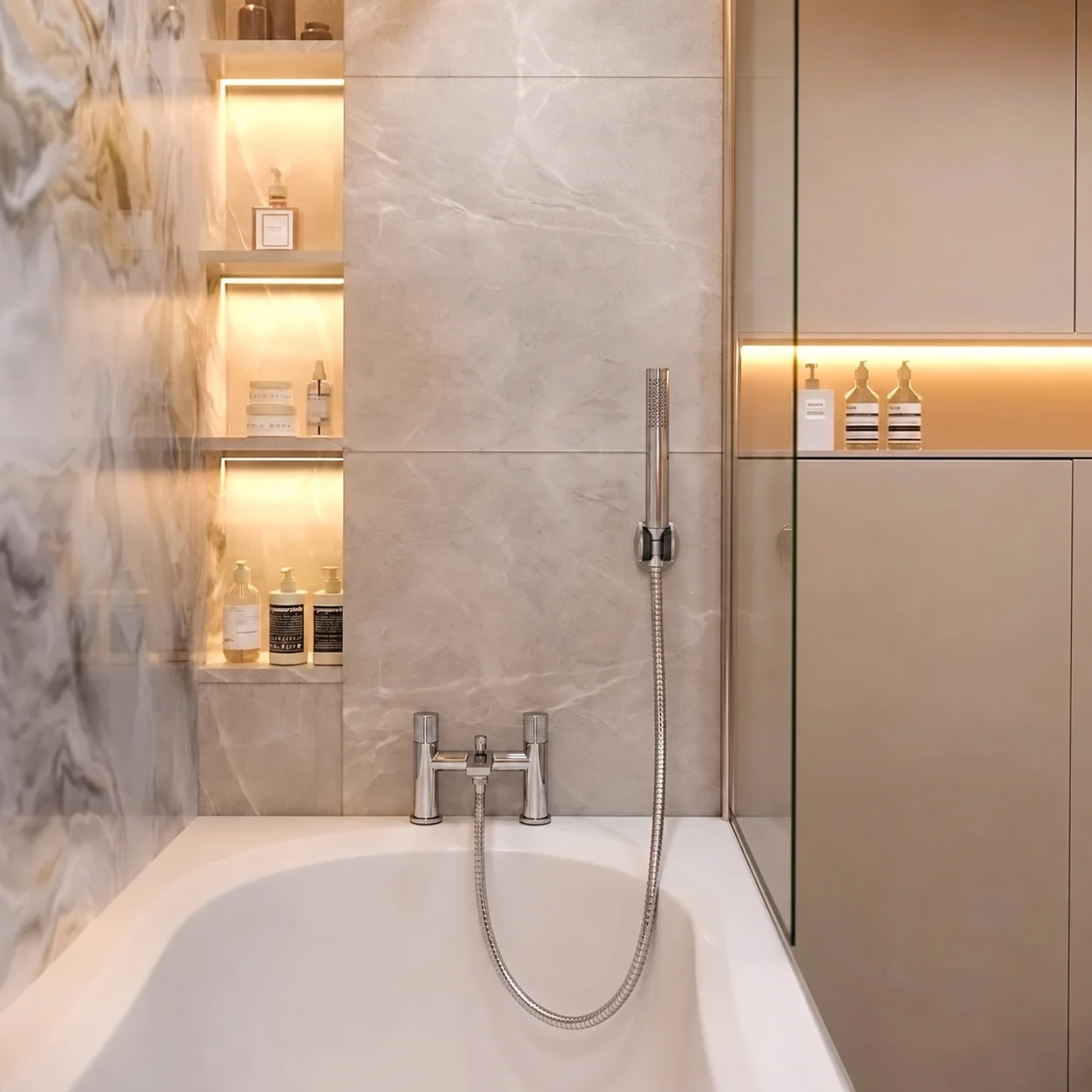

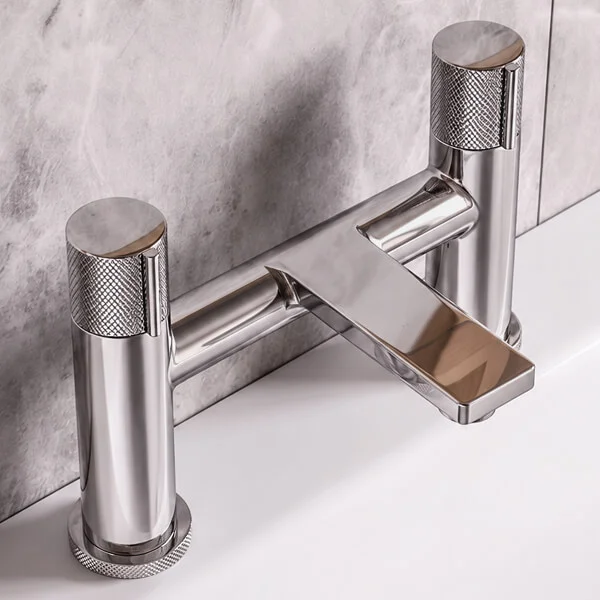

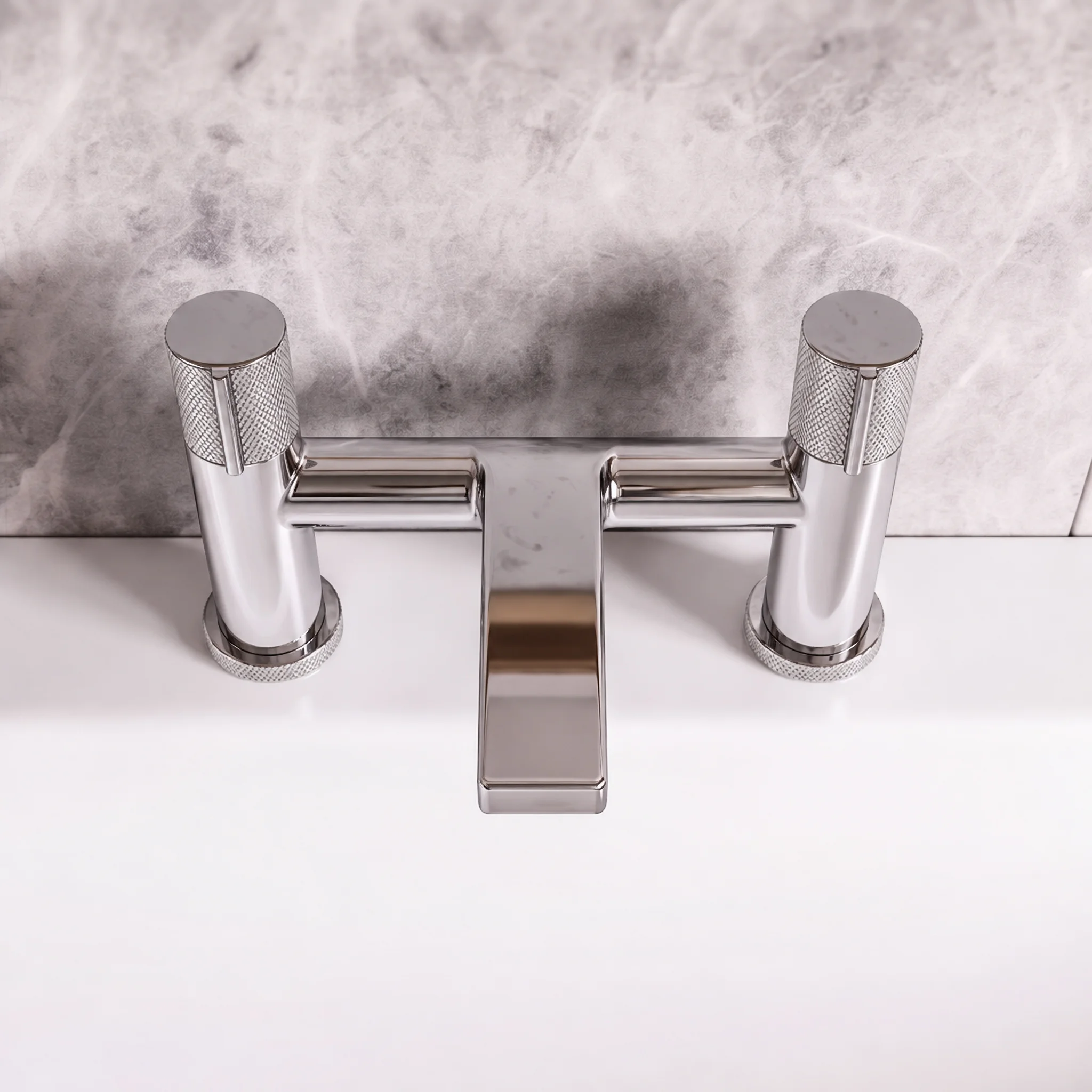

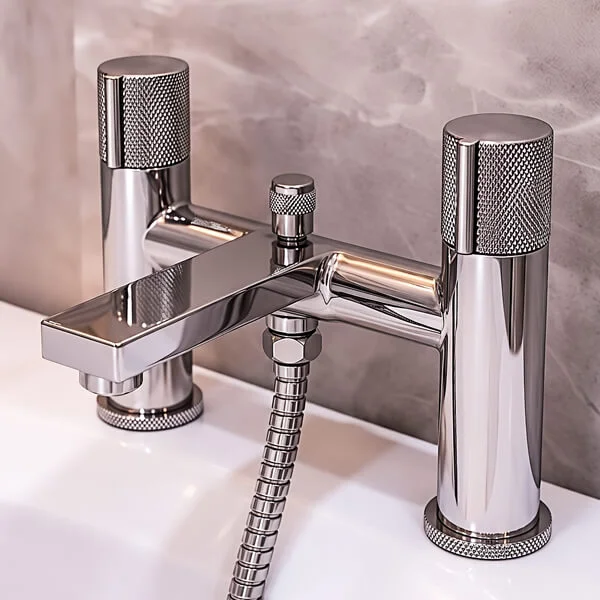

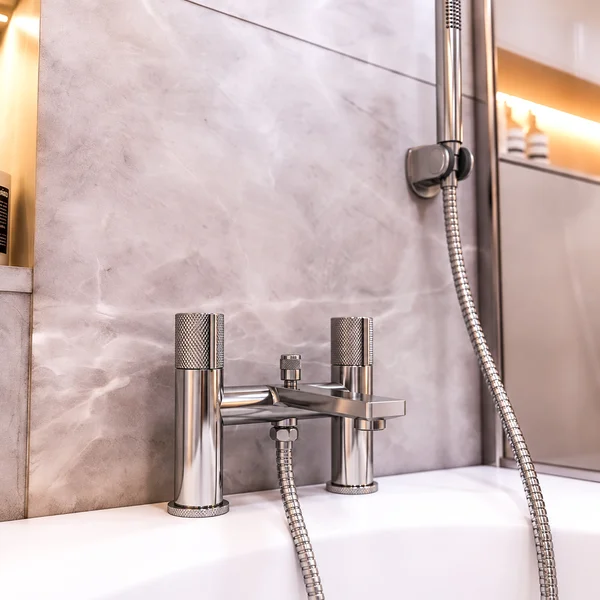

Joseph Miles Kaze Quarter Turn Knurled Handle Bath Mixer Tap

Joseph Miles Kaze MG03 Details

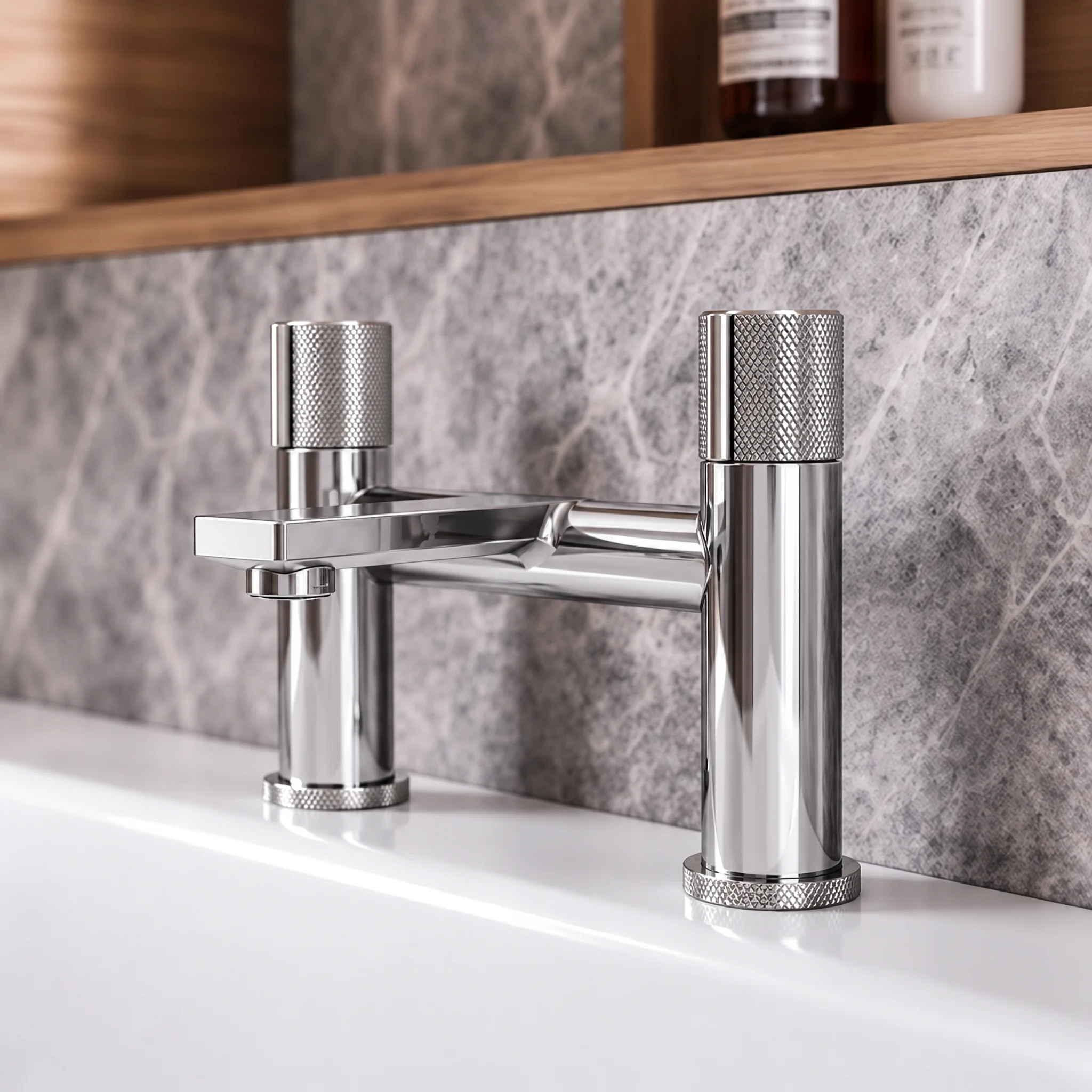

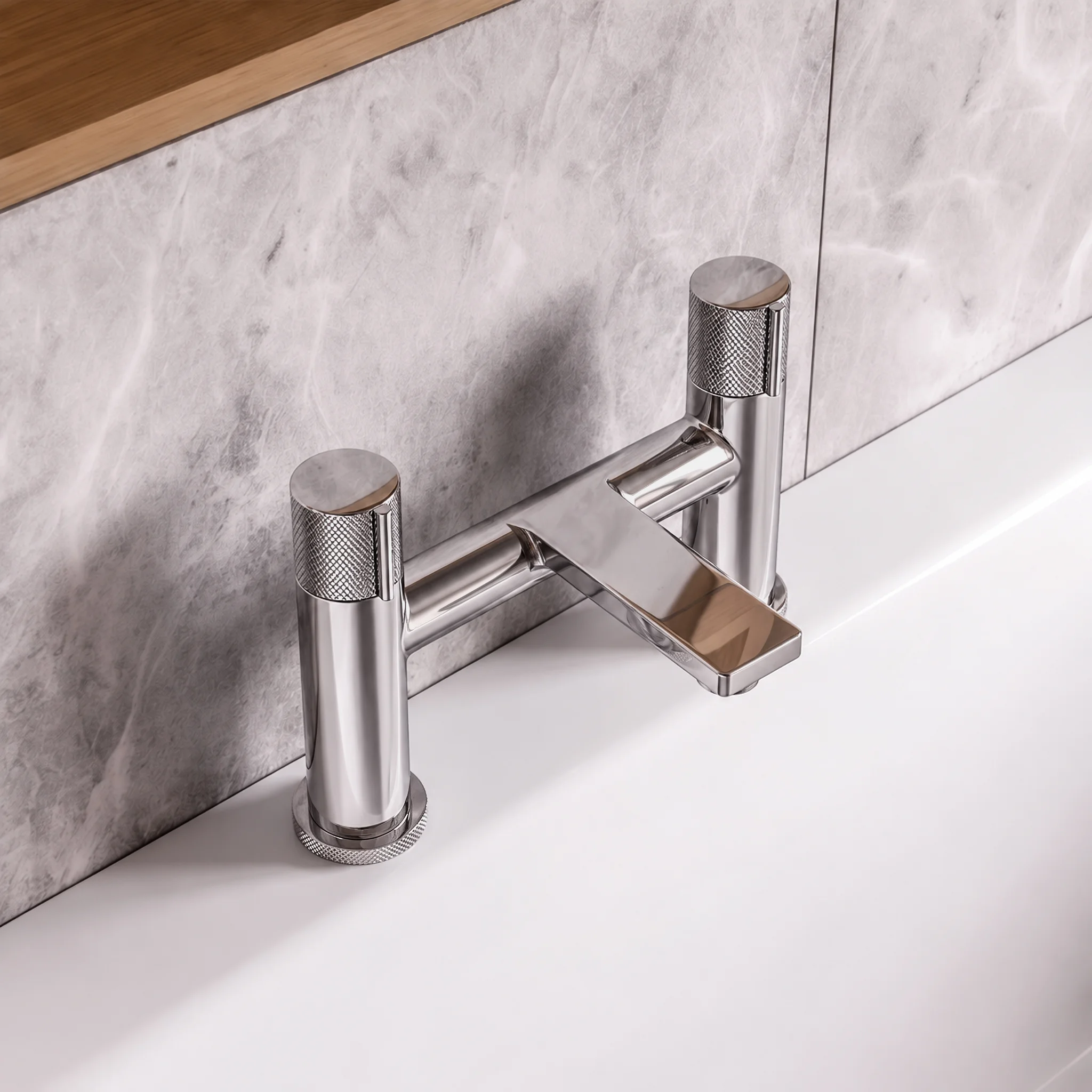

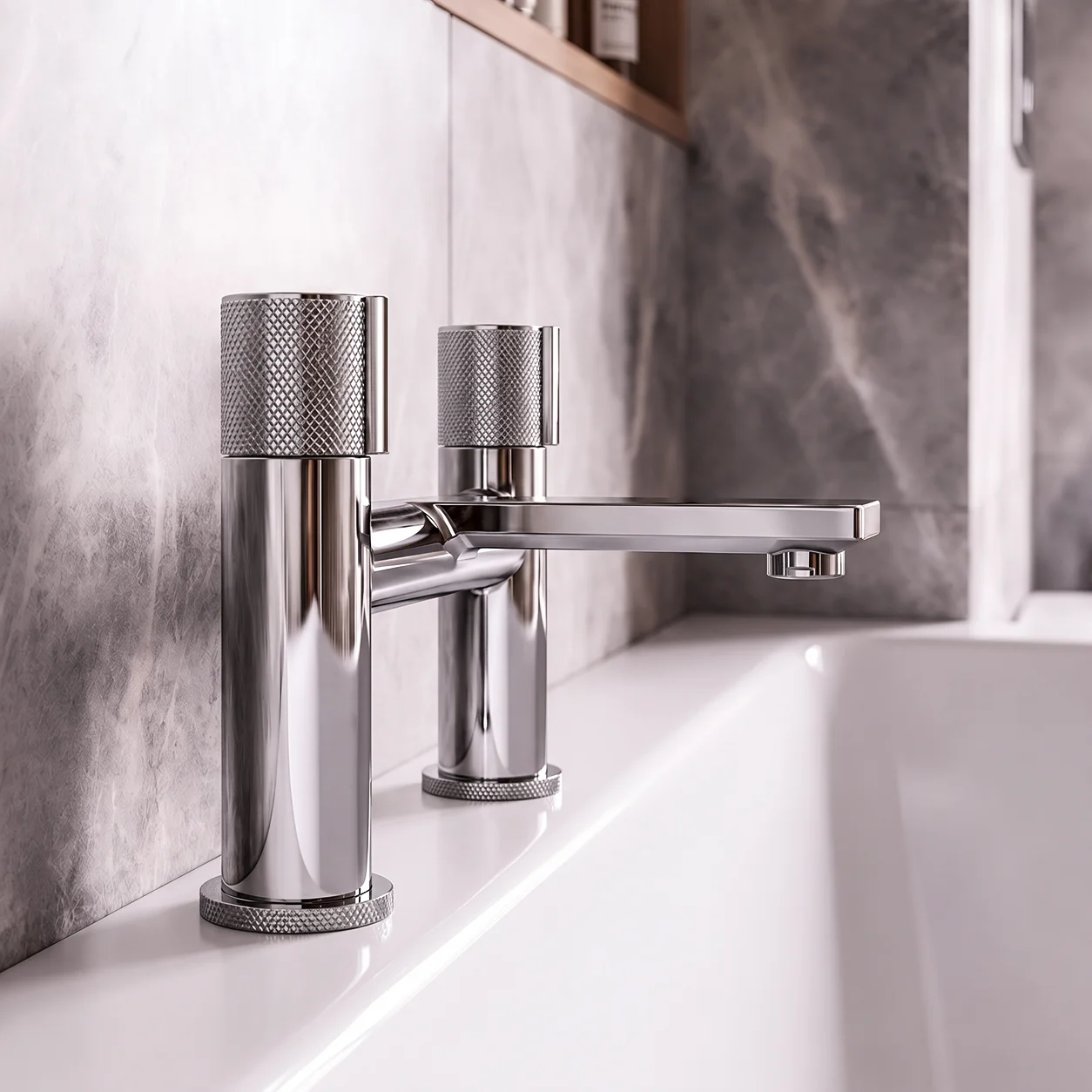

Joseph Miles Kaze Quarter Turn Knurled Handle Bath Mixer Tap.

Key Features

✔Quarter-turn tap

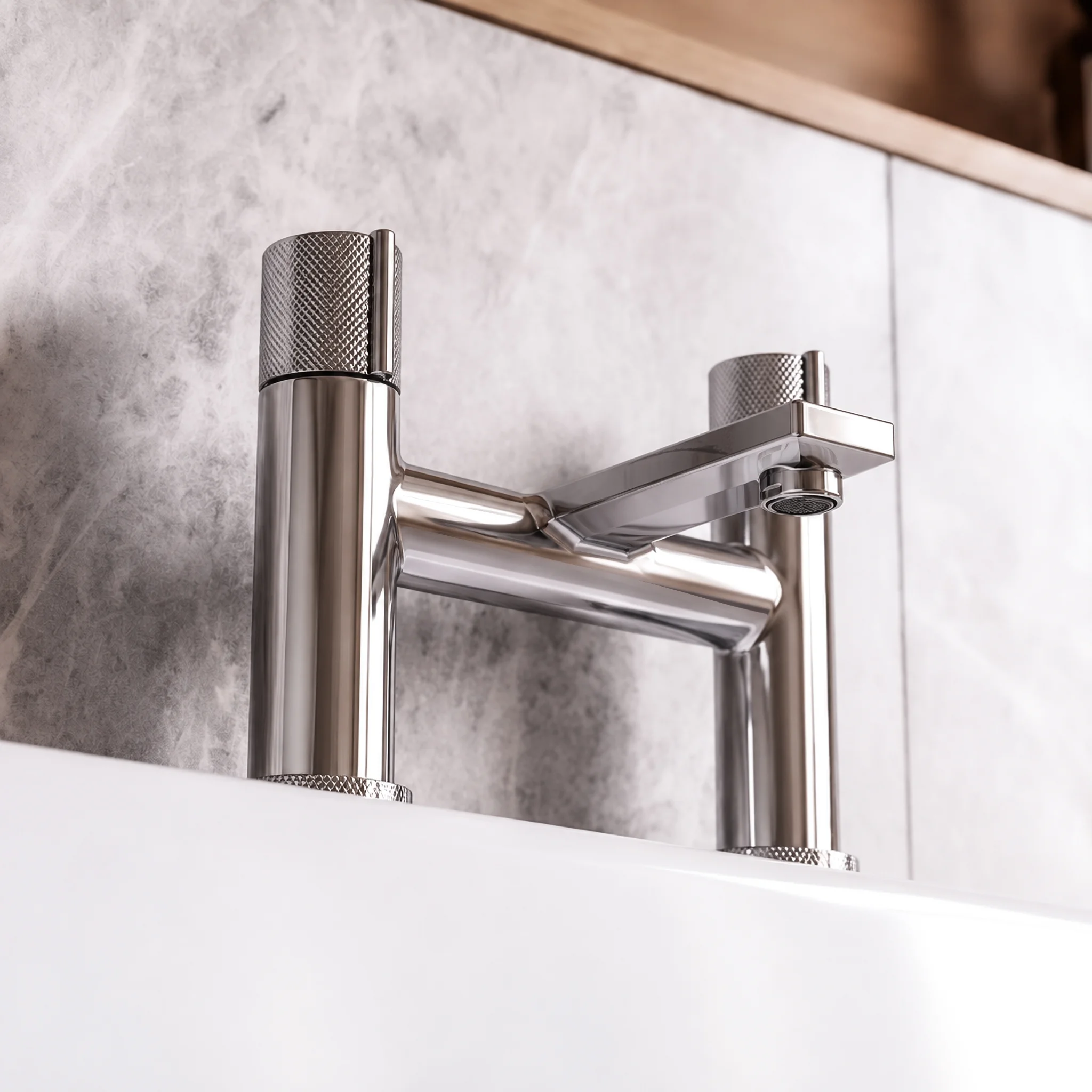

✔Includes spout aerator
✔Brass body with zinc handles
✔Available in 3 finishes: Chrome, Matt Black and Brushed Brass
✔Guarantee: 10-year for the Chrome finish and 5-year for the Matt Black and Brushed Brass finish

Available in 2 variations: Tap Only, Tap With Kit

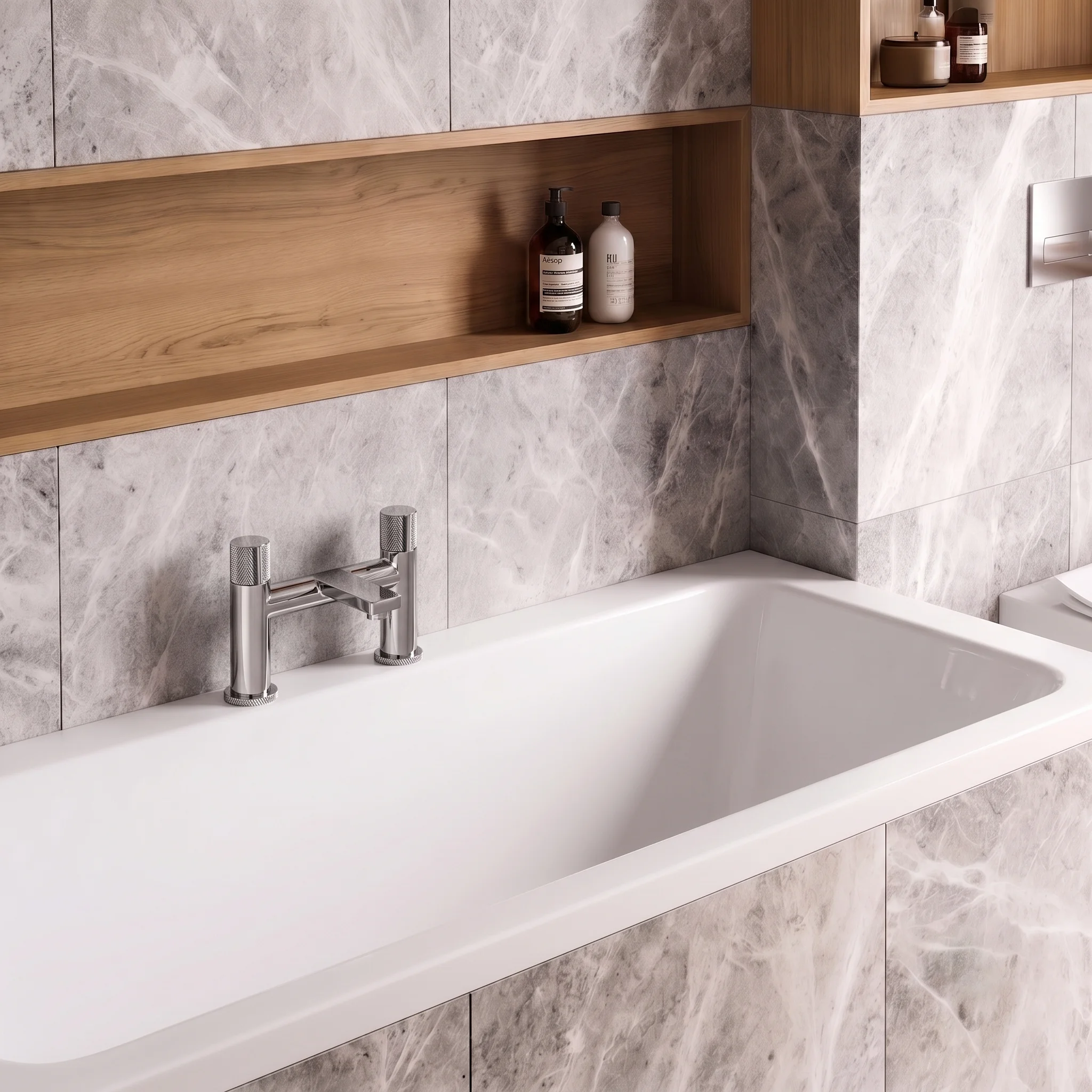

Deck-mounted installation

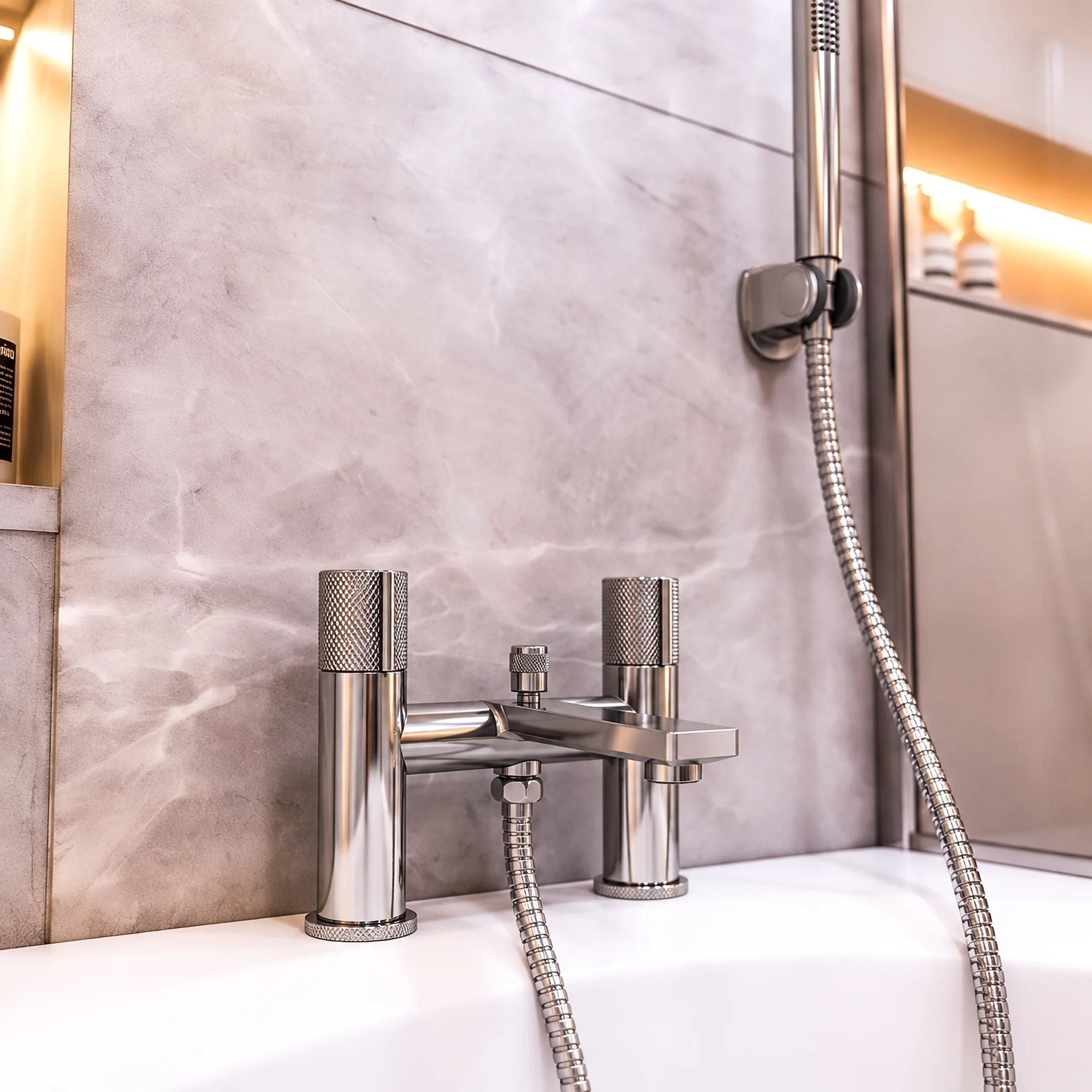

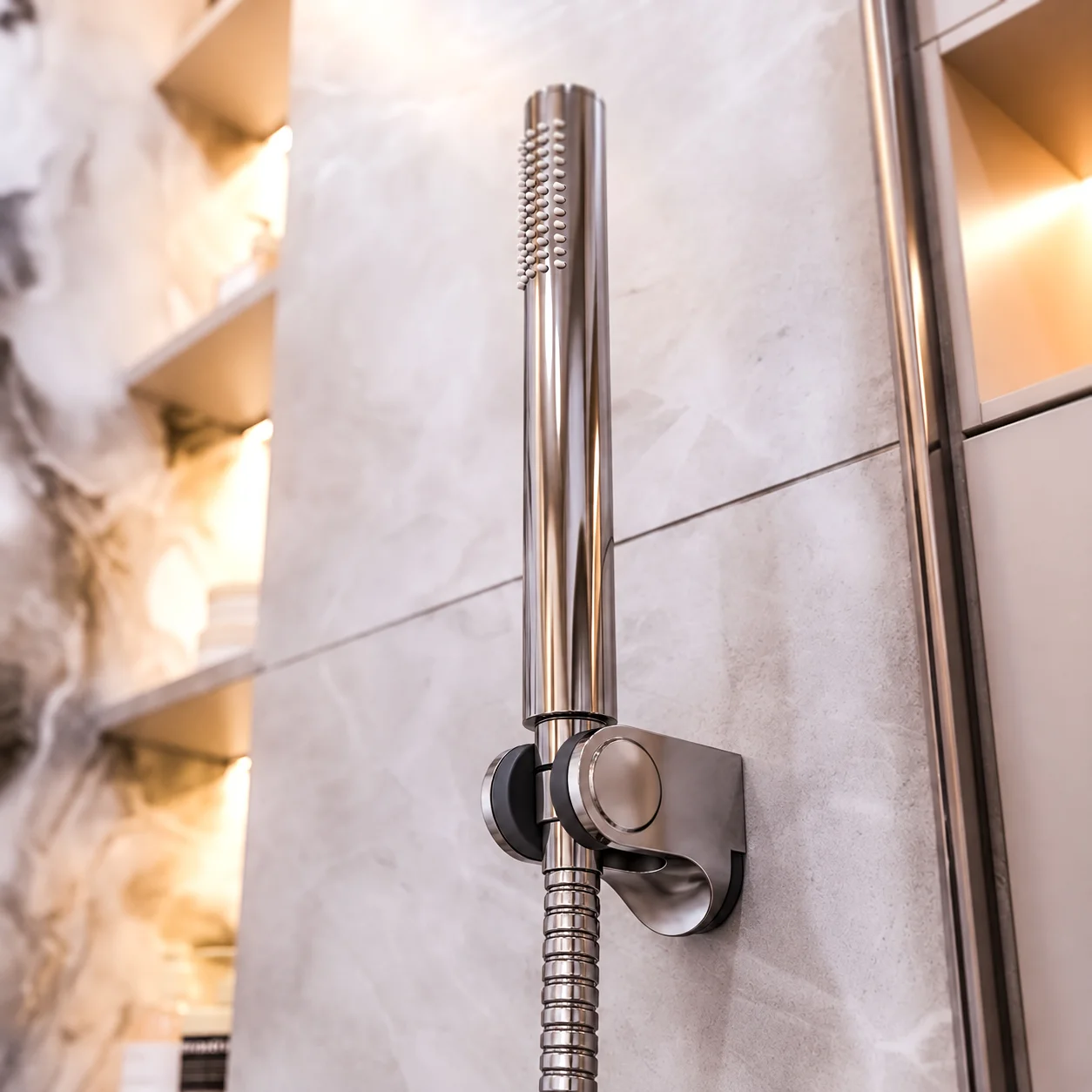

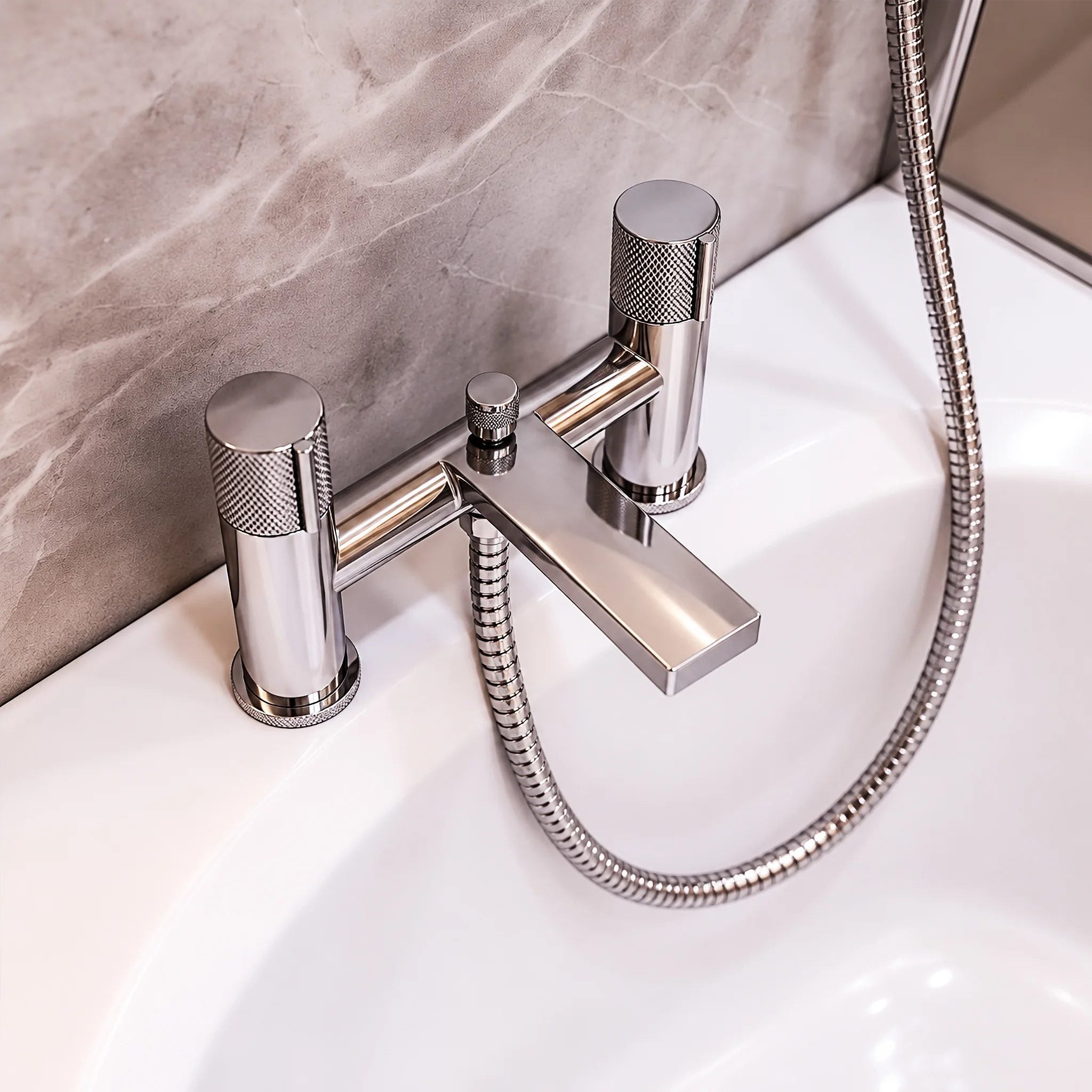

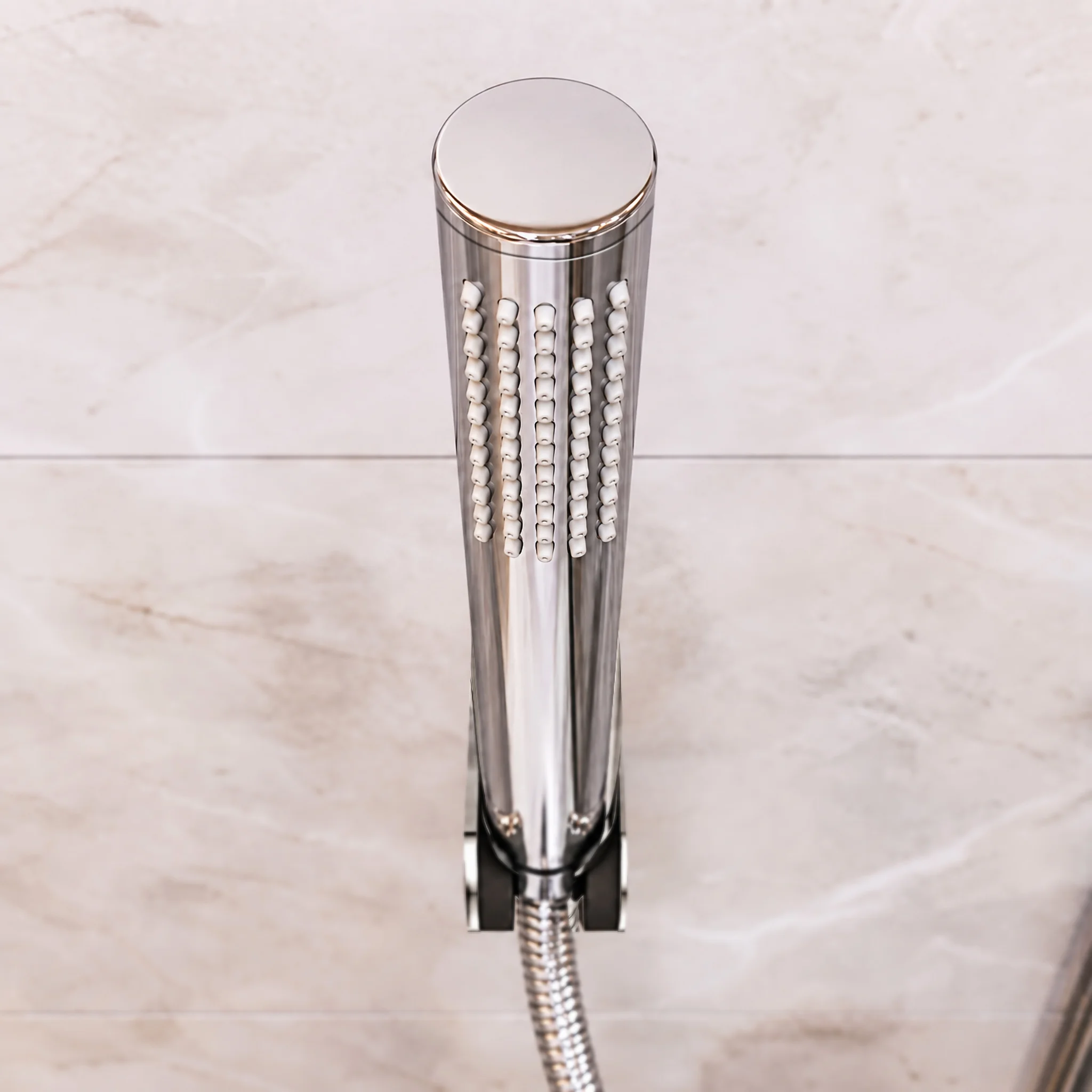

Tap With Kit includes 1500mm smooth PVC hose, ABS handset and holder
Size (mm): 156mm x 184mm [Depth x Height]
Size (cm): 15.6cm x 18.4cm [Depth x Height]
Base to spout: 102mm (10.2cm)
Centre of the inlet to the centre of the outlet: 111.5mm (11.15cm)
Inlet centres: 180mm (18cm)
Fitting: Brass G3/4-Inch BSP tails
3/4-Inch Ceramic disc valves
Suitable for all plumbing systems
Hot and Cold water pressure preferably balanced
Maximum supply pressure differential requirement no greater than 5:1
Requires a minimum of 0.5 bar and a maximum of 6.0 bar water pressure
Compliance/Standards: BS5412, BS EN200
Refer to the technical image for more details

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Range
: Kaze
⤷ Handle Position
: Left & Right
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 2
⤷ Spout type
: Fixed
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Ceramic Disc

⤷ Handle Material
: Zinc Alloy
⤷ Base To Spout
: 102
⤷ Spout Reach
: 111.5
⤷ Inlet Centres
: 180
⤷ Overall Height
: 184
⤷ Max. Deck Thickness
: 40
⤷ Inlet Connections
: G3/4-Inch BSP tails
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Handle Style
: Knob Handle
⤷ Compliance/Approvals/Standard
: BS5412, BS EN200
⤷ Barcode
: 7427042695361
⤷ Product Type
: Bath Mixer Tap

Technical Images

Joseph Miles Kaze Quarter Turn Knurled Handle Bath Mixer Tap

£105.00

RRP: ~~£189.43~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

4 Features Included In This Product Explained

Bar Pressure

Bar is a unit of pressure, which is accepted for use with SI by The International Bureau of Weights and Measures. The bar is used as it is almost equal in value as the standard atmosphere which is 1.01325 bar.

Flexible Tail Pipes

Flexible Tails, or "Flexi" Tails, are one of the easiest methods to connect the plumbing pipework to the tap fitting. Mixers generally have two tails, one for the hot water supply and the other for the cold. These tailpipes consist of rubber inside a braided metal and come in many sizes.

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.

Quarter Turn

Operating these taps is almost effortless; it can be turned on and off by rotating the lever at 90 degrees. These taps have such low friction that they are perfect for people with arthritis, weak grip, the elderly and the young.
