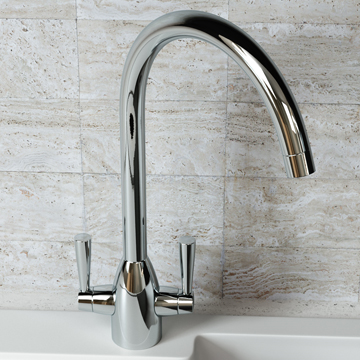

Joseph Miles Tulip Deck Mounted Kitchen Sink Mixer Tap

Joseph Miles Tulip UL12 Details

Joseph Miles Tulip Deck Mounted Kitchen Sink Mixer Tap.

Available in 3 finishes: Stainless Steel, Matt Black and Brushed Brass
Construction: Brass body with stainless-steel spout and zinc-alloy handles
Dual-handle kitchen mixer tap
Deck-mounted installation
Base width: Ø53mm (Ø5.3cm)
Height: 385mm (38.5cm)
Base to spout: 287mm (28.7cm)
Centre of the inlet to the centre of the outlet: 208mm (20.8cm)
Fitting: M10 x G1/2-Inch BSP Female flexible inlet connection hoses, 400mm
Includes M24x1 spout aerator
Can be installed on worktop with maximum thickness of 40mm
Suitable for all plumbing system, Hot and Cold water pressure preferably balanced
Maximum supply pressure differential requirement no greater than 5:1
Requires a minimum of 0.5 bar and a maximum of 6.0 bar wayer pressure
Refer to the technical image for more details

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Handle Position
: Left & Right
⤷ Tap Body Shape
: Round
⤷ Range
: Tulip
⤷ Colour
: Stainless Steel
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Swivel
⤷ Valve/Cartridge Type
: Ceramic Disc Cartridge
⤷ Handle Material
: Zinc Alloy

⤷ Spout Swivel
: 360°
⤷ Base To Spout
: 287
⤷ Spout Reach
: 208
⤷ Overall Height
: 385
⤷ Max. Deck Thickness
: 40
⤷ Inlet Connections
: G1/2-Inch
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Handle Style
: Stick Handle
⤷ WRAS Approved
: Yes
⤷ Compliance/Approvals/Standard
: BS5412, BS EN200
⤷ Barcode
: 7081249600377
⤷ Product Type
: Kitchen Mixer Tap

Joseph Miles Tulip Deck Mounted Kitchen Sink Mixer Tap

£49.99

RRP: ~~£86.41~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

5 Features Included In This Product Explained

Bar Pressure

Bar is a unit of pressure, which is accepted for use with SI by The International Bureau of Weights and Measures. The bar is used as it is almost equal in value as the standard atmosphere which is 1.01325 bar.

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.

Stainless Steel Material

Stainless Steel is an iron alloy with anti-rust and anti-corrosive properties, unlike iron. Along with other metal alloys, it contains a minimum of 10.5% of chromium and less than 1.2% of carbon. This robust, hygienic, hard-wearing base material is popular in the construction of bathroom products.

Swivel-Spout

The respective apparatus is engineered to move sideways or at certain angles, which helps the spout cover a greater area than would be possible in a fixed position.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
