Crosswater Drift Thermostatic Shower Valve With Trimset

Drift DR1000RC Details

Crosswater Drift Thermostatic Shower Valve With Trimset.

Key Features

✔Available in 4 variations
✔Available in 3 finishes
✔Manufactured using brass material
✔Features thermostatic temperature control
✔15 years of guarantee against any manufacturing defects

Metal handles and backplate
Standards: BS EN 1111:2017
Inlet connection thread: G3/4 inch
Outlet connection thread: G3/4 inch
Independent flow and temperature controls
Suitable for high water pressure system
Works on minimum 1.0 bar to maximum 5.0 bar water pressure

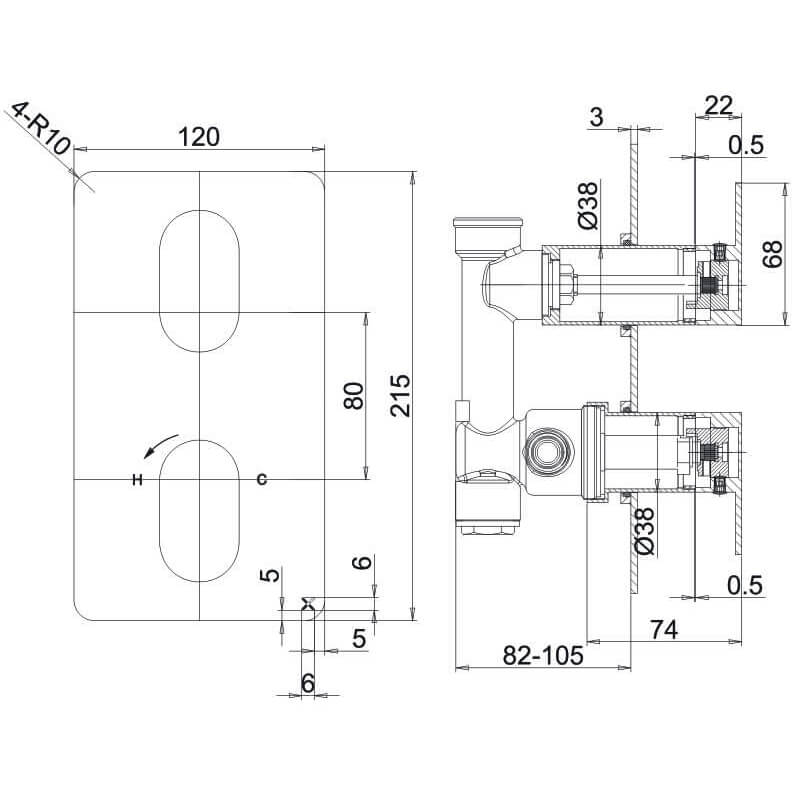

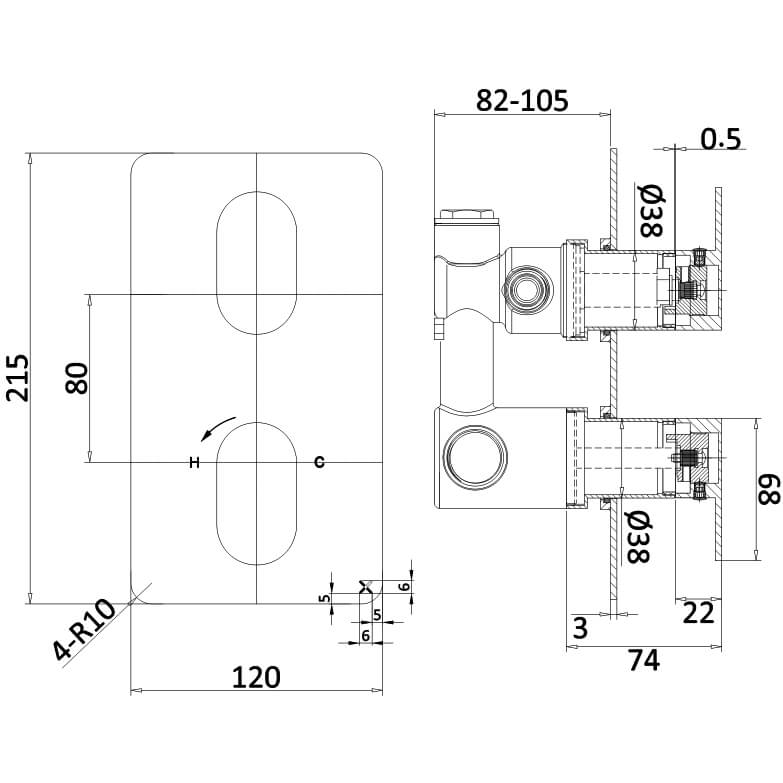

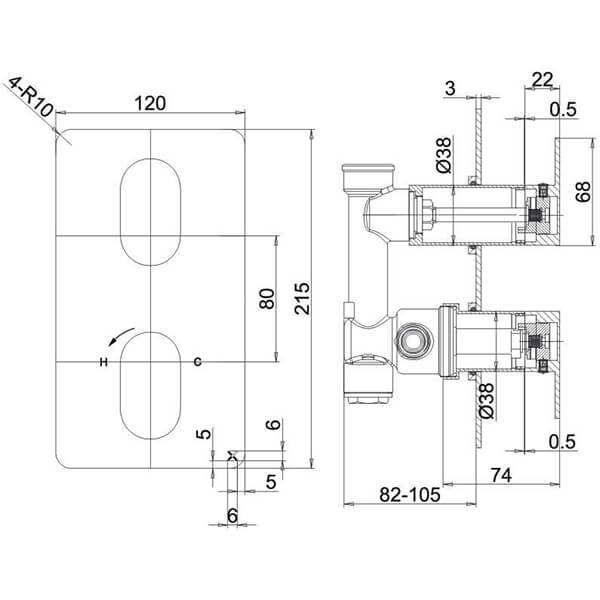

Refer to the technical diagram for complete technical dimensions
Features Of Drift 1 Outlet 2 Handle - Portrait:
Size of backplate in [mm]: 120mm x 215mm [Width x Height]
Size of backplate in [cm]: 12cm x 21.5cm [Width x Height]
Weight: 1.6kg
Headwork: Thermostatic cartridge, 3/4 inch quarter turn ceramic cartridge
Features Of Drift 2 Outlet 2 Handle - Portrait:
Size of backplate in [mm]: 120mm x 215mm [Width x Height]
Size of backplate in [cm]: 12cm x 21.5cm [Width x Height]
Weight: 1.76kg
Headwork: Thermostatic cartridge, 40mm diverter
Features Of Drift 2 Outlet 3 Handle - Portrait:
Size of backplate in [mm]: 120mm x 280mm [Width x Height]
Size of backplate in [cm]: 12cm x 28cm [Width x Height]
Weight: 1.76kg
Headwork: Thermostatic cartridge, 3/4 inch quarter turn ceramic cartridge
Features Of Drift 2 Outlet 3 Handle - Landscape:
Size of backplate in [mm]: 280mm x 120mm [Width x Height]
Size of backplate in [cm]: 28cm x 12cm [Width x Height]
Weight: 1.76kg
Headwork: Thermostatic cartridge, 3/4 inch quarter turn ceramic cartridge

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Range
: Drift
⤷ Handle Position
: Front
⤷ Colour
: Chrome
⤷ Shape
: Rectangular
⤷ Warranty/Guarantee
: 15 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Minimum Operating Pressure (Bar)
: 1.0
⤷ Temperature Control
: Thermostatic

⤷ Backplate Width
: 120
⤷ Backplate Height
: 215
⤷ Number of Handles
: 2
⤷ Number of Outlet
: 1
⤷ Outlet Connection
: G3/4
⤷ Orientation
: Portrait
⤷ Barcode
: 5056808703044
⤷ Plumbing Option
: Concealed
⤷ Maximum Operating Pressure (Bar)
: 5.0
⤷ Cartridge Type
: Thermostatic cartridge

Crosswater Drift Thermostatic Shower Valve With Trimset

£284.26

Stock Availablity: 5-7 Working Days Approx

QS Supplies

1 Features Included In This Product Explained

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
